If the ignition is switched off, HomeLink

will function for 30 minutes after the driv-

er's door has been opened.

HomeLink

Wireless Control System*

– programming

The HomeLink Wireless Control System pro-

vides a convenient way to replace up to three

hand-held radio-frequency (RF) transmitters

used to activate devices such as gate opera-

tors, garage door openers, entry door locks,

security systems, even home lighting. Addi-

tional information can be found on the Inter-

HomeLinkGentex or by phoning the hotline at

1–800–355–3515.

Some vehicles may require the ignition to

be switched on or be in the “accessories”

position for programming and/or operation

of HomeLink. It is also recommended that

a new battery be placed in the hand-held

transmitter of the device being pro-

grammed to HomeLink for quicker training

and accurate transmission of the radio-fre-

quency signal. The HomeLink buttons

must be reset first. When this has been

completed, Homelink is in learning mode

so that you can perform programming.

1. Position the end of your hand-held trans-

mitter 1–3 inches (5–14 cm) away from

the HomeLink button you wish to pro-

gram while keeping the indicator light in

view.

2. Simultaneously press and hold both the

chosen HomeLink and hand-held trans-

mitter buttons until the HomeLink indica-

tor light changes from a slow to a rapidly

blinking light. Now you may release both

the HomeLink and hand-held transmitter

buttons.

contact HomeLink at www.homelink.com/

Some devices may require you to replace

this Programming Step 2 with procedures

noted in the “Gate Operator / Canadian

Programming” section. If the HomeLink

indicator light does not change to a rapidly

blinking light after performing these steps,

www.youtube.com/HomeLinkGentex or by

phoning the hotline at 1–800–355–3515.

03 Instruments and controls

110

3. Firmly press, hold for five seconds and

release the programmed HomeLink but-

ton up to two separate times to activate

the door. If the door does not activate,

press and hold the just-trained HomeLink

button and observe the indicator light.

•

If the indicator light stays on con-

stantly, programming is complete

and your device should activate when

the HomeLink button is pressed and

released.

•

If the indicator light blinks rapidly for

two seconds and then turns to a

constant light continue with “Pro-

gramming” steps 4-6 to complete the

programming of a rolling code equip-

ped device (most commonly a garage

door opener).

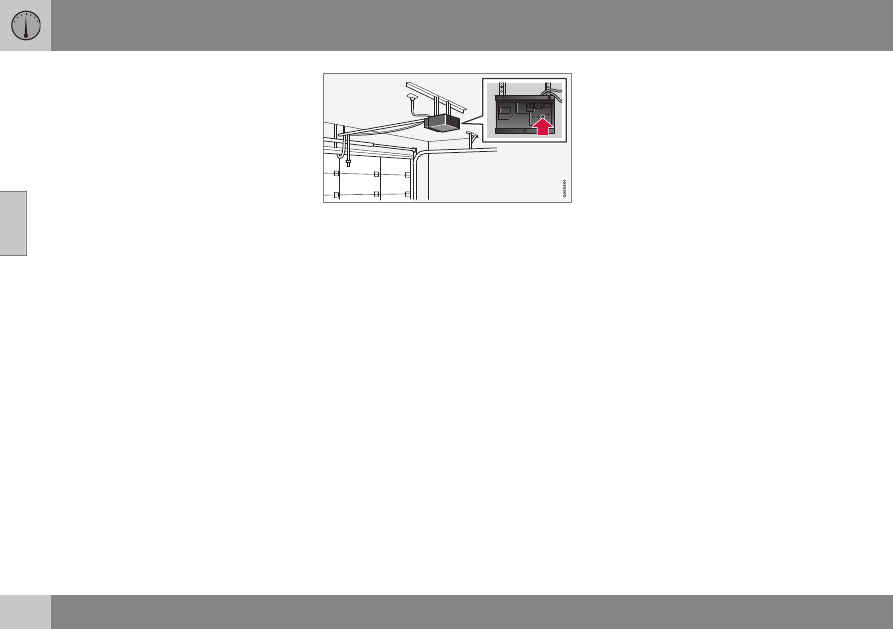

4. At the garage door opener receiver

(motor-head unit) in the garage, locate

the “learn” or “smart” button. This can

usually be found where the hanging

antenna wire is attached to the motor-

head unit.

5. Firmly press and release the “learn” or

“smart” button. (The name and color of

the button may vary by manufacturer.)

There are 30 seconds to initiate step 6.

6. Return to the vehicle and firmly press,

hold for two seconds and release the pro-

grammed HomeLink button. Repeat the

“press/hold/release” sequence a second

time, and, depending on the brand of the

garage door opener (or other rolling code

equipped device), repeat this sequence a

third time to complete the programming

process.

HomeLink should now activate your rolling

code equipped device.

Gate Operator/Canadian Programming

Canadian radio-frequency laws require trans-

mitter signals to “time-out” (or quit) after sev-

eral seconds of transmission – which may not

be long enough for HomeLink to pick up the

signal during programming. Similar to this

Canadian law, some U.S. gate operators are

designed to “time-out” in the same manner.
If you live in Canada or you are having diffi-

culties programming a gate operator or

garage door opener by using the “Program-

ming” procedures, replace “Programming

HomeLink” step 2 with the following:

•

Continue to press and hold the HomeLink

button while you press and release -

every two seconds (“cycle”) your hand-

held transmitter until the HomeLink indi-

cator light changes from a slow to a rap-

idly blinking light. Now you may release

both the HomeLink and hand-held trans-

mitter buttons.

Proceed with “Programming” step 3 to com-

plete.

Resetting HomeLink Buttons
Use the following procedure to reset (erase

programming) from the three HomeLink but-

tons (individual buttons cannot be reset but

can be “reprogrammed” as outlined in the fol-

lowing section):
1. Press and hold the two outer HomeLink

buttons until the indicator light begins to

flash.

03 Instruments and controls

}}

111

2. Release both buttons.

> HomeLink is now in the training (or

learning) mode and can be pro-

grammed at any time beginning with

“Programming” - step 1.

Reprogramming a Single HomeLink
Button
To program a device to HomeLink using a

HomeLink button previously trained, follow

these steps:
1. Press and hold the desired HomeLink

button. DO NOT release the button.

2. The indicator light will begin to flash after

20 seconds. Without releasing the Home-

Link button, proceed with “Programming”

- step 1.

For questions or comments, contact Home-

Link at: www.homelink.com/

www.youtube.com/HomeLinkGentex or by

phoning the hotline at 1–800–355–3515.
This device complies with FCC rules part 15

and Industry Canada (IC) RSS-210. Operation

is subject to the following two conditions: (1)

This device may not cause harmful interfer-

ence, and (2) This device must accept any

interference that may be received including

interference that may cause undesired opera-

tion.

My Car – introduction (p. 76)

The transmitter has been tested and com-

plies with FCC and IC rules. Changes or

modifications not expressly approved by

the party responsible for compliance could

void the user’s authority to operate the

device.

Volvo Sensus

Volvo Sensus is the core of the contact inter-

face with your vehicle. Sensus provides infor-

mation, entertainment and offers access to

functions that make owning and operating a

Volvo easier.

Volvo Sensus is the operating system in your

vehicle and it enables you to interact intui-

tively with the vehicle’s various features and

functions, including accessing the Internet,

when it suits you.
Volvo Sensus uses the center console screen

to display information and menus, and to

offer a user interface that enables you to

make personalized settings for e.g., vehicle,

infotainment and climate system functions.
The buttons on the center console or the

steering wheel keypad are used to activate/

deactivate functions and change numerous

settings.

The term “IC:” before the certification/registration number only signifies that Industry Canada technical specifications were met.

03 Instruments and controls

112

Option/accessory, for more information, see Introduction.

Pressing the MY CAR button on the center

console displays all of the settings related to

driving and operating the vehicle, such as

City Safety, lock and alarm functions, auto-

matic blower speed, setting the clock, etc.
Pressing the source buttons on the center
console (RADIO, MEDIA, TEL,

, NAV* and

CAM*, etc.) make it possible to select e.g.,

AM or FM radio, play a CD or DVD, use the
Bluetooth

hands-free feature, the navigation

system* or the park assist camera*.
See your on-board owner’s manual or the

separate printed supplements for detailed

information about the functionality offered by

Volvo Sensus.

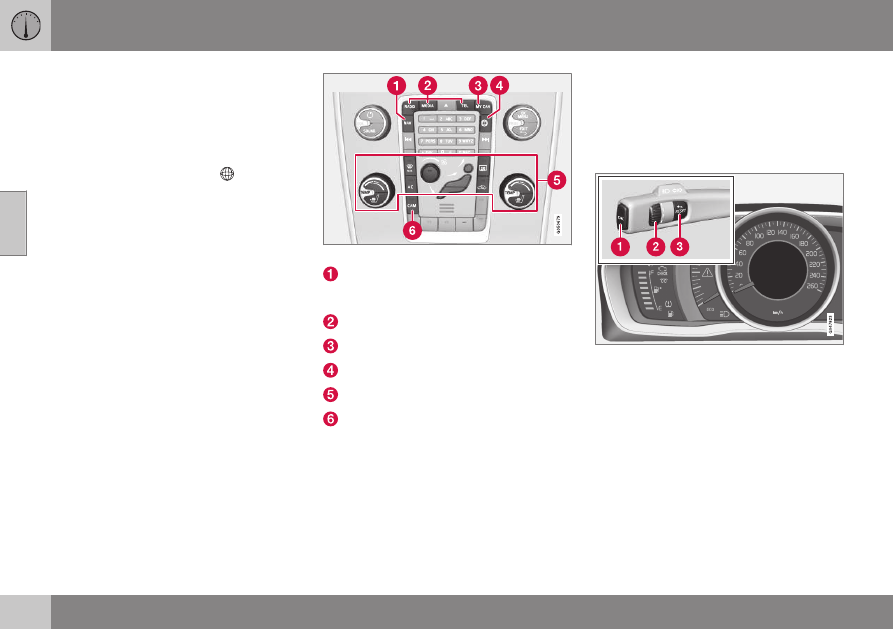

Center console control panel

Volvo Navigation System (VNS)* – NAV:

see the separate VNS manual for operat-

ing instructions.
Infotainment (RADIO, MEDIA, TEL)

Vehicle-related settings - MY CAR.

Internet connected vehicle.

Climate system.

Park assist camera - CAM*.

Related information

•

•

Climate – general information (p. 124)

•

Rear Park Assist Camera (PAC) – intro-

duction (p. 236)

Information display – menu controls

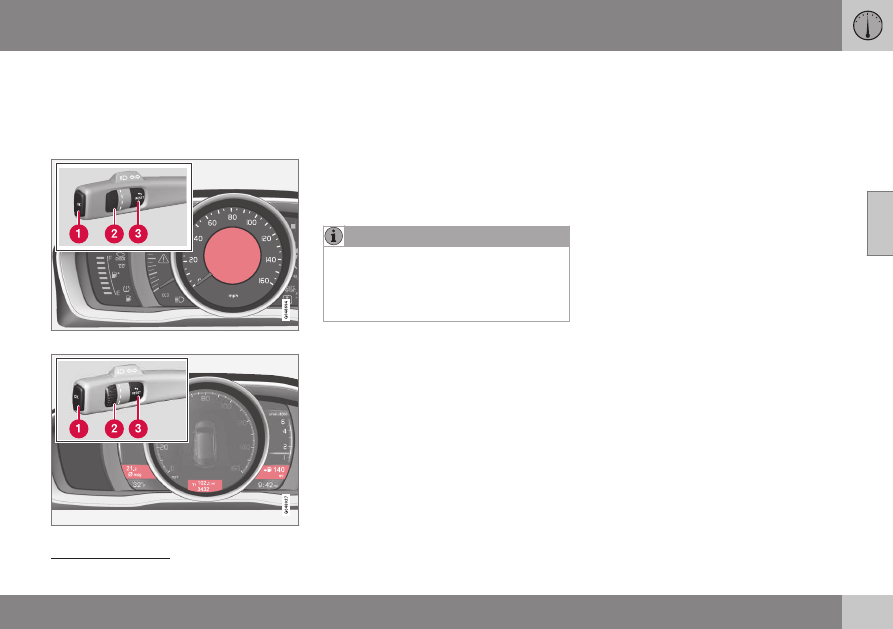

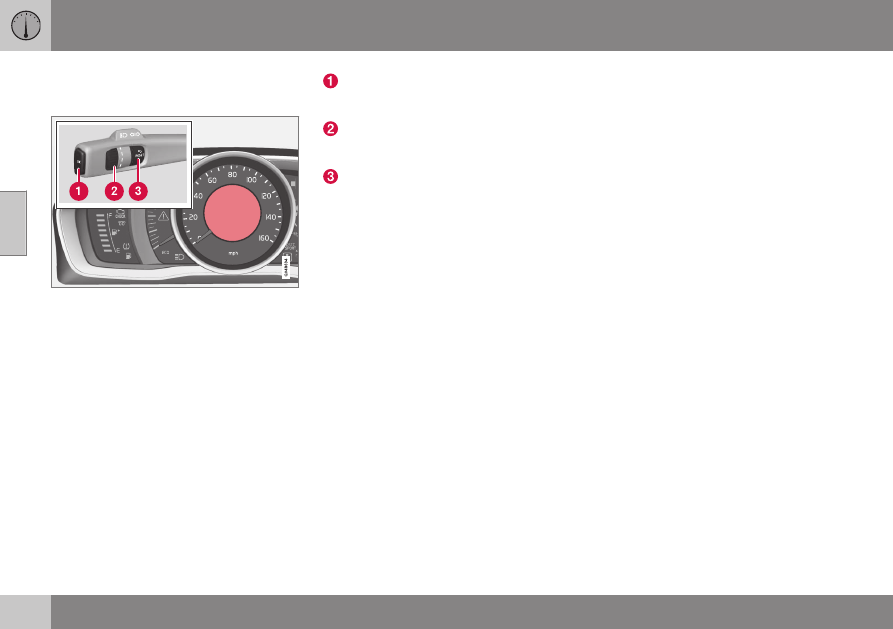

The controls on the left steering wheel lever

are used to access the menus (p. 113) that

are displayed in the instrument panel (p. 68).

The menus displayed depend on the current

ignition mode (p. 79).

Analog Instrument panel and menu controls

03 Instruments and controls

}}

Option/accessory, for more information, see Introduction.

113

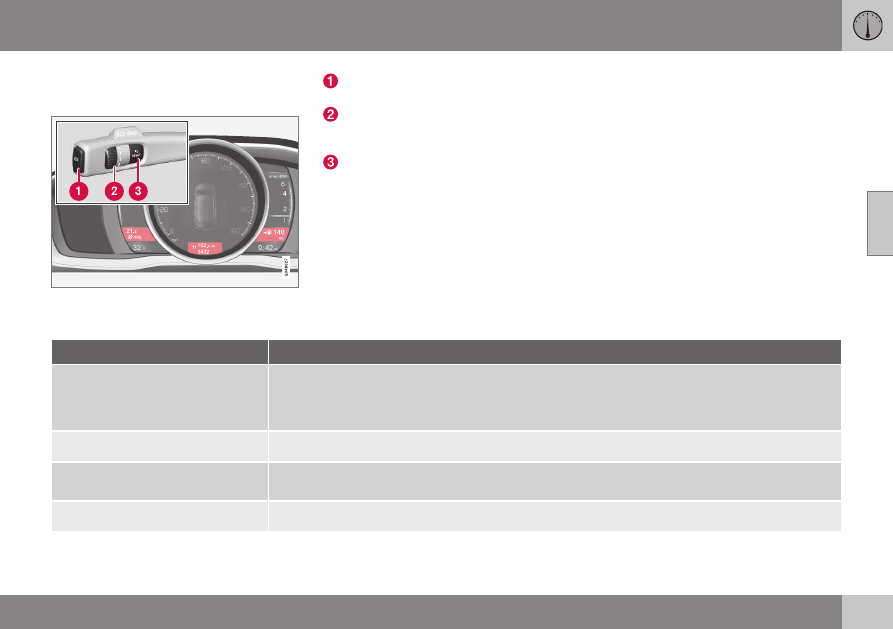

Digital Instrument panel* and menu controls

OK: access to the list of mes-

sages (p. 113) and message confirma-

tion.
Thumb wheel: browse among menus and

options in the list of functions.
RESET: reset the active function. Used in

certain cases to select/activate a func-

tion, see the explanation under each

respective function.

The menus shown on the information displays

in the instrument panel are controlled with the

left lever. The menus displayed depend on

ignition mode. Press OK to erase a message

and return to the menus.

Information display – menu overview

The menus displayed depend on the current

ignition mode (p. 79).

The following menu alternatives may vary,

depending on the equipment installed in the

vehicle.

Analog instrument panel
Digital speed
Trip comp. opt.
Service status
Messages (##)

Digital instrument panel*
Settings
Themes
Contrast mode/Color mode
Service status
Messages
Trip computer reset

Related information

•

Information displays – introduction (p. 68)

•

Information display – menu controls

(p. 112)

•

Information display – messages (p. 113)

Information display – messages

The controls on the left steering wheel lever

are used to scroll among messages displayed

in the instrument panel and to confirm selec-

tions.
When information, indicator or warning sym-

bols illuminate, an explanatory message will

be displayed in the instrument panel.

When a warning (p. 74), information (p. 72) or

indicator symbol (p. 72) comes on, a corres-

ponding message appears in the information

panel. An error message is stored in a mem-

ory list until the fault is rectified.
Press OK to acknowledge and scroll among

the messages.

Information displays – introduction (p. 68)

If a warning message appears while you

are using the trip computer, the message

must be read and confirmed by pressing

OK before the previous activity can be

resumed.

Number of messages in parentheses

03 Instruments and controls

114

Message

Description

Stop
engine

Stop and switch off the

engine as soon as possi-

ble. Serious risk of dam-

age. Contact an author-

ized Volvo workshop.

Stop safely

Stop and switch off the

engine. Serious risk of

damage. Contact an

authorized Volvo work-

shop.

Service
urgent

Have the vehicle checked

by an authorized Volvo

workshop immediately.

Service
required

Have the vehicle checked

by an authorized Volvo

workshop as soon as pos-

sible.

See man-
ual

Read the owner's manual.

Book time

for mainte-

nance

Time to book service at an

authorized Volvo retailer.

Message

Description

Time for

regular

mainte-

nance

Time for regular service at

an authorized Volvo work-

shop. The timing is deter-

mined by the number of

miles driven, number of

months since the last

service, engine running

time.

Mainte-

nance over-

due

If the service intervals are

not followed, the warranty

does not cover any dam-

aged parts. Contact an

authorized Volvo work-

shop for service.

Temporarily
OFF

A function has been tem-

porarily switched off and

is reset automatically while

driving or after starting

again.

Low battery

Power save

mode

The audio system is

switched off to save cur-

rent. Charge the battery.

There will also be a system-specific part of this message

Related information

•

•

Information display – menu overview

(p. 113)

•

Information display – menu controls

(p. 112)

03 Instruments and controls

115

Trip computer – introduction

The content and appearance of the trip com-

puter varies depending on whether the vehi-

cle is equipped with an Analog or Digital

instrument panel.

Analog information display and controls

Digital information displays and controls

The instrument panel illuminates as soon as

the vehicle is unlocked and trip computer set-

tings can be made. If none of the trip com-

puter's controls are used within 30 seconds

after the driver's door has been opened, the

instrument panel lighting will go out and the

trip computer cannot be used again until:

•

the ignition is put in mode II

•

the engine is started

If a warning message appears while you

are using the trip computer, this message

must be acknowledged in order to return

to the trip computer function. Acknowl-

edge a message by pressing OK.

Related information

•

•

•

•

See Ignition modes (p. 79) for information about the various ignition modes.

03 Instruments and controls

116

Trip computer – functions, analog

instrument panel

Information display and controls

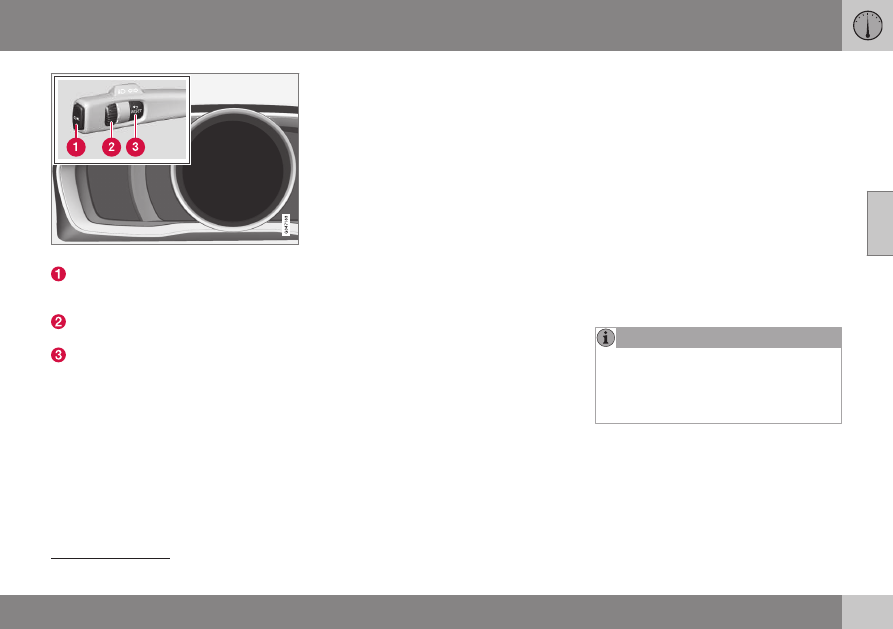

OK–press to access the trip computer's

functions or acknowledge/confirm/erase

a message
Thumb wheel–turn to access the list of

trip computer information headings and

to scroll among the alternatives
RESET–press to cancel/reset/exit a func-

tion after a selection has been made

The trip computer has two different menu

groups:

•

Trip computer functions

•

Trip computer information headings in the

instrument panel

Functions
To open and make settings in the trip com-

puter functions:

1. Ensure that none of the trip computer

controls are being used in a command

sequence; reset them by pressing RESET

twice.

2. Press OK to open the list of functions.
3. Use the thumb wheel to scroll among the

functions and select/confirm your choice

by pressing OK.

4. After completing your selection, exit by

pressing RESET twice.

The following table lists the analog trip com-

puter's functions:

03 Instruments and controls

}}

117

Function

Description

Digital speed
– km/h
– mph
– None

This displays the vehicle's speed digitally in the center of the instrument panel

•

Open by pressing OK, scroll using the thumb wheel, confirm by pressing OK and exit by pressing

ENTER.

Trip comp. opt.
–

Distance to empty

–

Fuel consumption

–

Average speed

– Trip odometer

T1 and total dist.

– Trip odometer

T2 and total dist.

Selections among the trip computer information headings are made here. The symbols that have already

been selected have a check mark and are displayed in white. Those not selected are not checked and

are displayed in gray:
1. Open the function by pressing OK and scroll to the desired heading using the thumb wheel.
2. Confirm by pressing OK. The symbol will change colors from gray to white and will be checked.
3. Continue this procedure or exit by pressing RESET.

Service status

Shows the number of months and mileage until the next scheduled service.

Messages (##)

For additional information, see Information display – menu controls (p. 112).

Information headings
Any of the information headings in the follow-

ing table can be displayed. To do so:
1. Ensure that none of the trip computer

controls are being used in a command

sequence; reset them by pressing RESET

twice.

2. Turn the thumb wheel to begin display-

ing the information headings. Stop on the

desired heading.

3. See the table for an explanation of the

heading or the actions that can be taken.

03 Instruments and controls

118

Information headings in the instrument

panel

Description

Trip odometer

T1 and total dist.

•

Press and hold RESET to reset trip odometer T1.

Trip odometer

T2 and total dist.

•

Press and hold RESET to reset trip odometer T2.

Distance to empty

See

Distance to empty

in Trip computer – Supplementary information (p. 121).

Fuel consumption

Current fuel consumption.

Average speed

Press and hold RESET to reset

Average speed

No information will be displayed. This also indicates the beginning/end of the list of information

headings.

Scroll among the trip computer information

headings at any time by turning the thumb

wheel until the desired heading is displayed.

Related information

•

•

•

•

NOTE: This function does not reset the trip odometers, see Trip computer – Supplementary information

03 Instruments and controls

}}

Option/accessory, for more information, see Introduction.

119

Trip computer – functions, digital

instrument panel

Information displays and controls

OK–press to access the trip computer's

functions or to activate a selection
Thumb wheel–turn to access the list of

trip computer information headings and

to scroll among the alternatives
RESET–press to cancel/reset/exit a func-

tion after a selection has been made

The trip computer has two different menu

groups:

•

Trip computer functions

•

Trip computer information headings in the

instrument panel

Functions
To open and make settings in the trip com-

puter functions:

1. Ensure that none of the trip computer

controls are being used in a command

sequence; reset them by pressing RESET

twice.

2. Press OK to open the list of functions.
3. Use the thumb wheel to scroll among the

functions and select/confirm your choice

by pressing OK.

4. After completing your selection, exit by

pressing RESET twice.

The following table lists the digital trip com-

puter's functions:

Function

Description

Trip computer reset
– Average fuel consumption
– Average speed

(p. 121) for a description of how this is done.

Messages

For additional information, see Information display – menu controls (p. 112).

Themes

Set the way in which information is displayed in the instrument panel, see Information displays – intro-

duction (p. 68).

Settings*

Select

Auto On

Off

03 Instruments and controls

120

Function

Description

Contrast mode/Color mode

Adjust the instrument panel's contrast and color.

Service status

Shows the number of months and mileage until the next scheduled service.

Information headings
Three trip computer headings can be dis-

played at the same time; one in each of the

displays (see the previous illustration). One of

the combinations of information headings in

the following table can be displayed. To do

so:

1. Ensure that none of the trip computer

controls are being used in a command

sequence; reset them by pressing RESET

twice.

2. Turn the thumb wheel to begin display-

ing the combinations of information head-

ings. Stop on the desired combination.

3. See the table for an explanation of the

heading or the actions that can be taken.

Scroll among the combinations of trip com-

puter information headings at any time by

turning the thumb wheel until the desired

combination is displayed.

Heading combinations

Description

Average fuel consump-

tion

Trip odometer T1 + mile-

age

Average speed

•

Press and hold RESET to reset trip odometer T1.

Current fuel consumption

Trip odometer T2 + mile-

age

Distance to empty

•

Press and hold RESET to reset trip odometer T2.

Current fuel consumption

Mileage

mph<>km/h

Change between mph<>km/h – see "Digital speed display" in Trip

computer – Supplementary information (p. 121).

No trip computer informa-

tion displayed

No information will be displayed. This also indicates the begin-

ning/end of the list of information headings.

Scroll among the trip computer information

headings at any time by turning the thumb

wheel until the desired heading is displayed.

Related information

•

•

•

•

03 Instruments and controls

Option/accessory, for more information, see Introduction.

121

Trip computer – Supplementary

information

General information for both Analog and Digi-

tal trip computer functions.

Average fuel consumption
Fuel consumption since the last time this

function was reset.

Average speed
The vehicle's average speed since the last

time this function was reset.

Current fuel consumption
Current fuel consumption is calculated

approximately once a second. When the vehi-

cle is moving at low speed, fuel consumption

is displayed per unit of time. At higher

speeds, it is displayed in terms of distance.
Miles or kilometers can be displayed, see the

heading "Changing units".

Distance to empty
This function shows the approximate dis-

tance that can be driven on the fuel remaining

in the tank. When

Distance to empty

shows

"----", there is very little useable fuel remain-

ing in that tank; refuel as soon as possible.

The calculation is based on average fuel con-

sumption during the last 20 miles (30 km) of

driving and the amount of fuel remaining in

the tank (the accuracy of this figure may vary

if your driving style changes). An economical

driving style will generally increase this dis-

tance.
See Economical driving (p. 279) for informa-

tion about driving economically.

Digital speed display*
Speed is expressed in the unit not used by

the instrument panel's speedometer e.g., if

the normal speedometer is in mph, the trip

computer will display in the speed in km/h

and vice versa.

Resetting an analog instrument panel

Trip odometer(s) and average speed

1. Display trip odometer T1 or T1, or Aver-

age speed.

2. Press and hold RESET until selected

function is reset.

Each trip computer heading must be reset

individually.

Resetting a digital instrument panel

Trip odometer

1. Turn the thumb wheel to select the com-

bination of headings containing the trip

odometer to be reset.

2. Press and hold RESET until selected trip

odometer is reset.

Average speed and fuel consumption

1. Select

Trip computer reset

and press

OK.

2. Select one of the following alternatives

using the thumb wheel and press OK:

•

mpg

•

mph

•

Reset both

3. Finish by pressing RESET.

Changing units
To change the unit (miles/km) used to meas-
ure distance and speed, go to

MY CAR

Settings

System options

Distance

and fuel units

In addition to changing units in the trip

computer, this also changes the units used

in the Volvo Navigation System (VNS)*.

Related information

•

•

•

•

For additional information, see Information

03 Instruments and controls

122

Option/accessory, for more information, see Introduction.

Trip computer – Trip statistics

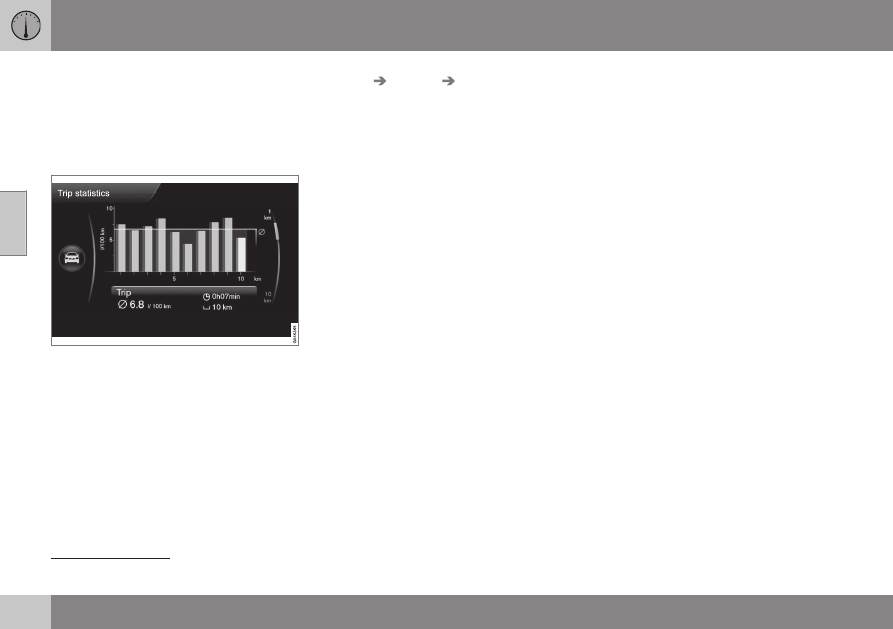

Trip information from previous trips regarding

average fuel consumption and average speed

is stored and can be displayed in the form of

a bar chart.

Function

Trip statistics

Each bar represents a driving distance of

1 mile or 10 miles, depending on the current

scale; the bar at the far right shows the value

for the current mile/10 miles.
Use TUNE to change between 1 mile and

10 miles; the marker at the right will also

change according to the scale selected.

Settings
Settings can be made in the MY CAR menu

system as follows:

MY CAR

My XC70

Trip statistics

•

Start new trip

: press ENTER to erase all

pervious statistics. Exit the menu by

pressing EXIT.

•

Reset for every driving cycle

: select by

pressing ENTER. Exit the menu by press-

ing EXIT.

Selecting

Reset for every driving cycle

era-

ses all trip statistics automatically if the igni-

tion is switched off for at least 4 hours. When

the engine is restarted, new statistics will be

stored.
To get new statistics if the engine is restarted

before 4 hours have elapsed, the existing

ones have to be erased manually by selecting

Start new trip

display – menu controls (p. 112).
See also the information about Eco Guide in

Eco Guide* and Power Meter* (p. 71).

Related information

•

•

•

•

The vehicle is equipped with Electronic Cli-

The illustration is generic; certain details may vary from model to model

04 Climate

124

Option/accessory, for more information, see Introduction.

Climate – general information

mate Control (ECC) (p. 128) that cools, heats

or dehumidifies the air in the passenger com-

partment.

Air conditioning

Climate – sensors (p. 124)

•

The air conditioning can be switched

off, but to ensure the best possible cli-

mate comfort in the passenger com-

partment and to prevent the windows

from misting, it should always be on.

•

In warm weather, a small amount of

water may accumulate under the car

when it has been parked. This water is

condensation from the A/C system

and is normal.

Side windows and moonroof
To ensure that the air conditioning works

optimally, the side windows, and the optional

moonroof should be closed.

Fog on the inside of the windows
The defroster function (p. 132) should be

used to remove fog or mist from the inside of

the windows. Keeping the windows clean

with a commercially available window wash-

ing spray will also help prevent fogging or

misting.

Temporary shut-off of the air
conditioning
The air conditioning (p. 131) is momentarily

disengaged during full acceleration or when

driving uphill with a trailer. This may result in

a temporary increase in cabin temperature.

Ice and snow
Always keep the air intake grille at the base of

the windshield free of snow.

Climate system maintenance
Special tools and equipment are required to

maintain and carry out repairs on the climate

system. Work of this type should only be

done by a trained and qualified Volvo service

technician.

Refrigerant
Volvo cares about the environment. The air

conditioning system in your car contains a

CFC-free refrigerant – R134a. This substance

will not deplete the ozone layer. The air con-

ditioning system contains 1.76 lbs (800 g) of

R134a. The systems uses PAG oil.

Related information

•

•

Climate – menu settings (p. 126)

Climate – sensors

The climate system utilizes a number of sen-

sors to help regulate the temperature and

humidity level in the passenger compartment.

Sensor location

•

The sunlight sensor is located on the top

side of the dashboard.

The sunlight sensor monitors which side of

the car that is most exposed to sunlight.

This can mean that the temperature may

differ between the right and left-side air

vents, even if the temperatures set for both

sides of the passenger compartment are

the same.

•

The temperature sensor for the passen-

ger compartment is located below the cli-

mate control panel.

•

The outside (ambient) temperature sensor

is located on the door mirror.

•

The humidity sensor* is located in the

interior rearview mirror.
