Volvo V60 Plug-in Hybrid (2015 year). Instruction - part 7

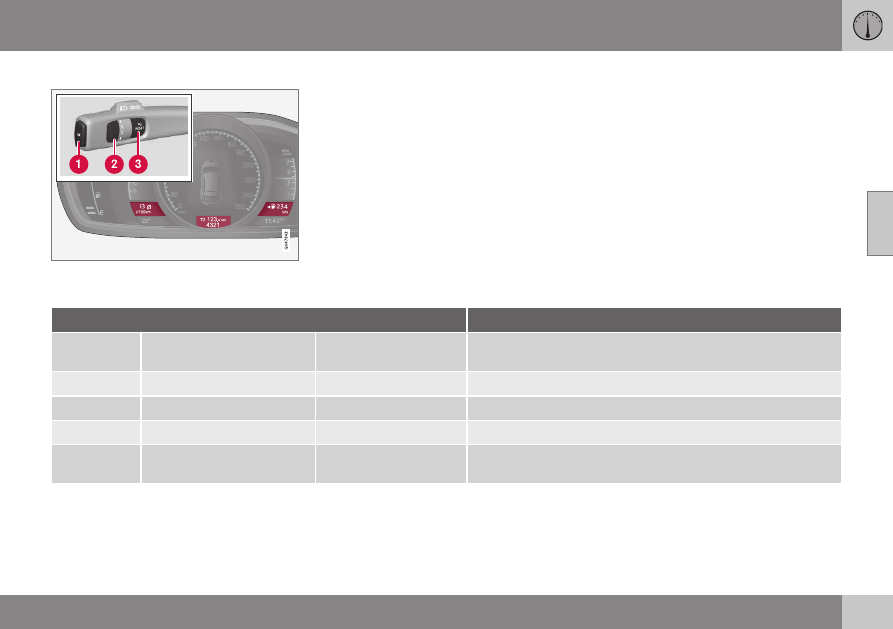

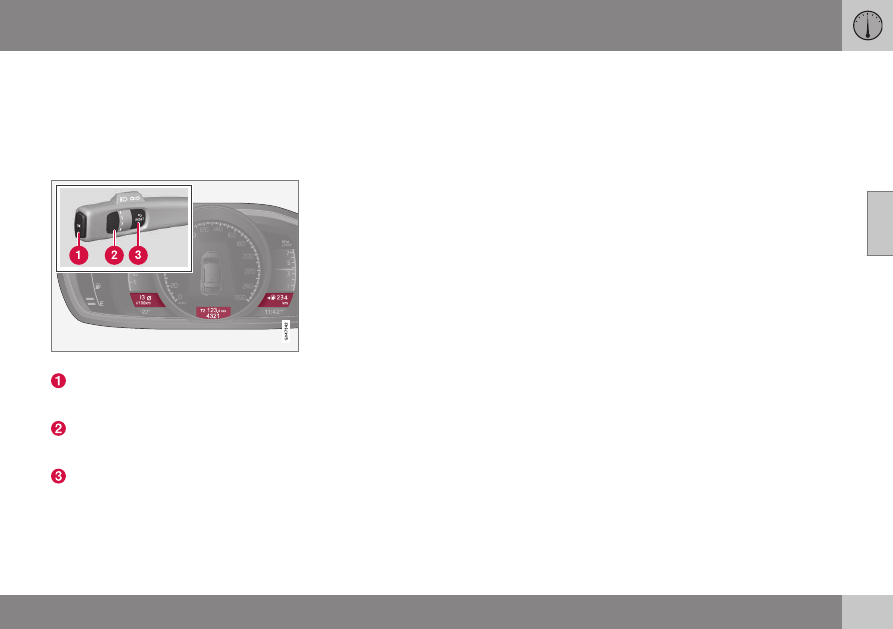

the display - see section "Change unit"

There may be a slight deviation if a fuel-

driven heater* has been used.

Average speed
The average speed is calculated for the driv-

ing distance driven since the last reset to

zero.

Instantaneous
The information for current fuel consumption

is updated continuously - approximately once

per second. When the car is driven at low

speed the consumption is shown per time

unit - at a higher speed it is shown related to

mileage.
Different units (km/miles) can be selected for

(p. 119).

Range - distance to empty tank
The trip computer shows the approximate

distance that can be driven with the fuel

quantity remaining in the tank.

No guaranteed range remains when the head-

ing

Distance to empty

shows "

----

•

In which case, refuel as soon as possible.

The calculation is based on the average fuel

consumption over the last 30 km and the

remaining driveable fuel quantity.

Distance to empty battery
No guaranteed range remains when the dis-

play shows "

---- km to empty battery

". The

display shows the approximate distance that

can be driven with the energy quantity

remaining in the hybrid battery.
The calculation is based on the average con-

sumption of normally loaded vehicle, during

normal driving and taking into account

whether the air conditioning (AC) is switched

on or off.

enced, see Volvo Car Corporation 's Environ-

There may be a slight deviation if the driv-

ing style has been changed.

An economic driving style generally results in

a longer driving distance. For more informa-

tion on how energy consumption can be influ-

mental Philosophy (p. 21).

Mileage for electric operation
In order to achieve the longest possible mile-

age for electric operation, the driver of an

electric car also has to think about energy

conservation. The more consumers there are

(stereo, electric heating in windows/mirrors/

seats, very cold air from the climate control

system, etc.) that are active - the shorter the

potential mileage.

In addition to high current take-off in the

passenger compartment, sudden acceler-

ation and braking, high speed, heavy

loads, low outside temperature and uphill

gradients also reduce the possible driving

distance.

Digital speed display
The speed is shown in the opposite unit

(kmh/mph) in relation to the main instrument.

If it is calibrated in mph then the trip com-

puter shows the corresponding speed in

km/h and vice versa.

Change unit
You can change unit (km/miles) for distance

and speed in the menu system MY CAR, see

MY CAR (p. 113).

Trip computer - trip statistics* (p. 120)

In addition to in the trip computer, these

units are also changed in Volvo's naviga-

tion system*.

03 Instruments and controls

120

Option/accessory, for more information, see Introduction.

Related information

•

Trip computer - trip statistics*

Information is stored about completed trips

containing average fuel consumption and

average speed, which can be viewed in the

centre console's screen as a bar chart.

Function

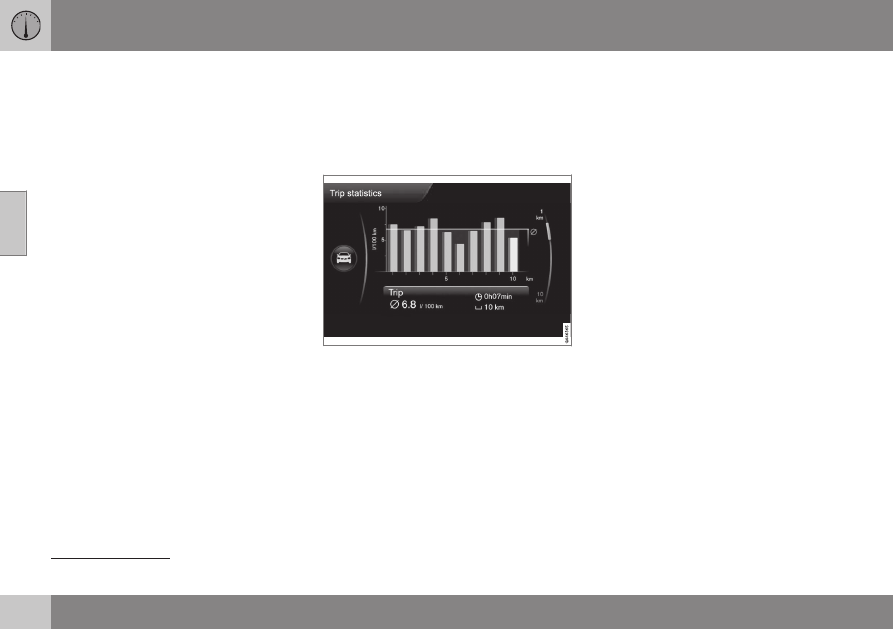

Trip statistics

Fuel and electricity consumption are shown in

separate graphs. Electricity consumption is

"net" consumption, i.e. energy consumed

minus regenerated energy created during

braking.
Each bar symbolises 1 km or 10 km driven

distance, depending on the scale selected -

the bar at the far right shows the value for the

current kilometre or 10 km.
Using the TUNE control, the scale for the

bars can be changed between 1 km and

10 km - the cursor on the far right changes

position between up and down in relation to

the scale selected.

Operation
Different settings can be made in the menu

system MY CAR, see MY CAR (p. 113) -
there, find

Trip statistics

With the "

Reset when vehicle has been off

for minimum 4h

" option highlighted, all sta-

tistics are deleted automatically once driving

is complete and the car has been stopped for

4 hours. Trip statistics start again from zero

the next time the engine is started.

•

Reset when vehicle has been off for

minimum 4h

- highlight the box by

selecting ENTER and go back out of the

menu by selecting EXIT.

If a new driving cycle is started before

4 hours have elapsed then the current period

must first be deleted manually using the

Start new trip

" option.

•

Start new trip

- ENTER is used to delete

all previous statistics, go back out of the

menu by selecting EXIT.

Related information

•

Trip computer - supplementary informa-

tion (p. 119)

The figure is schematic - layout may vary depending on car model or updated software.

04 Climate control

122

Option/accessory, for more information, see Introduction.

General information on climate

control

The car is equipped with electronic climate

control (p. 128). The climate control system

cools or heats as well as dehumidifies the air

in the passenger compartment.

When the climate control system is activated

it is recommended that the panel's air vents

are fully open in order to obtain the most effi-

cient air conditioning possible.
If there is no heat from the coolant then the

electrically-driven heater is used primarily. In

colder weather the car's fuel-driven heater

can also be started.
The engine block heater, fuel-driven heater

and electrically-driven heater are used as

heat sources during driving. The heat

source(s) used depends on the prevailing

conditions, e.g. ambient temperature.
During driving the car automatically starts the

systems needed to maintain comfort inside

the passenger compartment - except in drive

mode (p. 263) PURE, when climate comfort

is deprioritised, e.g. AC and certain electri-

cally-driven sources are switched off.
The climate in the car's passenger compart-

ment can be preconditioned (p. 136) (accli-

matised) before departure, in both hot and

cold climates.

Air conditioning (AC) (p. 131) can be

switched off, but to ensure the best possi-

ble climate comfort in the passenger com-

partment, and to prevent the windows

from misting, it should always be switched

on.

To bear in mind

•

To ensure that the air conditioning works

optimally, the side windows, and sunroof*

should be closed.

•

Global opening (p. 177) opens/closes all

side windows simultaneously and can be

used for example to quickly air the car

during hot weather.

•

Remove ice and snow from the climate

control system air intake (the grille

between the bonnet and the windscreen).

•

When running at idling speed, precondi-

tioning or charging the hybrid battery

(p. 300) in hot weather, condensation

from the air conditioning may drip under

the car. This is normal.

•

When the engine requires full power, e.g.

for full acceleration, the air conditioning

can be temporarily switched off. There

may then be a temporary increase in tem-

perature in the passenger compartment.

•

Remove misting on the insides of the win-

dows primarily by using the defroster

function (p. 132). To reduce the risk of

misting, keep the windows clean and use

window cleaner.

Related information

•

Actual temperature (p. 123)

•

Menu settings - climate control (p. 125)

•

Electronic climate control - ECC (p. 128)

•

Air distribution in the passenger compart-

ment (p. 126)

•

The system includes a sun sensor (p. 123)

04 Climate control

Option/accessory, for more information, see Introduction.

123

Actual temperature

The temperature you select in the passenger

compartment corresponds to the physical

experience with reference to factors such as

ambient temperature, air speed, humidity and

solar radiation etc. in and around the car at

the time.

which detects on which side the sun is shin-

ing into the passenger compartment. This

means that the temperature can differ

between the right and left-hand air vents

despite the controls being set for the same

temperature on both sides.

Related information

•

Temperature control in the passenger

•

compartment (p. 131)

Sensors - climate control

The climate control system has a number of

sensors to help control the temperature

(p. 123) in the car.

•

The sun sensor is located on the top side

of the dashboard.

•

The temperature sensor for the passen-

ger compartment is located below the cli-

mate control panel.

•

The outside temperature sensor is

located in the door mirror.

•

The humidity sensor* is located by the

interior rearview mirror.

Do not cover or block the sensors with

clothing or other objects.

Related information

•

Passenger compartment filter (p. 124)

Air quality

The interior in a passenger compartment is

designed to be pleasant and comfortable,

even for people with contact allergies and for

asthma sufferers.

•

•

Material in the passenger compartment

(p. 125)

•

Clean Zone Interior Package (CZIP)

(p. 124)*

•

Interior Air Quality System (IAQS)

(p. 125)*

Related information

•

04 Climate control

124

Option/accessory, for more information, see Introduction.

Air quality - passenger compartment

filter

All air entering the car's passenger compart-

ment is cleaned with a filter.

The filter must be replaced at regular inter-

vals. Follow the Volvo Service Programme for

the recommended replacement intervals. If

the car is used in a severely contaminated

environment, it may be necessary to replace

the filter more often.

There are different types of passenger

compartment filter. Make sure that the cor-

rect filter is fitted.

Related information

•

The air quality system IAQS (p. 125) is a

Air quality - Clean Zone Interior

Package (CZIP)*

CZIP comprises a series of modifications that

keep the passenger compartment even

clearer from allergy and asthma-inducing sub-

stances.

The following is included:

•

An enhanced fan function that means that

the fan starts when the car is opened with

the remote control key. The fan fills the

passenger compartment with fresh air.

The function starts when required and is

disengaged automatically after a time or

when one of the passenger compartment

doors is opened. The amount of time the

fan runs is reduced gradually due to

reduced need up until the car is 4 years

old.

•

fully automatic system that cleans the air

in the passenger compartment from con-

taminants such as particles, hydrocar-

bons, nitrous oxides and ground-level

ozone.

To keep the CZIP standard in cars with

CZIP the IAQS filter must be changed after

15 000 km or once per year depending on

whichever occurs first. However, up to

75 000 km over 5 years. In cars without

CZIP and where the customer does not

want to keep the CZIP standard the IAQS

filter must be changed at a regular service.

For more information on CZIP, see the bro-

chure included with the purchase of the car.

Related information

•

•

description of the menu system, see MY CAR

04 Climate control

Option/accessory, for more information, see Introduction.

125

Air quality - IAQS*

The air quality system IAQS separates gases

and particles to reduce the levels of odours

and pollution in the passenger compartment.

If the outside air is contaminated then the air

intake is closed and the air is recirculated.
It is possible to activate/deactivate the func-

tion in the menu system MY CAR. For a

(p. 113).

The air quality sensor must always be ena-

bled to ensure the best air in the passen-

ger compartment.
In a cold climate recirculation is limited so

as to prevent misting.
In the event of misting, the air quality sen-

sor should be disengaged, and the

defroster functions for the windscreen and

side windows, as well as the rear window,

should be used.

Related information

•

•

Air quality - Clean Zone Interior Package

•

(CZIP)* (p. 124)

Air quality - material

Tested materials have been developed in

order to minimise the quantity of dust in the

passenger compartment and to contribute to

making the passenger compartment easier to

keep clean.

The carpets in both the passenger compart-

ment and the cargo area are removable and

easy to remove and clean. Use cleaning

agents and car care products recommended

by Volvo to clean the interior (p. 389).

Related information

•

Fan level during automatic climate control

Menu settings - climate control

It is possible to activate/deactivate or change

the default settings for six of the climate con-

trol system's functions via the centre console.

•

(p. 130).

•

Recirculation timer (p. 132).

•

Automatic start of rear window defroster

(p. 106).

•

Interior air quality system* (p. 125).

•

Automatic start of seat heating driver

(p. 129).

•

Automatic start of steering wheel heating

(p. 88).

More information is available in the descrip-

tion of the menu system (p. 113).
The climate control system's functions can be

reset in the menu system MY CAR to the

default settings. For a description of the

menu system, see MY CAR (p. 113).

Related information

•

see the air distribution table (p. 134).

04 Climate control

126

Air distribution in the passenger

compartment

The incoming air is divided between a number

of different vents in the passenger compart-

ment.

Air distribution is fully automatic in AUTO

mode.
If necessary it can be controlled manually;

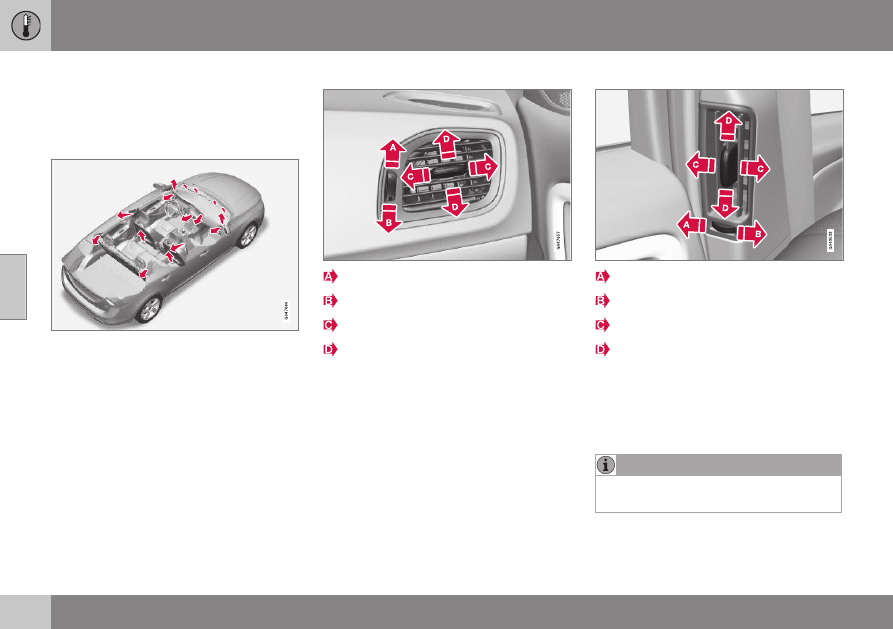

Air vents in the dashboard

Open

Closed

Lateral airflow

Vertical airflow

Aim the outer vents at the side windows to

remove misting.

Air vents in the door pillars

Closed

Open

Lateral airflow

Vertical airflow

Aim the vents at the windows to remove mist-

ing in cold weather.
Aim the vents into the passenger compart-

ment to maintain a comfortable climate in the

rear seat in hot weather.

selected. For more information, see the air

Remember that small children may be sen-

sitive to air flows and draughts.

04 Climate control

127

Air distribution

Air distribution - defroster windscreen

Air distribution - air vent instrument panel

Air distribution - ventilation floor

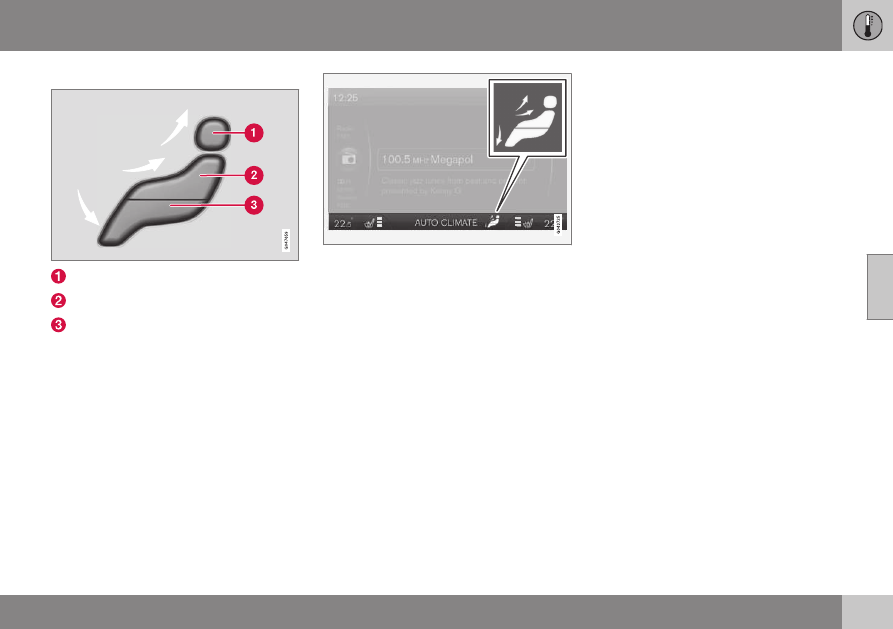

The figure consists of three buttons. When

pressing the buttons the corresponding figure

is illuminated in the screen (see following fig-

ure) and an arrow in front of each part of the

figure shows the air distribution that is

distribution table (p. 134).

The selected air distribution is shown in the cen-

tre console display screen.

Related information

•

Air distribution - recirculation (p. 132)

•

Auto-regulation (p. 130)

•

04 Climate control

128

Electronic climate control - ECC

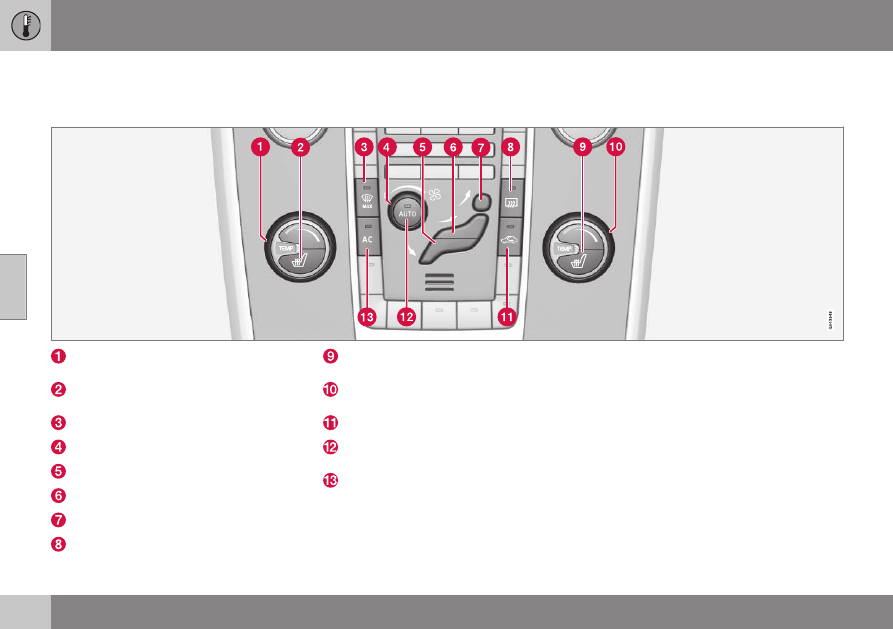

ECC (Electronic Climate Control) maintains

the temperature selected in the passenger

compartment and can be set separately for

the driver's side and passenger side.

The auto function is used to automatically

control temperature, air conditioning, fan

speed, recirculation and air distribution.

Temperature control (p. 131), left-hand

side
Electrically heated front seat (p. 129), left

side
Max. defroster (p. 132)

Fan (p. 130)

Air distribution (p. 126) - ventilation floor

Air distribution - air vent instrument panel

Air distribution - defroster windscreen

Rear window and door mirror defrosters

(p. 106)

Electrically heated front seat (p. 129),

right side
Temperature control (p. 131), right-hand

side
Recirculation (p. 132)

AUTO - Automatic climate control

(p. 130)
AC - Air conditioning on/off (p. 131)

Related information

•

description of the menu system, see MY CAR

04 Climate control

}}

Option/accessory, for more information, see Introduction.

129

Heated front seats*

The front seat heating has three positions for

increasing the comfort for driver and passen-

ger when it is cold.

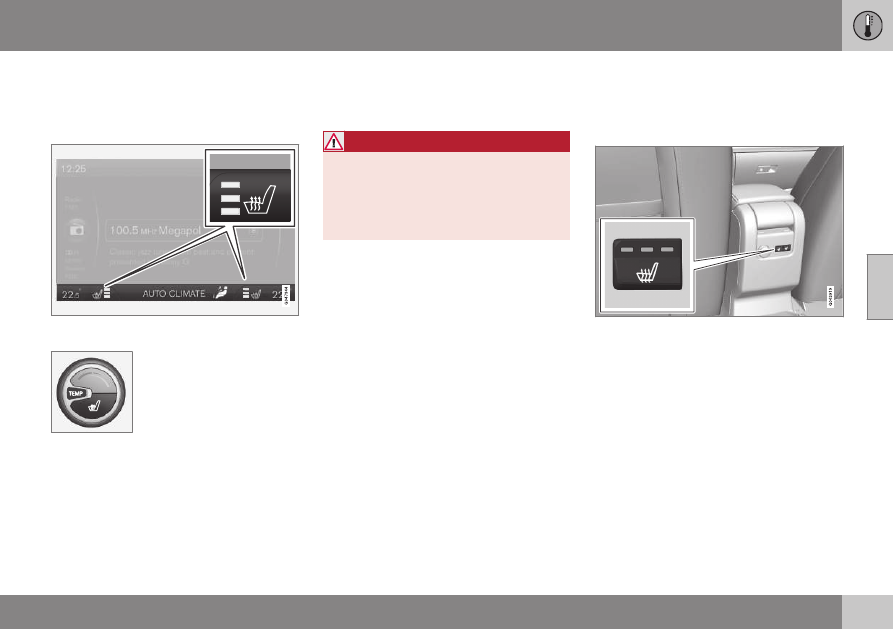

Current heat level is shown in the centre console

display screen.

Press the button repeatedly in order to acti-

vate the function:

•

Highest heat level - three orange fields

illuminate in the centre console's screen

(see figure above).

•

Lower heat level - two orange fields illu-

minate in the screen.

•

Lowest heat level - one orange field illu-

minates in the screen.

•

Switch off the heat - no field illuminates.

WARNING

Heated seats must not be used by people

who find it difficult to perceive an increase

in temperature due to a lack of sensation

or who otherwise have problems operating

the controls for the heated seats. Other-

wise they may suffer burn injuries.

Automatic start of driver's seat heating
With the automatic start of the driver's seat

heating activated, the driver's seat will have

the highest heat level when the engine is

started.
Automatic start takes place when the car is

cold and the ambient temperature is lower

than approx. +10 °C.
It is possible to activate/deactivate the func-

tion in the menu system MY CAR. For a

(p. 113).

Related information

•

Heated rear seat* (p. 129)

•

Heated rear seat*

The heating for the rear seat's

outer posi-

tions has three positions for increasing the

comfort for passengers when it is cold.

Current heat level is shown in the pushbutton's

lamps.

Press the button repeatedly in order to acti-

vate the function:

•

Highest heat level - three lamps illumi-

nate.

•

Lower heat level - two lamps illuminate.

•

Lowest heat level - one lamp illuminates.

•

Switch off the heat - no lamp illuminates.

04 Climate control

130

Option/accessory, for more information, see Introduction.

WARNING

Heated seats must not be used by people

who find it difficult to perceive an increase

in temperature due to a lack of sensation

or who otherwise have problems operating

the controls for the heated seats. Other-

wise they may suffer burn injuries.

Related information

•

Heated front seats* (p. 129)

•

Fan

The fan should always be activated in order to

avoid misting on the windows.

speed is regulated automati-

If the fan is fully switched off then the air

conditioning is not engaged - which can

cause a risk of misting on the windows.

Fan knob

Turn the knob to increase or

decrease fan speed. If AUTO

is selected, then the fan

cally (p. 130) - the fan speed

previously set is disengaged.

Related information

•

Electronic climate control - ECC (p. 128)

•

Auto-regulation

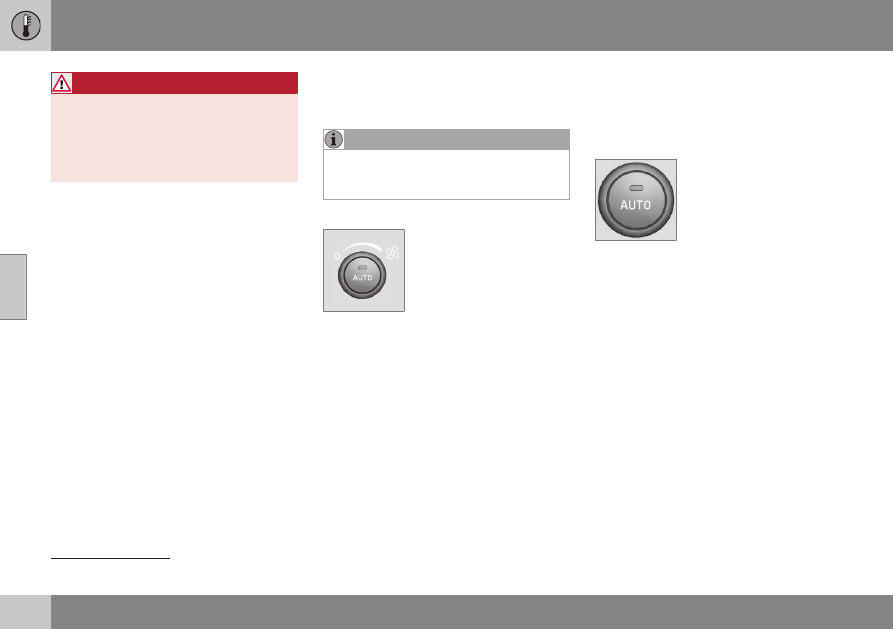

The auto function automatically regulates

temperature (p. 131), air conditioning

(p. 131), fan speed (p. 130), recirculation

(p. 132) and air distribution (p. 126).

If you select one or more

manual functions, the other

functions continue to be

controlled automatically. All

manual settings are disen-

gaged when AUTO is

pressed. The display screen

shows

AUTO CLIMATE

Fan speed in automatic mode can be set in

the menu system MY CAR. For a description

of the menu system, see MY CAR (p. 113).

Related information

•

Heated rear seat is not specified with the option for integrated two-stage booster seat (p. 51).

04 Climate control

131

Temperature control in the passenger

compartment

When the car is started, the most recent tem-

perature setting is resumed.

Heating or cooling cannot be hastened by

selecting a higher or lower temperature

than the actual desired temperature.

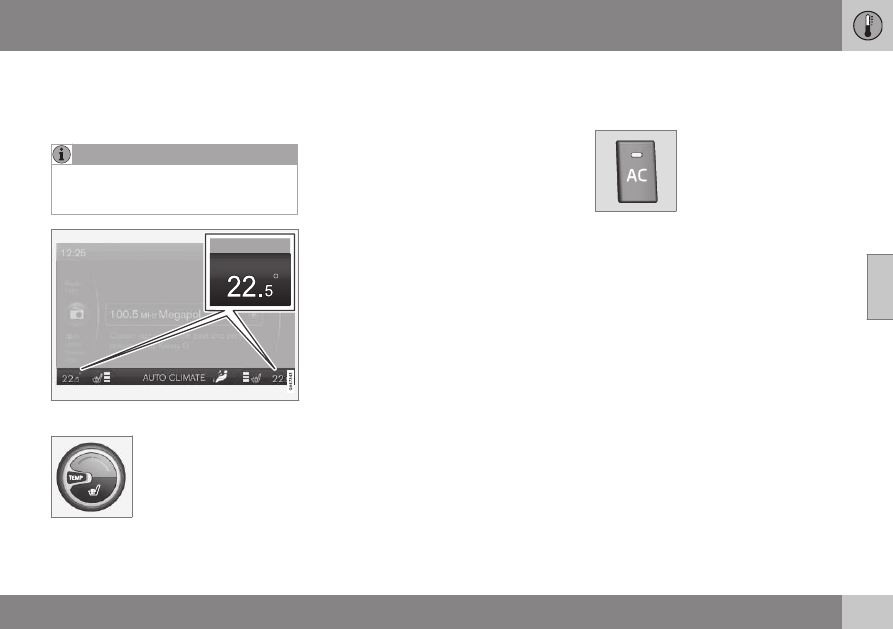

Current temperature for each side is shown in

the centre console's display screen.

The temperature can be

adjusted with the knob -

separately for the driver's

side and the passenger side.

Related information

•
