Emergency puncture repair kit

* - rechecking

(p. 332)

•

* - overview

(p. 329)

Emergency puncture repair kit* -

overview

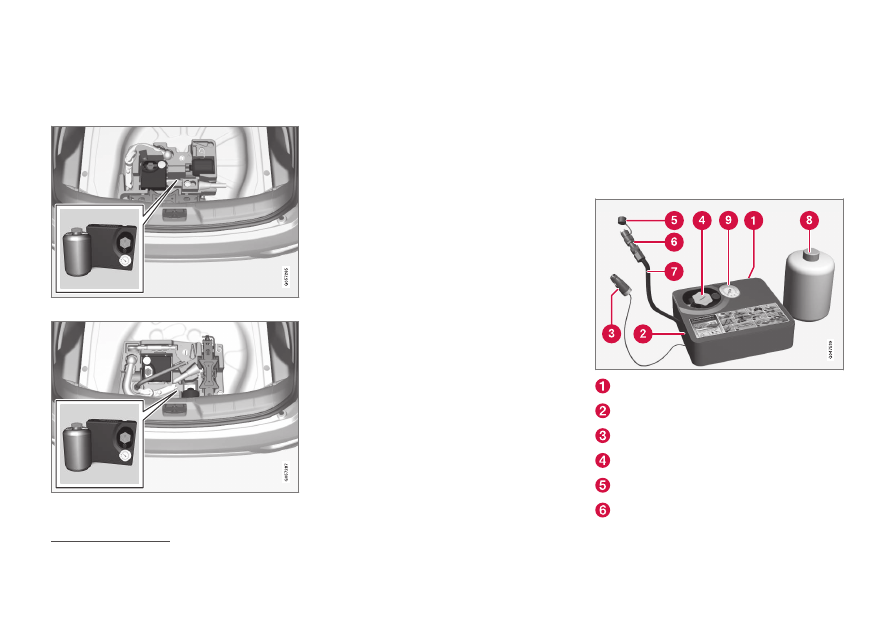

Overview of the component parts of the emer-
gency puncture repair kit, Temporary Mobility Kit
(TMK).

The parts are stored under the floor in the cargo
area.

Label, maximum permitted speed

Switch

Electrical cable

Bottle holder (orange cap)

Protective cap

Pressure reducing valve

The foam block may have different appearances depending on the car's equipment.

WHEELS AND TYRES

* Option/accessory.

330

Air hose

Sealing fluid bottle

Pressure gauge

Sealing fluid bottle

Replace the sealing fluid bottle before the expira-
tion date has passed. Treat the old bottle as envi-
ronmentally hazardous waste.

The sealing fluid bottle must be replaced after
use. Volvo recommends that the replacement is
performed by an authorised Volvo workshop.

WARNING

The bottle with sealing fluid contains 1.2-

Ethanol and natural rubber-latex.
Harmful if ingested. Could result in allergic

reaction in the event of skin contact.
Avoid contact with the skin and eyes.
Store out of the reach of children.

WARNING

•

In the event of skin contact with the seal-
ing fluid, it must be washed off immedi-
ately with soap and plenty of water.

•

Sealing fluid that makes contact with an
eye must be rinsed away immediately with
eye wash fluid or with plenty of water. If
the discomfort persists then the eye
should be examined by a doctor.

Related information

•

For information on the function of the parts, see Emer-
gency puncture repair kit

* (p. 328)

Emergency puncture repair* -

operation

Sealing a puncture with the emergency puncture
repair kit, Temporary Mobility Kit (TMK).

Emergency puncture repair

* - overview (p. 329).

WHEELS AND TYRES

}}

331

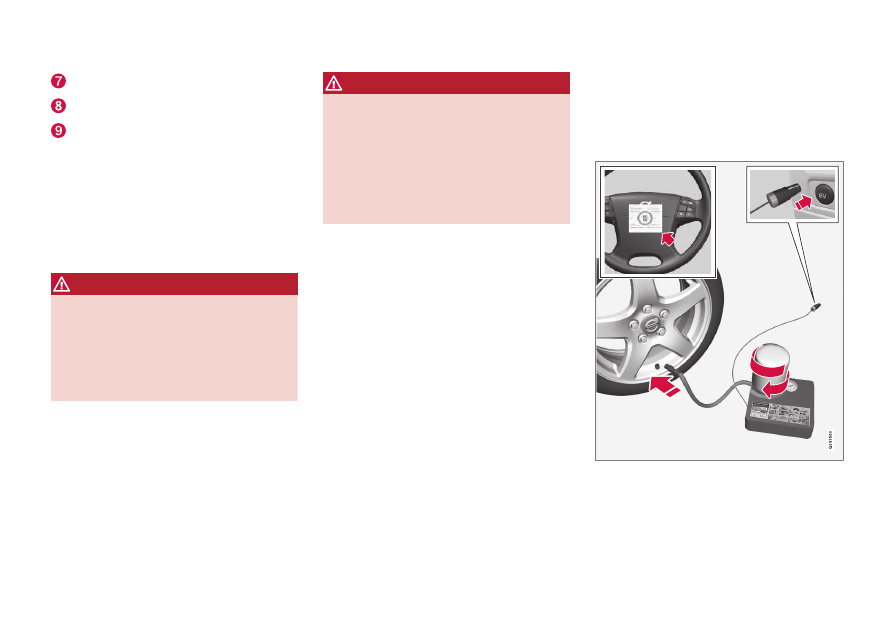

1. Set up the warning triangle and activate the

hazard warning lights if a tyre is being sealed
in a trafficked location.

If the puncture was caused by a nail or simi-
lar, allow this to remain in the tyre. It helps to
seal the hole.

2. Detach the label for maximum permitted

speed (which is fitted on one side of the
compressor) and affix it to the steering
wheel. You should not drive faster than
80 km/h (50 mph) after the emergency tyre
repair kit has been used.

3. Check that the switch is in position 0 (Off),

and locate the electrical cable and the air
hose.

4. Unscrew the orange-coloured cap from the

compressor, and unscrew the cork from the
sealing fluid bottle.

Do not break the bottle's seal before use. The
seal is broken automatically when the bottle is
screwed in.

5. Screw in the bottle to the bottom of the bot-

tle holder.
> The bottle and the bottle holder are

equipped with a reverse catch to prevent
sealant leakage. When the bottle is
screwed in it cannot be unscrewed from
the bottle holder again. Bottle removal
must be performed at a workshop, Volvo
recommends an authorised Volvo work-
shop.

WARNING

•

In the event of skin contact with the seal-
ing fluid, it must be washed off immediately
with soap and plenty of water.

•

Sealing fluid that makes contact with an
eye must be rinsed away immediately with
eye wash fluid or with plenty of water. If the
discomfort persists then the eye should be
examined by a doctor.

WARNING

Do not unscrew the bottle, it is equipped with

a reverse catch to prevent leakage.

6. Unscrew the tyre's dust cap.

Check that the pressure reducing valve on
the air hose is fully screwed on, and screw in
the air hose's valve connection to the bottom
of the thread on the tyre's air valve.

7. Plug the electrical cable into the closest

12 V socket and start the car.

Make sure that none of the other 12 V sock-
ets is in use when the compressor is operat-
ing.

WARNING

Do not leave children in the car without

supervision when the engine is running.

8. Start the compressor by flicking the switch to

position I (On).

WARNING

Never stand next to the tyre when the com-

pressor is running. If cracks or unevenness

arise then the compressor must be switched

off immediately. The journey should not be

continued. Call roadside assistance for recov-

ery to a tyre centre. Volvo recommends an

authorised tyre centre.

When the compressor starts, the pressure
can increase up to 6 bar but the pressure
drops after approximately 30 seconds.

WHEELS AND TYRES

* Option/accessory.

332

9. Inflate the tyre for 7 minutes.

The compressor must not be operated for
longer than 10 minutes - risk of overheating.

10. Switch off the compressor to check the pres-

sure on the pressure gauge. Minimum pres-
sure is 1.8 bar and maximum 3.5 bar.
(Release air with the pressure reducing valve
if the tyre pressure is too high.)

WARNING

If the pressure is below 1.8 bar (22 psi) then

the hole in the tyre is too big. The journey

should not be continued. Call roadside assis-

tance for recovery to a tyre centre. Volvo rec-

ommends an authorised tyre centre.

11. Switch off the compressor and unplug the

electrical cable.

12. Unscrew the air hose from the tyre's air valve

and refit the dust cap on the tyre.

13. Fit the protective cap on the air hose in order

to avoid leakage of the remaining sealing
fluid.

14. As soon as possible, drive at least 3 km at a

maximum speed of 80 km/h (50 mph) so
that the sealing fluid can seal the tyre and
then perform a follow-up check.

Sealant will spurt out of the puncture during
the first few rotations of the tyre.

WARNING

Make sure that nobody is standing near the

car and gets the sealing fluid splashed onto

them when the car is driven away. The dis-

tance should be at least 2 metres (7 feet).

15. Follow-up inspection:

Connect the air hose on the tyre's air valve
again and check the tyre pressure with the
pressure gauge, see Emergency puncture
repair

* - rechecking (p. 332).

Related information

•

* (p. 328)

•

Emergency puncture repair kit

* - rechecking

(p. 332)

•

* - overview

(p. 329)

Emergency puncture repair* -

rechecking

When a tyre has been sealed with the emer-
gency puncture repair kit, Temporary Mobility Kit
(TMK), a subsequent check must be made after
approx. 3 kilometres of driving.

Check tyre pressure

Take out the tyre sealing equipment. The com-
pressor must be switched off.

1. Unscrew the tyre's dust cap.

Take out the air hose and screw in the
valve connection to the bottom of the thread
on the tyre's air valve.

2. Read the tyre pressure on the pressure

gauge.

•

If the tyre pressure is below 1.3 bar then
the tyre is insufficiently sealed. The jour-
ney should not be continued. Call road-
side assistance for recovery.

•

If the tyre pressure is higher than 1.3 bar,
the tyre must be inflated to the pressure
specified in accordance with the tyre
pressure label on the driver side door pil-
lar (1 bar = 100 kPa).

•

Release air using the pressure reducing
valve if the tyre pressure is too high.

WHEELS AND TYRES

}}

* Option/accessory.

333

3. If the tyre needs to be inflated:

1. Plug the electrical cable into the closest

12 V socket and start the car.

2. Start the compressor and inflate the tyre

to the pressure specified on the tyre pres-
sure label on the driver side door pillar.

3. Switch off the compressor.

4. Remove the tyre sealing equipment.

Fit the protective cap on the air hose in order
to avoid leakage of the remaining sealing
fluid.

WARNING

Do not unscrew the bottle, it is equipped with

a reverse catch to prevent leakage.

5. Refit the dust cap on the tyre.

•

After a tyre has been inflated, always refit
the dust cap in order to avoid damage to
the valve from gravel, dirt, etc.

•

Only use plastic dust caps. Metal dust
caps can rust and become difficult to
unscrew.

The sealing fluid bottle and the hose must be
replaced after use. Volvo recommends that
this replacement is performed by an author-
ised Volvo workshop.

WARNING

Check the tyre pressure regularly.

Volvo recommends that the car is driven to the
nearest authorised Volvo workshop for the
replacement/repair of the damaged tyre. Advise
the workshop that the tyre contains sealing fluid.

WARNING

You should not drive faster than 80 km/h

(50 mph) after the emergency tyre repair kit

has been used. Volvo recommends a visit to

an authorised Volvo workshop for inspection

of the sealed tyre (maximum driving distance

is 200 km). The staff there can determine

whether or not the tyre can be repaired or if it

needs to be replaced.

Related information

•

* - operation

(p. 330)

Inflating tyres with compressor from

the emergency puncture repair kit*

The car's original tyres can be inflated using the
compressor in the emergency puncture repair kit
(p. 329).

1. The compressor must be switched off. Make

sure that the switch is in position 0 (Off), and
take out the electrical cable and the air hose.

2. Unscrew the tyre's dust cap and screw in the

air hose's valve connection to the bottom of
the thread on the tyre's air valve.

3. Plug the electrical cable into the closest

12 V socket and start the car.

WARNING

Inhaling car exhaust fumes could result in

danger to life. Never leave the engine running

in sealed areas or areas that lack sufficient

ventilation.

WARNING

Do not leave children in the car without

supervision when the engine is running.

4. Start the compressor by flicking the switch to

position I (On).

WHEELS AND TYRES

* Option/accessory.

334

The compressor must not be operated for
longer than 10 minutes - risk of overheating.

5. Inflate the tyre to the pressure specified on

the tyre pressure label on the driver side
door pillar. Release air using the pressure
reducing valve if the tyre pressure is too high.

6. Switch off the compressor. Detach the air

hose and the electrical cable.

7. Refit the dust cap on the tyre.

Related information

•

Emergency puncture repair kit

* (p. 328)

•

* - overview

(p. 329)

MAINTENANCE AND SERVICE

* Option/accessory.

336

Volvo service programme

To keep the car as safe and reliable as possible,
follow the Volvo service programme as specified
in the Service and Warranty Booklet.

Volvo recommends engaging an authorised Volvo
workshop to perform the service and mainte-
nance work. Volvo workshops have the personnel,
special tools and service literature to guarantee
the highest quality of service.

Climate control system - fault tracing and
repair (p. 347)

For the Volvo warranty to apply, check and
follow the instructions in the Service and
Warranty Booklet.

Related information

•

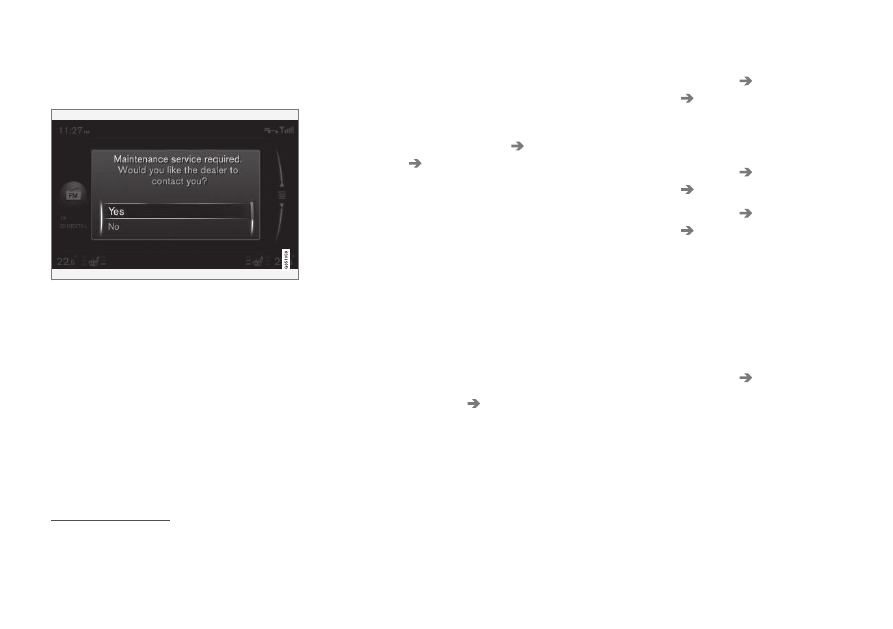

Book service and repair*

Manage service, repair and booking information
directly in your Internet-connected car.

This service

provides a convenient way to book a

service and workshop visit directly in the car. Car
information is sent to your dealer, who can pre-
pare the workshop visit. The dealer will contact
you to schedule an appointment time. For certain
markets, the system reminds you of a scheduled
appointment time as it approaches and the navi-
gation system

can also guide you to the work-

shop when the time comes.

Before the service can be used

Volvo ID and my profile

•

Go to www.volvocars.com, log in and proceed
as follows:

1. Check that the car is connected to your pro-

file.

2. Check that your contact information is cor-

rect.

3. Select the Volvo dealer you want to contact

for service and repair.

4. Choose preferred communication channel

(phone). Booking information is always sent
to the car and to you via email.

Prerequisite for booking from car

•

To send and receive booking information
from and to the car, the car must be con-
nected to the Internet, see the Sensus Info-
tainment supplement for information about
how to connect the car to the Internet.

•

Since the booking information is sent over
your private phone subscription, you will be
asked whether you want to send the informa-
tion. The question is asked once and then
applies to the selected connection for a lim-
ited time.

•

For the service to work and for the system to
communicate via the car's screen, notifica-
tions/pop-up messages must be accepted.
In the normal view for the MY CAR source,
press OK/MENU and then

Service & repair

Display notifications

Using the service

All menus and settings are accessed from the
normal view in MY CAR by pressing OK/MENU
and then

Service & repair

When it is time for service, and in some cases
when the car is in need of repair, this is notified

Applies to certain markets.

Applies to Sensus Navigation.

MAINTENANCE AND SERVICE

}}

337

in the combined instrument panel (p. 66) and via
a pop-up menu in the screen.

Service message in the screen.

Meaning of the answer options in the screen's
pop-up menu:

•

Yes

- A booking enquiry is sent to your

dealer who then comes back with a booking
proposal. The service lamp and service mes-
sage in the combined instrument panel are
extinguished.

•

- No more pop-up messages will be

shown in the screen. The message in the
combined instrument panel remains. After
this option has been selected, it is possible
to start the manual booking in the car, see
below.

•

Postpone

- The pop-up menu is shown the

next time the car is started.

Book a service or repair manually

1. Press the MY CAR button in the centre con-

sole and select

Service & repair

Dealer

information

Request service or repair

> Vehicle data is sent automatically to your

dealer.

2. The dealer sends a booking proposal to the

car.

3. Accept or request a new booking proposal.

After the booking has been accepted the book-
ing information is stored in the car, see My book-
ings. The car will automatically communicate with
you via the screen by means of reminders about
the booking and guide you to the workshop visit.

My bookings

Show booking information in the car's screen.
Accept or request a new booking proposal.

–

Select

Service & repair

My bookings

Call the dealer

With a phone connected to the car via
Bluetooth

, you can call your dealer. For connect-

ing the phone, see the Sensus Infotainment sup-
plement.

–

Select

Service & repair

Dealer

information

Call dealer

Using the navigation system

Enter your workshop as destination or waypoint
in the navigation system.

–

Select

Service & repair

Dealer

information

Set single destination

–

Select

Service & repair

Dealer

information

Add as waypoint

Sending vehicle data

Vehicle data are sent to a central Volvo database
(not your dealer) from which Volvo dealers can
retrieve vehicle information using the car's identi-
fication number (VIN

). The number is printed in

the car's service and warranty booklet, alterna-
tively inside the windscreen's bottom left-hand
corner.

–

Select

Service & repair

Send car data

Booking information and vehicle data

When you decide to book a service from your car,
the booking information and vehicle data will be
sent. Vehicle data information consists of infor-
mation within the following areas:

Applies to certain markets.

Applies to Sensus Navigation.

Vehicle Identification Number

MAINTENANCE AND SERVICE

338

•

service requirement

•

function status

•

fluid levels

•

meter reading

•

the car's vehicle identification number (VIN

)

•

the car's software version.

Related information

•

Volvo ID (p. 20)

Vehicle Identification Number

MAINTENANCE AND SERVICE

}}

339

Raising the car

When raising the car it is important that the jack
or lifting arms are fitted in the intended points on
the car's underbody.

Changing wheels - removing wheels (p. 322)

Volvo recommends only using the jack that
belongs to the car model in question. If a jack
is selected other than the one recommended
by Volvo, follow the instructions supplied with
the equipment.

MAINTENANCE AND SERVICE

340

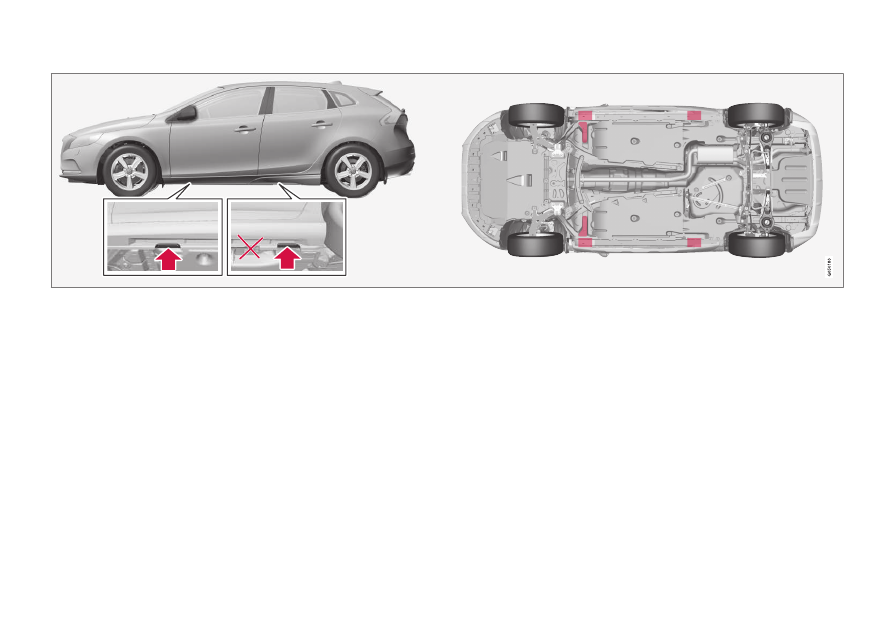

Jacking points (arrows) for the jack that belongs to the car and lifting points (marked in red).

If the car is raised with a front workshop jack
then this must be positioned under one of the
two lifting points furthest in under the car. If the
car is raised with a rear workshop jack then it
must be positioned under one of the lifting
points. Ensure that the workshop jack is posi-
tioned so that the car cannot slide off the jack.
Always use axle stands or similar.

If the car is raised with a two-pillar workshop lift
then the front and rear lifting arms can be posi-
tioned under the outer lifting points (jacking
points). Alternatively, the inner lifting points can
be used at the front.

Related information

•

MAINTENANCE AND SERVICE

}}

341

Bonnet - opening and closing

The bonnet can be opened when the handle in
the passenger compartment has been turned
clockwise and the lock by the radiator grille has
been moved to the left.

The handle for bonnet opening is always on the left-

hand side.

Turn the handle about 20-25 degrees clock-
wise. You will hear when the catch releases.

Move the catch to the left and open the bon-
net. (The catch hook is located between the
headlamp and radiator grille, see illustration.)

WARNING

Check that the bonnet locks properly when

closed.

Related information

•

Engine compartment - checking (p. 342)

•

Engine compartment - overview (p. 341)

Engine compartment - overview

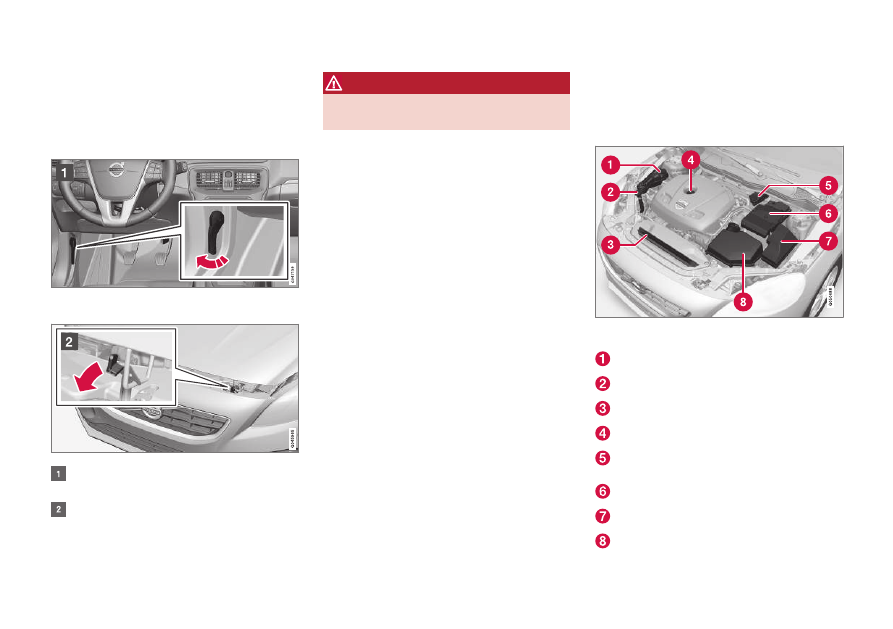

The overview shows some service-related com-
ponents.

Engine compartment

The appearance of the engine compartment may differ

depending on model and engine variant.

Coolant expansion tank

Washer fluid filler pipe

Radiator

Engine oil filler pipe

Reservoir for brake and clutch fluid (located
on the driver's side)
Starter battery

Relay and fuse box

Air filter

MAINTENANCE AND SERVICE

342

WARNING

The ignition system has very high voltage and

output. The voltage in the ignition system is

highly dangerous. The car's electrical system

must always be in key position 0 when work is

being performed in the engine compartment;

see Key positions - functions at different lev-

els (p. 81).
Do not touch the spark plugs or ignition coil

when the car's electrical system is in key

position II or when the engine is hot.

Related information

•

Bonnet - opening and closing (p. 341)

•

Engine compartment - checking (p. 342)

Engine compartment - checking

Some oils and fluids should be checked at regu-
lar intervals.

Regular checking

Check the following oils and fluids at regular
intervals, e.g. when refuelling:

•

Coolant

•

Engine oil

•

Washer fluid

WARNING

Remember that the radiator fan (located at

the front of the engine compartment, behind

the radiator) may start automatically some

after the engine has been switched off.
Always have the engine cleaned by a work-

shop - an authorised Volvo workshop is rec-

ommended. There is a risk of fire if the engine

is hot.

Related information

•

Bonnet - opening and closing (p. 341)

•

Engine compartment - overview (p. 341)

•

Coolant - level (p. 345)

•

Engine oil - checking and filling (p. 343)

•

Washer fluid - filling (p. 357)

Engine oil - general

An approved engine oil must be used in order
that the recommended service intervals can be
applied.

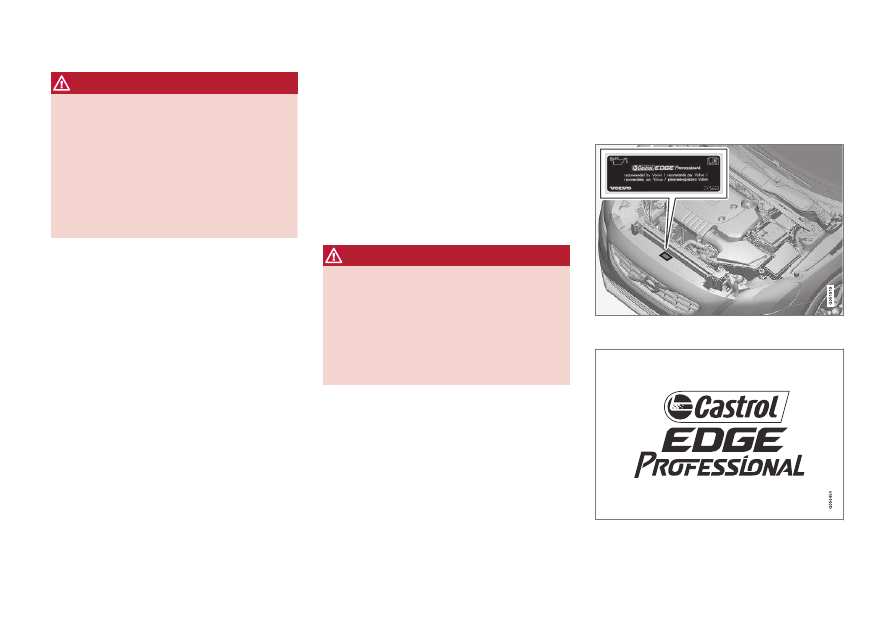

Volvo recommends:

MAINTENANCE AND SERVICE

}}

343

When driving under adverse conditions, see
Engine oil - adverse driving conditions (p. 389).

For filling capacities, see Engine oil - grade and
volume (p. 390).

In order to fulfil the requirements for the
engine's service intervals all engines are filled
with a specially adapted synthetic engine oil
at the factory. The choice of oil has been
made very carefully with regard to service life,
starting characteristics, fuel consumption and
environmental impact.

An approved engine oil must be used in order
that the recommended service intervals can
be applied. Only use a prescribed grade of oil
for both filling and oil change, otherwise you
will risk affecting service life, starting charac-
teristics, fuel consumption and environmental
impact.

Volvo Car Corporation disclaims all warranty
liability if engine oil of the prescribed grade
and viscosity is not used.

Volvo recommends that oil changes are car-
ried out at an authorised Volvo workshop.

Volvo uses different systems for warning of low/
high oil level or low oil pressure. Certain engine
variants have an oil pressure sensor, and then the
combined instrument panel's warning symbol for
low oil pressure is used

. Other variants

have an oil level sensor, when the driver is

informed via the instrument's warning symbol

and display texts. Certain variants have

both systems. Contact a Volvo dealer for more
information.

Change the engine oil and oil filter in accordance
with the intervals specified in the Service and
Warranty Booklet.

Using oil of a higher than specified grade is per-
mitted. If the car is driven in adverse conditions,
Volvo recommends using an oil of a higher grade
than the one specified, see Engine oil - adverse
driving conditions (p. 389).

Related information

•

Engine oil - checking and filling (p. 343)

Engine oil - checking and filling

The oil level is detected with the electronic oil
level sensor.

MAINTENANCE AND SERVICE

344

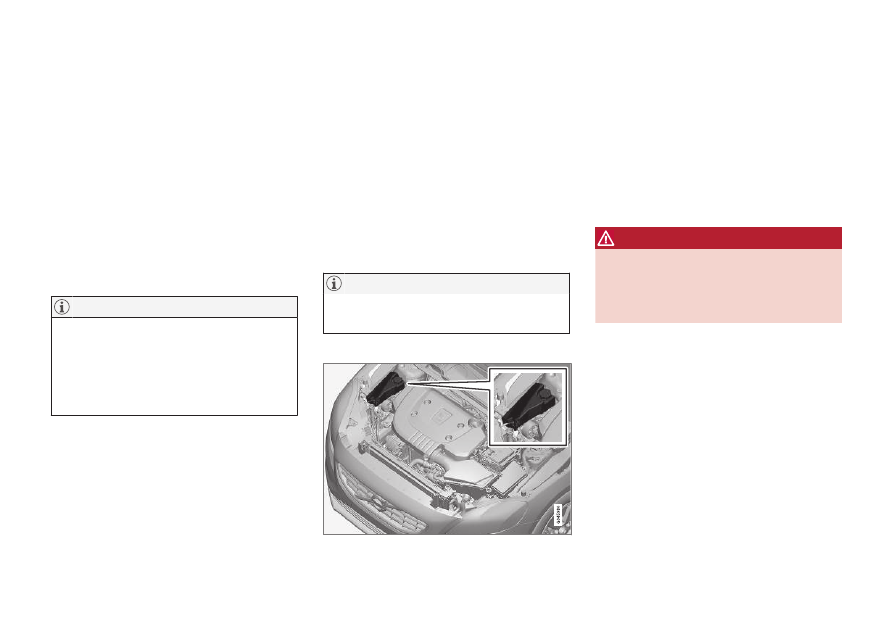

Filler pipe

In some cases, oil may need to be topped up
between service intervals.

No action needs to be taken on engine oil level
until a message is shown in the combined instru-
ment panel's display, see the following illustra-
tion.

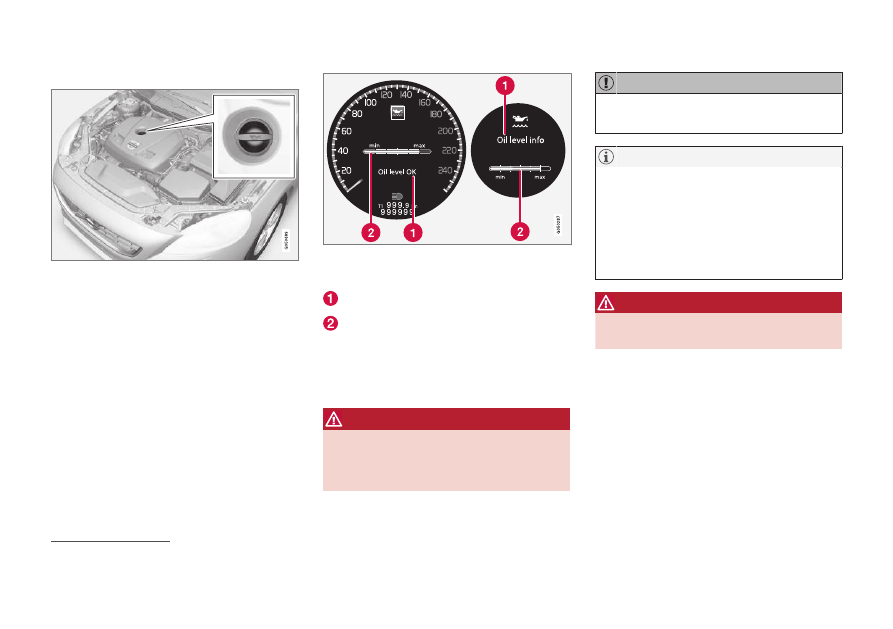

Message and graphic in the display. The left-hand dis-

play is shown in the digital combined instrument panel

and the right-hand in the analogue.

Message

Engine oil level

The oil level is checked using the electronic oil
level gauge with the thumbwheel when the
engine is switched off, see Menu navigation -
combined instrument panel (p. 110).

WARNING

If the message

Oil service required

shown, visit a workshop - an authorised Volvo

workshop is recommended. The oil level may

be too high.

If notified of low oil level, only fill with the vol-
ume specified, for example, 0.5 litres.

functions at different levels (p. 81).

The system cannot directly detect changes
when the oil is filled or drained. The car must
have been driven approx. 30 km (approx.
20 miles) and have been stationary for
5 minutes with the engine switched off and
on level ground before the oil level indication
is correct.

WARNING

Do not spill oil onto the hot exhaust manifold

due to the risk of fire.

Engines with electronic oil level sensor do not have a dipstick.

MAINTENANCE AND SERVICE

}}

345

Measuring the oil level

If the oil level needs to be checked then it should
be carried out in accordance with the following
sequence.

1. Activate key position II; see Key positions -

2. Rotate the thumbwheel on the left-hand

stalk switch to position

Oil level

> You will then see information displayed

about the engine oil level.

For more information on menu navigation,
see Menu navigation - combined instru-
ment panel (p. 110).

Engine oil - general (p. 342)

If the right conditions for measuring the oil
level (time after engine shutdown, the car's
inclination, outside temperature, etc.) are not
met, the message

Not available

will be

shown. This does not mean that there is
something wrong in the car's systems.

Related information

•

•

Key positions - functions at different levels
(p. 81)

Coolant - level

The coolant cools the internal combustion
engine to the correct operating temperature. The
heat that is transferred from the engine to the
coolant can be used to heat the passenger com-
partment.

Checking the level

The coolant level must lie between the MIN and
MAX marks on the expansion tank. If the cooling
system is not filled sufficiently, excessively high
temperatures could occur, causing a risk of dam-
age to the engine.
