Volvo XC60 Twin Engine (2019 year). Instruction

CLIMATE CONTROL

* Option/accessory.

225

•

Climate comfort retaining function (p. 230)

•

Parking climate symbols and messages
(p. 231)

Preconditioning

Preconditioning the vehicle before driving can
help reduce wear and reduce energy consump-
tion during a trip.

Preconditioning can be started immediately or
started at a preset time using a timer.

The function utilizes several of the vehicle's sys-
tems:

•

In cold weather, the parking heater heats the
passenger compartment to a comfortable
temperature.

•

In warm weather, air conditioning cools the
passenger compartment to a comfortable
temperature.

•

The electrically heated steering wheel* and
seats* can be activated.

•

Heating for the windshield, rear window and
door mirrors are automatically activated as
needed.

During preconditioning in a hot climate, conden-
sation from the air conditions may drip under the
vehicle. This is normal.

NOTE

Preconditioning is only available when the car
is connected to an electrical outlet. A charg-
ing post that is not always active, for example
because of a timer, can cause loss of function
for preconditioning.

If the car is not connected to an electrical
socket it is still possible in a warm climate to
achieve brief cooling of the passenger com-
partment by direct starting preconditioning.

NOTE

During preconditioning of the passenger
compartment, the vehicle works to reach a
comfortable temperature and not the tem-
perature set in the climate system.

Related information

•

Parking climate (p. 224)

•

Starting and stopping preconditioning
(p. 226)

•

Preconditioning timer (p. 227)

CLIMATE CONTROL

* Option/accessory.

226

Starting and stopping

preconditioning

Preconditioning heats or cools the passenger
compartment before driving. Preconditioning
can be started in the center display or from a
cellular phone.

Starting and stopping from the vehicle

Preconditioning button in the Parking climate tab in
Climate view.

1. Open Climate view in the center display.

2. Select the

Parking climate

tab.

Window for seat/steering wheel heating in the Parking

climate tab in Climate view.

3. Tap the boxes to select if seat/steering

wheel heating should be activated along with
preconditioning.

4. Tap

Preconditioning

> Preconditioning starts/stops and the but-

ton lights up/goes out.

NOTE

If the car is not connected to an electrical
socket it is still possible in a warm climate to
achieve brief cooling of the passenger com-
partment by direct starting preconditioning.

NOTE

The vehicle doors and windows should be
closed during preconditioning of the passen-
ger compartment.

Starting from app*

A device with the Volvo On Call* app can be used
to start preconditioning or check settings. Pre-
conditioning heats or cools the passenger com-
partment (using the vehicle's air conditioning) to
a comfortable temperature.

The passenger compartment can also be precon-
ditioned using the Engine Remote Start (ERS)

function using the Volvo On Call* app.

Certain markets only.

CLIMATE CONTROL

}}

227

Related information

•

Parking climate (p. 224)

•

Preconditioning (p. 225)

•

Preconditioning timer (p. 227)

Preconditioning timer

The timer can be set to finish preconditioning at
a predetermined time.

The timer can store up to 8 preset times for:

•

A time on a particular date

•

A time on one or more days of the week, with
or without the repeat function.

NOTE

If the car is not connected to an electrical
socket it is still possible in a warm climate to
achieve brief cooling of the passenger com-
partment by direct starting preconditioning.

Related information

•

Preconditioning (p. 225)

•

Adding and editing timer settings for precon-
ditioning (p. 227)

•

Activating and deactivating preconditioning
timer (p. 228)

•

Deleting preconditioning timer settings
(p. 229)

Adding and editing timer settings

for preconditioning

The preconditioning timer can store up to 8 pre-
set timer settings.

Adding a timer setting

Button for adding a timer setting in the Parking climate
tab in Climate view.

1. Open Climate view in the center display.

2. Select the

Parking climate

tab.

3. Tap

Add timer

> A pop-up window will appear.

NOTE

It is not possible to add a time setting if there
are already 8 settings for the timer. Delete a
time setting to be able to add a new one.

CLIMATE CONTROL

228

4. Tap

Date

to set a time for a specific date.

Tap

Days

to set a time for one or more days

of the week.

With

Days

: Activate/deactivate the repeat

function by selecting/deselecting the

Repeat weekly

checkbox.

5. With

Date

: Select a date for preconditioning

by scrolling in the date list using the arrows.

With

Days

: Select days of the week for pre-

conditioning by tapping the buttons for the
days.

6. Set the time at which preconditioning should

be completed by scrolling using the arrows in
the clock.

7. Tap

Confirm

to add a timer setting.

> The timer setting will be added to the list

and activated.

Editing a timer setting

1. Open Climate view in the center display.

2. Select the

Parking climate

tab.

3. Tap the timer setting you would like to

change.
> A pop-up window will appear.

4. To edit a timer setting, follow the procedures

described under the heading "Adding a timer
setting" above.

Related information

•

Preconditioning (p. 225)

•

Preconditioning timer (p. 227)

•

Activating and deactivating preconditioning
timer (p. 228)

•

Deleting preconditioning timer settings
(p. 229)

Activating and deactivating

preconditioning timer

Timer settings in the preconditioning timer can
be activated or deactivated as needed.

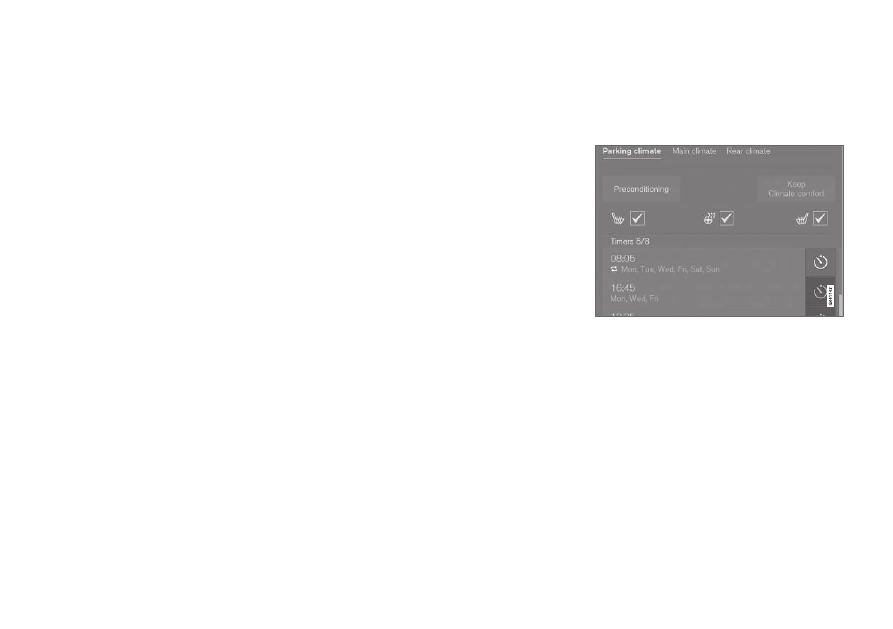

Timer buttons in the Parking climate tab in Climate
view.

1. Open Climate view in the center display.

2. Select the

Parking climate

tab.

3. Activate/deactivate a timer setting by tap-

ping the timer button to the right of the set-
ting.
> The timer setting is activated/deactivated

and the button lights up/goes out.

Related information

•

Preconditioning (p. 225)

•

Preconditioning timer (p. 227)

CLIMATE CONTROL

229

•

Adding and editing timer settings for precon-
ditioning (p. 227)

•

Deleting preconditioning timer settings
(p. 229)

Deleting preconditioning timer

settings

A preconditioning timer setting that is no longer
needed can be deleted.

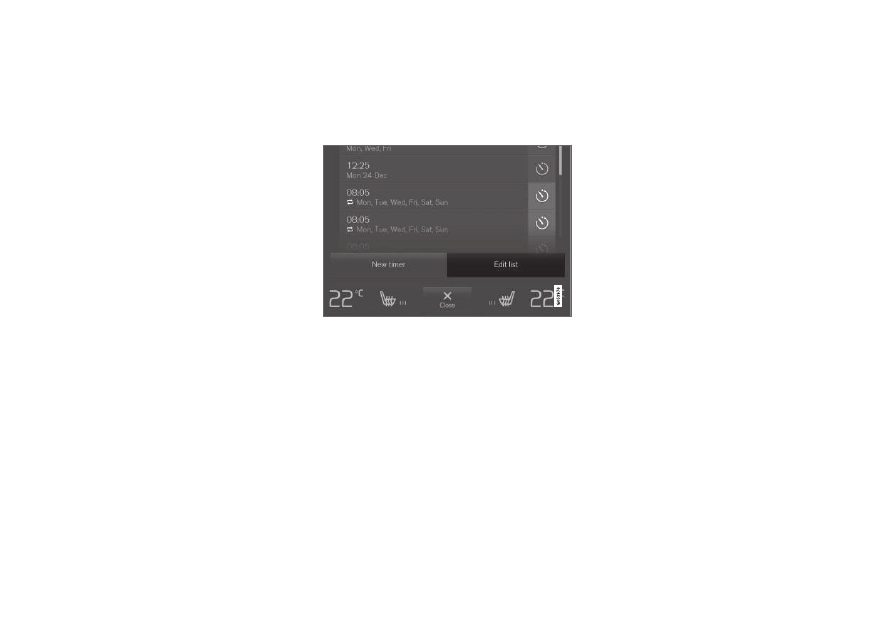

The button for editing a list/deleting a timer setting in
the Parking climate tab in Climate view.

1. Open Climate view in the center display.

2. Select the

Parking climate

tab.

3. Tap

Edit list

4. Tap the editing icon to the right in the list.

> The icon will change to the text

Delete

5. Tap

Delete

to confirm.

> The timer setting will be deleted from the

list.

Related information

•

Preconditioning (p. 225)

•

Preconditioning timer (p. 227)

•

Adding and editing timer settings for precon-
ditioning (p. 227)

•

Activating and deactivating preconditioning
timer (p. 228)

CLIMATE CONTROL

230

Climate comfort retaining function

The climate in the passenger compartment can
be maintained when the vehicle is parked, e.g. if
the engine is turned off but the driver or passen-
gers remain in the vehicle.

This function can only be direct-started.

The function utilizes several of the vehicle's sys-
tems:

•

Residual heat from the engine is used to
help heat the passenger compartment to a
comfortable temperature.

•

In warm weather, the ventilation system cools
the passenger compartment by blowing air in
from outside.

NOTE

Climate comfort maintenance will be deacti-
vated if the vehicle is locked from the outside
in order to avoid using residual engine heat
unnecessarily. This function is intended to be
used to maintain climate comfort when the
driver or a passenger remains in the vehicle
after the engine is turned off.

Related information

•

Parking climate (p. 224)

•

Starting and switching off the climate retain-
ing function when parking (p. 230)

Starting and switching off the

climate retaining function when

parking

The climate retaining function maintains the cli-
mate settings in the vehicle after the engine has
been switched off. The function can be activated
in the center display.

Button for retaining climate comfort in the Parking

climate tab in Climate view.

1. Open Climate view in the center display.

2. Select the

Parking climate

tab.

3. Tap

Keep climate comfort

> The climate comfort retaining function will

be activated/deactivated and the button
light will go on/off.

NOTE

Maintained climate comfort is not possible
when there is not sufficient residual engine
heat to maintain the climate settings in the
passenger compartment, or if the outside
temperature is above approximately 20 °C
(68 °F).

NOTE

Related information

•

Climate comfort retaining function (p. 230)

CLIMATE CONTROL

* Option/accessory.

231

Parking climate symbols and

messages

A number of symbols and messages related to
parking climate may be displayed in the instru-
ment panel.

Messages related to parking climate can also be
displayed in a device that has the Volvo On Call*
app.

Symbol

Message

Meaning

Parking climate

Service required

Parking climate is not functioning properly. Contact a workshop

to have the system checked as

soon as possible.

Parking climate

Temporarily unavailable

Parking climate is temporarily not functioning properly. If the problem persists, contact a work-
shop

to have the system checked.

Parking climate

Unavailable Charge level too low

The parking climate cannot be activated because the hybrid battery's charge level is too low to
start the parking heater. Start the vehicle.

Parking climate

Unavailable, not connected to power
supply

The parking climate cannot be activated if the charging cable is not connected. Connect the
charging cable.

Parking climate

Limited Charge level too low

Parking climate will only run for a limited time when the hybrid battery's charge level is too low.
Start the vehicle.

An authorized Volvo workshop is recommended.

Related information

•

Parking climate (p. 224)

CLIMATE CONTROL

232

Heater

The heater helps the engine and passenger
compartment reach the correct temperature
before and while driving.

The heater has two sub-functions:

•

Parking heater - heats the passenger com-
partment as needed when the parking cli-
mate's preconditioning is activated.

•

Auxiliary heater - heats the passenger com-
partment and engine while driving.

The heater is a high-voltage coolant heater and is
mounted in the front right-side wheel housing.

Battery and charging

The heater is powered by the vehicle's hybrid bat-
tery. If the charge level in the hybrid battery is too
low, the heater will switch off automatically and a
message will be displayed in the instrument
panel.

NOTE

Make sure that the battery has sufficient
charge if the heater must be used.

Related information

•

Climate (p. 200)

Parking heater

The parking heater heats the passenger com-
partment as needed before driving if precondi-
tioning is activated.

The parking heater is one of two sub-functions of
the vehicle's heater. The heater is mounted in the
front right-side wheel housing.

The parking heater starts automatically if the
parking climate's preconditioning is activated and
the passenger compartment needs to be heated.

It switches off automatically when a set timer
time or the heater's maximum run time expires, or
if the car is restarted.

The heater's maximum running time is 40
minutes.

Additional heater

The auxiliary heater helps heat the passenger
compartment and engine while driving.

The auxiliary heater is one of two sub-functions
of the vehicle's heater. The heater is mounted in
the front right-side wheel housing.

The auxiliary heater is started and controlled
automatically when extra heat is required while
the vehicle is being driven.

It switches off automatically when the ignition is
switched off.

CLIMATE CONTROL

233

Activating and deactivating the

auxiliary heater

The auxiliary heater helps heat the passenger
compartment and engine while driving.

It is possible to set whether automatic start for
the auxiliary heater should be activated or deacti-
vated.

1. Tap

Settings

in the Top view in the center

display.

2. Tap

Climate

3. Select

Additional Heater

to activate/deac-

tivate automatic start for the auxiliary heater.

NOTE

If automatic start of the auxiliary heater is
deactivated, this may impair comfort in the
passenger compartment since the climate
system then does not have a heat source dur-
ing electrical operation.

KEY, LOCKS AND ALARM

* Option/accessory.

236

Lock indication

When the vehicle is locked or unlocked, the turn
signals will flash to indicate that the vehicle has
been locked or unlocked correctly.

Exterior confirmation

Locking

•

The turn signals will flash once and the door
mirrors will fold in

to confirm the vehicle is

locked.

Unlocking

•

The turn signals will flash twice and the door
mirrors will fold out

to confirm the vehicle is

unlocked.

All doors, tailgate and hood must be closed for
confirmation to be given. If only the driver's door
is closed when the vehicle is locked

, the vehicle

will be locked but the turn signals will only flash
to indicate locking when all doors and the hood
and tailgate have been closed.

Lock and alarm indicator

The locks and alarm indicator on the dashboard will dis-
play the status of the locking system.

A long flash indicates that the vehicle is locked.
When the vehicle is locked, this will be indicated
by short, pulsing flashes.

Other indicators

The home safe lighting and approach lighting
functions also indicate when the vehicle is locked
or unlocked.

Lock button indicators

Front door

Lock buttons with indicator lights in front door.

Illuminated indicator lights in both front door lock
buttons indicate that all doors are locked. If any
door is opened, the lights in both doors will go
out.

Only vehicles with power folding mirrors.

Does not apply to vehicles equipped with keyless locking/unlocking (Passive Entry*).

KEY, LOCKS AND ALARM

}}

* Option/accessory.

237

In rear door*

Lock button with indicator light in rear door.

Illuminated indicator lights in each door indicate
that that particular door is locked. If any door is
unlocked and opened, the indicator light in that
door will go out. The lights in the other doors will
remain illuminated.

Related information

•

Lock confirmation settings (p. 237)

•

Welcome Light (p. 161)

•

Using home safe lighting (p. 161)

Lock confirmation settings

Settings for how the vehicle confirms locking
and unlocking can be adjusted in the center dis-
play's Settings menu.

Locking response:

1. Tap

Settings

in the center display's Top

view.

2. Tap

My Car

Locking

3. Tap

Visible Locking Feedback

to deacti-

vate the function or to select when the vehi-
cle should provide a visible response: during

Lock

Unlock

Both

4. Select to receive an audible response when

locking the vehicle by marking

Audible

Locking Feedback

Folding door mirrors* confirmation:

1. Tap

Settings

in the center display's Top

view.

2. Tap

My Car

Mirrors and Convenience

3. Select

Fold Mirror When Locked

to acti-

vate or deactivate the function.

Related information

•

Lock indication (p. 236)

Remote key

The remote key is used to lock and unlock doors
and the tailgate. The remote key must be in the
vehicle in order to start the engine.

Remote control key

, on left, and button-less key ((Key

Tag)*), on right.

The remote key is not physically used to start the
ignition because the vehicle is standard-equipped
with keyless start (Passive Start).

To start the vehicle, the key must be in the front
section of the passenger compartment, e.g. in the
driver's pocket or in a cup holder in the tunnel
console.

The illustration is generic - details may vary according to vehicle model.

KEY, LOCKS AND ALARM

* Option/accessory.

238

The keyless system for locking/unlocking the
doors and tailgate (Passive Entry*) is available as
an option. This system has a range in a semicircle
with a radius of approximately 1.5 meter (5 feet)
out from the driver's door and approx. 1 meter
(3 feet) out from the tailgate.

With keyless start in combination with keyless
locking and unlocking, the remote key can be
located anywhere in the passenger compartment
or cargo compartment in order to start the
engine.
Each remote key supplied with the vehicle can be
linked to a driver profile with unique settings for
the vehicle. When a key with a specific profile is
used, the vehicle settings are adjusted according
to that profile.

Buttonless key, Key Tag

For vehicles equipped with keyless locking and
unlocking*, a smaller, lighter and button-less key
(Key Tag

) is also provided. It works the same

way as the regular remote key as regard keyless
start and keyless locking and unlocking. The key
is waterproof up to a depth of approx. 10 meters
(30 feet) for up to 60 minutes. It does not have a
detachable key blade and its battery cannot be
replaced.

Remote key buttons

The remote key has four buttons, one on the left side
and three on the right

  Locking - Press once to lock the doors,
tailgate and fuel filler door and arm the
alarm.
Press and hold to close all windows.
  Unlocking - Press once to unlock the
doors and tailgate and disarm the alarm.
Press and hold to open all windows at the
same time. This total airing function can be
used to e.g. quickly air out the vehicle in hot
weather.
  Tailgate - Unlock and disarm the tailgate
only. On vehicles equipped with the power
tailgate*, press and hold to automatically
open the tailgate. Press and hold to close an

open tailgate (an audible warning signal will
be given).
Panic alarm - Used to attract attention in
emergency situations. Press and hold the
button for at least 3 seconds or press twice
within 3 seconds to activate the turn signals
and horn. To deactivate, wait at least 5 sec-
onds and press the button again. If no action
is taken, the panic alarm will deactivate auto-
matically after 3 minutes.

WARNING

If anyone is left in the vehicle, make sure that

power to the power windows and panoramic

roof* is cut off by always taking the remote

key with you when you leave the vehicle.

Även kallad sportnyckel.

The illustration is generic - details may vary according to vehicle model.

KEY, LOCKS AND ALARM

* Option/accessory.

239

NOTE

Be aware of the risk of locking the remote
key in the vehicle.

•

If the remote key or Key Tag is left in the
vehicle, it will be deactivated when the
vehicle is locked and the alarm set using
another valid key. The deactivated key will
be reactivated when the vehicle is
unlocked.

•

If the remote key or Red Key is left in the
vehicle, it will be deactivated even if the
vehicle is locked using Volvo On Call, and
will be reactivated when the vehicle is
unlocked using Volvo On Call or by
pressing the unlock button on the key.

Interference

Electromagnetic fields or obstructing objects may
interfere with the remote key's functions for key-
less start and keyless locking and unlocking*.

NOTE

Avoid storing the remote control key near
metal objects or electronic devices, e.g. cell
phones, tablets, laptops or chargers – pref-
erably no closer than 10-15 cm (4-6 in.).

If you experience interference, use the remote
key's detachable blade to unlock the vehicle and

place the remote key in the backup key reader in
the tunnel console cup holder to disarm the
alarm.

NOTE

When the remote control key is placed in the
cup holder, make sure that no other vehicle
keys, metal objects or electronic devices (e.g.
cell phones, tablets, laptops or chargers) are
found in the cup holder. Multiple vehicle keys
close to each other in the cup holder can dis-
rupt their functionality.

WARNING

California Proposition 65

Operating, servicing and maintaining a pas-

senger vehicle can expose you to chemicals

including engine exhaust, carbon monoxide,

phthalates, and lead, which are known to the

State of California to cause cancer and birth

defects or other reproductive harm. To mini-

mize exposure, avoid breathing exhaust, do

not idle the engine except as necessary, serv-

ice your vehicle in a well ventilated area and

wear gloves or wash your hands frequently

when servicing your vehicle. For more infor-

mation go to www.P65Warnings.ca.gov/

passenger-vehicle.

Related information

•

Locking and unlocking using the remote key
(p. 240)

•

Remote key range (p. 242)

•

Replacing the remote key's battery (p. 243)

•

Detachable key blade (p. 248)

•

Electronic immobilizer (p. 251)

•

Linking a remote key to a driver profile
(p. 138)

KEY, LOCKS AND ALARM

* Option/accessory.

240

Locking and unlocking using the

remote key

All doors and tailgate can be locked and
unlocked simultaneously using the buttons on
the remote key.

Locking with remote key

Remote key

–

Press the

button on the remote key to

lock.

To activate the locking sequence, the driver's
door must be closed

. If any of the other doors or

the tailgate are open, they will be locked and the
alarm will be armed once they are closed.

NOTE

Be aware of the risk of locking the remote
key in the vehicle.

•

Locking when the tailgate is open

NOTE

If the vehicle is locked and the tailgate is still
open, make sure that the remote key is not
left in the cargo compartment when the tail-
gate is closed and the entire vehicle is
locked

Unlocking with remote key

–

Press the

button on the remote key to

unlock.

Automatic relocking

If none of the doors or tailgate are opened within
two minutes after being unlocked, they will auto-
matically relock. This function reduces the risk of
inadvertently leaving the vehicle unlocked.

Remote key not working

NOTE

Move closer to the vehicle and try to unlock it
again.

If the remote key is not working to lock or unlock
the vehicle, its battery may be discharged. Use
the detachable key blade to lock/unlock the driv-
er's door instead.

Related information

•

Settings for remote and inside door unlock
(p. 241)

•

Unlocking the tailgate using the remote key
(p. 241)

•

Remote key (p. 237)

The illustration is generic - details may vary according to vehicle model.

If the vehicle is equipped with keyless locking/unlocking, all side doors must be closed.

If the vehicle is equipped with keyless locking/unlocking and the key is detected inside the vehicle, the tailgate will not lock when it is closed.*

Volvo XC60 Twin Engine (2019 year). Instruction - part 13
