INSTRUMENTS AND CONTROLS

* Option/accessory.

107

Display (digital combined instrument panel) and controls

for menu navigation.

OK – access to message list and message
confirmation.
Thumbwheel – browse between menu
options.
RESET – reset the active function. Used in
certain cases to select/activate a function,
see the explanation under each respective
function.

If there is a message (p. 108) then it must be
acknowledged with OK in order that the menus
shall be shown.

Related information

•

Messages - handling (p. 109)

Menu overview - combined

instrument panel

Which menus are shown in the combined instru-
ment panel's information display depends on the
key position (p. 77).

Some of the following menu options require the
function and hardware to be installed in the car.

Analogue combined instrument panel

Digital speed

Parking heater*

Additional heater*
TC options

Service status

Oil level

Messages (##)

Digital combined instrument panel

Settings*
Themes

Contrast mode/Colour mode
Service status

Messages

Oil level

Parking heater*
Trip computer reset

Related information

•

Analogue combined instrument panel - over-
view (p. 62)

•

Digital combined instrument panel - overview
(p. 63)

•

Menu navigation - combined instrument
panel (p. 106)

Certain engines.

The number of messages is indicated in brackets.

INSTRUMENTS AND CONTROLS

* Option/accessory.

108

Messages

When a warning, information or indicator symbol
illuminates, a corresponding message appears
on the information display.

Message

Specification

Stop safely

Stop and switch off the
engine. Serious risk of dam-
age - consult a workshop

Stop engine

Stop and switch off the
engine. Serious risk of dam-
age - consult a workshop

Service
urgent

Contact a workshop

check the car immediately.

Service
required

Contact a workshop

check the car as soon as
possible.

See manual

Read the owner's manual.

Book time for
maintenance

Time to book regular service
- contact a workshop

Time for reg-
ular mainte-
nance

Time for regular service -
contact a workshop

. The

timing is determined by the
number of kilometres driven,
number of months since the
last service, engine running
time and oil grade.

Message

Specification

Maintenance
overdue

If the service intervals are
not followed then the war-
ranty does not cover any
damaged parts - contact a
workshop

Transmission
Oil change
needed

Contact a workshop

check the car as soon as
possible.

Transmission
Reduced per-
formance

The gearbox cannot handle
full capacity. Drive carefully
until the message clears

If shown repeatedly - con-
tact a workshop

Transmission
hot Reduce
speed

Drive more smoothly or stop
the car in a safe manner.
Disengage the gear and run
the engine at idling speed
until the message clears

Transmission
hot Stop
safely Wait for
cooling

Critical fault. Stop the car
immediately in a safe man-
ner and contact a work-
shop

Message

Specification

Temporarily
off

A function has been tempo-
rarily switched off and is
reset automatically while
driving or after starting
again.

Low battery
charge Power
save mode

The audio system is
switched off to save energy.
Charge the battery.

Part of message, shown together with information on where the

problem has arisen.

An authorised Volvo workshop is recommended.

For more information regarding the automatic gearbox, see

Automatic gearbox - Geartronic

* (p. 278).

IMPORTANT

For the Volvo warranty to apply, check and
follow the instructions in the Service and
Warranty Booklet.

Related information

•

Messages - handling (p. 109)

•

Menu navigation - combined instrument
panel (p. 106)

INSTRUMENTS AND CONTROLS

}}

* Option/accessory.

109

Messages - handling

Use the left-hand stalk switch to acknowledge
and browse among messages (p. 108) that are
shown in the information display of the com-
bined instrument panel.

When a warning, information or indicator symbol
illuminates, a corresponding message appears in
the display at the same time. An error message is
stored in a memory list until the fault has been
rectified.

Press OK on the left-hand stalk switch to
acknowledge a message. Scroll through mes-
sages with the thumbwheel (p. 106).

NOTE

If a warning message appears while you are
using the trip computer, the message must be
read (press OK) before the previous activity
can be resumed.

Related information

•

Menu overview - combined instrument panel
(p. 107)

MY CAR

MY CAR is a menu source that handles many of
the car's functions, e.g. City Safety

™, locks and

alarm, automatic fan speed, setting the clock,
etc.

Certain functions are standard, others are
optional - the range also varies depending on the
market.

Operation

Navigation in the menus is carried out using but-
tons in the centre console or with the steering
wheel's right-hand keypad

Control panel in centre console and steering wheel key-

pad. The figure is schematic - the number of functions

INSTRUMENTS AND CONTROLS

* Option/accessory.

110

and layout of the buttons both vary, depending on the

equipment selected and the market.

MY CAR - opens the menu system MY CAR.

OK/MENU - press the button in the centre
console or the thumbwheel on the steering
wheel to select/tick in the highlighted menu
option or store the selected function in the
memory.
TUNE - turn the knob in the centre console
or the thumbwheel on the steering wheel to
scroll up/down through the menu options.
EXIT

EXIT functions

Depending on the function the cursor is on when
EXIT is depressed briefly, and on which menu
level, one of the following may occur:

•

phone call is rejected

•

current function is interrupted

•

input characters are deleted

•

most recent selections are undone

•

leads up in the menu system.

A long press on EXIT leads to the normal view
for MY CAR or if you are in the normal view, to
the highest menu level (main source menu).

Menu options and search paths

For a description of the menu options and search
paths in MY CAR, see the Sensus Infotainment
supplement.

Trip computer

The car's trip computer records and calculates
vales such as e.g. distance, fuel consumption
and average speed whilst driving.

Trip computer content and appearance varies
depending on whether the combined instrument
panel is analogue or digital:

•

Trip computer - analogue combined instru-
ment panel (p. 112)

•

Trip computer - digital combined instrument
panel (p. 115)

The information from the trip computer can be shown in
the combined instrument panel's information display

Trip meter

The trip computer has two trip meters and one
odometer for the total mileage.

Average

Average fuel consumption is calculated from the
last resetting.

NOTE

There may be a slight deviation if a fuel-driven
heater

* has been used.

Average speed

The average speed is calculated for the driving
distance driven since the last reset to zero.

INSTRUMENTS AND CONTROLS

* Option/accessory.

111

Instantaneous

The information for current fuel consumption is
updated continuously - approximately once per
second. When the car is driven at low speed the
consumption is shown per time unit - at a higher
speed it is shown related to mileage.

Different units (km/miles) can be selected for the
display - see section "Change unit" (p. 110).

Range - distance to empty tank

The trip computer shows the approximate dis-
tance that can be driven with the fuel quantity
remaining in the tank.

No guaranteed range remains when the heading

Distance to empty

shows "

----

•

In which case, refuel as soon as possible.

The calculation is based on the average fuel con-
sumption over the last 30 km and the remaining
driveable fuel quantity.

NOTE

There may be a slight deviation if the driving
style has been changed.

An economic driving style generally results in a
longer driving distance. For more information on
how fuel consumption can be influenced, see

Volvo Car Corporation 's Environmental Philoso-
phy (p. 22).

Digital speed display in another unit

If the main instrument is graduated in mph, the
equivalent digital speed is shown as km/h.

Change unit

Distance and fuel unit can be changed in the
menu system MY CAR, see MY CAR (p. 109).

NOTE

In addition to in the trip computer, these units
are also changed in Volvo's navigation sys-
tem

Related information

•

Trip computer - analogue combined instru-
ment panel (p. 112)

•

Trip computer - digital combined instrument
panel (p. 115)

•

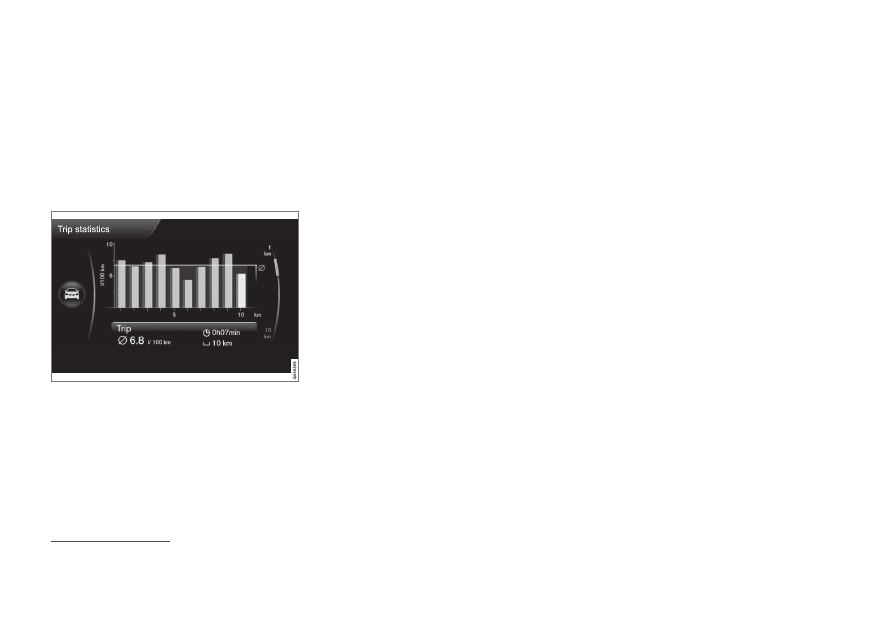

Trip computer - trip statistics

* (p. 118)

The appearance and showing of the display may vary depending on the instrument variant.

Only digital combined instrument panel and certain markets.

INSTRUMENTS AND CONTROLS

112

Trip computer - analogue combined

instrument panel

The information from the trip computer can be
shown in the combined instrument panel and
operated with the controls on the left-hand stalk
switch and with the combined instrument panel's
menu.

Checking and settings can be made immediately
after the combined instrument panel is automati-
cally illuminated in connection with unlocking. If
none of the trip computer's controls are actuated
within approx. 30 seconds after the driver's door
has been opened then the instrument extin-
guishes, after which either key position II or
engine starting is required in order to operate the
trip computer.

NOTE

If a warning message appears when the trip
computer is used then the message must first
be acknowledged before the trip computer
can be reactivated.

•

Acknowledge the message by briefly
pressing the indicator stalk OK button.

Controls

Information display and controls.

OK - opens the combined instrument panel's
menu, confirms messages or menu selec-
tions.
Thumbwheel - browses between menu
options or trip computer options.
RESET - resets the current trip meter or
goes back out of the menu structure.

Trip comp. opt.

Choose which trip computer should be shown:

1. To ensure that no control is in the middle of

a sequence - reset them first with
two presses on RESET.

2. Turn the thumbwheel to browse between the

options and stop at the required heading.

The trip computer display in the combined instru-
ment panel can be shifted to another option at
any time during the journey. One of the options
means that no trip computer is shown.

Trip computer heading in combined instrument panel

Information

Trip meter

T1 and total dist.

•

Long press on RESET resets trip meter T1.

Trip meter

T2 and total dist.

•

Long press on RESET resets trip meter T2.

INSTRUMENTS AND CONTROLS

}}

* Option/accessory.

113

Trip computer heading in combined instrument panel

Information

Distance to empty

For more information - see the section "Range - distance to empty tank" (p. 110).

Fuel consumption

Current consumption.

Average speed

•

Long press on RESET resets

Average speed

No trip computer information.

This option shows a blank display and it also indicates the beginning/end of the loop.

Resetting the trip computer

1. Turn the thumbwheel and stop at the trip

computer heading to be reset:

T1 and total

dist.

T2 and total dist.

Average speed

2. One long press on RESET resets the value

for the selected heading.

Each heading must be zeroed individually.

Functions in the combined instrument
panel's menu

The combined instrument panel's menu includes
setting options for trip computer. Open the menu
to check/adjust the functions in the table below.

1. To ensure that no control is in the middle of

a sequence - reset them first with
two presses on RESET.

2. Press OK.

3. Browse through the functions with the

thumbwheel and select/confirm with OK.

4. Finish by pressing twice on RESET after

completed checking/adjustment.

Functions

Information

Digital speed

•

km/h

•

mph

•

No display

Shows the car's speed digitally in the centre of the combined instrument panel.

Parking heater*

•

DIRECT START

•

- Timer 1 - leads to the menu for selecting time.

•

- Timer 2 - leads to the menu for selecting time.

For a description of programming the timer, see Engine block heater and passenger com-
partment heater

* - timer (p. 136).

INSTRUMENTS AND CONTROLS

* Option/accessory.

114

Functions

Information

Additional heater*

•

Auto On

•

Off

For more information, see Additional heater

* (p. 140).

TC options

•

Distance to empty tank

•

Fuel consumption

•

Average speed

•

Trip meter

T1 and total dist.

•

Trip meter

T2 and total dist.

Here you can activate the options that you want to be available as selectable headings in
the trip computer. The symbols for the options already selected are white with a "tick" -
others are grey and have no "tick".

Service status

Shows the number of months and mileage to next service.

Oil level

For more information, see Engine oil - checking and filling (p. 354).

Messages (##)

For more information, see Messages - handling (p. 109).

Certain engines.

Related information

•

Trip computer (p. 110)

•

Trip computer - trip statistics

* (p. 118)

INSTRUMENTS AND CONTROLS

}}

115

Trip computer - digital combined

instrument panel

The information from the trip computer can be
shown in the combined instrument panel and
operated with the controls on the left-hand stalk
switch and with the combined instrument panel's
menu.

NOTE

If a warning message appears when the trip
computer is used then the message must first
be acknowledged before the trip computer
can be reactivated.

•

Acknowledge the message by briefly
pressing the indicator stalk OK button.

Controls

Three trip computer options can be displayed simultane-

ously - one in each "window".

Trip comp. opt.

Choose which trip computer should be shown:

1. To ensure that no control is in the middle of

a sequence - reset them first with
two presses on RESET.

2. Turn the thumbwheel to browse between the

heading combinations.

3. Stop at the required combination for the con-

stant display of this trip data in the combined
instrument panel.

The trip computer display in the combined instru-
ment panel can be shifted to another option at
any time during the journey. One of the options
means that no trip computer is shown.

Heading combinations

Information

Average

Trip meter T1 + Meter reading

Average speed

•

Long press on RESET resets trip meter T1.

Instantaneous Trip meter T2 + Meter reading Distance to empty tank

•

Long press on RESET resets trip meter T2.

INSTRUMENTS AND CONTROLS

116

Heading combinations

Information

Instantaneous

Meter reading

kmh<>mph

kmh<>mph - see section Reverse digital speed display (p. 110).

No trip computer information.

This option extinguishes all three trip computer displays and it also indicates the
beginning/end of the loop.

Resetting the trip computer

Trip meter

1. Turn the thumbwheel and stop at the head-

ing combination with the trip meter to be
reset.

2. One long press on RESET resets the value

for the selected heading.

Average speed and average consumption

1. Press OK to open the combined instrument

panel's menu.

2. Browse to the

Trip computer reset

option with the thumbwheel and confirm with
OK.

3. Choose to reset average consumption, aver-

age speed or to reset both. Confirm the
selection with OK.

4. Finish by pressing RESET.

Functions in the combined instrument
panel's menu

The combined instrument panel's menu includes
setting options for trip computer. Open the menu
to check/adjust the functions in the table below.

1. To ensure that no control is in the middle of

a sequence - reset them first with
two presses on RESET.

2. Press OK.

3. Browse through the functions with the

thumbwheel and select/confirm with OK.

4. Finish by pressing twice on RESET after

completed checking/adjustment.

Functions

Information

Trip computer reset

•

Average

•

Average speed

Reset the value of average fuel consumption and average speed.

Note that this function does not reset both trip meters T1 and T2.

Messages

For more information, see Messages - handling (p. 109).

Themes

Select the theme for the appearance of the combined instrument panel (p. 62).

INSTRUMENTS AND CONTROLS

* Option/accessory.

117

Functions

Information

Settings*

Select

Auto On

Off

For more information, see Additional heater

* (p. 140).

Contrast mode/Colour mode

Adjusting the combined instrument panel's brightness and colour intensity.

Parking heater*

•

Direct start

•

- Symbol Timer 1 - leads to the menu for
selecting time.

•

- Symbol Timer 2 - leads to the menu for
selecting time.

For a description of programming the timer, see Engine block heater and passenger compartment
heater

* - timer (p. 136).

Service status

Shows the number of months and mileage to next service.

Oil level

For more information, see Engine oil - checking and filling (p. 354).

Certain engines.

Related information

•

Trip computer (p. 110)

•

Trip computer - trip statistics

* (p. 118)

INSTRUMENTS AND CONTROLS

* Option/accessory.

118

Trip computer - trip statistics*

Trip statistics from the trip computer can be
shown in the centre console's screen and pro-
vide a graphic overview of fuel consumption.

Function

–

Open the menu system MY CAR (p. 109)
and select

Trip statistics

in order to see the

bar chart.

Trip statistics

Each bar symbolises 1 km or 10 km driven dis-
tance, depending on the scale selected - the bar
at the far right shows the value for the current kil-
ometre or 10 km.

Using the TUNE control, the scale for the bars
can be changed between 1 km and 10 km - the
cursor on the far right changes position between
up and down in relation to the scale selected.

Settings

Different settings can be made for trip statistics
in the menu system MY CAR -

Trip statistics

•

Reset when vehicle has been off for
minimum 4h

- highlight the box by select-

ing ENTER and go back out of the menu by
selecting EXIT. With this option selected, all
statistics are deleted automatically after fin-
ishing driving and the car has been stationary
for more than 4 hours. Trip statistics start
again from zero the next time the engine is
started.

•

Start new trip

- ENTER is used to delete all

previous statistics, go back out of the menu
by selecting EXIT. If a new driving cycle shall
be started before 4 hours have elapsed then
the current period must first be deleted man-
ually with this option.

Related information

•

Trip computer (p. 110)

The figure is schematic - layout may vary depending on car model or updated software.

CLIMATE CONTROL

* Option/accessory.

120

General information on climate

control

The car is equipped with electronic climate con-
trol (p. 126). The climate control system cools
or heats as well as dehumidifies the air in the
passenger compartment.

NOTE

Air conditioning (AC) (p. 130) can be
switched off, but to ensure the best possible
climate comfort in the passenger compart-
ment, and to prevent the windows from mist-
ing, it should always be switched on.

To bear in mind

•

To ensure that the air conditioning works
optimally, the side windows, and sunroof

should be closed.

•

Global opening (p. 172) opens/closes all
side windows simultaneously and can be
used for example to quickly air the car during
hot weather.

•

Remove ice and snow from the climate con-
trol system air intake (the grille between the
bonnet and the windscreen).

•

In warm weather, condensation from the air
conditioning may drip under the car. This is
normal.

•

When the engine requires full power, e.g. for
full acceleration, the air conditioning can be
temporarily switched off. There may then be

a temporary increase in temperature in the
passenger compartment.

•

Remove misting on the insides of the win-
dows primarily by using the defroster func-
tion (p. 130). To reduce the risk of misting,
keep the windows clean and use window
cleaner.

NOTE

To avoid misting on the rear window, do not
block the ventilation holes at the back of the
parcel shelf with articles of clothing or other
objects.

Cars with Start/Stop

With an auto-stopped (p. 284) engine certain
equipment may have its function temporarily
reduced, e.g. climate control fan speed (p. 128).

Cars with ECO

Certain equipment may have its function tempo-
rarily reduced or deactivated when the ECO
(p. 292) function is activated, e.g. the air condi-
tioning (p. 130).

NOTE

When the ECO function is activated, several
parameters in the climate control system's
settings are changed, and several electricity
consumer functions are reduced. Certain set-
tings can be reset manually, but full function-
ality is only restored by deactivating the ECO
function.

Related information

•

Actual temperature (p. 121)

•

Menu settings - climate control (p. 123)

•

Electronic climate control - ECC (p. 126)

•

Air distribution in the passenger compart-
ment (p. 123)

•

Air quality (p. 121)

CLIMATE CONTROL

* Option/accessory.

121

Actual temperature

The temperature you select in the passenger
compartment corresponds to the physical expe-
rience with reference to factors such as ambient
temperature, air speed, humidity and solar radia-
tion etc. in and around the car at the time.

The system includes a sun sensor (p. 121) which
detects on which side the sun is shining into the
passenger compartment. This means that the
temperature can differ between the right and left-
hand air vents despite the controls being set for
the same temperature on both sides.

Related information

•

General information on climate control
(p. 120)

•

Temperature control in the passenger com-
partment (p. 129)

Sensors - climate control

The climate control system has a number of sen-
sors to help control the temperature (p. 121) in
the car.

•

The sun sensor is located on the top side of
the dashboard.

•

The temperature sensor for the passenger
compartment is located below the climate
control panel.

•

The outside temperature sensor is located in
the door mirror.

•

The humidity sensor

* is located by the inte-

rior rearview mirror.

NOTE

Do not cover or block the sensors with cloth-
ing or other objects.

Related information

•

General information on climate control
(p. 120)

Air quality

The interior in a passenger compartment is
designed to be pleasant and comfortable, even
for people with contact allergies and for asthma
sufferers.

•

Passenger compartment filter (p. 122)

•

Material in the passenger compartment
(p. 123)

•

Clean Zone Interior Package (CZIP)
(p. 122)

•

Interior Air Quality System (IAQS) (p. 122)

Related information

•

General information on climate control
(p. 120)

CLIMATE CONTROL

* Option/accessory.

122

Air quality - passenger

compartment filter

All air entering the car's passenger compartment
is cleaned with a filter.

The filter must be replaced at regular intervals.
Follow the Volvo Service Programme for the rec-
ommended replacement intervals. If the car is
used in a severely contaminated environment, it
may be necessary to replace the filter more often.

NOTE

There are different types of passenger com-
partment filter. Make sure that the correct fil-
ter is fitted.

Related information

•

Air quality (p. 121)

Air quality - Clean Zone Interior

Package (CZIP)*

CZIP comprises a series of modifications that
keep the passenger compartment even clearer
from allergy and asthma-inducing substances.

The following is included:

•

An enhanced fan function that means that
the fan starts when the car is opened with
the remote control key. The fan fills the pas-
senger compartment with fresh air. The func-
tion starts when required and is disengaged
automatically after a time or when one of the
passenger compartment doors is opened.
The amount of time the fan runs is reduced
gradually due to reduced need up until the
car is 4 years old.

•

The air quality system IAQS (p. 122) is a fully
automatic system that cleans the air in the
passenger compartment from contaminants
such as particles, hydrocarbons, nitrous
oxides and ground-level ozone.

Related information

•

General information on climate control
(p. 120)

•

Air quality (p. 121)

Air quality - IAQS*

The air quality system IAQS separates gases
and particles to reduce the levels of odours and
pollution in the passenger compartment.

If the outside air is contaminated then the air
intake is closed and the air is recirculated.

It is possible to activate/deactivate the function
in the menu system MY CAR. For a description of
the menu system, see MY CAR (p. 109).

NOTE

The air quality sensor must always be enabled
to ensure the best air in the passenger com-
partment.

In a cold climate recirculation is limited so as
to prevent misting.

In the event of misting, the air quality sensor
should be disengaged, and the defroster
functions for the windscreen and side win-
dows, as well as the rear window, should be
used.

Related information

•

General information on climate control
(p. 120)

•

Air quality (p. 121)

•

Air quality - Clean Zone Interior Package
(CZIP)

* (p. 122)

CLIMATE CONTROL

}}

* Option/accessory.

123

Air quality - material

Tested materials have been developed in order
to minimise the quantity of dust in the passenger
compartment and to contribute to making the
passenger compartment easier to keep clean.

The carpets in both the passenger compartment
and the cargo area are removable and easy to
remove and clean. Use cleaning agents and car
care products recommended by Volvo to clean
the interior (p. 394).

Related information

•

Air quality (p. 121)

Menu settings - climate control

It is possible to activate/deactivate or change
the default settings for six of the climate control
system's functions via the centre console.

•

Fan level during automatic climate control
(p. 129).

•

Recirculation timer (p. 131).

•

Automatic start of rear window defroster
(p. 102)

•

Interior air quality system

* (p. 122).

•

Automatic start of seat heating driver
(p. 127).

•

Automatic start of steering wheel heating
(p. 84).

More information is available in the description of
the menu system (p. 109).

The climate control system's functions can be
reset in the menu system MY CAR to the default
settings. For a description of the menu system,
see MY CAR (p. 109).

Related information

•

General information on climate control
(p. 120)

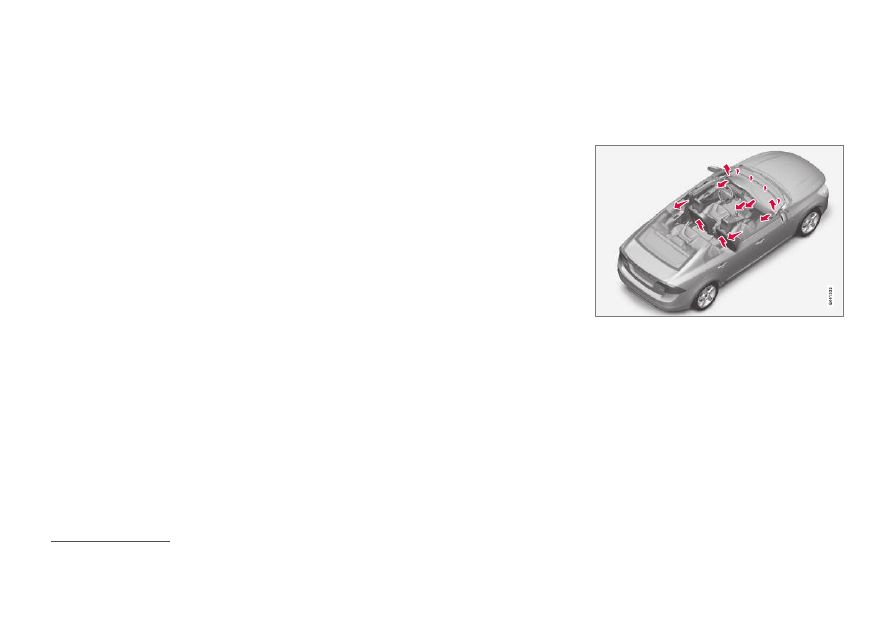

Air distribution in the passenger

compartment

The incoming air is divided between a number of
different vents in the passenger compartment.

Air distribution is fully automatic in AUTO mode.

If necessary it can be controlled manually; see
the air distribution table (p. 132).

Using the Engine Remote Start (ERS)

* function, the heated windscreen is also demisted/defrosted automatically if the setting for rear window defroster is activated.

Volvo S60 Cross Country (2018 year). Instruction - part 6
