Volvo XC90 T8 Twin Engine Plug-in Hybrid (2017 year). Instruction

STARTING AND DRIVING

* Option/accessory, for more information, see Introduction.

401

Mode

Functions available

•

The odometer, clock and tem-
perature gauge are illuminated

•

Power seats

* can be adjusted

•

The power windows can be oper-
ated

•

The 12-volt socket in the cargo
compartment can be used

•

The center display is activated
and can be used

•

The infotainment system can be
used for a limited time

In this mode, certain functions can
only be used for a limited time to help
minimize battery drain

•

The laminated panoramic roof

power seats

*/windows,12-volt

sockets in the passenger com-
partment, Bluetooth, navigation
system

*, climate system blower,

windshield wipers can be oper-
ated

•

The infotainment system will start
(if it was started when the ignition
was switched off)

Using electrical current will drain
the start battery in this mode.

Mode

Functions available

•

The headlights illuminate

•

Warning/indicator lights illumi-
nate for 5 seconds

•

A number of other functions will
also be activated. However, the
heated seats

* and heated rear

window functions can only be
activated when the engine is run-
ning.

This mode should only be used for
very short periods to help avoid
draining the battery.

Selecting an ignition mode

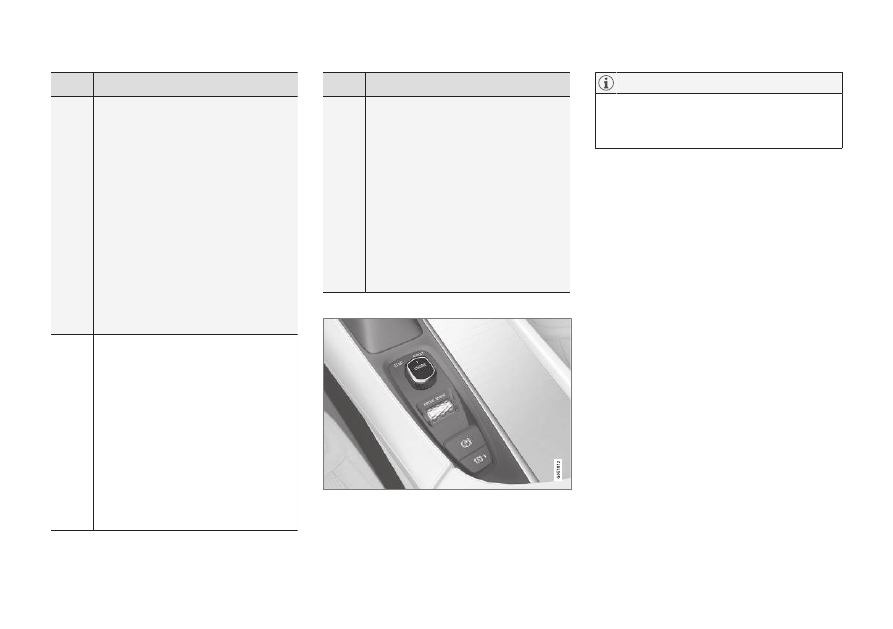

Start knob in the tunnel console

•

Ignition mode 0: unlock the vehicle and
keep the remote key in the passenger's com-
partment.

NOTE

To access ignition modes I or II without star-
ting the engine, the brake pedal must not be
depressed when these modes are selected.

•

Ignition mode I: Turn the start knob to
START and release it. The knob will return
automatically to its original position.

•

Ignition mode II: Turn the start knob to
START and hold it there for approx.
4 seconds. Release the knob.

•

Returning to ignition mode 0: To return to
mode 0 from mode II or I, turn the start knob
to STOP and release it.

Related information

•

Starting the engine (p. 402)

•

Turning the engine off (p. 404)

STARTING AND DRIVING

402

Battery drain

Your vehicle's electrical functions drain the bat-
tery to varying extents.

Avoid using ignition mode II as much as posssi-
ble, or electrical functions that require a great
deal of electrical current when the engine is not
running.

Using ignition mode I whenever possible con-
sumes less electrical current.

Functions that require a great deal of electrical
current include:

•

the climate system blower

•

headlights

•

wipers

•

infotainment system (especially at high vol-
ume).

If the battery's charge level is low, a text message
will appear in the instrument panel. The vehicle's
energy-saving function will then turn off or
reduce certain functions that are currently con-
suming electrical current.

If the battery needs to be recharged, start the
engine and let it idle for at least 15 minutes or
drive the vehicle (driving charges the battery
faster than letting the engine idle).

Related information

•

Ignition modes (p. 400)

Starting the engine

The engine can be started using the start knob
on the tunnel console if there is a remote key in
the passenger compartment.

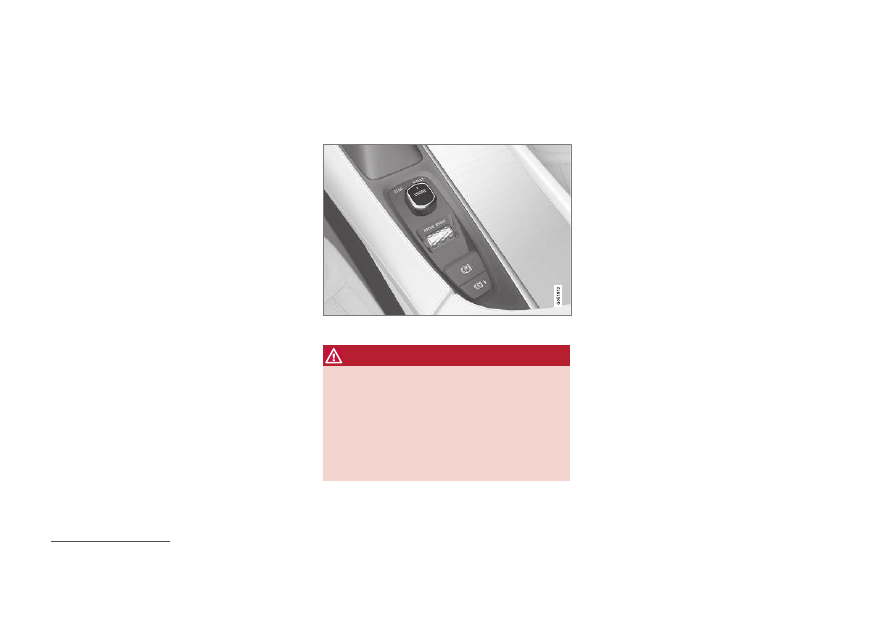

Start knob in the tunnel console between the front seats

WARNING

Before starting the engine:

•

Fasten the seat belt.

•

Check that the seat, steering wheel and
mirrors are adjusted properly.

•

Make sure the brake pedal can be
depressed completely. Adjust the seat if
necessary.

To start the engine.

1. A remote key must be in the passenger com-

partment. On models with the standard
Passive Start, the key has to be in the front
section of the passenger compartment. If the
vehicle is equipped the optional Passive
Entry system (keyless locking/unlocking) the
key can be anywhere in the vehicle.

2. Press firmly on the brake pedal

3. Turn the start knob toward START and

release it to start the engine.
> The starter motor will crank until the

engine starts or its overheating protection
is triggered.

If the vehicle is moving, it is only necessary to turn the start knob toward START to start the engine.

STARTING AND DRIVING

}}

403

WARNING

•

Never use more than one floor mat at a
time on the driver's floor. Before driving,
remove the original mat from the driver's
seat floor before using any other type of
floor mat. Any mat used in this position
should be securely and properly anchored
in the attaching pins. An extra mat on the
driver's floor can cause the accelerator
and/or brake pedal to catch. Check that
the movement of these pedals is not
impeded.

•

Volvo's floor mats are specially manufac-
tured for your car. They must be firmly
secured in the clips on the floor so that
they cannot slide and become trapped
under the pedals on the driver's side.

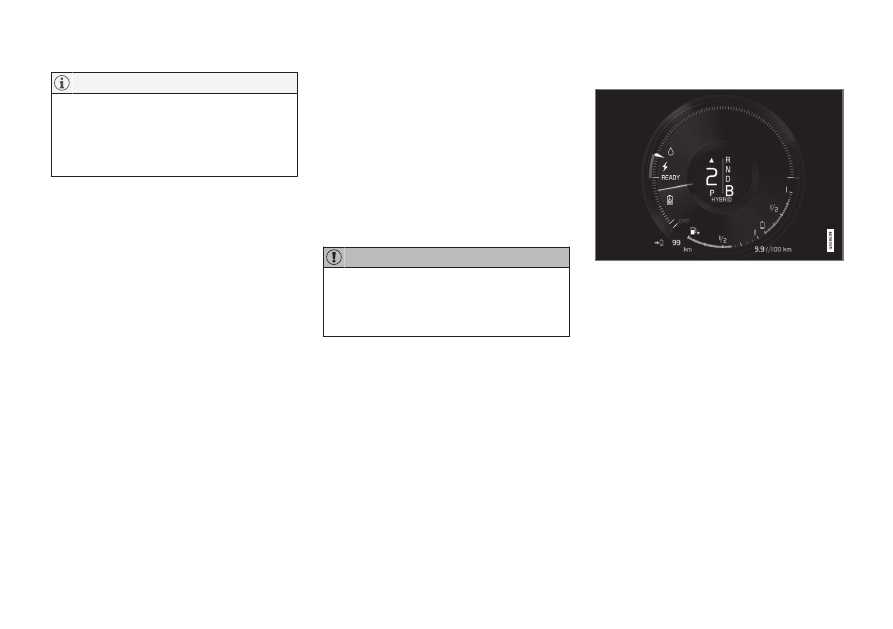

During normal starts, the electric motor is priori-
tized and the gasoline engine will not start. This
means that when the start knob has been turned
toward START and released, the electric motor is
activated ("started") and the vehicle is ready to
be driven. The warning and information symbols
in the instrument panel will go out and the
chosen theme will be displayed to indicate that
the electric motor has been activated.

However, in certain situations, such as in cold
weather or if the hybrid battery is not sufficiently
charged, the gasoline engine will start instead.

NOTE

The vehicle cannot be started if the hybrid
battery is discharged.

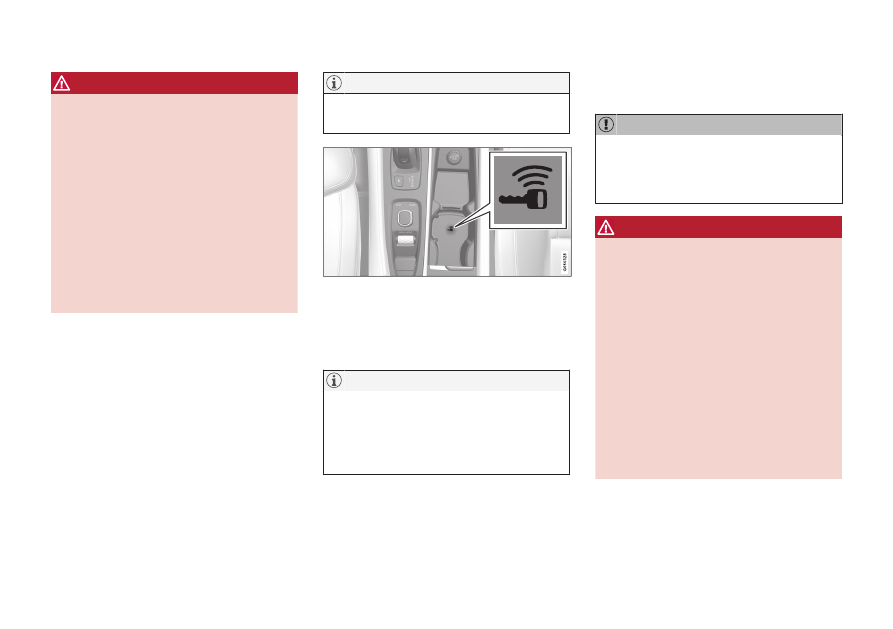

Back-up reader in the tunnel console

Vehicle key not found

is displayed in the

instrument panel, place the remote key in the
back-up reader in the tunnel console (see the
illustration) and try again to start the engine.

NOTE

When the remote key is in the back-up
reader, be sure there are no other metallic
objects (e.g., other keys, coins, cell phones) in
the cup holder. This could affect the back-up
reader's function.

Vehicle start

System check, wait

is dis-

played in the instrument panel when you try to

start the vehicle, wait until the message is no
longer displayed and try to start again.

CAUTION

If the engine does not start after the third try,
wait for approximately 3 minutes before trying
to start it again to give the battery time to
recover its starting capacity.

WARNING

•

Always remove the remote key from the
passenger compartment when leaving the
vehicle and ensure that the ignition in
mode 0.

•

On vehicles with the optional Passive
Entry, never remove the remote key from
the vehicle while it is being driven or
towed.

•

Always place the gear selector in Park
and apply the parking brake before leav-
ing the vehicle. Never leave the vehicle
unattended with the engine running.

•

Always open garage doors fully before
starting the engine inside a garage to
ensure adequate ventilation. The exhaust
gases contain carbon monoxide, which is
invisible and odorless but very poisonous.

STARTING AND DRIVING

404

NOTE

After a cold start, idle speed may be noticea-
bly higher than normal for a short period. This
is done to help bring components in the
emission control system to their normal oper-
ating temperature as quickly as possible,
which enables them to control emissions and
help reduce the vehicle's impact on the envi-
ronment.

CAUTION

•

When starting in cold weather, the auto-
matic transmission may shift up at slightly
higher engine speeds than normal until
the automatic transmission fluid reaches
normal operating temperature.

•

Do not race a cold engine immediately
after starting. Oil flow may not reach
some lubrication points fast enough to
prevent engine damage.

•

The engine should be idling when you
move the gear selector. Never accelerate
until after you feel the transmission
engage. Accelerating immediately after
selecting a gear will cause harsh engage-
ment and premature transmission wear.

•

Selecting P or N when idling at a stand-
still for prolonged periods of time will help
prevent overheating of the automatic
transmission fluid.

Related information

•

Ignition modes (p. 400)

•

Turning the engine off (p. 404)

•

Changing the remote key's battery (p. 235)

•

Jump starting (p. 395)

Turning the engine off

The engine can be turned off using the start
knob on the tunnel console.

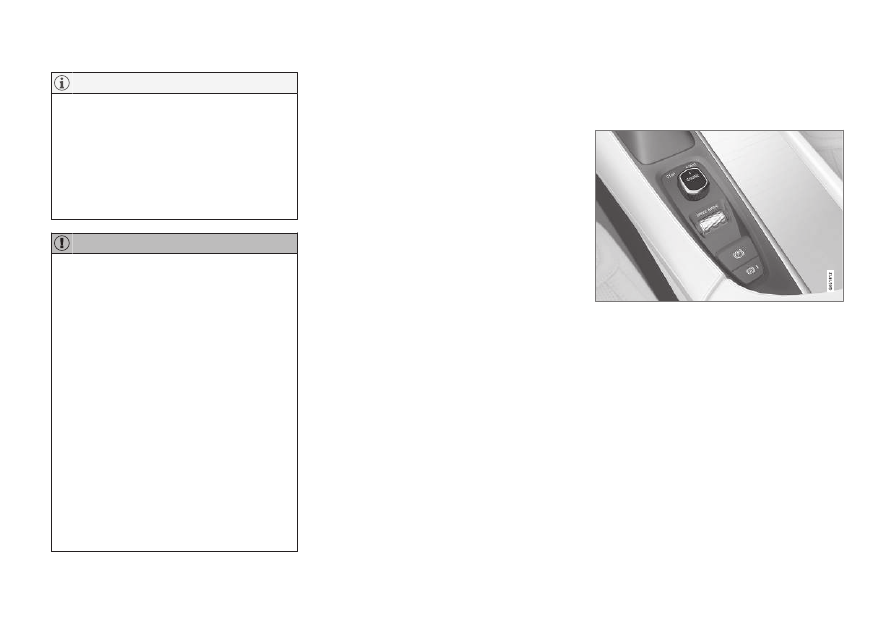

Start knob in the tunnel console between the front seats

To turn off the engine:

–

Turn the start knob toward STOP and
release it to switch the engine off.

If the gear selector is in P or if the vehicle is mov-
ing:

–

Hold the knob in the STOP position until the
engine stops.

Related information

•

Starting the engine (p. 402)

•

Ignition modes (p. 400)

STARTING AND DRIVING

}}

405

Driving systems

The XC90 T8 Twin Engine Plug-in Hybrid is a
parallel hybrid, which means that it has two sep-
arate drive systems: an electric motor and a gas-
oline engine. Depending on the drive mode
selected and the amount of electric power avail-
able in the hybrid battery, the two systems can
be used in tandem or separately.

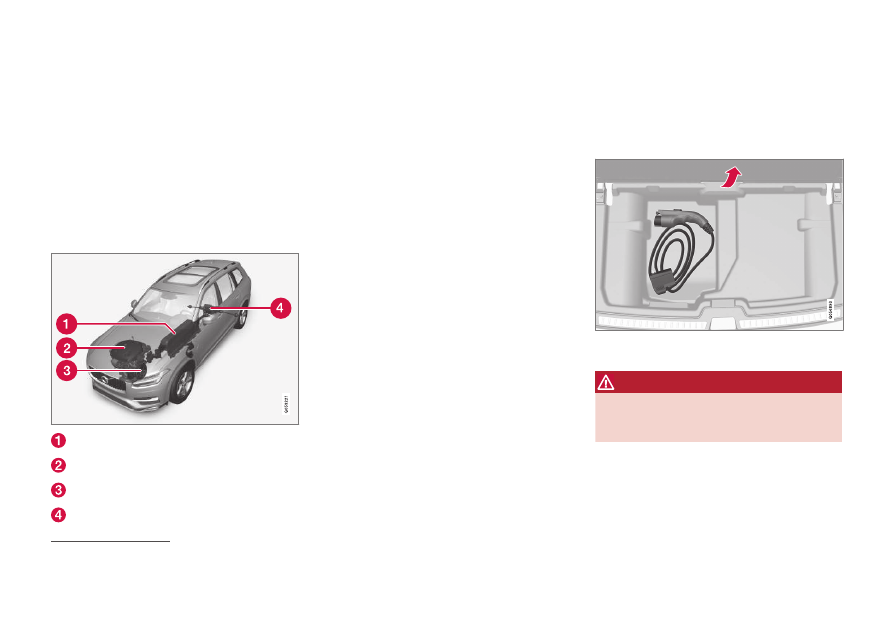

Two drive systems

A control system coordinates both of the drive
systems to help optimize driving economy.

Hybrid battery

Gasoline engine

High voltage generator

Electric motor

The gasoline engine and electric motor both gen-
erate power directly to the wheels. The gasoline
engine can also charge the hybrid battery using a
special high-voltage generator.

Related information

•

Drive modes (p. 420)

•

Charging the hybrid battery (p. 413)

•

General information about the XC90 T8 Twin
Engine Plug-in Hybrid (p. 16)

•

Parking climate (preconditioning) (p. 189)

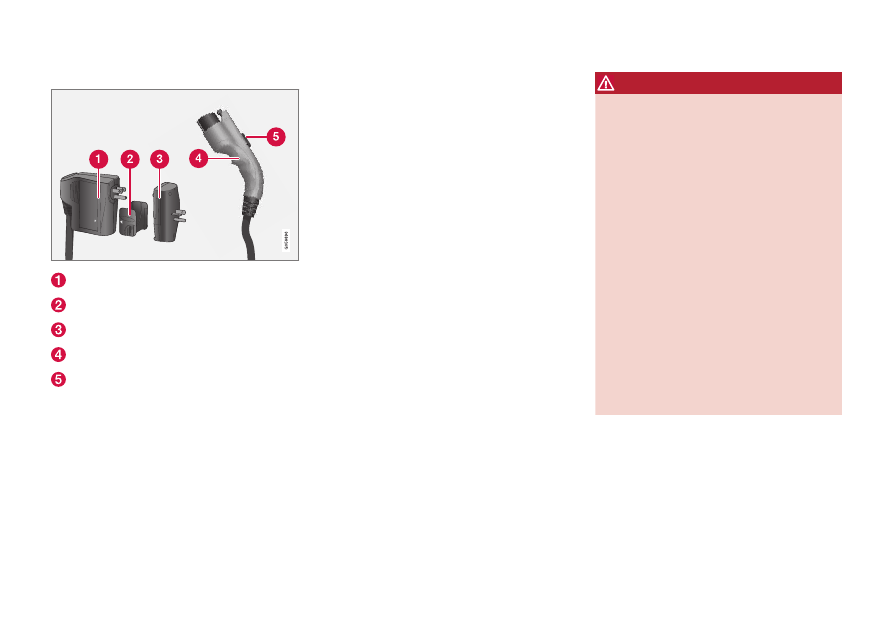

Hybrid battery charging cable

The charging cable is used to recharge your
vehicle's hybrid battery. Only use the cable provi-
ded with your vehicle or one purchased from a
Volvo retailer.

The charging cable is stowed in a storage compartment
under the cargo area floor

WARNING

Only use the charging cable provided with
your vehicle or a replacement cable pur-
chased from a Volvo retailer.

Combined generator and starter motor (Crank Integrated Starter Generator).

STARTING AND DRIVING

406

Charging cable specifications

Compliance

SAE J1772

Permitted ambient tem-
peratures for use

–25

ºF to +122 ºF

(–32

ºC to +50 ºC)

WARNING

•

The charging cable must be grounded
when in use. It is equipped with a cord
with a grounding conductor and a
grounding plug. The plug must be
inserted into an appropriate outlet that is
properly installed and grounded in
accordance with all local codes and ordi-
nances and is not damaged in any way

•

Children should be supervised when in
the vicinity of the charging cable when it
is plugged in

•

High voltage is present in your electric
meter housing and power distribution
service panel. Contact with high voltage
can cause death or serious personal
injury

•

Do not use the charging cable if it is
damaged in any way

•

Always position the charging cable so
that it will not be driven over, stepped on,
tripped over or otherwise damaged, or
cause personal injury

•

Disconnect the charger from the wall out-
let before cleaning it

•

Never connect the charging cable to an
extension cord or a multiple plug socket

•

If the hybrid battery needs to be replaced,
this may only be done by Volvo retailer or
authorized Volvo workshop

Also, refer to the manufacturer's instructions
for using the charging cable and its compo-
nents.

CAUTION

•

Never unplug the charging cable from a
120-/240-volt socket while the hybrid
battery is being recharged. This could
result in damage to the socket. Always
stop the charging process before unplug-
ging the charging cable

•

To clean the charging cable, wipe it with
a clean cloth dampened with water or a
mild detergent solution suitable for use
on automobile paint. Do not use chemi-
cals or solvents. Do not submerge the
charging cable

STARTING AND DRIVING

407

Charging cable components

Charge module

240-volt adapter clip

240-volt adapter

Charge coupler

Release button

Hybrid charging cable circuit

breaker

The charging cable has a circuit breaker that
helps protect against current overloads and
electrical shocks.

If the charging cable's residual current breaker is
triggered, the blue indicator light in the charge
coupler will not illuminate when the cable is plug-
ged into a 120-/240-volt socket or the red indi-
cator light will glow steadily. Have the socket
checked by a licensed electrician or try using
another 120-/240-volt wall socket.

WARNING

•

Charging the hybrid battery may only be
done from approved, grounded 120-/
240-volt sockets. If the electrical circuit
or electrical socket's capacity is not
known, let a licensed electrician inspect
the electrical circuit's capacity. Using a
charge level that exceeds the electrical
circuit's or electrical outlet's capacity may
start a fire or damage the electrical cir-
cuit.

•

The charging cable's residual current
breaker helps protect the vehicle's charg-
ing system but cannot ensure that an cur-
rent overload will never occur.

•

Never use visibly worn or damaged elec-
trical sockets. Doing so could lead to fires
or serious injury.

•

Never connect the charging cable to an
extension cord.

•

Maintenance or replacement of the hybrid
battery may only be performed by a
trained and qualified Volvo service techni-
cian.

STARTING AND DRIVING

408

Hybrid-related symbols and

messages

A number of symbols and messages relating to
the XC90 T8 Twin Engine Plug-in Hybrid may

appear in the instrument panel. They may also
be displayed in combination with general indica-
tor and warning symbols and will go out when
the necessary action has been taken.

Symbol

Message

Explanation

12 V Battery

Charging fault, service urgent. Drive
to workshop

Battery fault. Contact a Volvo retailer or a trained and qualified Volvo service technician as soon as
possible.

12 V Battery

Charging fault Stop safely

Battery fault. Stop the vehicle as soon as possible and contact a Volvo retailer or a trained and
qualified Volvo service technician.

12 V Battery

Low charge, temporarily reduced
functionality

The hybrid battery's charge level is too low for optimal driving. Charge the battery as soon as possi-
ble.

12 V Battery

Charging fault, low battery. Stop
safely

The hybrid battery is not sufficiently charged. Stop the vehicle as soon as possible and charge the
battery.

12 V Battery

Fuse failure Service required

Battery failure. Contact a Volvo retailer or a trained and qualified Volvo service technician as soon as
possible to have the system checked.

Hybrid battery

Overheated, stop safely

Battery temperature too high/too low. Stop the vehicle and turn off the engine. If the message
remains after the engine has been restarted, contact a Volvo retailer or a trained and qualified Volvo
service technician.

STARTING AND DRIVING

409

Symbol

Message

Explanation

Reduced performance

Max vehicle speed limited

The hybrid battery is not sufficiently charged for higher speeds. Charge the battery as soon as pos-
sible.

Hybrid system

Harsh behavior at low speed, vehicle
ok to use

The hybrid system is not functioning completely properly. Contact a Volvo retailer or a trained and
qualified Volvo service technician as soon as possible to have the system checked.

Hybrid system failure

Service required

The hybrid system is out of order. Contact a Volvo retailer or a trained and qualified Volvo service
technician as soon as possible to have the system checked.

Charge cable

Remove before start

The charging cable has not been disconnected and the driver has attempted to start the engine.
Disconnect the cable from the vehicle, put the cover back in place and close the charger door.

Charge cable

Removed? Turn and hold start knob
7s

The driver has already attempted to start the engine with the charging cable still connected. Be
sure the cable is completely disconnected, the cover is in place and the charger door is closed.

Related information

•

Charging the hybrid battery (p. 413)

•

Charger status indicators (p. 417)

•

Hybrid battery charge status (p. 415)

STARTING AND DRIVING

410

Preparations for charging the hybrid

battery

Several preparatory steps should be taken
before starting to charge the hybrid battery.

WARNING

•

Children should be supervised when in
the vicinity of the charging cable when it
is plugged in

•

High voltage is present in your electric
meter housing and power distribution
service panel. Contact with high voltage
can cause death or serious personal
injury

•

Do not use the charging cable if it is
damaged in any way

•

Always position the charging cable so
that it will not be driven over, stepped on,
tripped over or otherwise damaged, or
cause personal injury

•

Disconnect the charger from the wall out-
let before cleaning it

•

Never connect the charging cable to an
extension cord or a multiple plug socket

•

If the hybrid battery needs to be replaced,
this may only be done by Volvo retailer or
authorized Volvo workshop

Also, refer to the manufacturer's instructions
for using the charging cable and its compo-
nents.

Prior to charging

The charging cable and any of its components
should not be wet or submerged in any liquid.

The charge module or its plug should not be
exposed to direct sunlight. This could cause the
unit's overheating protector to reduce or stop the
hybrid battery charging process.

Be sure the 120-/240-volt socket used has ade-
quate current for charging electrically powered
vehicles. Have the socket checked by an licensed
electrician if you are uncertain.

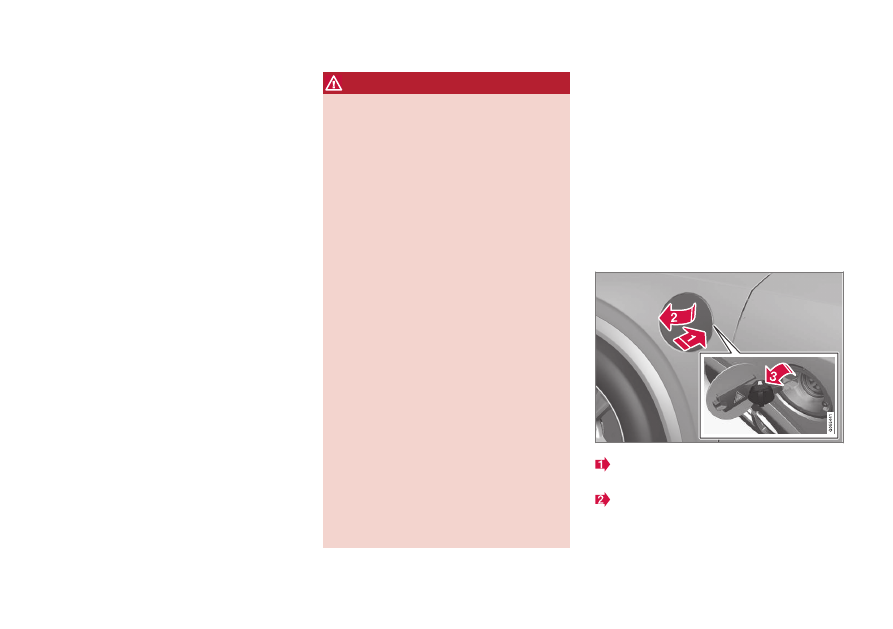

Opening/closing the charger door

Press in the rear section of the door and
release it.

Open the door.

STARTING AND DRIVING

}}

411

Pull off the charging socket's protective
cover and place it in the holder on the inside
of the door. Be sure that the protective cov-
er's rubber plug faces down to help keep the
cover from falling out of the holder.

Put the cover back in position and close the door
in reverse order.

Stopping hybrid battery charging

Stop hybrid battery charging by unlocking the
vehicle, disconnecting the charging cable from
the vehicle's charging socket and then unplug-
ging the cable from the 120-/240-volt socket.

NOTE

Always unlock the vehicle to stop the charg-
ing process before disconnecting the charg-
ing cable from the vehicle's charging socket
and then unplugging it from the
120-/240-volt socket.

The cable must be disconnected from the
vehicle's charging socket before it is
unplugged from the 120-/240-volt socket
to help prevent damage to the charging
system.

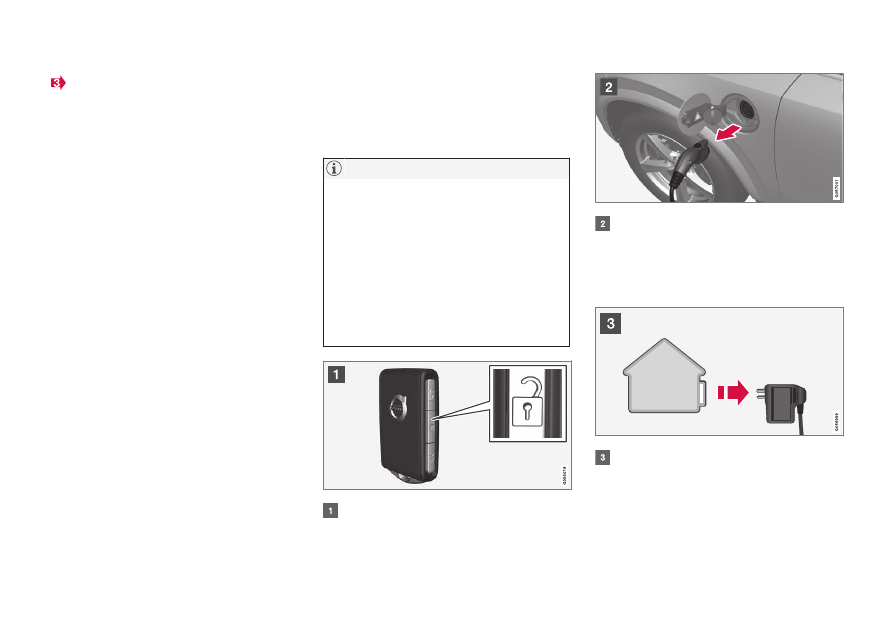

Unlock the vehicle with the remote key.

Press the release button on the charge cou-
pler to release it and disconnect the coupler
from the vehicle's charging socket. Remove
the cable from the vehicle. Put the socket's
cover back in place and close the charger
door.

Disconnect the cable from the
120-/240-volt socket.

Stow the cable in the storage compartment
under the cargo area floor.

STARTING AND DRIVING

412

Related information

•

Charging the hybrid battery (p. 413)

•

Hybrid battery charge status (p. 415)

•

Hybrid battery charging cable (p. 405)

Initiating hybrid battery charging

The hybrid battery is charged using a charging
cable connected to a 120-/240-volt socket.

Only use the cable provided with your vehicle or
one purchased from a Volvo retailer.

CAUTION

Never connect the charging cable if there is a
risk of thunderstorms/lightning.

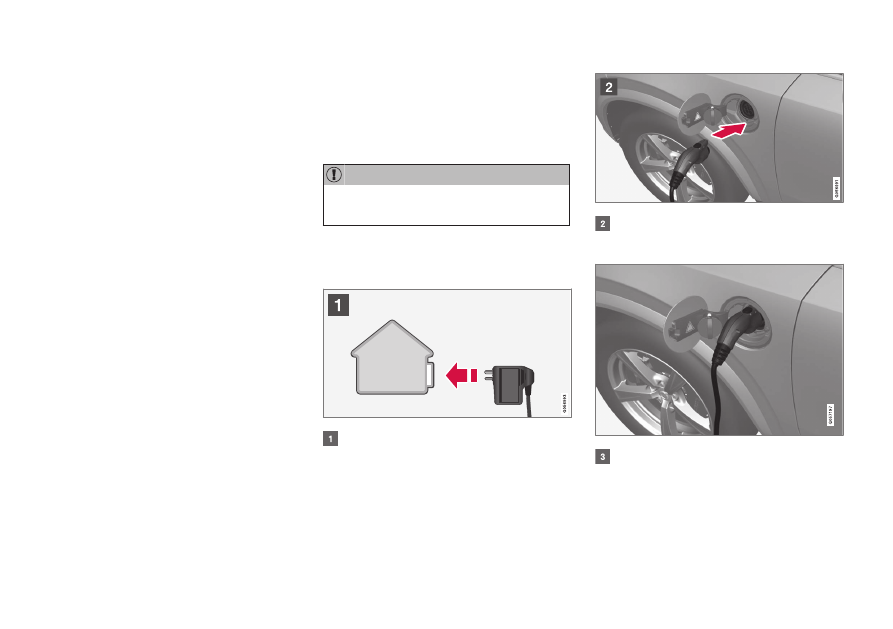

Take out the charging cable, which is stored in
the compartment under the floor of the cargo
area.

Connect the charging cable to a
120-/240-volt socket. Never use an exten-
sion cord.

Open the charging door, remove the charg-
ing socket's protective cover and connect the
charging cable's charge coupler.

Place the charging socket's protective cover
on the holder provided on the charging
socket door.

STARTING AND DRIVING

}}

413

4. The charging cable's coupler will lock onto

the charging socket and charging will begin
within approx. 10 seconds. The approximate
remaining charging time and charging status
will be displayed in the instrument panel. See
also the article "Hybrid battery charge sta-
tus."

Charging will be temporarily interrupted if the
vehicle is unlocked:

•

If a door is opened, charging will restart
within 2 minutes.

•

if no door is opened, the vehicle will auto-
matically relock and charging will restart
after 1 minute.

NOTE

Charging status is shown in the instrument
panel, which goes dark after a period of time.
Reactivate the instrument panel by:

•

pressing the brake pedal

•

opening one of the doors

•

putting the ignition in mode I (without
pressing the brake pedal, turn the start
knob to START and release it).

CAUTION

Never disconnect the charging cable from the
120-/240-volt socket while charging is in
progress. This could damage the socket.

Always stop the charging process (by unlock-
ing the vehicle) and disconnect the charging
cable from the vehicle's charging socket
before disconnecting the other end from the
120-/240-volt socket being used.

During the charging process, condensation may
form under the vehicle, which is normal and is
caused by cooling the hybrid battery.

Related information

•

Hybrid battery charge status (p. 415)

•

Charging the hybrid battery (p. 413)

•

Hybrid battery charging cable (p. 405)

•

Stopping hybrid battery charging (p. 411)

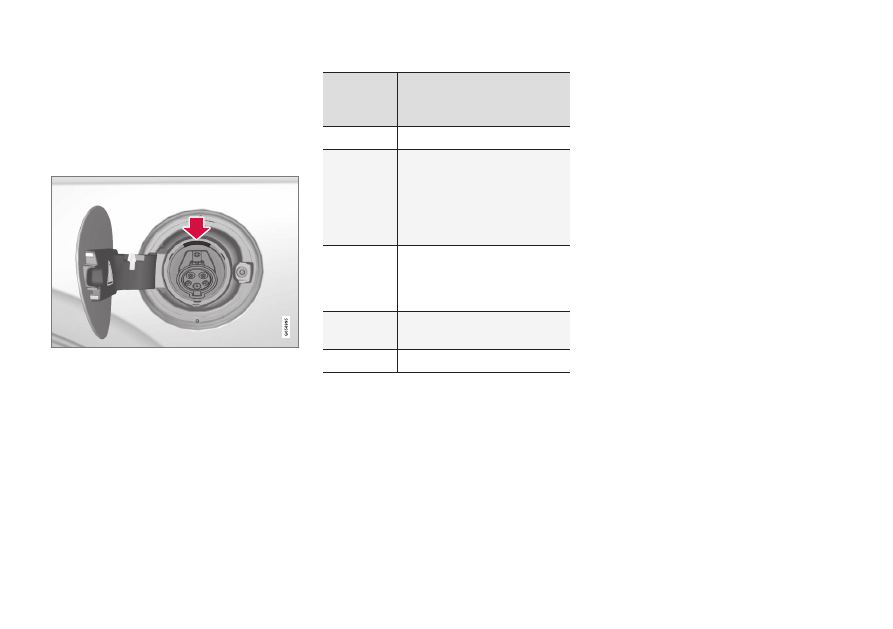

Charging the hybrid battery

In addition to the conventional fuel tank, the
XC90 T8 Twin Engine Plug-in Hybrid is also
equipped with a rechargeable lithium-ion hybrid
battery.

The hybrid battery is recharged using a charging
cable located in a storage compartment under
the floor of the cargo area. See also the article
"Charging cable."

WARNING

The hybrid electrical system in your vehicle
uses high voltage electrical current. Any dam-
age to this system or to the hybrid battery
may result in the danger of overheating, fire,
or serious injury. If the vehicle is involved in a
collision or is subjected to flooding, fires, etc.,
have it inspected by a trained and qualified
Volvo service technician. Prior to this inspec-
tion, the vehicle should be parked outdoors at
a safe distance from any building or poten-
tially flammable materials.

The hybrid battery's charging time depends on
the charging current used.

STARTING AND DRIVING

414

NOTE

The capacity of the hybrid battery diminishes
somewhat with age and use, which could
result in increased use of the gasoline engine
and consequently, slightly higher fuel con-
sumption.

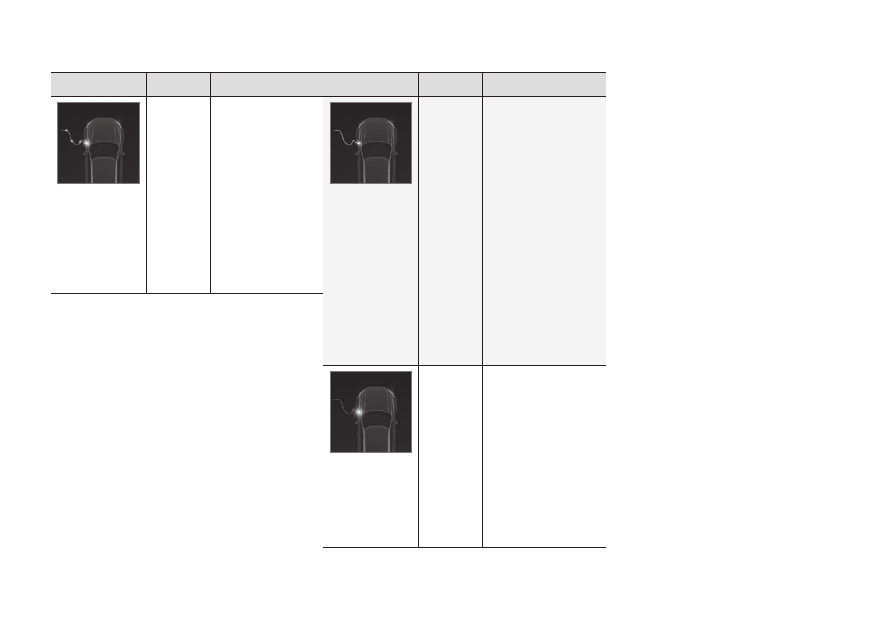

Charging is indicated in three ways:

•

Charge module (the unit that is plugged into
the wall socket): The blue indicator light on
the cable's charge module will flash red sev-
eral times when the unit is plugged into a
wall socket while a safety check is being per-
formed and will then glow steadily blue to
indicate that the charger is ready to use.

•

A green indicator light in the vehicle's charg-
ing socket will flash green while the battery
is charging and will glow steadily green when
the hybrid battery is fully charged. The blue
indicator light in the charge module will also
flash while charging is underway and will
glow steadily blue when charging is comple-
ted.

•

A gauge in the instrument panel will also
indicate the battery's charge level.

The hybrid battery charging process also charges
the vehicle's start battery.

If the hybrid battery's temperature is below –
13

ºF (–10 ºC) or above +104 ºF (+40 ºC), some

of the vehicle's functions may be reduced or not

be available at all (e.g., drive mode may not be
available).

The electric motor cannot be used if the hybrid
battery's temperature is too low or too high. If the
PURE drive mode is selected, the gasoline
engine will be used.

Temperature control

During charging, if the temperature in the charg-
ing cable becomes too high and reaches a critical
limit, charging will be interrupted.

CAUTION

If charging is interrupted repeatedly, have the
charging cable and the vehicle's charging
system inspected by a trained and qualified
Volvo service technician.

Charging using the gasoline engine

Current is generated to charge the hybrid battery, such
as light braking and when engine braking on down-
slopes

Using the B gear mode when driving on down-
slopes will also recharge the hybrid battery.

The hybrid battery can also be charged by the
gasoline engine. During light braking, the battery
is recharged.

Related information

•

Drive modes (p. 420)

•

General information about the XC90 T8 Twin
Engine Plug-in Hybrid (p. 16)

•

Hybrid battery charging cable (p. 405)

•

Gear selector positions (p. 425)

STARTING AND DRIVING

}}

415

Hybrid battery charge status

The hybrid battery's charge status (level) is indi-
cated by an LED light in the vehicle's charging
socket and in the instrument panel.

Indicator LED in the vehicle's charging
socket

LED indicator light in the charging socket

The LED indicator light shows the current charge
status while charging is underway. White, red, yel-
low or yellow lights are activated when the pas-
senger compartment lighting illuminates and
remain on for a short time after the passenger
compartment lighting has gone out.

LEDindica-
tor light's
color

Explanation

White

Courtesy light

Yellow

Standby mode (e.g., after a door
has been opened or if the
charger coupling is not locked
in position in the charging
socket): waiting for charging to
begin

Flashing
green

Charging is in progress (the
slower the light flashes, the
closer the battery is to being
fully charged)

Green

Charging completed (the light
will go out after a short time)

Red

A fault has occurred

Charge status in the instrument panel

Charging status is indicated in the instrument
panel using graphics and text. This information is
displayed for as long as the instrument panel is
active.

If the instrument panel is not used for a short
period, it will switch off to help save electrical cur-
rent and can be reactivated by:

•

Pressing the brake pedal

•

Opening one of the doors

•

Turning the start knob to ignition mode I

STARTING AND DRIVING

416

Graphic

Message

Explanation

Fully
charged
at:
[Time]

displayed
with an
animated
blue puls-
ing light
through
the
charging
cable.

Charging is in pro-
gress and the approx-
imate time when the
battery will be fully
charged will be dis-
played.

Graphic

Message

Explanation

Charg-
ing com-
plete

displayed.
An image
will be
superim-
posed
over the
graphic of
the vehi-
cle with a
greenLED
indicator
light in
the
charging
socket.

The battery is fully
charged.

Charg-
ing error

will be
displayed
and the
LED indi-
cator light
in the
charging
socket
will be
red.

A fault has occurred.
Check that the charg-
ing cable is correctly
connected to the
vehicle's charging
socket and the
120-/240-volt socket.

Related information

•

Hybrid battery charging cable (p. 405)

•

Charging the hybrid battery (p. 413)

•

Preparations for charging the hybrid battery
(p. 410)

•

Stopping hybrid battery charging (p. 411)

Volvo XC90 T8 Twin Engine Plug-in Hybrid (2017 year). Instruction - part 24
