Volkswagen Beetle Convertible (2015 year). Instruction

At temperatures below +32 °F (0 °C), the luggage compartment lid may be difficult to open after

you unlock it.

Closing the luggage compartment lid

Fig. 33 Opened luggage compartment lid: Recessed grip for closing.

Please first read and note the introductory information and heed the WARNINGS

Closing the luggage compartment lid

Grasp the recessed grip in the luggage compartment lid trim

⇒

fig. 33

(arrow).

Pull the luggage compartment lid down and close it securely so that the latch engages.
Check the luggage compartment lid to make sure it is securely latched.

Locking the luggage compartment lid

If you unlock the vehicle with the vehicle key, but do not open either a door or the luggage compart-
ment lid in about the next 30 seconds, the vehicle is automatically locked again. This feature helps
prevent you from leaving the vehicle unlocked unintentionally.

It is only possible to lock the luggage compartment lid when it is securely closed and latched.

The power locking system also locks the luggage compartment lid.
If the luggage compartment lid of a locked vehicle is unlocked with the

button on the remote

control vehicle key, it will lock within about 20 seconds after it is closed. The anti-theft alarm system, if

equipped, is activated after the vehicle is locked

⇒ Power locking system.

A closed but unlocked luggage compartment lid automatically locks at speeds above about 5 mph

(10 km/h).

WARNING

Improper or unsupervised closing of the luggage compartment lid can cause severe injuries.
Never close the luggage compartment lid when someone is in the way.

Never leave your vehicle unattended or let children play around your vehicle, especially

with the luggage compartment lid left open. A child could crawl into the vehicle and pull the
luggage compartment lid shut, becoming trapped and unable to get out. A closed vehicle can
become very hot or very cold depending on the season. Temperatures can quickly reach
levels that can cause unconsciousness or death, particularly to small children.

Power windows

Introduction

In this section you’ll find information about:

Opening or closing power windows

Power windows – features

Power window pinch protection

More information:

Volkswagen Information System
Power locking system

WARNING

Improper use of power windows can result in serious personal injury.

Never let anyone get in the way of a power window when closing it.
When locking the vehicle from the outside, make sure that no one, especially children,

remains in the vehicle. The windows will not open in case of an emergency.

Always take the key with you when you leave the vehicle. You can still use the power win-

dows for several minutes after the ignition is switched off as long as the driver or passenger
door has not been opened.

NOTICE

If you leave the windows open, rain or other precipitation may enter the vehicle from outside
and can damage the vehicle interior.

Opening or closing power windows

Fig. 34 In the driver door: Switches for the front and rear power windows.

Please first read and note the introductory information and heed the WARNINGS

Switches in the driver door

Key to

fig. 34

(1)

For the rear side windows.

(2)

For the window in the driver door and to open or close all other windows at the same time.

(3)

For the window in the passenger door.

Opening or closing windows

Function

Action

Opening:

Press the

switch.

Closing:

Pull the

switch.

Opening the driver door
window:

Press the

switch.

Closing the driver door
window:

Pull the

switch.

Opening all windows:

Press and hold the

switch until all win-

dows open.

Closing all windows:

Pull and hold the

switch until all win-

dows close.

Stopping automatic
movement:

Press/pull the respective switch again.

You can still use the power windows for several minutes after the ignition is switched off as long as the
driver or passenger door has not been opened. When the vehicle key has been removed from the
ignition and the driver door has been opened, the power windows cannot be opened or closed.

Power windows – features

Please first read and note the introductory information and heed the WARNINGS

Automatic lowering of the windows

Closed windows in the doors will go down slightly when the vehicle is unlocked, the door handle is

pulled, and after the vehicle key has been removed from the ignition

⇒ .

For vehicles with the single door unlocking function activated, only the window in the driver door will go
down slightly when the vehicle is unlocked from the outside. The window in the passenger door will
also go down slightly if the vehicle is unlocked a second time.

When the vehicle key is removed from the ignition, only the window in the driver door will go down

slightly

⇒ .

If no doors are opened, the windows will close again after several seconds. The windows will also
close if the door is closed or the vehicle is locked.

The windows can freeze to the seals at low outside temperatures and prevent the windows from going
down when the vehicle is unlocked or the door is opened. Do not open the door if the window does

not go down slightly

⇒ .

  Lock the vehicle again.
  Remove the ice with deicing spray.
  Unlock the vehicle and retry the function.
  If necessary, repeat until the windows are fully operational.

One-touch opening and closing

The one-touch feature automatically opens/closes a power window all the way. The window switch
does not have to be held down/up.

For one-touch opening: Press the switch for the window down briefly as far as it goes.

For one-touch closing: Pull the switch for the window up briefly as far as it goes.

Stopping automatic movement: Pull/press the switch again.

Reactivating the one-touch feature

If the vehicle battery is disconnected or dead and the windows are not completely closed, the one-
touch feature will not work and must be reactivated:

  Switch on the ignition.
  Close all windows and doors.
  Pull the

switch up and hold it for at least 2 seconds in this position.

Release the

switch, pull up and hold again. The one-touch feature is now reactivated.

The one-touch feature can be reactivated for one or more windows at the same time.

WARNING

Improper use of power windows can result in serious personal injury.

Never let anyone get in the way of a power window when closing it.
When locking the vehicle from the outside, make sure that no one, especially children,

remains in the vehicle. The windows will not open in case of an emergency.

Always take the key with you when you leave the vehicle. You can still use the power win-

dows for several minutes after the ignition is switched off as long as the driver or passenger
door has not been opened.

NOTICE

The windows must go down slightly when you unlock the vehicle. Otherwise the windows and
seals could be damaged when opening the doors.

If the power windows malfunction, the one-touch feature, as well as pinch protection may not

work properly. See an authorized Volkswagen dealer or authorized Volkswagen Service Facility right
away.

Power window pinch protection

Please first read and note the introductory information and heed the WARNINGS

Pinch protection can help reduce the risk of pinching injuries when closing a power window

⇒ . If

one-touch window closing meets resistance or there is something in the way, the window will stop and
go down again.

  Check why the window did not close.
  Try one-touch window closing again.
  If the window meets resistance a second time, so that it stops and goes back down, one-touch

closing is deactivated for about 10 seconds.

If you pull the power window button up all the way and hold it during this 10 second interval, the

window will close without pinch protection

⇒ .

Closing the window without pinch protection

Try to close the window again within 10 seconds by holding the switch. Pinch protection is

turned off for a short distance in the window track!

If closing takes longer than about 10 seconds, pinch protection is turned on again. The window

stops again if there is resistance.

If the window still will not close, please see an authorized Volkswagen dealer or an authorized

Volkswagen Service Facility.

WARNING

Without pinch protection, power windows will close with enough force to cause serious per-
sonal injury.

Always be careful when closing power windows.
Always make sure that no one is in the way when overriding pinch protection to close

power windows!

Pinch protection cannot prevent fingers or other parts of the body from being pressed

against the window frame; injuries may result.

Convertible top

Introduction

The convertible top opens automatically at the press of a button. When open, the convertible top is
stored in a compartment.

The multi-layer construction of the convertible top helps to insulate the vehicle interior from tempera-
ture and vibration and is also wind- and waterproof under normal operating conditions. Some water
could enter between the convertible top and body under extreme conditions such as torrential rain or
washing the vehicle in a car wash. This is normal and no cause for concern.

Supplementary information and warnings:

  Vehicle overview
  Volkswagen Information System
  Technical data
  Power locking and closing system
  Airbag system
  Climate control system
  Exterior care and cleaning
  Emergency closing and opening
  Jump-starting
  Towing

WARNING

Accidents and serious injury may result while driving when the convertible top is not secure-
ly latched or when the opening or closing process is incomplete. Even at low speeds, air
resistance can twist or deform the convertible top or tear it off completely, endangering vehi-
cle occupants and others.

Even though it is possible, it is not recommended to drive when the convertible top is not

completely open or not completely closed and securely latched.

If you must move the vehicle to another location for safety reasons and the top is not

completely open or not completely closed and securely latched, we recommend that you do
not drive any faster than a slow walk.

When opening and closing the convertible top, always make sure no one will be injured by

the supports and other moving parts.

NOTICE

To help prevent damage, remove ice and snow from the convertible top before opening it in

winter weather.

NOTICE

Objects with sharp edges or that cause scratches or dirty components can damage the con-
vertible top or the rear window.

Never remove snow and ice with sharp objects or objects that can cause scratches.

Only open and close the convertible top when it is clean.

NOTICE

If the convertible top is opened frequently when it is damp or it is left open for several weeks at
a time, it may develop creases and pressure marks and could be damaged.

Do not leave the convertible top open for long periods of time.
Only open the convertible top when it is completely dry.

When parking the vehicle with the convertible top open, the vehicle interior is not protected

against unauthorized access.

Always close the convertible top and lock the doors and luggage compartment before leaving the

vehicle.

Always store objects left in the vehicle in the locked luggage compartment.

The convertible top will only open or close when the luggage compartment lid is completely

closed. Do not open the luggage compartment lid when the convertible top is opening or closing.

Indicator light

Lights

Possible cause

Proper response

Convertible top is opening or closing.

Wait until the convertible top has fully opened
or fully closed.

Flashes Possible cause

Proper response

The convertible top opening or closing
process is not finished or there is a con-
vertible top malfunction.

Check if the opening or closing process has
finished. If necessary, end the process using
the convertible top button

Check if all technical requirements are met. If
not, take the necessary steps to meet the
technical requirements

Check if there is a convertible top malfunc-
tion. If necessary, correct the malfunction or
have the system checked by your authorized
Volkswagen dealer or authorized Volkswagen
Service Facility

Messages in the instrument cluster display

When the ignition is switched on, the indicator lights come on briefly for a function check. They go out
after a few seconds.

Display text

Proper response

Speed too high!

Reduce your speed. You can only operate the convertible top at speeds
up to about 30 mph (50 km/h). If the convertible top has already begun
opening or closing, it will stop if you drive faster. You can only continue
opening or closing the convertible top once the vehicle speed drops
below about 30 mph (50 km/h).

Decrease speed!

Reduce your speed. At 28 mph (45 km/h), the system warns the driver
not to exceed the maximum speed for opening or closing. If the opening
or closing process has already started, it will not stop.

Convert. top:

Release cover!

Convertible top cover (boot) is still installed. Roof operation is not possi-
ble. Remove the convertible top cover.

Error:

Convertible top

Service!

See an authorized Volkswagen dealer or authorized Volkswagen Service
Facility. You cannot operate the convertible top if a system component
malfunctions. Use the emergency procedure to close the open converti-
ble top if necessary.

Error:

Open convertible

top!

Open the convertible top.

Error:

Close convertible

top!

Have the system checked by an authorized Volkswagen dealer or an
authorized Volkswagen Service Facility. There is a malfunction in a
control module. It is not possible to open or close the convertible top.
Use the emergency procedure to close the convertible top.

Low voltage:

Please start en-
gine!

The vehicle battery is drained to the point that it cannot provide the
power needed to completely open or close the convertible top. Start the
engine by jump-starting if necessary. Open or close the convertible top
while the engine is running. Volkswagen recommends taking a longer
drive afterward to help recharge the vehicle battery.

Convertible

top open

This message and a chime confirm that the convertible top is completely
open or closed.

Convertible

top closed

Convertible top

not functional.

Owner's manual!

Outside temperature too low. You can still close the convertible top, if
necessary.

Continue

convertible

top operation

The opening or closing process was interrupted. Press the button
⇒

fig. 35

again until the opening or closing process has finished.

Display text

Proper response

Convertible

top operation

This text message indicates the convertible top is currently opening or

closing. Press and hold the button

⇒

fig. 35

again until the opening or

closing process has finished.

The instrument cluster displays and their arrangement may vary depending on the vehicle model

and engine. For displays without warning and information messages, malfunctions are only signaled
with indicator lights.

General information

Checklist

Perform the following preliminary requirements each time before opening or closing the con-
vertible top:

1. Park the vehicle a safe distance from moving traffic.

2. Park the vehicle so that it is as level as possible. The vehicle must not be on a hoist, it must not

have one side parked on a curb, and it must not be raised on a vehicle jack.

3. Remove all objects from the convertible top.

4. Remove all objects from the area of the convertible top compartment.

5. Remove ice and snow from the convertible top before opening.

6. Do not operate the convertible top in temperatures below 15 °F (-10 °C).

7. Allow the convertible top to dry completely before opening.

Checklist

The following technical requirements must be met to open or close the convertible top:

The ignition must be switched on

⇒ Starting and stopping the engine.

The vehicle speed must be no more than 30 mph (50 km/h).

The outside temperature must be above +15 °F (-10 °C).

The battery must have enough charge.

If any changes have been made in the operation of the convertible top compared with its original
factory condition, Volkswagen strongly urges you to take the vehicle to an authorized Volkswagen
dealer or other authorized Volkswagen Service Facility to have the top restored to its original condi-
tion. Mechanical changes and changes to the vehicle software must be entered in the
⇒ Booklet

Warranty and Maintenance.

WARNING

Disregarding the safety-related checklist may lead to accidents and serious personal injuries.

Always review and follow the checklist. Follow accepted safety practices and use common

sense.

On vehicles with Climatronic, you can set different heating and air conditioning temperatures for

operation with the convertible top up and down

⇒ Climatronic controls

Opening or closing the convertible top

Fig. 35 In the roof console: convertible top button.

You can open or close the convertible top at speeds up to 30 mph (50 km/h). If the convertible top has
already begun opening or closing, it will stop if you exceed that speed. You can only continue opening
or closing the convertible top once the vehicle speed drops below about 30 mph (50 km/h).

For safety reasons, Volkswagen recommends opening or closing the convertible top only when the

vehicle is stationary and parked at a safe distance from moving traffic

⇒ .

Opening the convertible top

Please note and follow the steps described in the checklists

⇒ page 74, General information.

Switch on the ignition, if necessary

⇒ Starting and stopping the engine.

Press and hold the

button

⇒

fig. 35

in the roof console until all windows go down and the con-

vertible top is completely open

⇒ . A chime sounds and the indicator light in the instrument

cluster goes out when the process is complete. A message may also appear in the instrument cluster
display.

Secure the convertible top cover (boot), if necessary

⇒ Installing and removing the convertible top

cover (boot).

Closing the convertible top

Please note and follow the steps described in the checklists

⇒ General information.

Switch on the ignition, if necessary

⇒ Starting and stopping the engine.

Remove the convertible top cover (boot), if necessary

⇒Installing and removing the convertible top

cover (boot).

Pull and hold the

button

⇒

fig. 35

until the convertible top and all windows close completely

⇒ : a chime sounds and the indicator light in the instrument cluster goes out. A message may

also appear in the instrument cluster display.

Interrupting convertible top operation

Releasing the button interrupts convertible top operation

⇒ .

WARNING

Uncontrolled or unintentional opening and closing of the convertible top can cause accidents
and serious injuries.

Never open or close the convertible top unless the vehicle is parked and at a safe distance

from traffic.

Do not open or close the convertible top unless you have made sure that nobody is in the

way of the luggage compartment lid, the convertible top supports, and other moving parts.

Make sure the closed convertible top is latched securely.

If convertible top operation is interrupted:

– The convertible top may not stop moving immediately. Gravity may cause the converti-
ble top to continue moving.

– If you cannot close the convertible top “normally,” use the emergency closing proce-
dure to latch it, if necessary.

– Note the messages in the instrument cluster that indicate if the convertible top has
closed and latched correctly.

NOTICE

Frequent opening and closing of the convertible top drains the vehicle battery. To help prevent
the battery from draining, leave the engine running if opening and closing the roof frequently.

NOTICE

Always close the convertible top before leaving the vehicle and when it may rain or snow. If the
convertible top is open, rain or snow can damage the vehicle interior and can cause extensive
damage to the electrical system.

NOTICE

The height of the vehicle changes when the convertible top is opening or closing. When there
is not enough room above the vehicle, for example in a garage, the convertible could hit some-
thing and be damaged.

Only open or close the convertible top when there is enough room above the vehicle to do

so.

If you park the vehicle with the convertible top open, the passenger compartment can be dam-

aged by rain or snow, and it is also open to unauthorized persons.

Always close the convertible top before you leave the vehicle.
If you must leave things in the vehicle when the top is down, you should lock them in the luggage

compartment.

Opening or closing the convertible top with the remote control vehicle
key

Fig. 36 Buttons in the remote control vehicle key.

In some vehicles equipped with the Keyless Access locking and starting system

⇒ Power locking

system, the convertible can be opened or closed from outside the vehicle when the ignition is off using
a valid remote control vehicle key. For this to work, the vehicle key must be within range of the Key-

less Access locking and starting system

⇒ Unlocking or locking the vehicle with Keyless Access.

Volkswagen recommends having the vehicle key less than 1 meter from the door handle on the driver
or passenger door.

Before opening or closing the convertible top with the vehicle key, note the following:

The vehicle doors must be closed.

Make sure there is enough room above the vehicle for the convertible top to open

⇒ .

Opening or closing the convertible top using the vehicle key

Follow the checklists and perform the steps on

⇒ General information.

Hold the remote control vehicle key outside the vehicle near the door handle on the driver or pas-

senger door.

To open: Briefly press the button in the remote control vehicle key. Then press and hold the

button within about 2 seconds. Continue holding the button until the convertible top is completely open
⇒ . A chime sounds repeatedly until the convertible top has opened completely.

To close: Briefly press the

button in the remote control vehicle key. Then press and hold the

button within about 2 seconds. Continue holding the button until the convertible top and all windows

are completely closed

⇒ . A chime sounds repeatedly until the convertible top has closed complete-

ly.

Interrupting convertible top operation

The convertible top operation will stop if you release the or

button in the remote control vehicle

key

⇒ .

Continuing convertible top operation

If convertible top operation was interrupted, you can continue operation by pressing and holding the

button in the remote control vehicle key

⇒ .

WARNING

Uncontrolled or unintentional opening and closing of the convertible top can cause accidents
and serious injuries.

Never open or close the convertible top unless the vehicle is parked and at a safe distance

from traffic.

Do not open or close the convertible top unless you have made sure that nobody is in the

way of the luggage compartment lid, the convertible top supports, and other moving parts.

Make sure the closed convertible top is latched securely.

If convertible top operation is interrupted:

– The convertible top may not stop moving immediately. Gravity may cause the converti-
ble top to continue moving.

– If you cannot close the convertible top “normally,” use the emergency closing proce-
dure to latch it, if necessary.

– Note the messages in the instrument cluster that indicate if the convertible top has
closed and latched correctly.

WARNING

If interruption of the opening or closing process causes the convertible top to come to rest in
its forward position, the roof will not be latched.

If you are unable to get the convertible top to close “normally,” latch the roof using the

emergency closing procedure

⇒ Emergency closing and opening.

Watch for a message in the instrument cluster display indicating whether the convertible

top has been properly closed.

NOTICE

Strong radio signals or interference can interfere with convertible top operation. Operation

will then stop.

NOTICE

Frequent opening and closing of the convertible top drains the vehicle battery. To help prevent
the battery from draining, leave the engine running if opening and closing the roof frequently.

NOTICE

Only open or close the convertible top when there is enough room above the vehicle to do

so.

If you park the vehicle with the convertible top open, the passenger compartment can be dam-

aged by rain or snow, and it is also open to unauthorized persons.

Always close the convertible top before you leave the vehicle.
If you must leave things in the vehicle when the top is down, you should lock them in the luggage

compartment.

Removing the wind blocker from the luggage compartment and storing

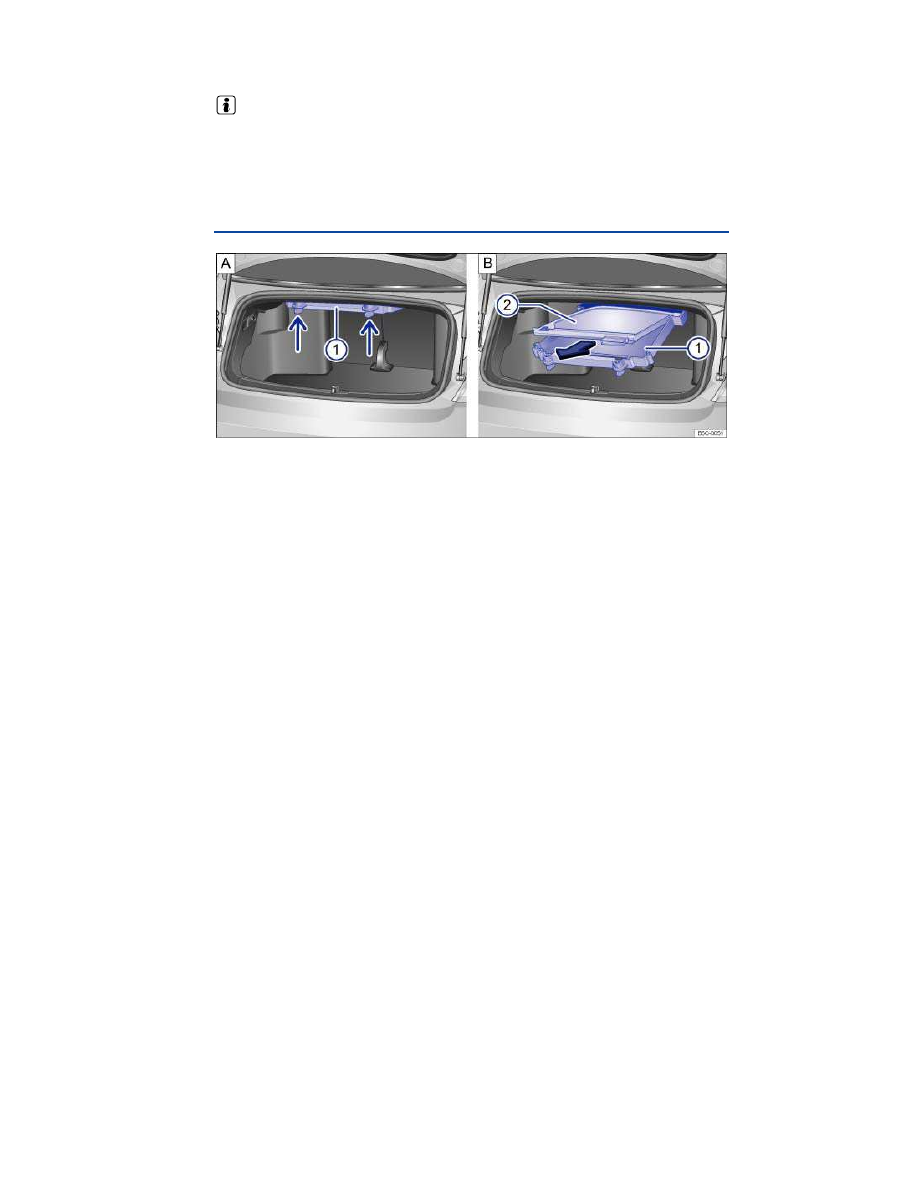

Fig. 37 A: Opening the storage compartment for the wind blocker. B: Removing the wind blocker from the
storage compartment.

Your vehicle may be equipped with a wind blocker that can be used when the convertible top is down.

Removing the wind blocker from the luggage compartment

Turn the quick-release fasteners

⇒

fig. 37

A (arrows) counterclockwise and gently guide the stor-

age compartment

(1)

down.

Raise the back of the wind blocker

⇒

fig. 37

(2)

and remove it from the storage compartment in

the direction indicated by the arrow.

Fold the storage compartment upward and turn the quick-release fasteners

⇒

fig. 37

A (arrows)

clockwise to close.

Storing the wind blocker

Turn the quick-release fasteners

⇒

fig. 37

A (arrows) counterclockwise and gently guide the stor-

age compartment

(1)

down.

Slide the wind blocker

⇒

fig. 37

(2)

opposite the direction of the arrow into the storage compart-

ment

(1)

Fold the storage compartment upward and turn the quick-release fasteners

⇒

fig. 37

A (arrows)

clockwise to close.

Removing and installing the storage compartment when it is not needed

To increase the size of the luggage compartment, you can remove a storage compartment if it is not
needed.

To remove the storage compartment

⇒

fig. 37

(1)

, pull it out of the brackets in the direction of the

arrow.

To install the storage compartment

⇒

fig. 37

(1)

, slide it into the brackets opposite the direction of

the arrow.

WARNING

Installing or removing the wind blocker by the side of the road near moving traffic can cause
accidents and serious personal injuries.

Always park the vehicle a safe distance from moving traffic when installing or removing

the wind blocker.

Never install or remove the wind blocker while driving.

WARNING

Incorrect seating positions in the vehicle increase the risk of serious of fatal injuries in the
event of an accident or sudden driving and braking maneuvers.

Never let anyone sit on the rear seats when the wind blocker is installed.

WARNING

Unsecured or improperly secured objects can cause severe injuries during sudden braking
maneuvers or if the vehicle is involved in an accident while driving.

Never place unsecured objects underneath the wind blocker.
Never use the wind blocker as a storage shelf. Items on the wind blocker can be thrown

around inside the vehicle by the wind and cause injuries.

Never use the wind blocker to secure objects.

WARNING

Always make sure that hands, fingers, and other parts of the body are out of the way when
moving the wind blocker up or down, or when folding it together.

Never fold the wind blocker upward while driving.

NOTICE

Always store the wind blocker in its storage compartment when not in use.
Do not store any other objects in the wind blocker storage compartment.

Volkswagen Beetle Convertible (2015 year). Instruction - part 5
