00 – General, Technical Data
1

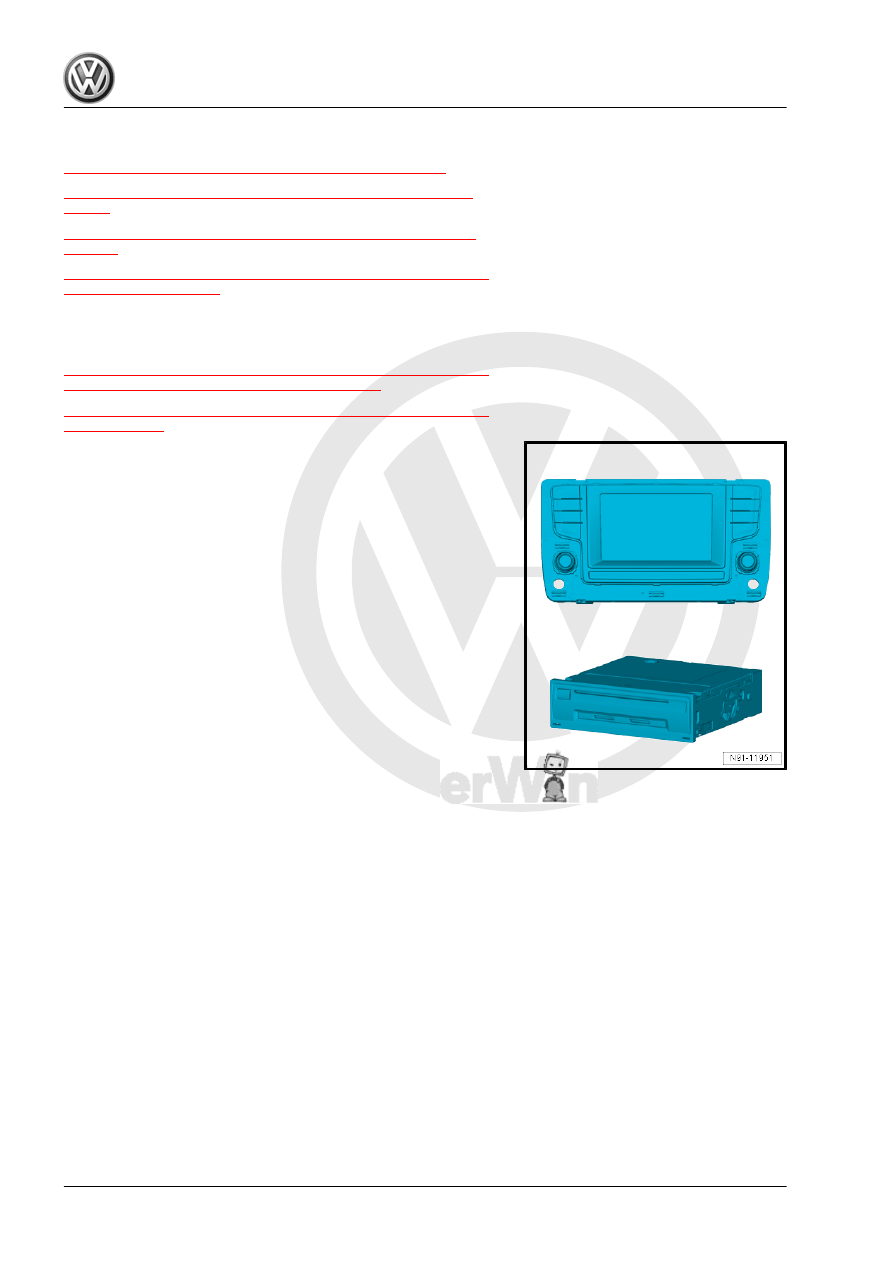

Repair Information
(Edition 02.2015)
1.1
General Repair Information
Electric wiring harnesses and connectors, repairing. Refer to ⇒
Electrical Information; Rep. Gr. 97 ; Connectors; Wiring Har‐
nesses and Connectors, Repairing .
Connector housings, releasing and disassembling. Refer to ⇒
Electrical Equipment; Rep. Gr. 97 ; Connectors; Wiring Harness‐
es and Connectors, Repairing .
Antenna wires, repairing. Refer to ⇒ Electrical Equipment; Rep.
Gr. 97 ; Antenna Wires, Repairing .
Fiber-optic cable, repairing. Refer to ⇒ Electrical Equipment;
Rep. Gr. 97 ; Fiber-Optic Cable .
Vehicle Diagnostic Testers . Refer to ⇒ Electrical Equipment;
Rep. Gr. 97 ; Vehicle Diagnostic Testers .
1.2
CAN Bus Wires Repair Information
CAN Bus lines, repairing. Refer to ⇒ Electrical Equipment; Rep.
Gr. 97 ; Connectors; Wiring Harnesses and Connectors, Repair‐
ing .
1.3
Transmitted Output, Antenna Installa‐
tion Locations
Note
It is legally forbidden to install antennas on bumpers. This protects
pedestrians.
Designation
Pmax/Watt
Prescribed Antenna Installa‐
tion Locations
Shortwave
< 54 MHz
100 (PEAK)
All locations on the roof
4 m band
20 (eff.)
All locations (on vehicle ex‐
terior)
2 m band
20 (eff.)
Front fender
Roof center front
Roof center
Roof center rear
2 m band
50 (eff.)
Center of roof
Rear center of roof
70 cm band
50 (eff.)
Front center of roof
Center of roof
Rear center of roof
23 cm band
20 (eff.)
All locations (on vehicle ex‐
terior)
