ling. Refer to

⇒ “1.3.2  Fuse Panel A SA , Removing and Installing”, page 293

 .

11 - Mounting Bracket

❑ Removing and installing. Refer to

⇒ “1.3.2  Fuse Panel A SA , Removing and Installing”, page 293

 .

12 - Cover

❑ For engine compartment E-box

13 - Relay and Fuse Panel B - SB-

❑ With connecting bracket for fuse panel A
❑ Removing and installing. Refer to

⇒ “1.3 E-Box Relay and Fuse Panels, Removing and Installing”, page 292

 .

14 - Wire

❑ 6 Nm

15 - Bracket

❑ For Engine Control Module - J623-

16 - Engine Compartment E-Box

❑ Removing and installing. Refer to

⇒ “1.2 E-Box, Removing and Installing”, page 290

 .

1.1.2

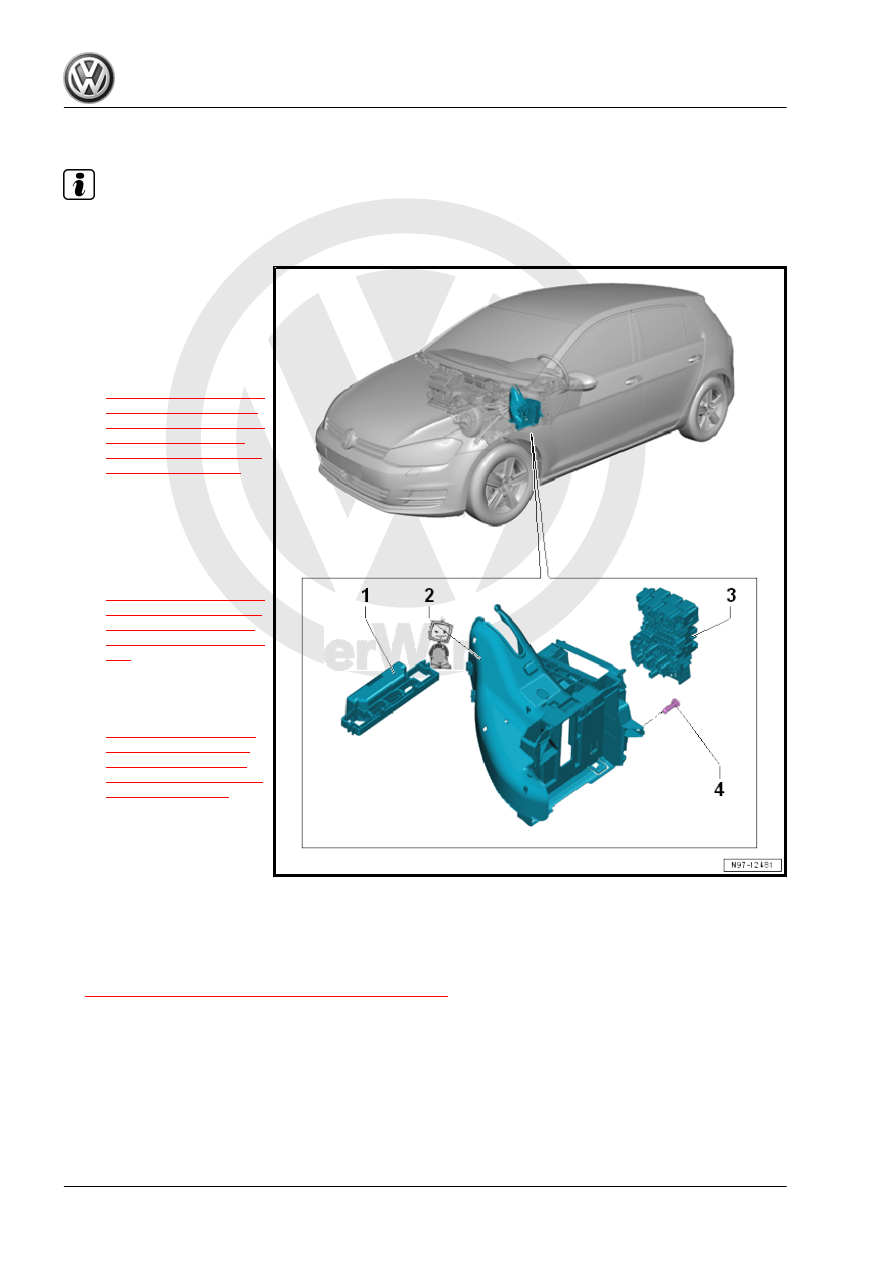

Relay Carrier and Instrument Panel/A-Pillar Fuse Panel

Note

The Sedan is shown. The Wagon is identical.

1 - Bracket

❑ For Parking Aid Control

Module - J446- / Parallel

Parking Assistance

Control Module - J791-

❑ Removing and instal‐

ling. Refer to

⇒ “2.8  Parking Aid Con‐

trol Module J446 / Par‐

allel Parking Assistance

Control Module J791

Bracket, Removing and

Installing”, page 302

 .

2 - Bracket

❑ For Vehicle Electrical

System Control Module

- J519-

❑ Removing and instal‐

ling. Refer to

⇒ “2.6  Vehicle Electrical

System Control Module

J519 Bracket, Remov‐

ing and Installing”, page

301

 .

3 - Fuse Panel C - SC-

❑ Removing and instal‐

ling. Refer to

⇒ “1.4 Relay and Fuse

Carrier Behind Instru‐

ment Panel on Driver

Side, Removing and In‐

stalling”, page 294

 .

4 - Screw

❑ 3 Nm
❑ Quantity: 3

1.2

E-Box, Removing and Installing

Removing
– Disconnect the Battery - A- . Refer to

⇒ “1.3 Battery, Disconnecting and Connecting”, page 9

 .

– Remove the Engine Control Module - J623- and set it aside

with the connectors attached. Refer to ⇒  Rep. Gr.  23 ; Engine

Control Module; Engine Control Module - J623- , Removing

and Installing or ⇒  Rep. Gr.  24 ; Engine Control Module; En‐

gine Control Module - J623- , Removing and Installing .

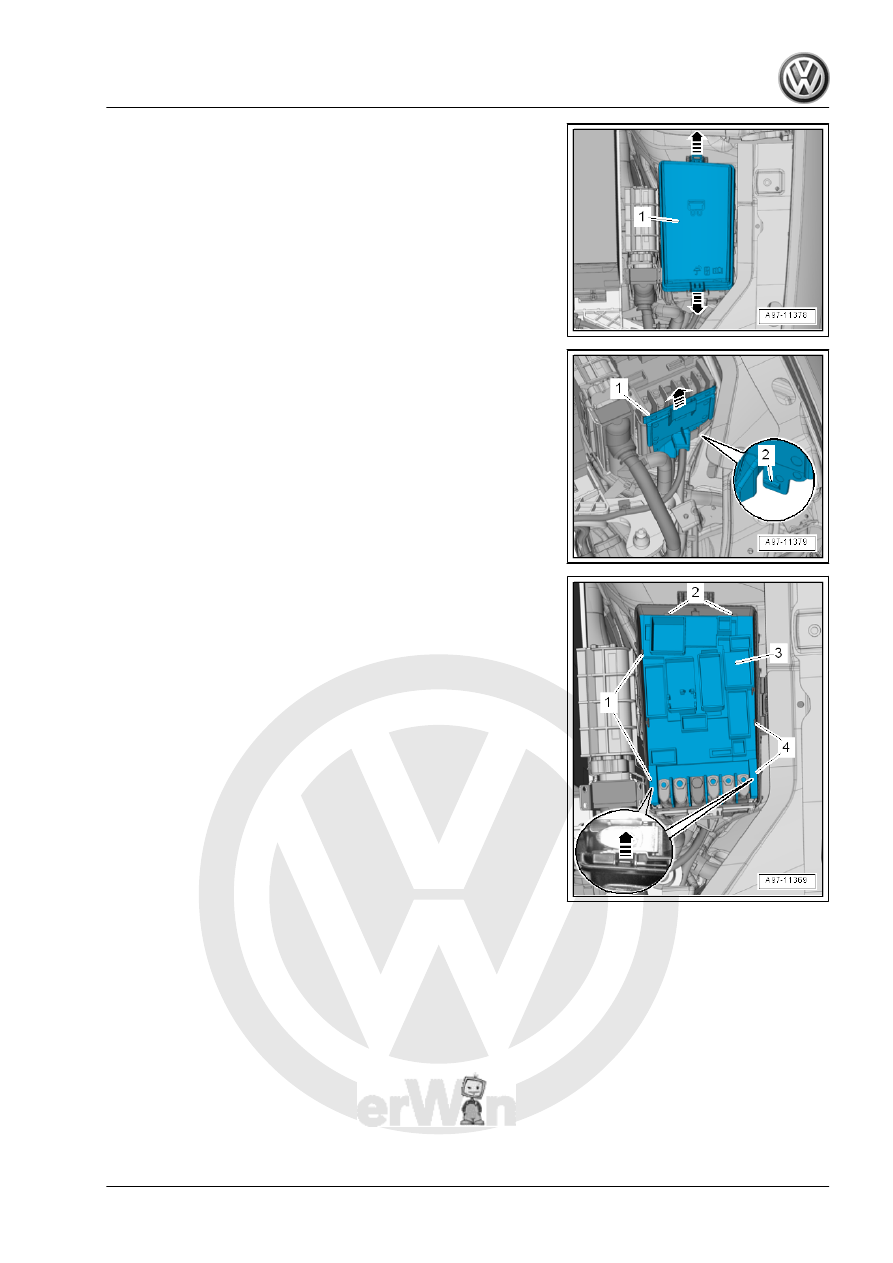

– Push the release button in direction of -arrows-.
– Remove the engine compartment E-box cover -1-.

– Release the mounting tab -2- with a screwdriver, and remove

the front cover -1- upward in direction of -arrow-.

– Cut the lower cable ties on the wiring harness.

– Release the retainers -1, 2 and 4- -arrow- and remove the fuse

panel B -3- and set it aside.

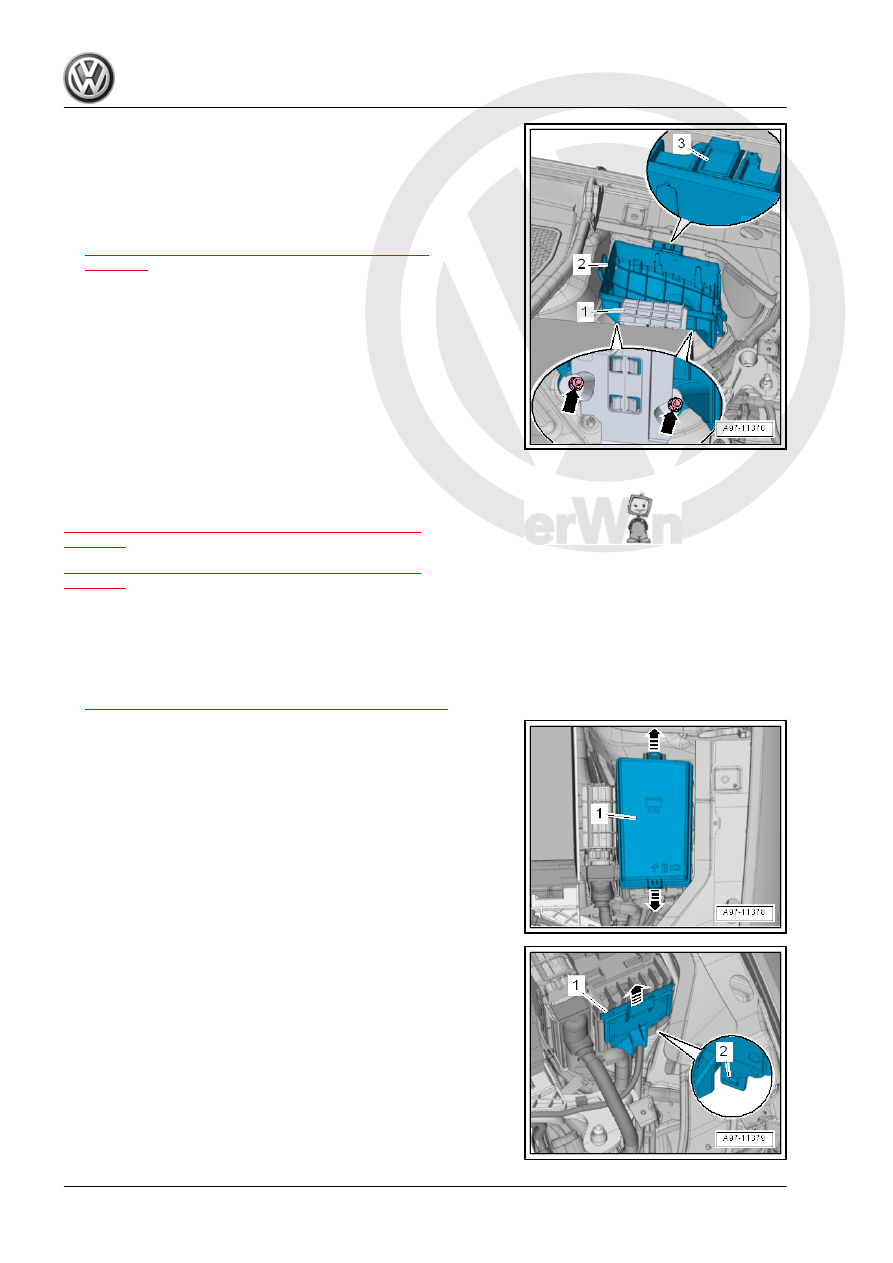

– Remove the nuts -arrows- and remove the Engine Control

Module - J623- -1- bracket.

– Release the mounting tab -3- and disengage the engine com‐

partment E-box -2- from the threaded pin.

– Remove the engine compartment E-box upward.
Installing
Install in reverse order of removal.
Tightening Specifications
♦ Refer to

⇒ “1.1.1 Relay Carriers, Fuse Panels and E-Boxes”,

page 288

1.3

E-Box Relay and Fuse Panels, Remov‐

ing and Installing

⇒ “1.3.1  Fuse Panel B SB , Removing and Installing”,

page 292
⇒ “1.3.2  Fuse Panel A SA , Removing and Installing”,

page 293

1.3.1

Fuse Panel B - SB- , Removing and In‐

stalling

Removing
– Disconnect the Battery - A- . Refer to

⇒ “1.3 Battery, Disconnecting and Connecting”, page 9

 .

– Press the release buttons in direction of -arrow- and remove

the cover -1- for the engine compartment E-box.

– Release the mounting tab -2- with a screwdriver, and remove

the front cover -1- upward in direction of -arrow-.

– For reinstallation, mark the wires at the bolted connections.
