Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.
– Remove the trim panel under the instrument panel. Refer to

⇒  Body Interior; Rep. Gr.  68 ; Storage Compartments and

Covers; Driver Side Instrument Panel Cover, Removing and

Installing .

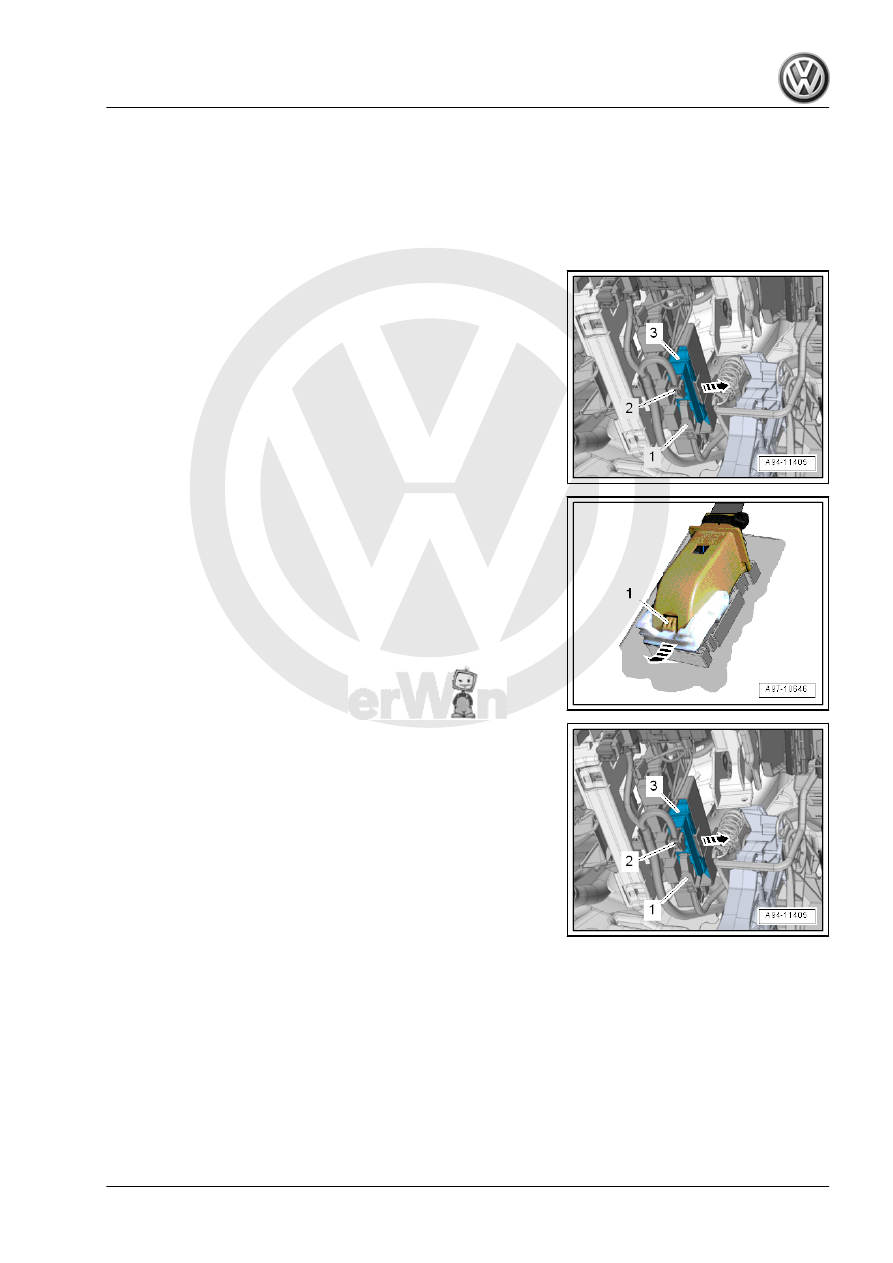

– Disconnect the connectors -1 and 2-.

– To do this push the tab -1-, pivot the retaining bracket in the

direction of -arrow- and remove the connector.

– Release the tab in direction of -arrow- and remove the Parking

Aid Control Module - J446- -3- downward from the bracket.

Installing
Install in reverse order of removal.

9.3

Front Parking Aid Warning Buzzer -

H22- , Removing and Installing

Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.
– Remove the trim panel under the instrument panel. Refer to

⇒  Body Interior; Rep. Gr.  68 ; Storage Compartments and

Covers; Driver Side Instrument Panel Cover, Removing and

Installing .

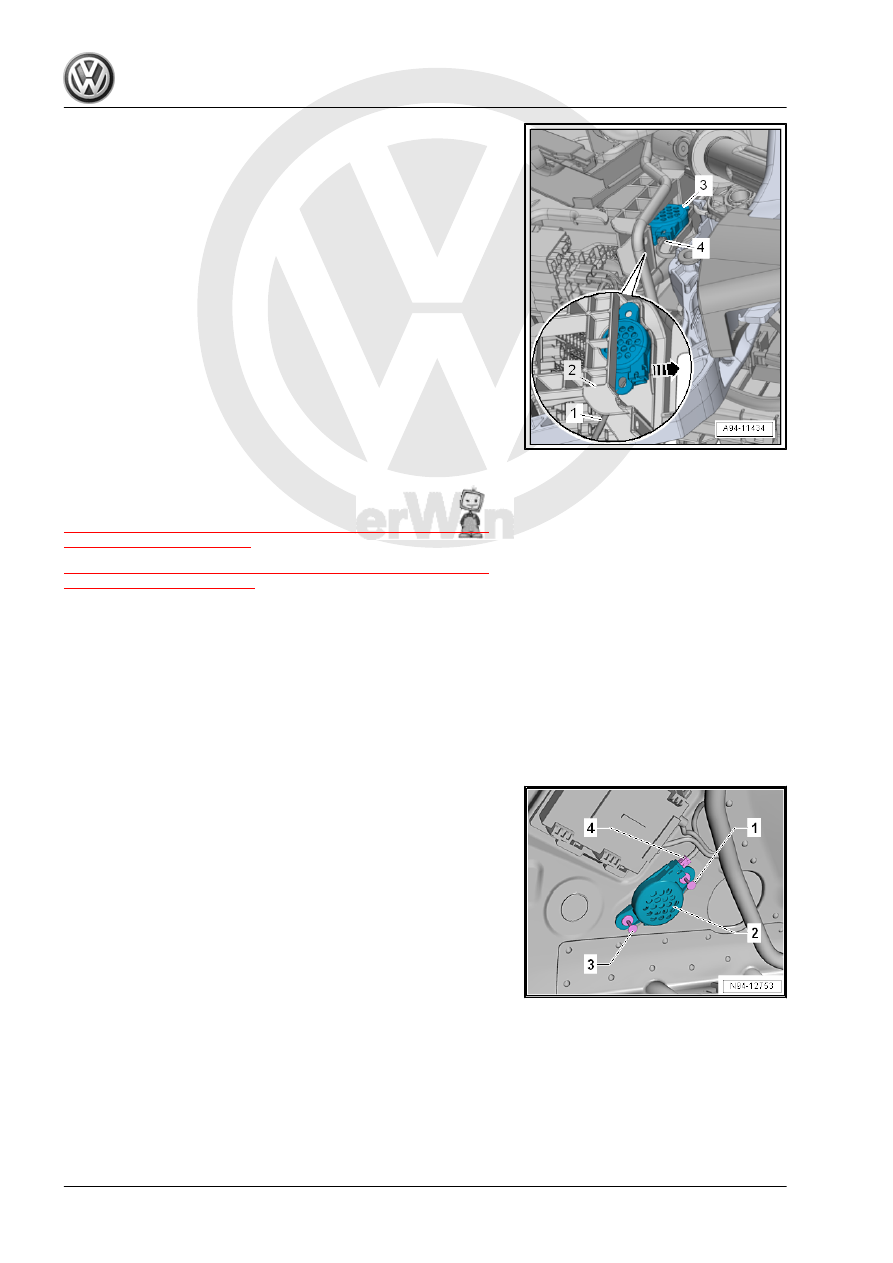

– Remove the Front Parking Aid Warning Buzzer - H22- -3- with

a narrow screwdriver -1- from the mount -2- in direction of

-arrows-.

– Remove the Front Parking Aid Warning Buzzer - H22- .
– Disconnect the connector -4-.
Installing
Install in reverse order of removal.

9.4

Rear Parking Aid Warning Buzzer -

H15- , Removing and Installing

⇒ “9.4.1  Rear Parking Aid Warning Buzzer H15 , Removing and

Installing, Sedan”, page 202
⇒ “9.4.2  Rear Parking Aid Warning Buzzer H15 , Removing and

Installing, Wagon”, page 202

9.4.1

Rear Parking Aid Warning Buzzer -

H15- , Removing and Installing, Sedan

Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.
– Remove the C-pillar trim panel. Refer to ⇒  Body Interior; Rep.

Gr.  70 ; Passenger Compartment Trim; C-Pillar Trim Panel,

Removing and Installing .

– Pry off the expanding clip -1 and 3-.
– Remove the Rear Parking Aid Warning Buzzer - H15- -2-.
– Disconnect the connector -4-.
Installing
Install in reverse order of removal.

9.4.2

Rear Parking Aid Warning Buzzer -

H15- , Removing and Installing, Wagon

Removing
– Remove the luggage compartment side trim panel. Refer to ⇒

Body Interior; Rep. Gr.  70 ; Luggage Compartment Trim Pan‐

els; Luggage Compartment Side Trim Panel, Removing and

Installing .

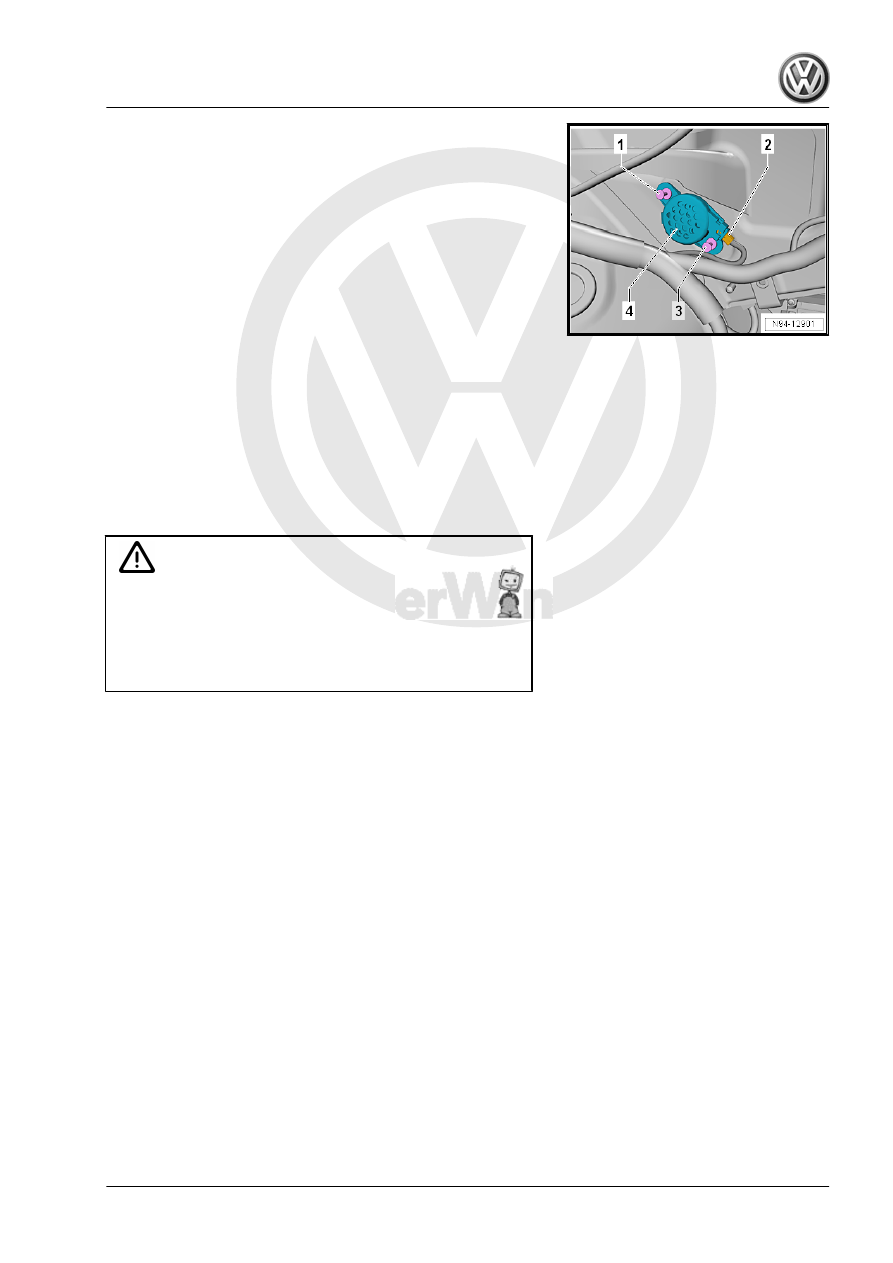

– Pry of the expanding clip -1 and 3-.
– Remove the Rear Parking Aid Warning Buzzer - H15- -4-.
– Disconnect the connector -2-.
Installing
Install in reverse order of removal.

9.5

Front Parking Aid Sensor, Removing

and Installing

Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.
– Remove the radiator grille. Refer to ⇒  Body Exterior; Rep. Gr.

66 ; Radiator Grille/Front Trim; Radiator Grille, Removing and

Installing .

Caution

There is a risk of damaging the components.

♦ Carefully remove the bumper. Pay attention that the

bumper is not deformed or ripped.

♦ When removing the headlamp the surface can be scratch‐

ed. Tape up those components which could be damaged.

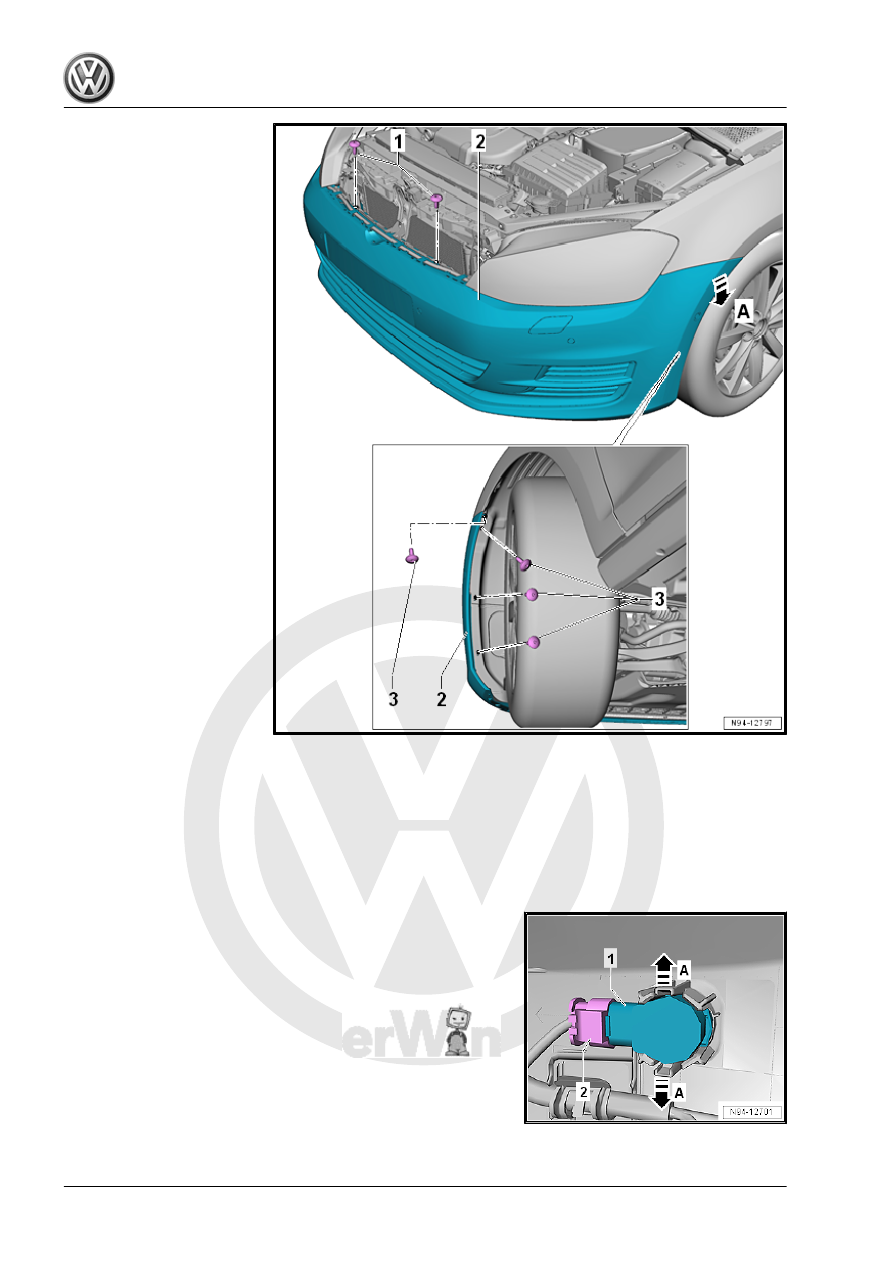

– Remove the bolts -3- from the front wheel housing liner.

– Remove the bolts between the bumper cover and lock carrier

from below.

– If equipped, remove the bolts -1-.
– Detach the bumper cover -2- from the fender and remove in

the direction of the -arrow A-.

– Press both catches in the direction of the -arrow A- and at the

same time press sensor -1- inward from outside.

– Release and disconnect the connector -2-.
Installing
Install in the reverse order of removal while paying attention to

the following:
When inserting sensor into sensor bracket, make sure that de‐

coupling ring (black silicone ring) has proper fit on the sensor

head.
Both sensor mount retaining clips must engage audibly when in‐

stalling the sensor.
