⇒ “1.1.5 Overview - Headlamp Housing Repair Set”, page 101

1.1.1

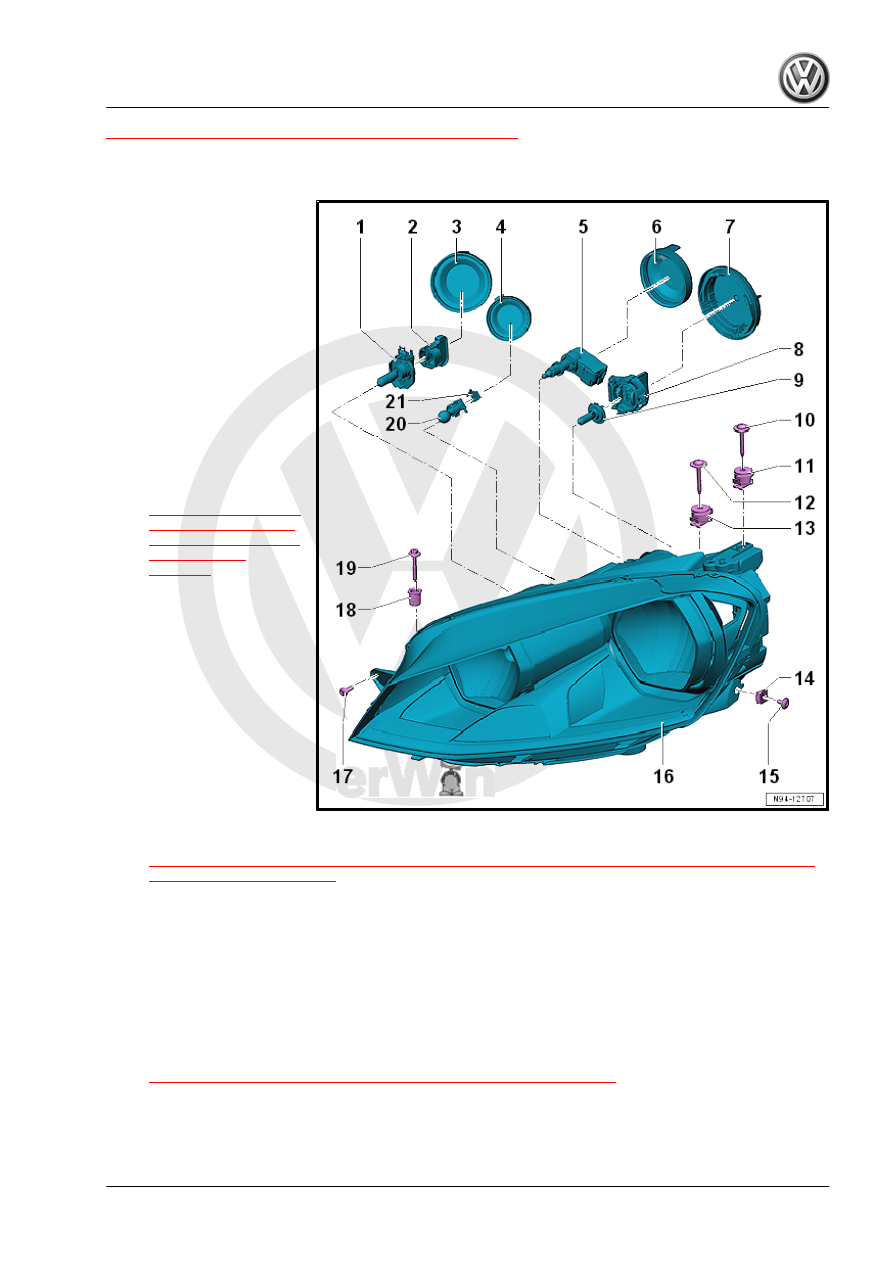

Overview - Halogen Dual Headlamp

1 - Bulb for Position Lamp/Day‐

time Running Lamp/High

Beam Headlamp

❑ The lamp has three

functions:

❑ Left Position Lamp Bulb

- M1- / Right Position

Lamp Bulb - M3-

❑ Left Daytime Running

Lamp Bulb - L174- /

Right Daytime Running

Lamp Bulb - L175-

❑ Left High Beam Head‐

lamp Bulb - M30- / Right

High Beam Headlamp

Bulb - M32-

❑ Removing and instal‐

ling. Refer to

⇒ “1.10 Left/Right High

Beam Headlamp Bulb

M30 / M32 , Removing

and Installing”,

page 114

 .

2 - Socket

❑ For bulb for position

lamp/daytime running

lamp/high beam head‐

lamp

3 - Housing Cover
4 - Housing Cover
5 - Headlamp Beam Adjust‐

ment Motor

❑ Left Headlamp Beam

Adjustment Motor - V48-

❑ Right Headlamp Beam

Adjustment Motor - V49-

❑ Removing and installing. Refer to

⇒ “1.8.1 Left/Right Headlamp Beam Adjustment Motor V48 / V49 , Removing and Installing, Halogen

Dual Headlamps”, page 111

 .

6 - Housing Cover
7 - Housing Cover
8 - Bulb Socket

❑ To the low beam headlamp bulb mount

9 - Low Beam Headlamp Bulb

❑ Left Low Beam Headlamp Bulb - M29-
❑ Right Low Beam Headlamp Bulb - M31-
❑ Removing and installing. Refer to

⇒ “1.9 Low Beam Headlamp Bulb, Removing and Installing”, page 113

 .

10 - Bolt

❑ 8 Nm
❑ For attaching on the upper longitudinal member

11 - Adjusting Element
12 - Bolt

❑ 4 Nm
❑ Only loosen
❑ For attaching to the headlamp mount

13 - Balancing Element
14 - Spring Nut
15 - Bolt

❑ 4 Nm
❑ For attaching the bumper guide

16 - Headlamp

❑ Removing and installing. Refer to

⇒ “1.2 Headlamp, Removing and Installing”, page 101

 .

17 - Impact Screw

❑ For adjusting the headlamp parallel to the hood edge

18 - Banjo Bolt

❑ For the headlamp height adjustment

19 - Bolt

❑ 4 Nm
❑ For attaching to the lock carrier

20 - Front Turn Signal Bulb

❑ Left Front Turn Signal Bulb - M5-
❑ Right Front Turn Signal Bulb - M7-
❑ Removing and installing. Refer to

⇒ “1.5.1 Left/Right Front Turn Signal Bulb M5 / M7 , Removing and Installing, Halogen Dual Headlamp”,

page 107

 .

21 - Socket

❑ For the front turn signal lamp

1.1.2

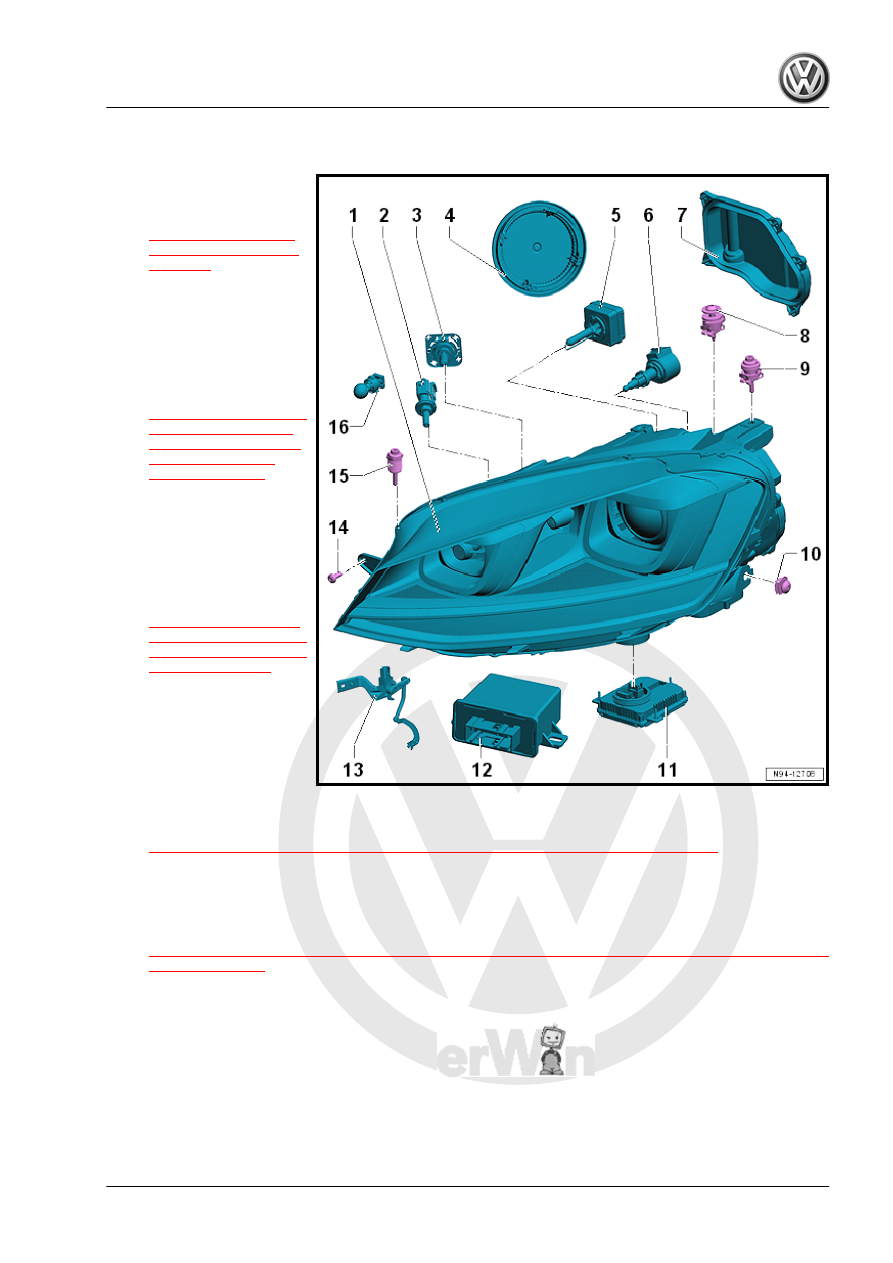

Overview - HID Headlamp

1 - Headlamp

❑ Removing and instal‐

ling. Refer to

⇒ “1.2 Headlamp, Re‐

moving and Installing”,

page 101

 .

2 - Front Turn Signal Bulb

❑ Left Front Turn Signal

Bulb - M5-

❑ Right Front Turn Signal

Bulb - M7-

❑ Removing and instal‐

ling. Refer to

⇒ “1.5.2 Left/Right Front

Turn Signal Bulb M5 /

M7 , Removing and In‐

stalling, HID Head‐

lamps”, page 108

 .

3 - Cornering Lamp Bulb

❑ Left Cornering Lamp

Bulb - L148-

❑ Right Cornering Lamp

Bulb - L149-

❑ Removing and instal‐

ling. Refer to

⇒ “1.16 Left/Right Cor‐

nering Lamp Bulb L148 /

L149 , Removing and In‐

stalling”, page 119

 .

4 - Housing Cover
5 - HID Headlamp Bulb

❑ With integrated ignition

coil

❑ Left HID Headlamp Bulb

- L13-

❑ Right HID Headlamp Bulb - L14-
❑ Removing and installing. Refer to

⇒ “1.11 Left/Right HID Headlamp Bulb L13 / L14 , Removing and Installing”, page 115

 .

6 - Headlamp Beam Adjustment Motor

❑ Left Headlamp Beam Adjustment Motor - V48-
❑ Right Headlamp Beam Adjustment Motor - V49-
❑ Removing and installing. Refer to

⇒ “1.8.2 Left/Right Headlamp Beam Adjustment Motor V48 / V49 , Removing and Installing, HID Head‐

lamps”, page 112

 .

7 - Housing Cover

❑ 2 Nm
❑ With screws
❑ Quantity: 5

8 - Bolt

❑ 4 Nm
❑ With balancing element

9 - Bolt

❑ 8 Nm
❑ With balancing element

10 - Bolt

❑ 4 Nm

11 - HID Headlamp Control Module

❑ Left HID Headlamp Control Module - J343-
❑ Right HID Headlamp Control Module - J344-
❑ Removing and installing. Refer to

⇒ “1.17 Left/Right HID Headlamp Control Module J343 / J344 , Removing and Installing”, page 120

 .

❑ Screws: 2 Nm

12 - Headlamp Range Control Module - J431-

❑ Removing and installing. Refer to

⇒ “11.2 Control Module for Headlamp Range/Cornering Lamp and Headlamp Range, Removing and

Installing”, page 211

 .

13 - Level Control System Sensor

❑ Removing and installing. Refer to ⇒  Suspension, Wheels, Steering; Rep. Gr.  43 ; Level Control System

Sensor .

14 - Impact Screw

❑ For adjusting the headlamp parallel to the hood edge

15 - Bolt

❑ 4 Nm
❑ With banjo bolt
❑ For the headlamp height adjustment

16 - Daytime Running Lamp Bulb

❑ Left Daytime Running Lamp Bulb - L174-
❑ Right Daytime Running Lamp Bulb - L175-
❑ Removing and installing. Refer to

⇒ “1.13.2 Left/Right Daytime Running Lamp Bulb L174 / L175 , Removing and Installing, HID Headlamp”,

page 118

 .
