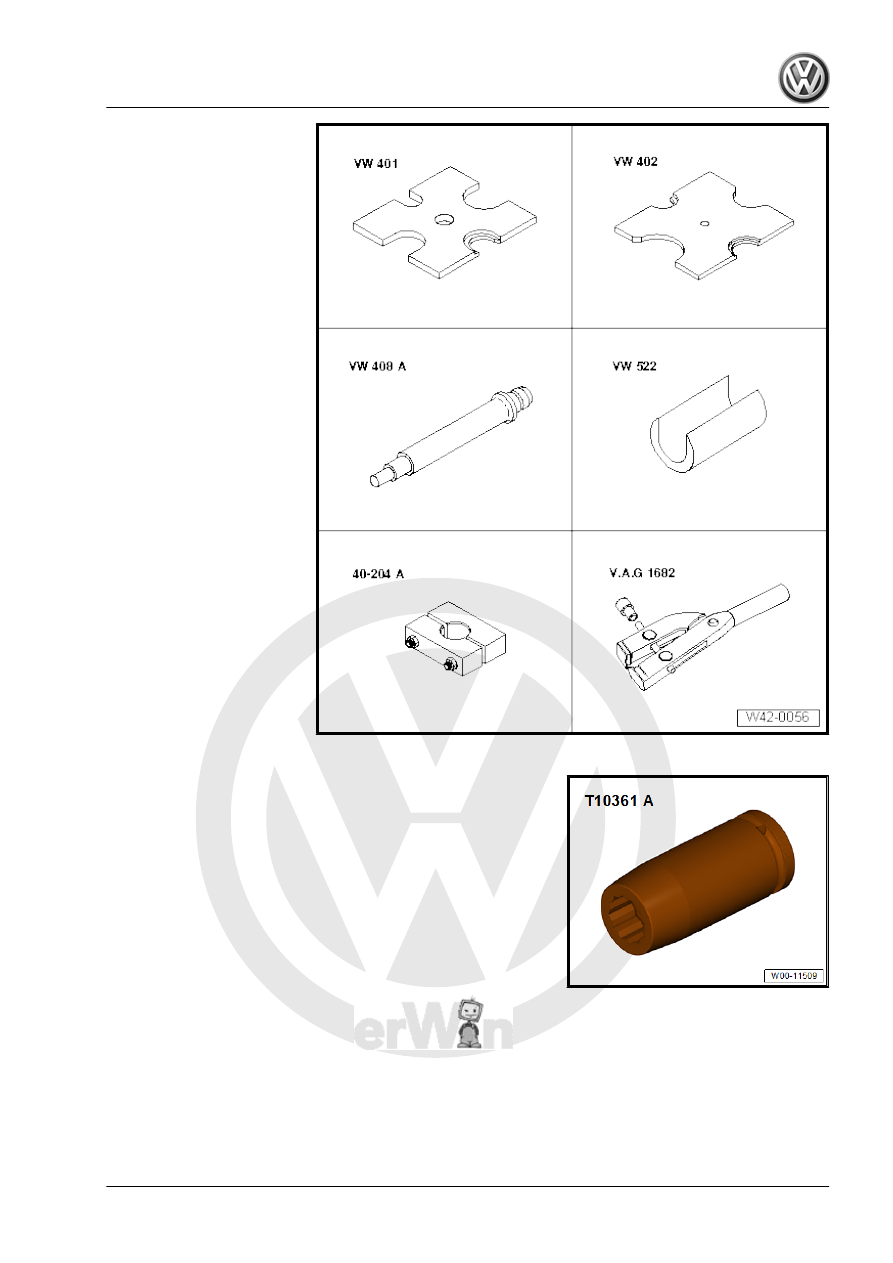

♦ Press Plate - VW401-
♦ Press Plate - VW402-
♦ Press Piece - Rod -

VW408A-

♦ CV Joint Press Sleeve -

VW522-

♦ Press Block - 40-204A-
♦ Clamping Pliers -

VAG1682A-

♦ Socket AF 24 mm - T10361A-

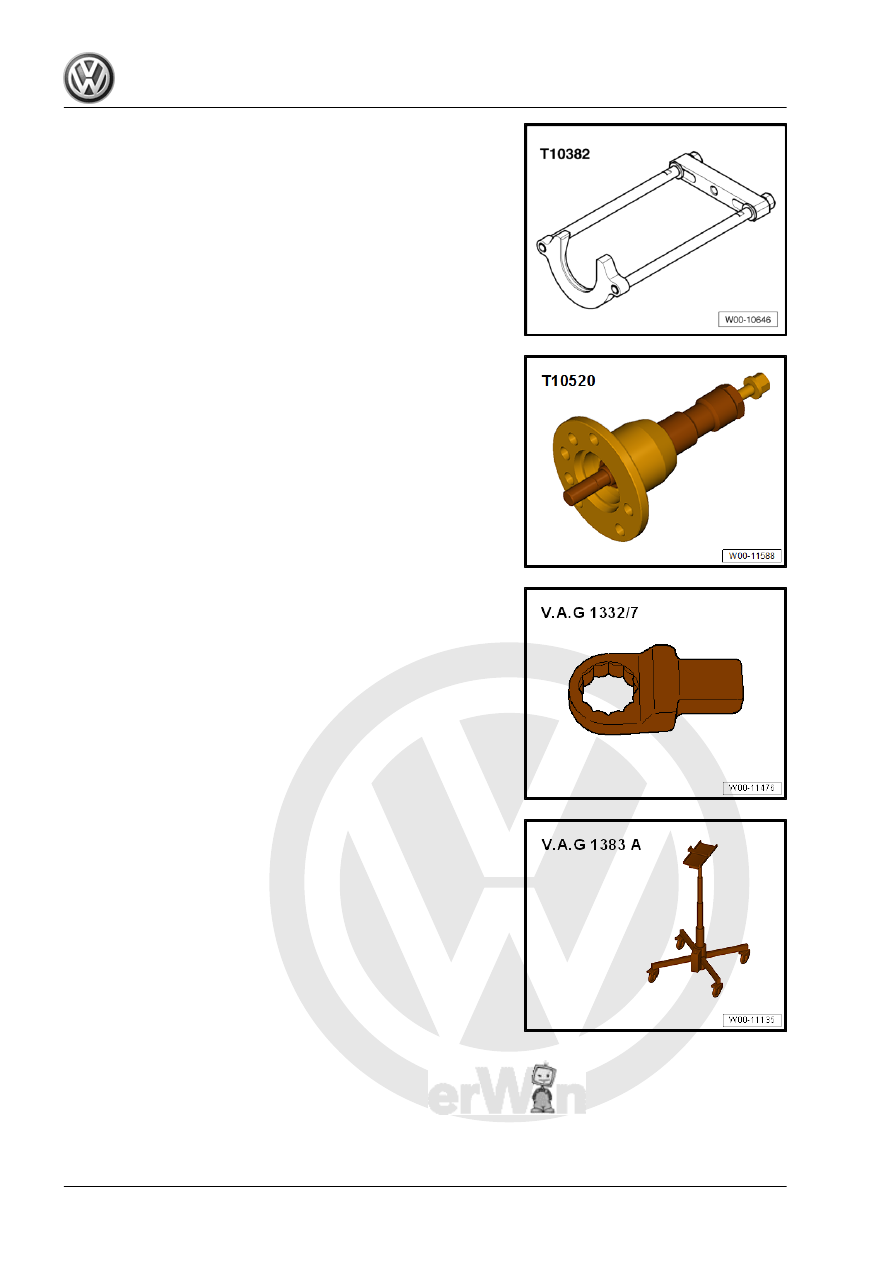

♦ Puller - Driveshaft - T10382-

♦ Drive Shaft Remover - T10520-

♦ Torque Wrench 1332 Insert - Ring Wrench - 21mm -

VAG1332/7-

♦ Engine and Gearbox Jack - VAS6931-

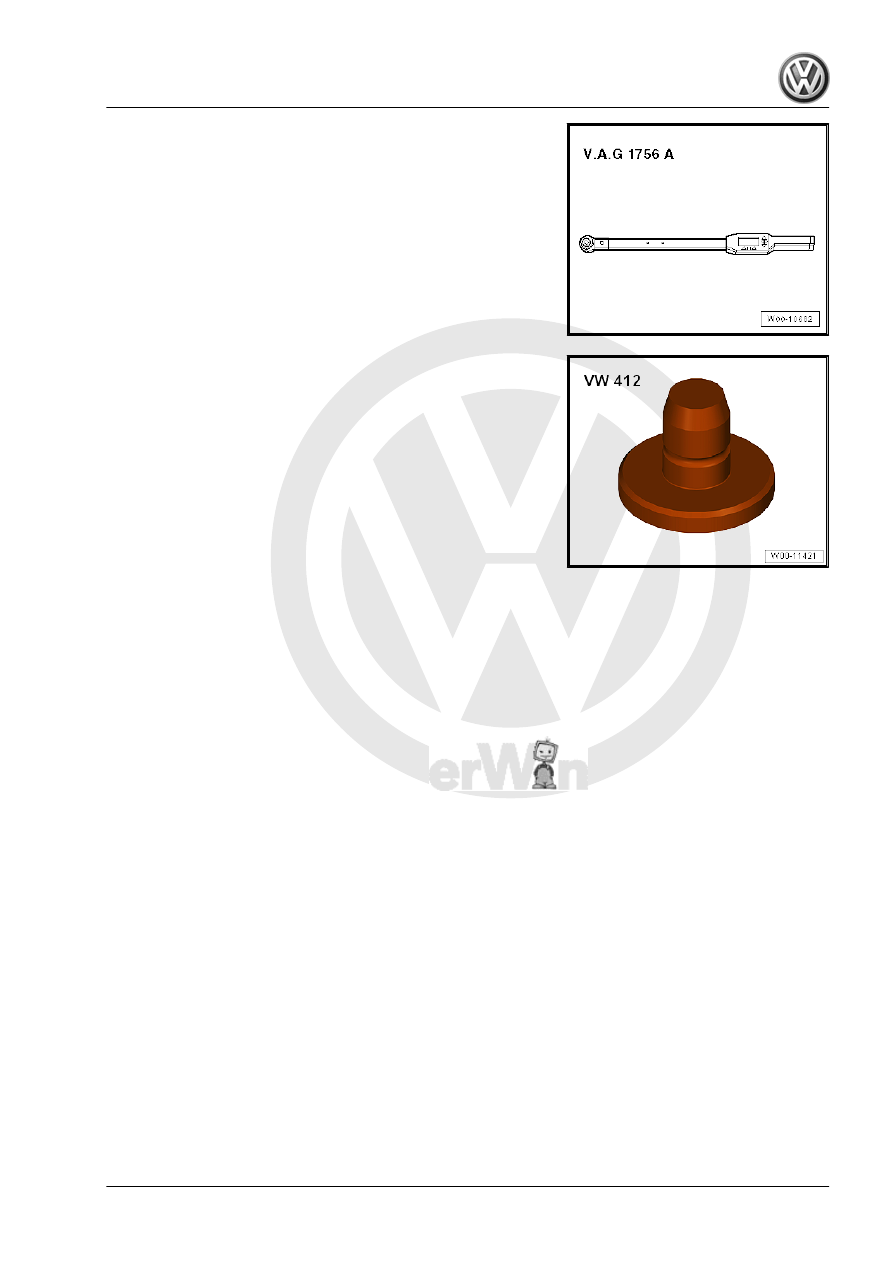

♦ Digital Torque Wrench - VAG1756A-

♦ Press Piece - Multiple Use - VW412-

42 – Rear Suspension

1

Rear Axle

⇒ “1.1 Overview - Rear Axle”, page 132
⇒ “1.2 Rear Axle, Lowering”, page 136
⇒ “1.3 Rear Axle, Removing and Installing”, page 142

1.1

Overview - Rear Axle

⇒ “1.1.1 Overview - Rear Axle, Torsion Beam Axle”, page 132
⇒ “1.1.2 Overview - Rear Axle, Multi-Link Suspension”,

page 133
⇒ “1.1.3 Overview - Rear Axle, Multi-Link Suspension, AWD”,

page 135

1.1.1

Overview - Rear Axle, Torsion Beam Axle

I - Refer to

⇒ “2 Axle Beam”, page 150

II - Refer to

⇒ “6 Suspension Strut/Shock

Absorber, Spring”, page 191

III - Refer to

⇒ “7 Wheel Bearing and Trail‐

ing Arm”, page 209
