Volkswagen Golf / Golf GTI / Golf Variant. Manual - part 642





Code Letters

CXCA

CNTA

Emissions values

SULEV

SULEV

Displacement

liter

2.0

2.0

Output

kW at RPM

155 at 4300 to 6200

155 at 4300 to 6200

Torque

Nm at RPM

350 at 1600 to 4200

350 at 1600 to 4200

Bore

diameter in mm

82.5

82.5

Stroke

mm

92.8

92.8

Compression ratio

9.6:1

9.6:1

RON

95

95

Fuel Injection System

Direct fuel injection

Direct fuel injection

Ignition sequence

1-3-4-2

1-3-4-2

Turbocharger

Turbocharger

Turbocharger

Variable valve timing

Intake and exhaust

camshaft

Intake and exhaust

camshaft

Valve stroke adjust‐

ment

Yes

Yes

Secondary Air Injection (AIR)

Yes

Yes

Valves per cylinder

4

4

Oil pressure control

Yes

Yes

Codes

CXCB

Manufactured from

12/2014

Emissions values

SULEV

Displacement

liters

2.0

Output

kW at RPM

162 at 4500 to 6200

Torque

Nm at RPM

350 at 1600 to 4400

Bore

diameter in mm

82.5

Stroke

mm

92.8

Compression ratio

9.6:1

Research Octane Number (RON)

95

Injection System

Direct fuel injection

Ignition sequence

1-3-4-2

Turbocharger, Supercharger

Turbocharger

Variable valve timing

Intake and exhaust camshaft

Valve stroke adjustment

Yes

Secondary air injection (AIR)

Yes

Valves per cylinder

4

Oil pressure control

Yes

3

Repair Information

⇒ “3.1 Clean Working Conditions”, page 5

 .

⇒ “3.2 Engine Contaminants”, page 5

 .

⇒ “3.3 Contact Corrosion”, page 5

 .

⇒ “3.4 Wire Routing and Securing”, page 5

 .

⇒ “3.5 Cooler and Condenser Assembly”, page 6

 .

⇒ “3.6 Vacuum System, Checking”, page 6

 .

3.1

Clean Working Conditions

When working on the fuel supply/injection system, pay careful at‐

tention to the following “5 rules” of cleanliness:
♦ Thoroughly clean the connecting points and the surrounding

area before loosening.

♦ Place the removed parts on a clean surface and cover them.

Only use lint-free cloths!

♦ Carefully cover or seal opened components if the repair will

not be done immediately.

♦ Install only clean parts: remove the replacement parts from

their packaging just before installing them. Do not use parts

that have been stored loose (for example, in tool boxes etc.).

♦ If the system is open: do not work with compressed air. Do not

move vehicle.

♦ Make sure no fuel gets onto the fuel hoses. If necessary, wipe

off the fuel hoses immediately.

♦ Protect any disconnected connectors from dirt and moisture

and connect them only when they are completely dry.

3.2

Engine Contaminants

Special tools and workshop equipment required
♦ Engine Bung Set - VAS6122-
♦ To prevent foreign objects from entering when working on the

engine, seal open intake and exhaust channels with suitable

plugs, for example from the Engine Bung Set - VAS6122- .

3.3

Contact Corrosion

Contact corrosion can occur if incorrect fasteners (bolts, nuts,

washers, etc.) are used.
For this reason, only fasteners with a special surface coating are

installed.
In addition, rubber or plastic parts and adhesives are made of

non-conductive materials.
If there are doubts about whether the parts are suitable, then use

new parts. Refer to the Parts Catalog.

3.4

Wire Routing and Securing

♦ Mark the individual fuel, hydraulic and vacuum lines, the EVAP

system lines or the electrical wires before disconnecting and/

or removing them. This will prevent a mix-up when reconnect‐

ing them and will ensure the original installation location is

kept.

♦ If necessary, draw sketches or take pictures.

♦ Due to the limited space inside the engine compartment, be

especially careful when working near moving or hot parts to

avoid damaging the lines.

3.5

Cooler and Condenser Assembly

When assembled correctly, the radiator, condenser and turbo‐

charger may have slight impressions on their fins. It is not dam‐

age. Do no replace the cooler, condenser or turbocharger

because of impressions like that.

3.6

Vacuum System, Checking

Special tools and workshop equipment required
♦ Hand Vacuum Pump - VAS6213-
Procedure
– Check all vacuum lines in the vacuum system for:
♦ Cracks
♦ Damage caused by animals
♦ Crimps
♦ Leaks
– Check the vacuum lines leading both to and from the solenoid

valve to the respective component.

– If there is a fault, check all the vacuum lines for the named

component, but also all the vacuum lines to the other compo‐

nents.

– If using the Hand Vacuum Pump - VAS6213- does not produce

any pressure or if the pressure drops again right away, then

check the hand vacuum pump and the connection hoses for

leaks.

4

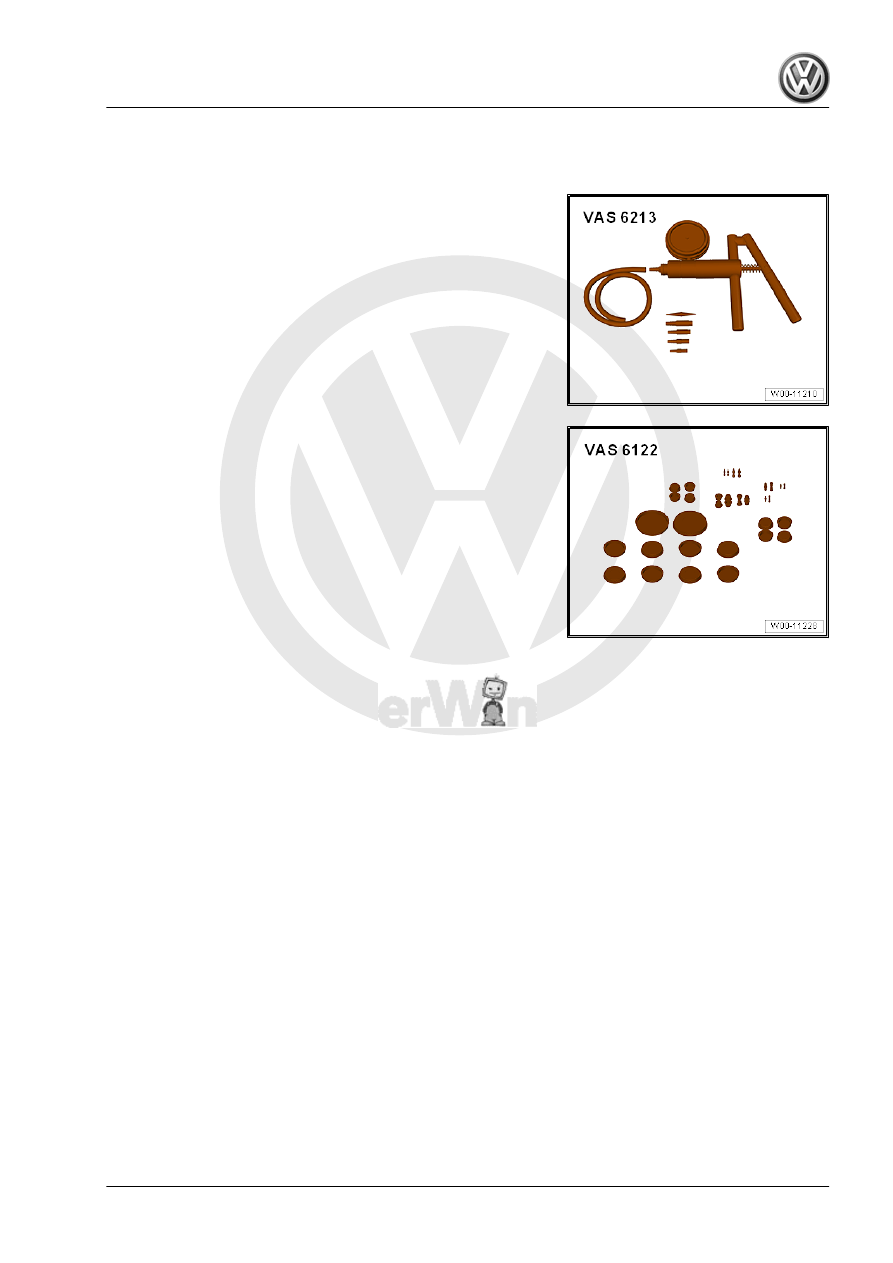

Special Tools

Special tools and workshop equipment required
♦ Hand Vacuum Pump - VAS6213-

♦ Engine Bung Set - VAS6122-
