9 - Transmission Bracket
10 - Transmission Mount
❑ Check the adjustment. Refer to ⇒ Engine Mechanical, Fuel Injection and Ignition; Rep. Gr. 10 ; Subframe
Mount; Subframe Mount, Checking Adjustment
❑ Adjusting. Refer to ⇒ Engine Mechanical, Fuel Injection and Ignition; Rep. Gr. 10 ; Subframe Mount;
Subframe Mount, Adjusting
11 - Bolt
❑ Transmission mount to chassis
❑ Refer to ⇒ Engine Mechanical, Fuel Injection and Ignition; Rep. Gr. 10 ; Subframe Mount; Overview -
Subframe Mount .
12 - Bolt
❑ 60 Nm +90°
❑ Replace after removing
❑ Tightening sequence. Refer to
⇒ Fig. ““Attaching the Transmission Mount to the Transmission Bracket”“ , page 88
❑ Transmission mount to transmission bracket

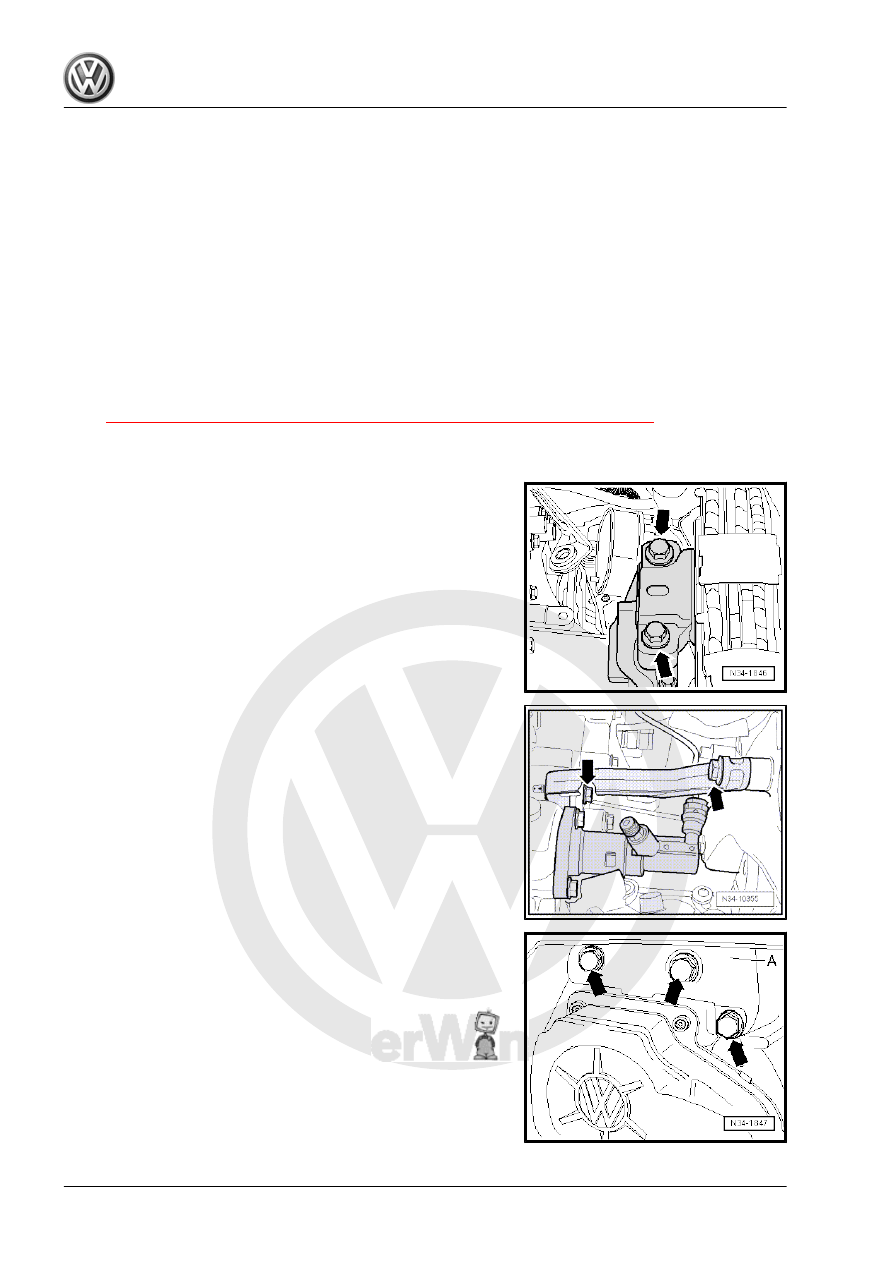

Attaching the Transmission Mount to the Transmission Bracket
– Replace the bolts -arrows-.
– Tighten all bolts hand-tight.
– Tighten the bolt to the tightening specification.
Transmission Support to Transmission Bracket and Transmission
– Replace the bolts -arrows-.
– Tighten both bolts -arrows- hand-tight at first.
– Tighten the bolt to the tightening specification.
Transmission Bracket -A- to Transmission.
– Replace the bolts -arrows-.
– Tighten all bolts hand-tight.
– Tighten the bolt to the tightening specification.
