5

Overview - Powertrain

⇒ “5.1 Overview - Powertrain, Front Wheel Drive”, page 8

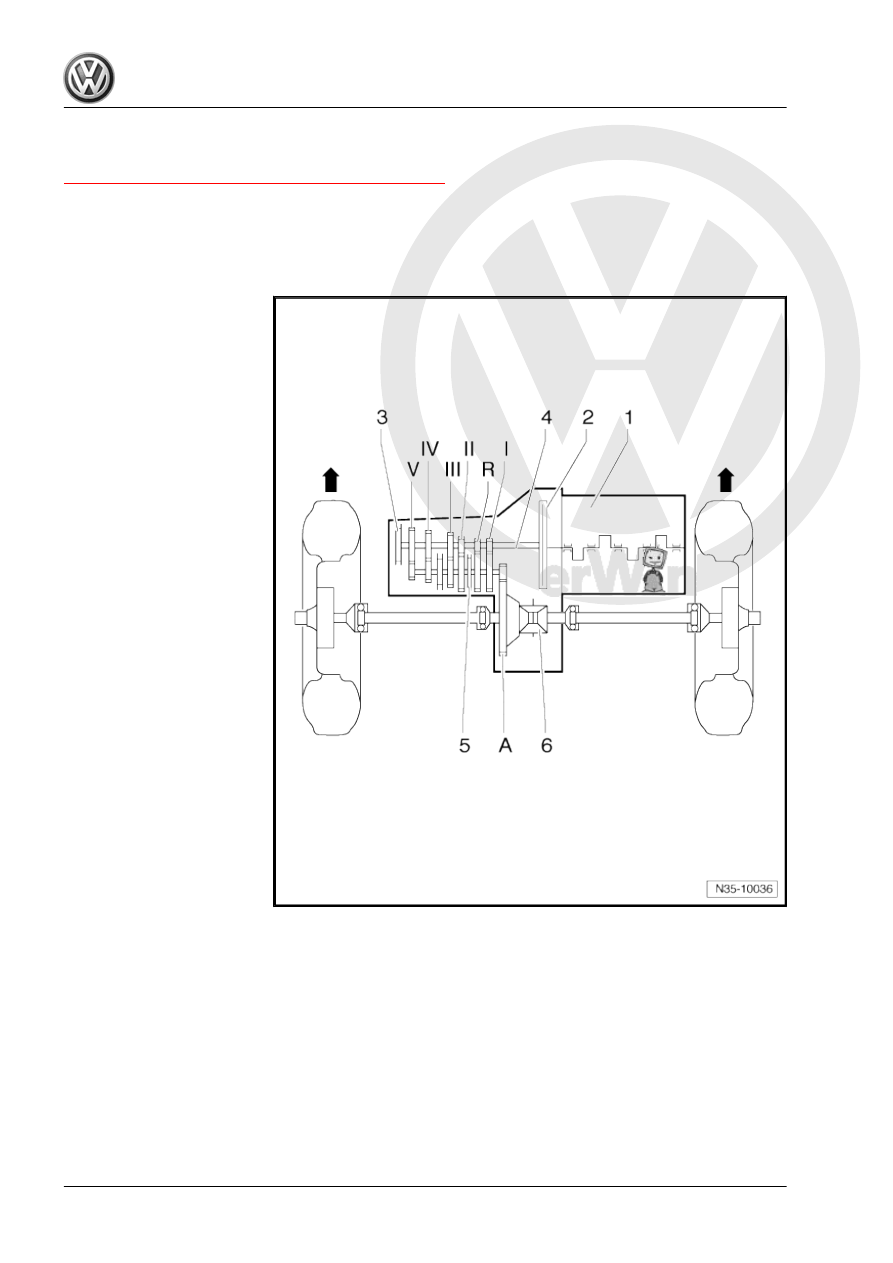

5.1

Overview - Powertrain, Front Wheel Drive

Name
The -arrows- point in the direction of travel.

1 - Engine
2 - Clutch
3 - Manual Transmission
4 - Input Shaft
5 - Output Shaft
6 - Differential

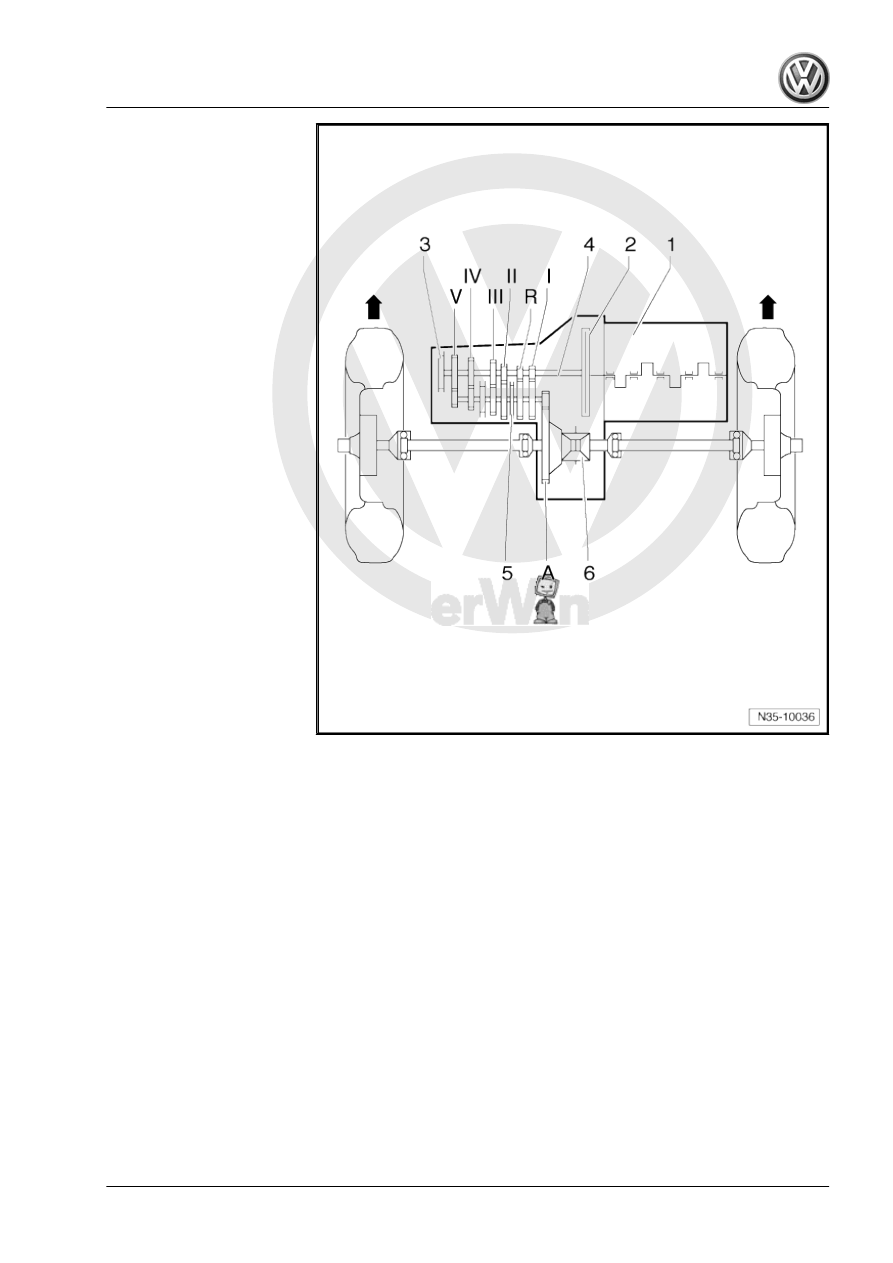

Ratio
The -arrows- point in the direction of travel.

I - 1st Gear
II - 2nd Gear
III - 3rd Gear
IV - 4th Gear
V - 5th Gear
R - Reverse Gear
A - Final Drive

6

Electrical Components

⇒ “6.1 Component Location Overview - Electrical Components”,

page 10

6.1

Component Location Overview - Electri‐

cal Components

⇒ “6.1.1 Component Location Overview - Electrical Components,

Manual Transmission”, page 10
⇒ “6.1.2 Component Location Overview - Electrical Components,

Clutch Mechanism”, page 10

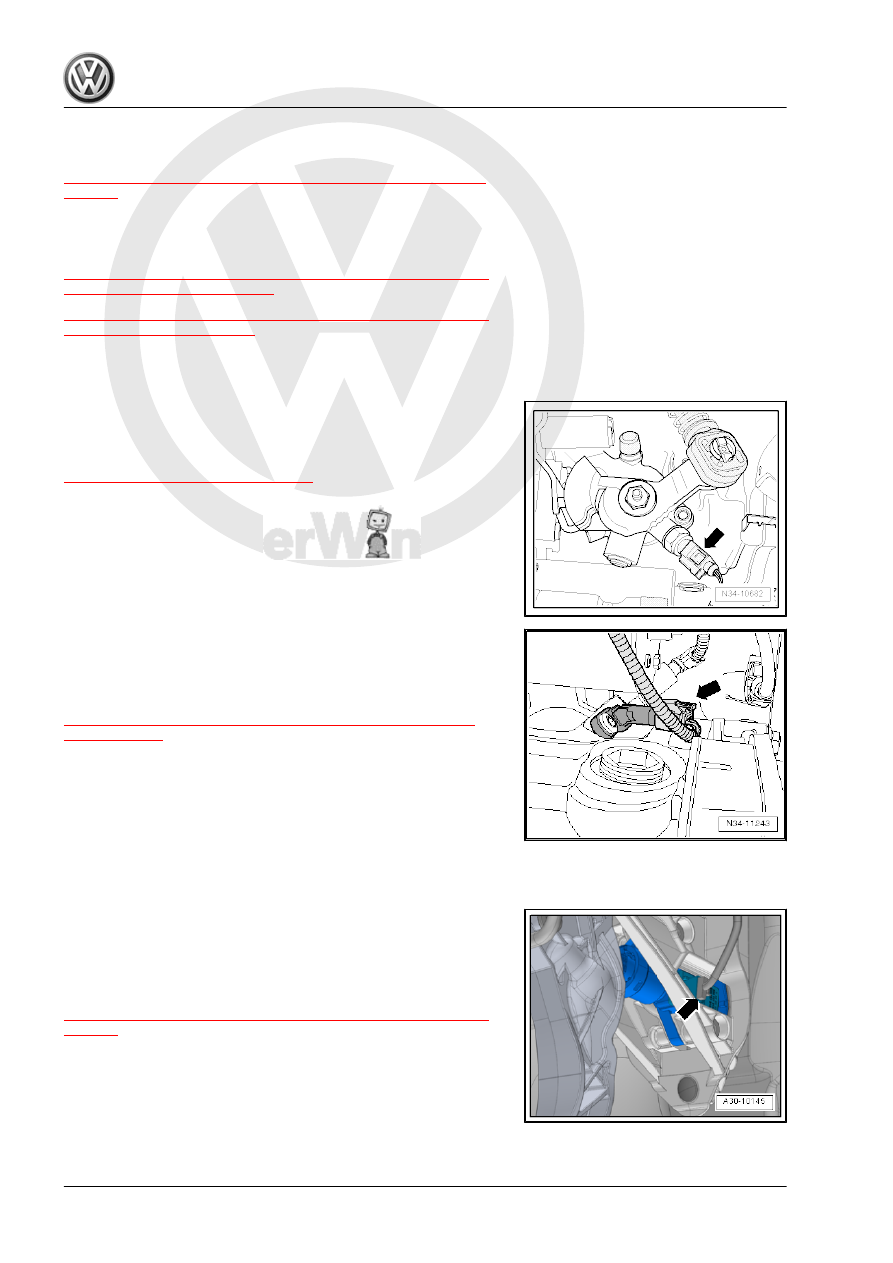

6.1.1

Component Location Overview - Electri‐

cal Components, Manual Transmission

Back-Up Lamp Switch - F4- -arrow -
Component location: on the shift unit
Back-Up Lamp Switch - F4- , Removing and installing. Refer to

⇒ “5.5 Overview - Shift Unit”, page 96

 .

Transmission Neutral Position Sensor - G701- -arrow -
Component location: on top of the oil filler plug.
Transmission Neutral Position Sensor - G701- , Removing and

installing. Refer to

⇒ “5.4 Overview - Transmission Housing and Selector Mecha‐

nism”, page 95

 .

6.1.2

Component Location Overview - Electri‐

cal Components, Clutch Mechanism

Clutch Position Sensor - G476- -arrow-
Installed location: in the passenger compartment on the clutch

master cylinder.
Clutch Position Sensor - G476- , Removing and installing. Refer

to

⇒ “1.15  Clutch Position Sensor G476 , Removing and Installing”,

page 34

 .

30 – Clutch

1

Clutch Mechanism

⇒ “1.1 Component Location Overview - Clutch Mechanism”, page

11
⇒ “1.2 Overview - Pedal Assembly”, page 13
⇒ “1.3 Overview - Clutch Hydraulics”, page 15
⇒ “1.4 Overview - Clutch Release Mechanism”, page 18
⇒ “1.5 Clutch Pedal, Removing and Installing”, page 19
⇒ “1.6 Bearing Bushing, Removing and Installing”, page 20
⇒ “1.7 Over-Center Spring, Removing and Installing”, page 21
⇒ “1.8 Return Spring, Removing and Installing”, page 23
⇒ “1.9 Mounting Bracket, Removing and Installing”, page 26
⇒ “1.10 Clutch Master Cylinder, Removing and Installing”,

page 29
⇒ “1.11 Clutch Slave Cylinder, Removing and Installing”,

page 30
⇒ “1.12 Clutch Mechanism Lines, Removing and Installing”, page

31
⇒ “1.13 Clutch Mechanism, Bleeding”, page 33
⇒ “1.14 Clutch Master and Clutch Slave Cylinder, Checking”,

page 34
⇒ “1.15  Clutch Position Sensor G476 , Removing and Installing”,

page 34
⇒ “1.16 Clutch Release Mechanism, Servicing”, page 35

1.1

Component Location Overview - Clutch Mechanism
