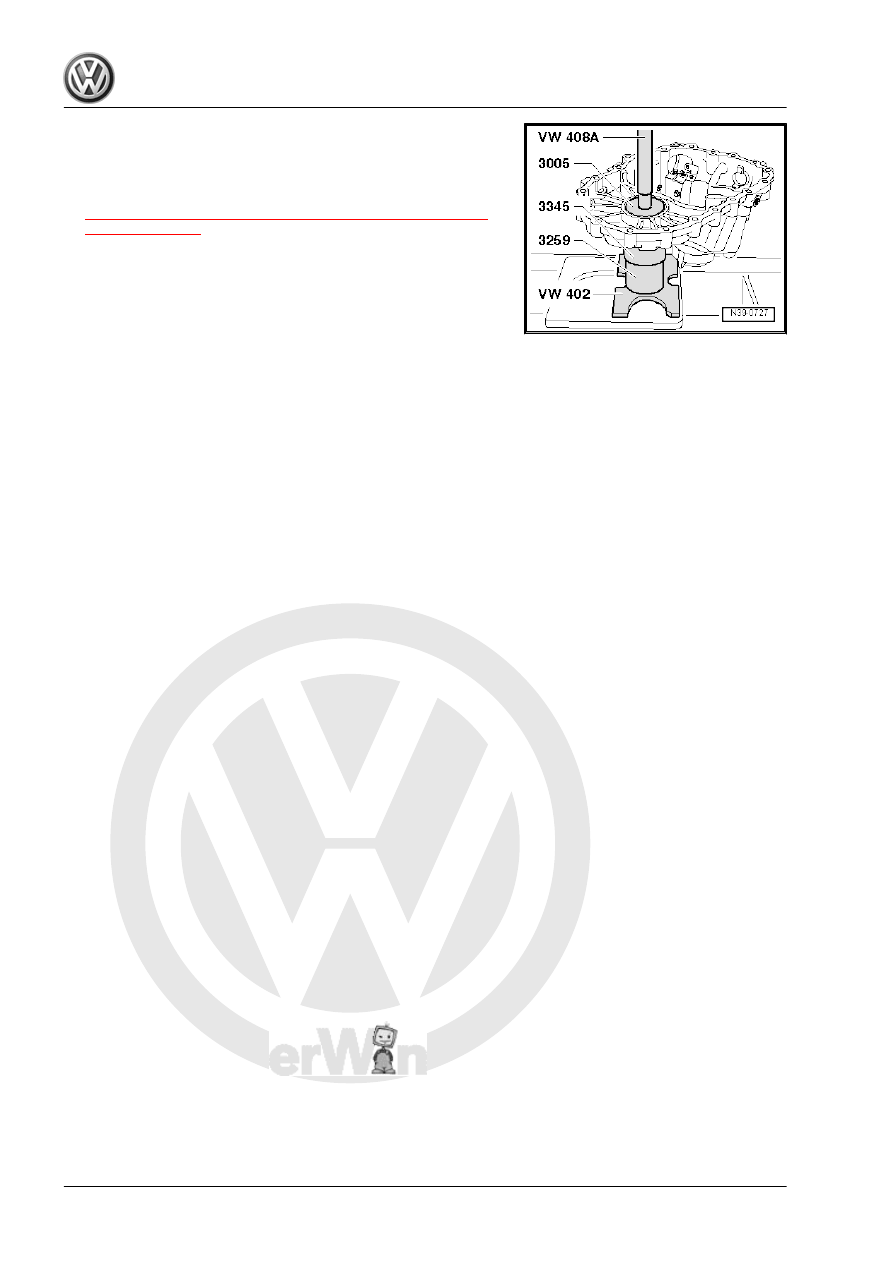

– Install the outer race again and the tighten the transmission

housing to the tightening specification.

Tightening Specifications
♦ Transmission housing to clutch housing. Refer to

⇒ “5.3 Overview - Transmission Housing and Selector Mech‐

anism”, page 111

 .

3

Adjustment Overview

⇒ “3.1 Overview - Adjustment”, page 221

3.1

Overview - Adjustment

Note

When performing repairs on the transmission, readjustment of the

output shaft for 1st to 4th gears, output shaft for 5th/6th gear and

reverse gears or differential is only required if components, which

have a direct influence on transmission adjustment, have been

replaced. Refer to table to avoid any unnecessary adjusting.

Replaced part:

To be adjusted:

Output Shaft, 1st

to 4th Gears. Re‐

fer to

⇒ “2.3 Output

Shaft, Adjusting”,

page 187

 .

Output shaft, 5th/

6th and reverse

gears. Refer to

⇒ “2.3.2 Output

Shaft, 5th, 6th and

Reverse Gears,

Adjusting”,

page 190

 .

Differential

. Refer to

⇒ “2.3 Differential,

Adjusting”,

page 218

 .

Transmission Housing

x

x

x

Clutch Housing

x

x

x

Output Shaft, 1st to 4th Gears

x



Output Shaft, 5th/6th and Reverse Gears



x

Differential

x

Output shaft tapered roller bearing, 1st to 4th

Gears

x



Output shaft tapered roller bearing, 5th/6th and

Reverse Gears



x



Differential tapered roller bearing





x

4

Special Tools

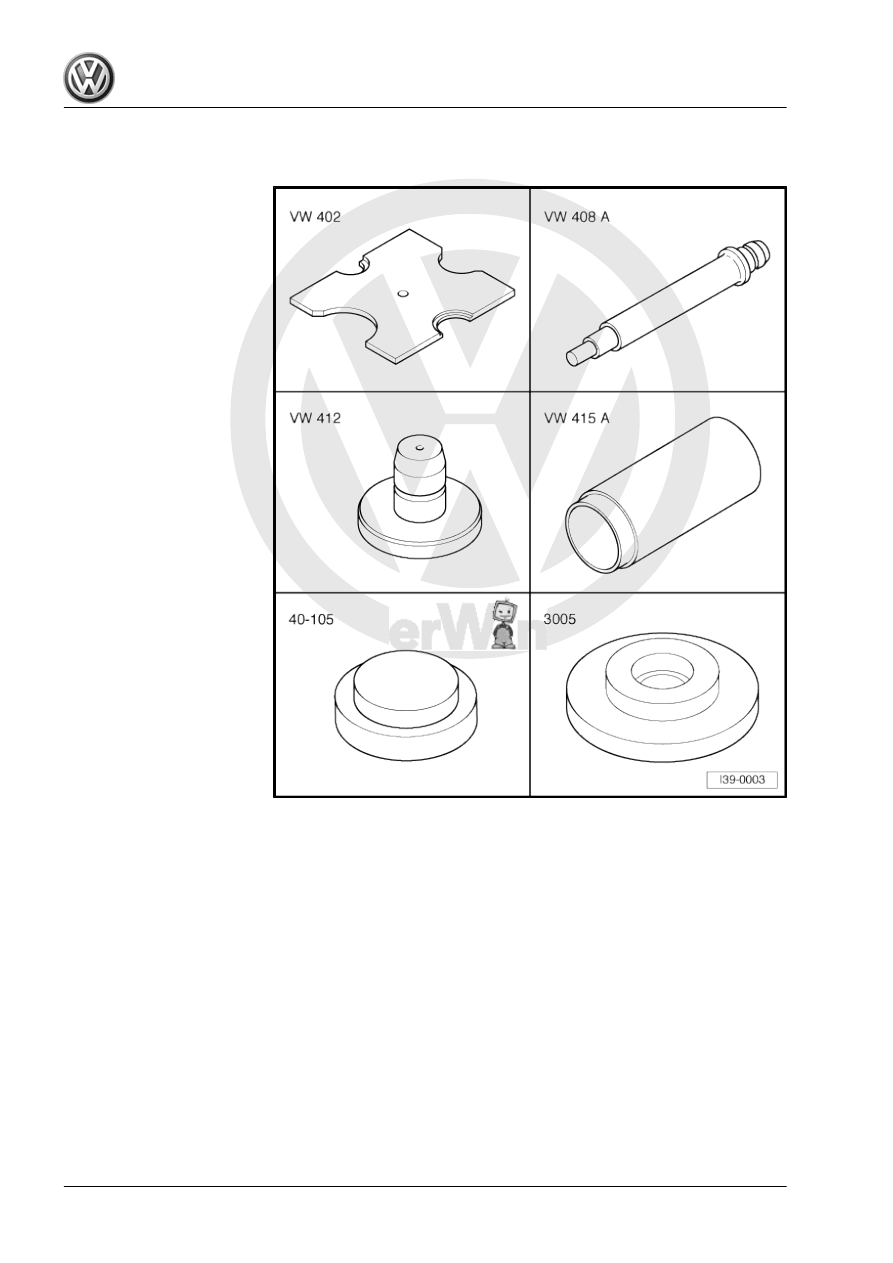

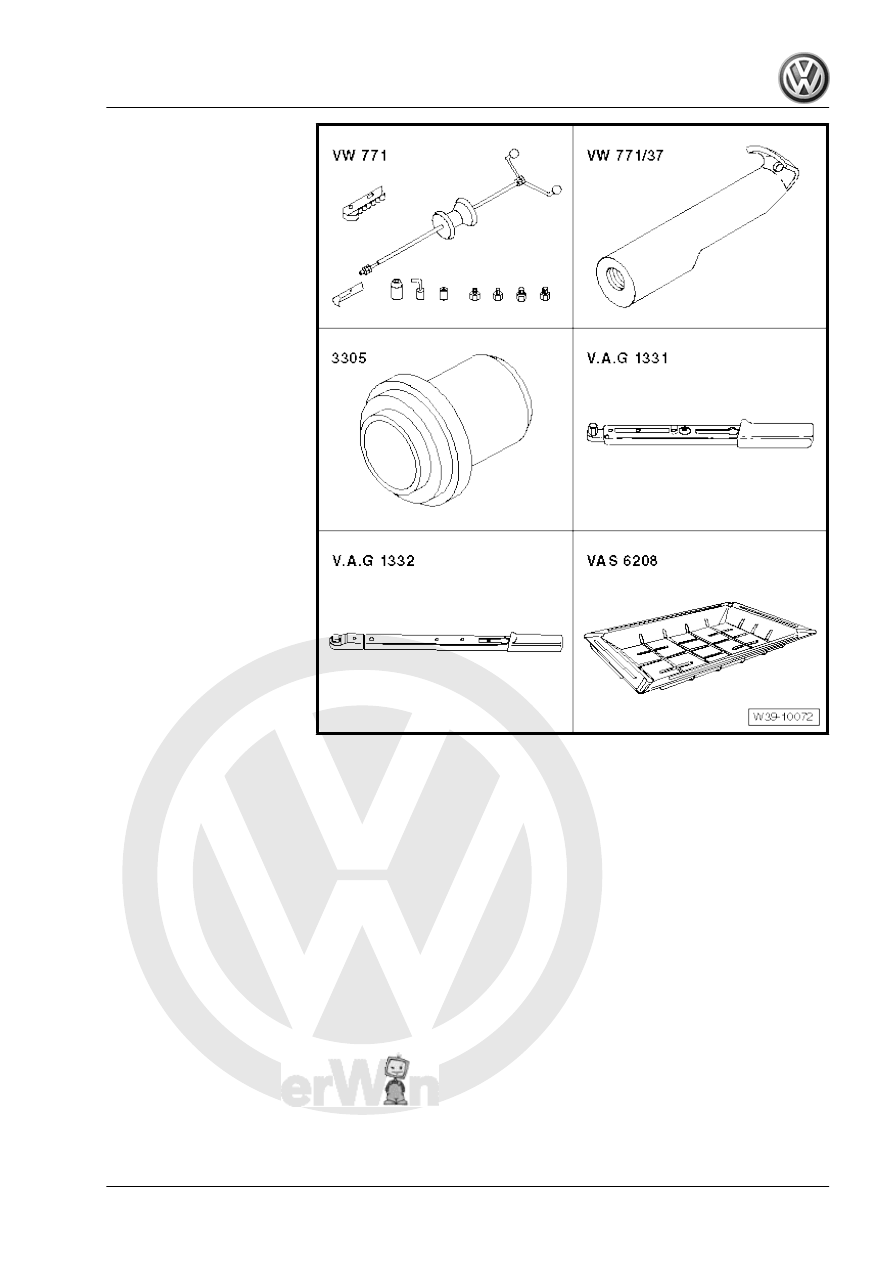

Special tools and workshop

equipment required
♦ Press Plate - VW402-
♦ Press Piece - Rod -

VW408A-

♦ Press Piece - Multiple Use

- VW412-

♦ Press Piece - 60mm -

VW415A-

♦ Press Piece - Multiple Use

- 40-105-

♦ Press Piece - Multiple Use

- 3005-

♦ Slide Hammer Set -

VW771-

♦ Slide Hammer Set - Hook -

VW 771/37-

♦ Seal Installer - Flange Shaft

- 3305-

♦ Torque Wrench 1331

5-50Nm - VAG1331-

♦ Torque Wrench 1332

40-200Nm - VAG1332-

♦ Shop Crane - Drip Tray -

VAS6208- or Used Oil Col‐

lection and Extraction Unit -

SMN372500-
