9 - Passenger Occupant Detection System Control Module - J706-

❑ If the Passenger Occupant Detection System Control Module - J706- must be replaced, it is not necessary

to replace the passenger occupant detection system pressure sensor.

❑ Removing and installing. Refer to

⇒ “13.3  Passenger Occupant Detection System Control Module J706 , Removing and Installing”, page

186

 .

10 - Connector

❑ Pay attention to the exact wire routing. Refer to

⇒ “13.2 Passenger Occupant Detection System Pressure Sensor, Removing and Installing”,

page 180

 .

11 - Connector

❑ Voltage supply connector for Passenger Occupant Detection System Control Module - J706-

12 - Connector

❑ Coupling location of the passenger occupant detection system to the vehicle electrical system

13 - Front Seat Wiring Harness

13.2

Passenger Occupant Detection System

Pressure Sensor, Removing and Instal‐

ling

Note

♦

The passenger occupant detection system pressure sensor

and the front seat cushion can only be replaced as one unit.

♦

The Passenger Occupant Detection System Control Module -

J706- may not be replaced separately.

♦

Removing and installing the passenger occupant detection

system pressure sensor is described for the “Comfort” front

seat with manual seat adjustment.

♦

Removing and installing on the other versions of the front seat

is identical.

Removing

WARNING

♦ Observe the safety precautions for pyrotechnical compo‐

nents. Refer to

⇒ “1.2 Safety Precautions for Pyrotechnic Components”,

page 3

 .

♦ Before handling pyrotechnic components (for example,

disconnecting the connector), the person handling it must

“discharge static electricity”. This can be done by touching

the door striker pin, for example.

– Remove the front seat. Refer to

⇒ “2.10 Front Seat, Removing and Installing”, page 335

 .

– Secure the seat on the fixture for seat repair. Refer to

⇒ “1.2 Front Seat, Mounting on Fixture for Seat Repair”, page

311

 .

– Remove the tunnel side seat trim. Refer to

⇒ “2.13 Tunnel-Side Seat Trim, Removing and Installing”,

page 344

 .

– Remove the sill-side seat trim. Refer to

⇒ “2.14 Sill-Side Seat Trim, Removing and Installing”,

page 345

 .

– Remove the seat trim bracket. Refer to

⇒ “2.15 Seat Trim Bracket, Removing and Installing”,

page 348

 .

– Remove the storage compartment, if equipped. Refer to

⇒ “2.35 Storage Compartment, Removing and Installing”,

page 371

 .

Note

The components pictured can vary in form and appearance from the present vehicle. However the assembly

and functionality are identical.

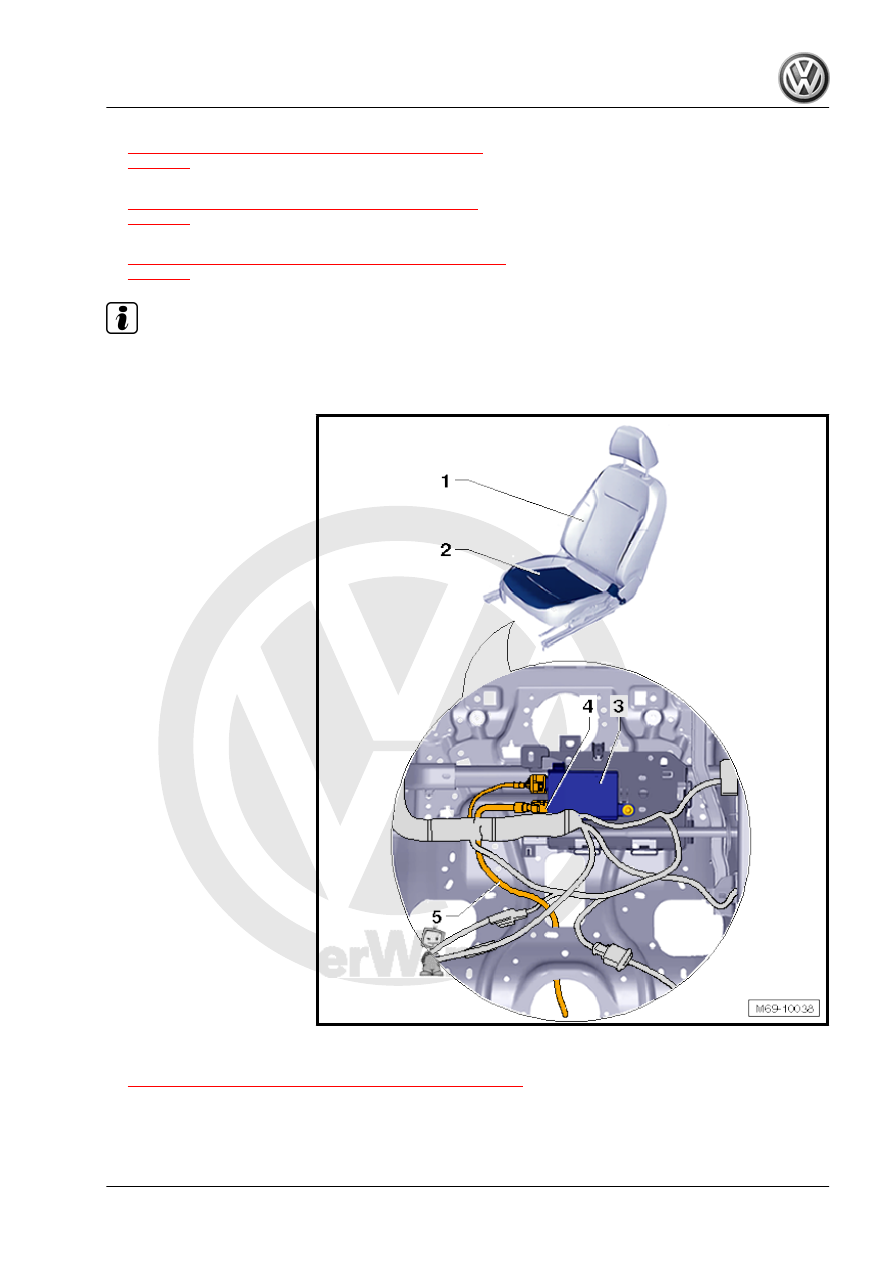

– Remove the front seat backrest -1-. Refer to

⇒ “2.16 Front Backrest, Removing and Installing”, page 349

 .

– Disconnect the connector -4- for the passenger occupant de‐

tection system pressure sensor -2- from the Passenger Oc‐

cupant Detection System Control Module - J706- -3-.

– Loosen the passenger occupant detection system pressure

sensor wiring harness -5- from the seat frame.

– Remove the seat cushion with passenger occupant detection

system pressure sensor -2- and the cover from the seat frame.

Refer to

⇒ “1.4 Seat Pan Cover and Cushion, Removing and Installing”,

page 405

 .

– Disconnect the cover from the seat cushion with passenger

occupant detection system pressure sensor -2-. Refer to

⇒ “1.6 Seat Pan Cover and Cushion, Separating”,

page 408

 .

WARNING

The  passenger  occupant  detection  system  pressure  sensor

-2- is permanently glued to the seat cushion -1-. It is not pos‐

sible to remove and install separately. The passenger occu‐

pant detection system pressure sensor must be replaced with

the seat cushion.
On vehicles with seat heating, the passenger occupant detec‐

tion system pressure sensor and the seat heating element are

a shared component.

Note

♦

To prevent any removed components from being installed again by mistake, the components should be

separated from each other and disposed.

♦

The following work applies to these components.

♦

The components pictured can vary in form and appearance from the present vehicle. However the assembly

and functionality are identical.

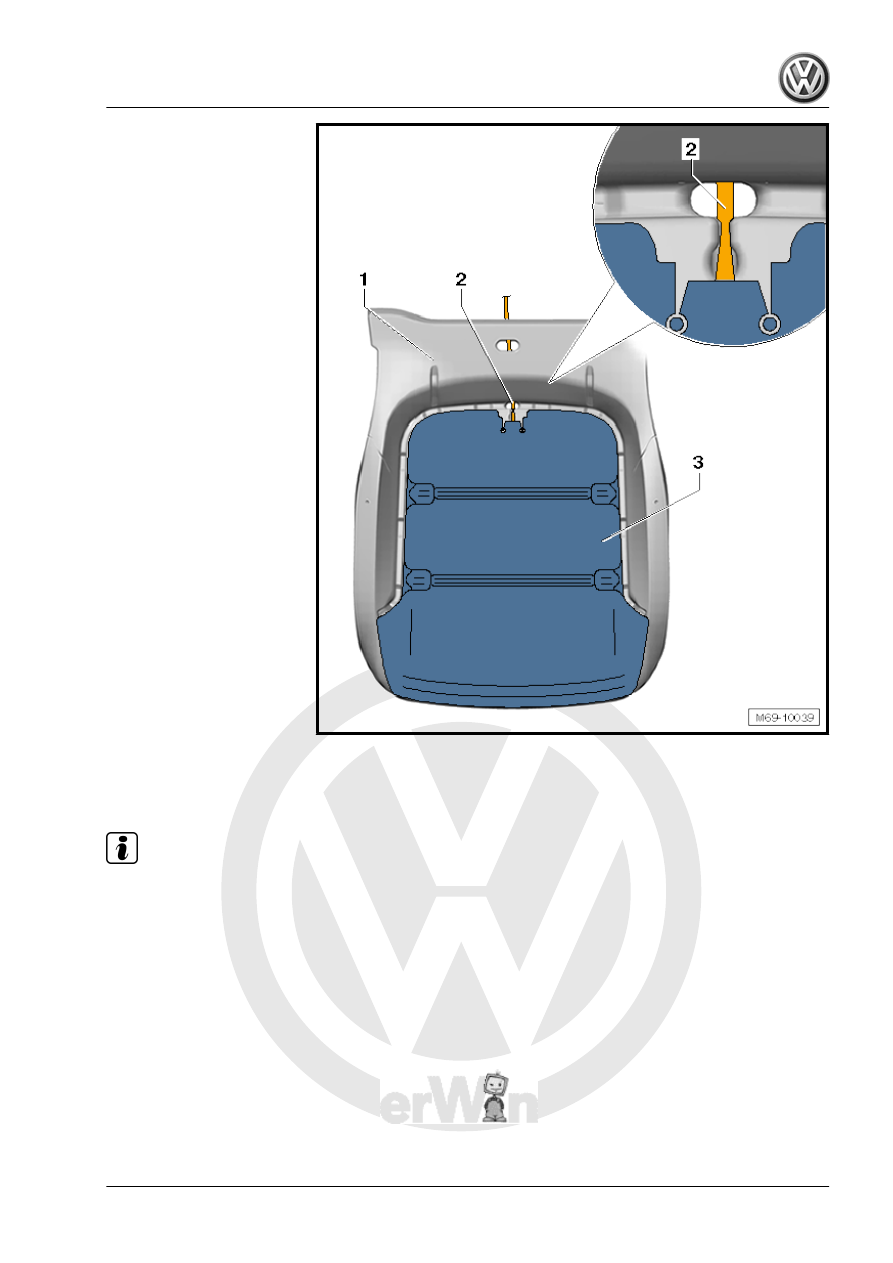

– Remove the wiring harness -2- for the passenger occupant

detection system pressure sensor -3- from the channel and

guide it through the seat cushion -1-.

Note

The components pictured can vary in form and appearance from the present vehicle. However the assembly

and functionality are identical.
