❑ Front passenger side: with Front Passenger Seat Belt Tensioner Igniter 1 - N154- and Right Front Seat

Belt Tensioner Control Module - J855-

❑ Removing and installing. Refer to

⇒ “1.7.1 Front Three-Point Seat Belt, Removing and Installing, without Belt End Fitting Tensioner, 2-Door

Sedan”, page 98

 .

9 - Screw

❑ 40 Nm
❑ Replace the bolt if it was removed because of an accident when the seat belt was buckled.

10 - Belt End Fitting

❑ Removing and installing. Refer to

⇒ “1.11.1 Front Belt End Fitting, Removing and Installing, without Belt End Fitting Tensioner, 2-Door

Sedan”, page 116

 .

11 - Screw

❑ 20 Nm
❑ Replace the bolt if it was removed because of an accident when the seat belt was buckled.

12 - Retaining Loop
13 - Screw

❑ 40 Nm
❑ Replace the bolt if it was removed because of an accident when the seat belt was buckled.
❑ Position by hand when installing

14 - Washer

1.2.2

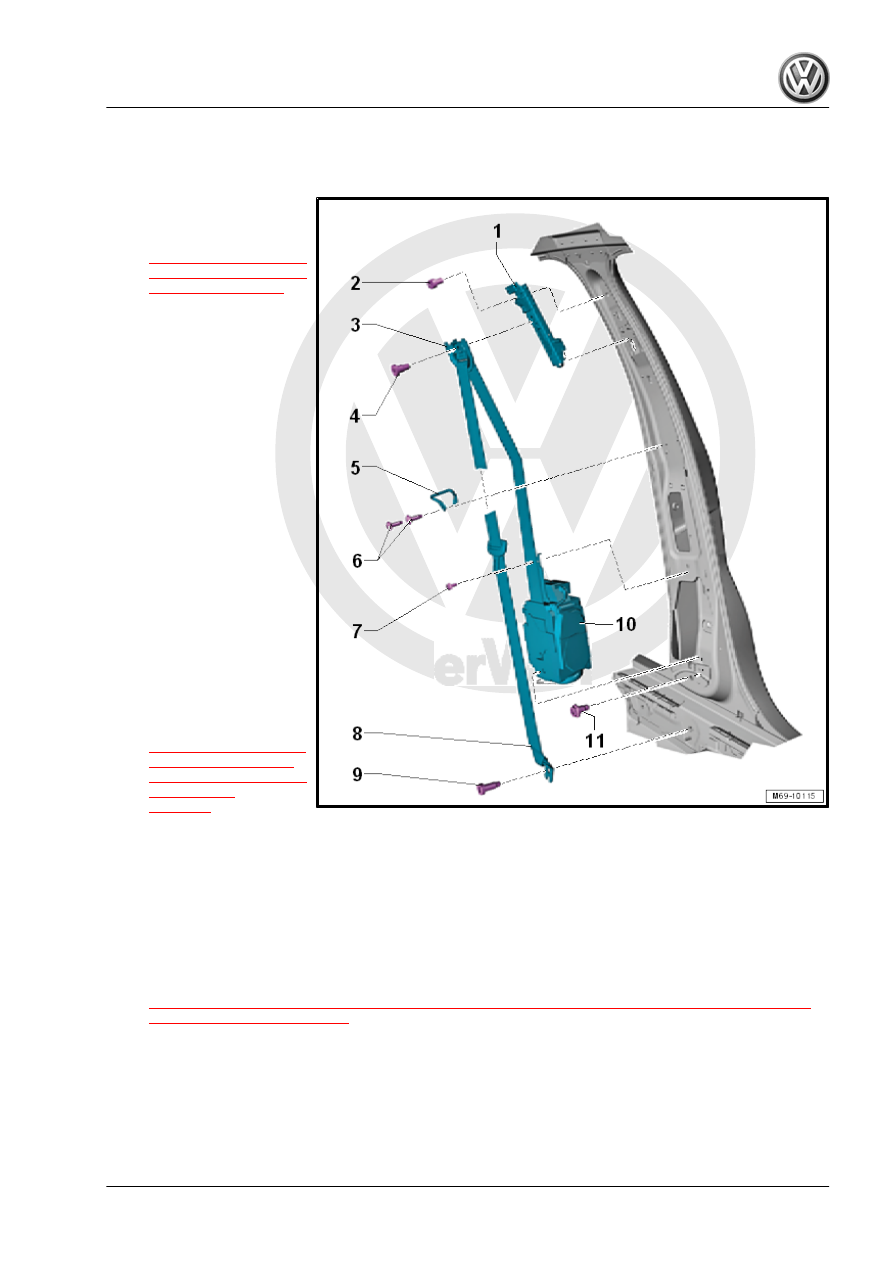

Overview - Front Three-Point Seat Belt, without Belt End Fitting Tensioner,

4-Door Sedan and Wagon

1 - Seat Belt Height Adjuster

❑ Removing and instal‐

ling. Refer to

⇒ “1.13 Seat Belt Height

Adjuster, Removing and

Installing”, page 118

 .

❑ Always replace if the

belt tensioner has de‐

ployed when the seat

belt was buckled.

2 - Screw

❑ 20 Nm
❑ Replace the bolt if it was

removed because of an

accident when the seat

belt was buckled.

3 - Seat Belt Guide

❑ Must swing into vertical

position or carrier direc‐

tion by itself after tight‐

ening the screw.

4 - Screw

❑ 40 Nm
❑ Replace the bolt if it was

removed because of an

accident when the seat

belt was buckled.

5 - Front Seat Belt Guide

❑ Removing and instal‐

ling. Refer to

⇒ “1.9.2 Front Seat Belt

Guide, Removing and

Installing, 4-Door Sedan

and Wagon”,

page 114

 .

❑ When installing, pay attention to the correct installation position

6 - Screws

❑ 4.5 Nm
❑ Quantity: 2

7 - Screw

❑ 4.5 Nm

8 - Belt End Fitting

❑ Removing and installing. Refer to

⇒ “1.11.2 Front Belt End Fitting, Removing and Installing, without Belt End Fitting Tensioner, 4-Door

Sedan and Wagon”, page 116

 .

9 - Screw

❑ 40 Nm
❑ Replace the bolt if it was removed because of an accident when the seat belt was buckled.

10 - Automatic Belt Retractor

❑ Driver side: with Driver Seat Belt Tensioner Igniter 1 - N153- and Left Front Seat Belt Tensioner Control

Module - J854-

❑ Front passenger side: with Front Passenger Seat Belt Tensioner Igniter 1 - N154- and Right Front Seat

Belt Tensioner Control Module - J855-

❑ Removing and installing. Refer to

⇒ “1.7.2 Front Three-Point Seat Belt, Removing and Installing, without Belt End Fitting Tensioner, 4-Door

Sedan and Wagon”, page 101

 .

11 - Screw

❑ 40 Nm
❑ Replace the bolt if it was removed because of an accident when the seat belt was buckled.

1.2.3

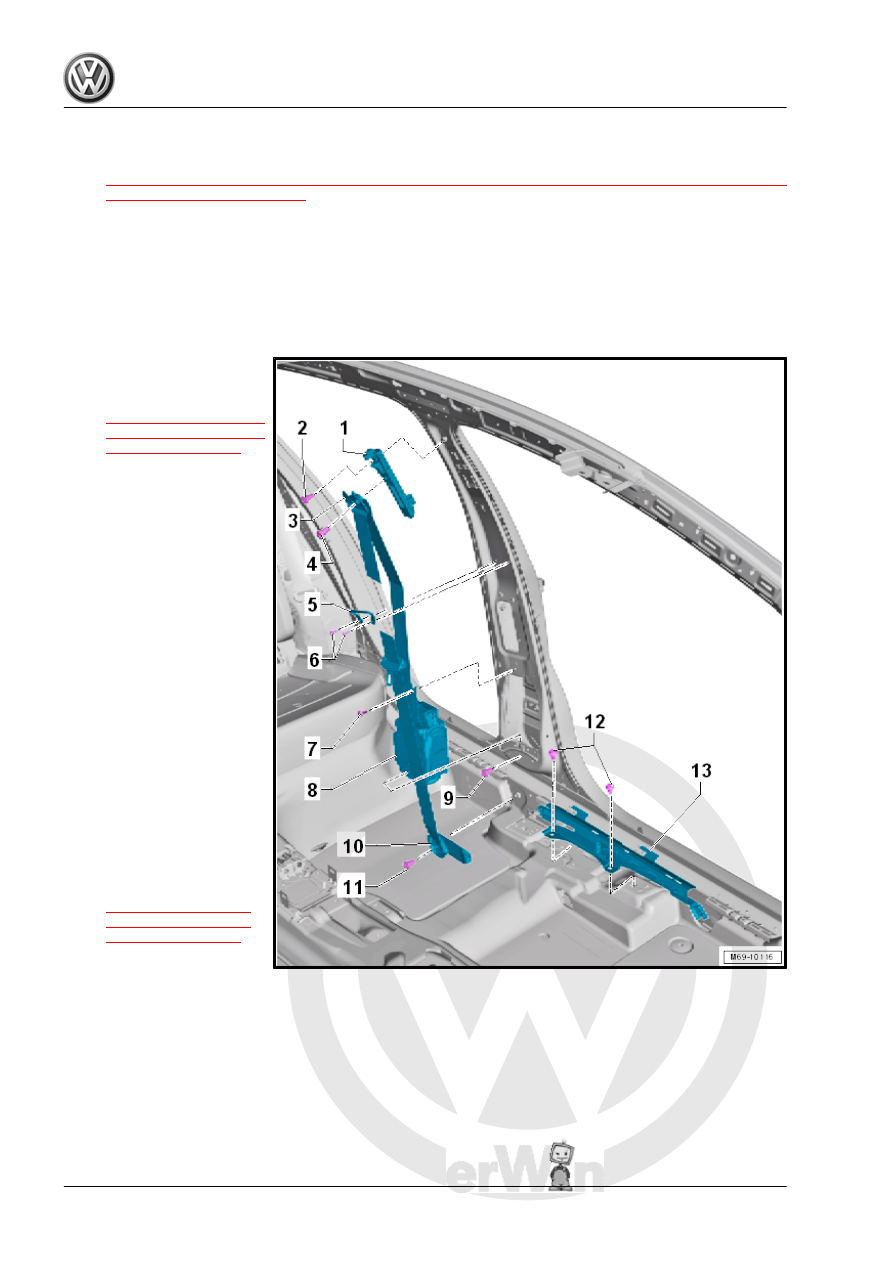

Overview - Front Three-Point Seat Belt, with Belt End Fitting Tensioner

1 - Seat Belt Height Adjuster

❑ Removing and instal‐

ling. Refer to

⇒ “1.13 Seat Belt Height

Adjuster, Removing and

Installing”, page 118

 .

❑ Always replace if the

belt tensioner has de‐

ployed when the seat

belt was buckled.

2 - Screw

❑ 20 Nm
❑ Replace the bolt if it was

removed because of an

accident when the seat

belt was buckled.

3 - Seat Belt Guide

❑ Must swing into vertical

position or carrier direc‐

tion by itself after tight‐

ening the screw.

4 - Screw

❑ 40 Nm
❑ Replace the bolt if it was

removed because of an

accident when the seat

belt was buckled.

5 - Front Seat Belt Guide

❑ Removing and instal‐

ling. Refer to

⇒ “1.9 Front Seat Belt

Guide, Removing and

Installing”, page 114

 .

❑ When installing, pay at‐

tention to the correct in‐

stallation position

6 - Screws

❑ 4.5 Nm
❑ Quantity: 2

7 - Screw

❑ 4.5 Nm

8 - Automatic Belt Retractor

❑ Driver side: with Driver Seat Belt Tensioner Igniter 1 - N153- and Left Front Seat Belt Tensioner Control

Module - J854-

❑ Front passenger side: with Front Passenger Seat Belt Tensioner Igniter 1 - N154- and Right Front Seat

Belt Tensioner Control Module - J855-

❑ Removing and installing. Refer to

⇒ “1.7.3 Front Three-Point Seat Belt, Removing and Installing, with Belt End Fitting Tensioner”,

page 103

 .

9 - Screw

❑ 40 Nm
❑ Replace the bolt if it was removed because of an accident when the seat belt was buckled.

10 - Belt End Fitting

❑ Removing and installing. Refer to

⇒ “1.11.3 Front Belt End Fitting, Removing and Installing, with Belt End Fitting Tensioner”, page 117

 .

11 - Screw

❑ 20 Nm
❑ Replace the bolt if it was removed because of an accident when the seat belt was buckled.

12 - Screw

❑ 40 Nm
❑ Quantity: 2
❑ Replace the bolt if it was removed because of an accident when the seat belt was buckled.

13 - Belt End Fitting Tensioner

❑ Removing
– Remove the belt end fitting tensioner release cable from the belt end fitting. Refer to

⇒ “1.11.3 Front Belt End Fitting, Removing and Installing, with Belt End Fitting Tensioner”, page 117

 .

– Remove the bolts -12-.

– Release and disconnect the connector for the belt end fitting tensioner.

– Pull the belt end fitting tensioner forward from the sill and remove it.
❑ Installing

Install in reverse order of removal.
