– Remove the A-pillar trim panel. Refer to ⇒ Body Interior; Rep.
Gr. 70 ; Passenger Compartment Trim; A-Pillar Trim Panel,
Removing and Installing .
– Remove the headliner. Refer to ⇒ Body Interior; Rep. Gr. 70 ;
Roof Trim Panels; Headliner, Removing and Installing .

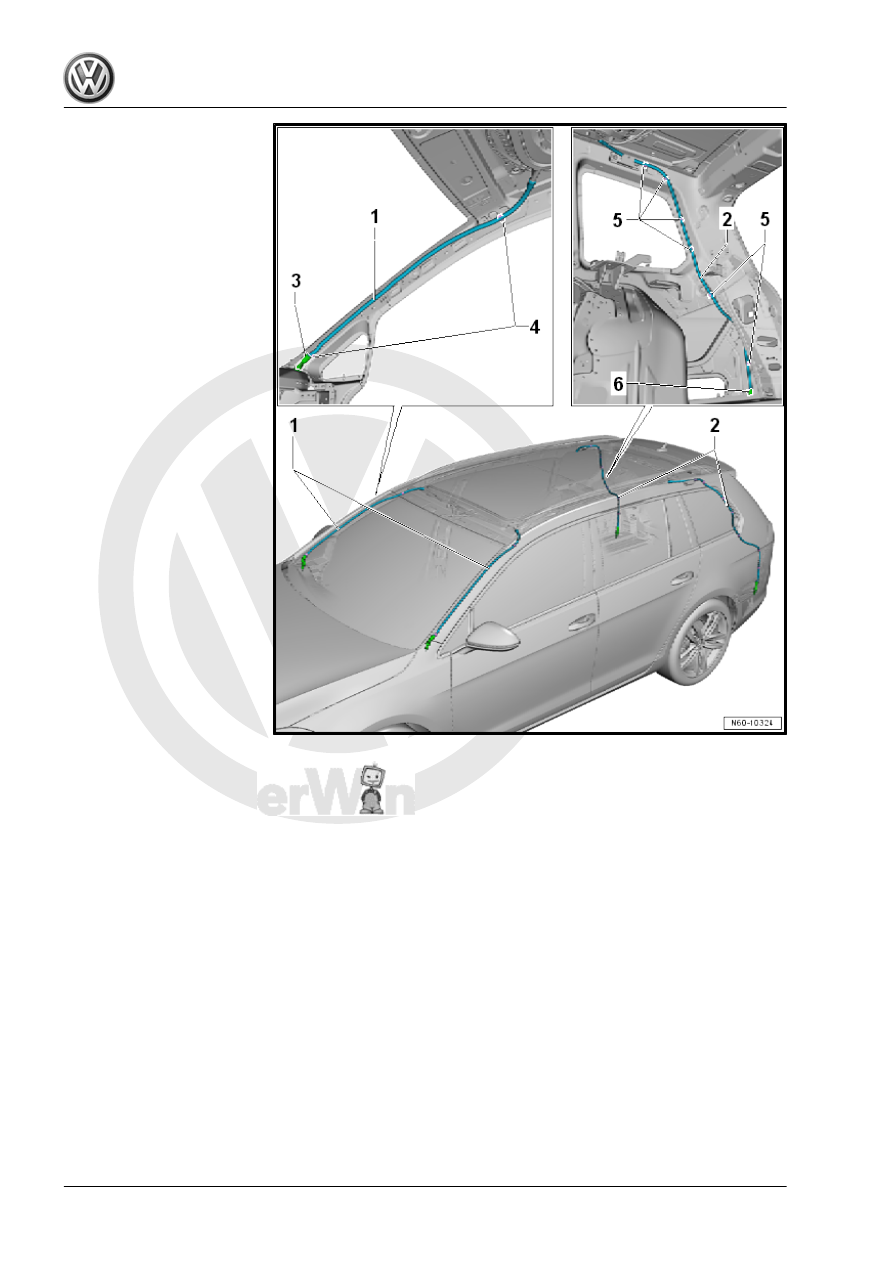

– Remove the clips -4-.
– Remove the front water drain hose -1- with the drain grommet
-3-.
Rear Water Drain Hose, Removing
– Remove the D-pillar trim panel. Refer to ⇒ Body Interior; Rep.
Gr. 70 ; Passenger Compartment Trim; D-Pillar Trim Panel,
Removing and Installing .
– Luggage compartment side trim panel, removing and instal‐
ling. Refer to ⇒ Body Interior; Rep. Gr. 70 ; Luggage Com‐
partment Trim Panels; Luggage Compartment Side Trim
Panel, Removing and Installing
– Remove the headliner. Refer to ⇒ Body Interior; Rep. Gr. 70 ;
Roof Trim Panels; Headliner, Removing and Installing .
– Remove the clips -5-.
