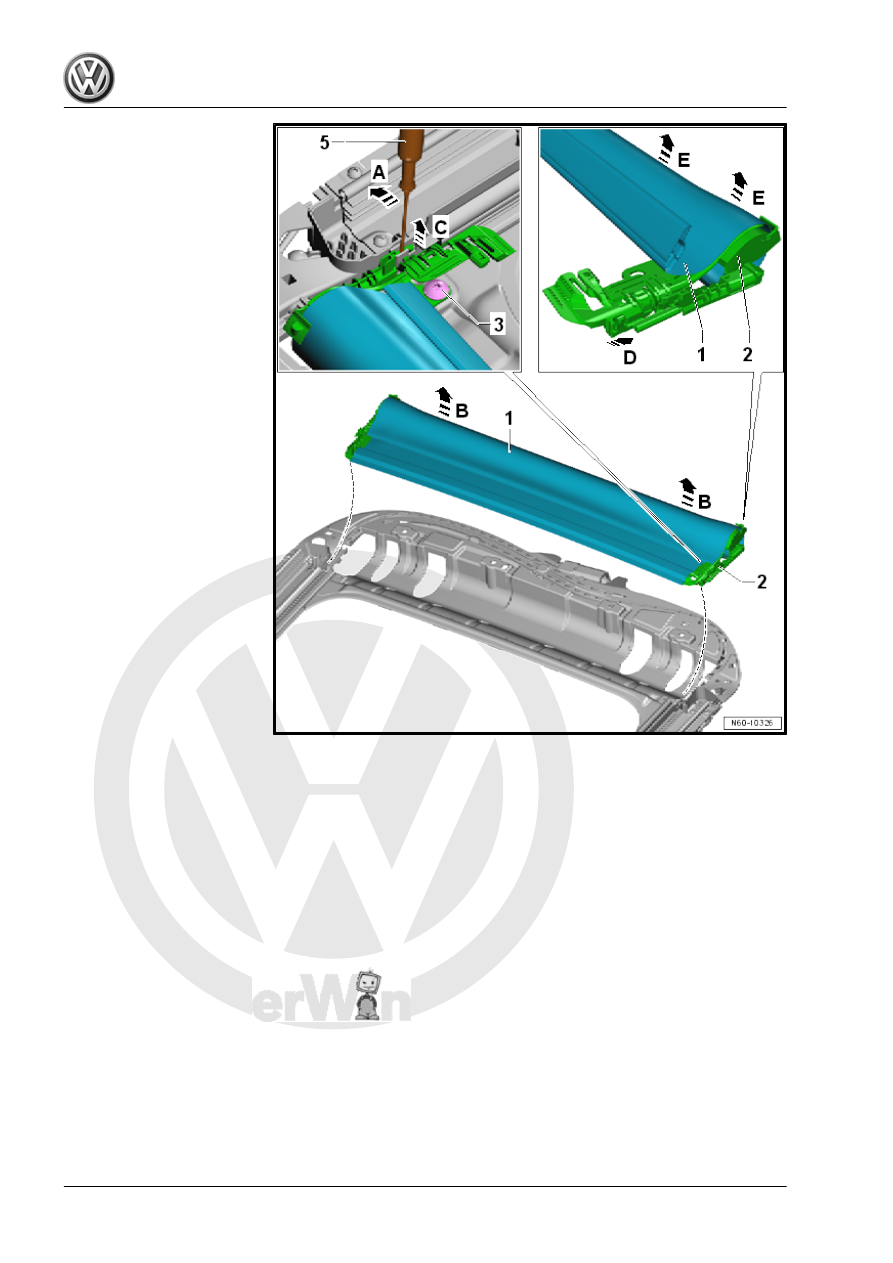

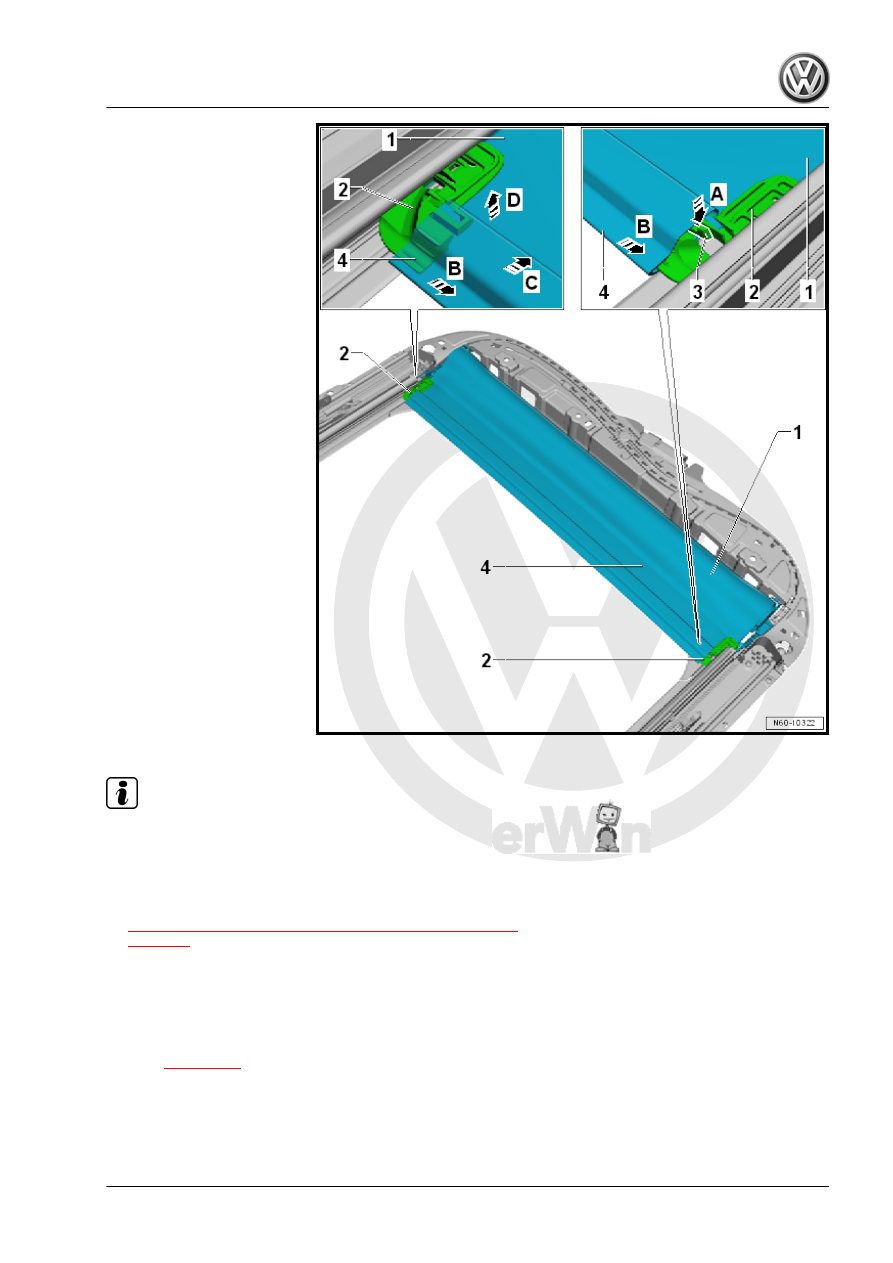

– Insert the sun shade -1- complete with the left and right shade

frames -2- into the sunroof frame.

– Slide the shade frames into the guides and lock.
– Tighten the bolts -3-.
Installation is performed in reverse order of the removal.

Note

Check for ease of movement after installing the sun shade. Using a commercially available hex wrench, man‐

ually turn the sun shade drive on the motor and make sure there are not creases or folds in the sun shade

material.

– After completing the work procedure, perform an adaptation

on the sun shade motor. Refer to

⇒ “1.18  Roof Shade Control Module J394 , Programming”,

page 298

 .

Tightening Specifications

1.17

Power Sunroof Control Module - J245- ,

Programming

Power Sunroof Control Module - J245- , Putting into Operation.

Refer to

⇒ page 298

Sunroof Motor - V1- , Programming

Note

♦

After installing the Sunroof Motor - V1- , a programming pro‐

cedure must be performed

♦

Risk of damaging sunroof components by moving the slotted

guide rail guide.

♦

Only move the slotted guide rail guide with the glass panel

installed

– Connect the Vehicle Diagnostic Tester .
– Switch the ignition on.
– Select and start

Diagnosis

 mode

– Select the

Test plan

 tab.

– Select the “Select individual text” button and the subsequent

tree structure.

• Body
• Body, Assembly
• 01 – OBD-Capable Systems
• CA – Power Sunroof Control Module J245
• CA - Power Sunroof Control Module J245, Functions
• CA – Basic setting
• CA – J245 Sunroof, no basic setting
– Start the selected program and follow the instructions on the

Vehicle Diagnostic Tester display.

Power Sunroof Control Module - J245- , Putting into Operation
If the Power Sunroof Control Module - J245- was replaced, it must

be put into operation after installation.
– Connect the Vehicle Diagnostic Tester .
– Switch the ignition on.
– Select and start

Diagnosis

 mode

– Select the

Test plan

 tab.

1.18

Roof Shade Control Module - J394- ,

Programming

Note

♦

After a glass panel, a motor, or the tilting mechanism was re‐

placed, an adaptation must be performed.

♦

Pinch protection is switched off when performing an adapta‐

tion.

The ignition is switched on.
– Press the “close” button while holding in this position for the

entire adaptation process (approximately 20 seconds).

The sunroof shade closes completely.

1.19

Operating without Electricity

⇒ “1.19.1 Operating without Electricity, Sedan through 02/2015”,

page 299
⇒ “1.19.2 Operating without Electricity, Wagon”, page 300

1.19.1

Operating without Electricity, Sedan through 02/2015

Note

If there is a malfunction in the electrical system, the sunroof with the glass panel can be moved at the drive

motor using a commercially available hex wrench.

Removing

– Remove the glass panel if the drive motor is defective. Refer

to

⇒ “1.6.3 Glass Panel, Removing, Defective Drive Motor, Se‐

dan through 02/2015”, page 232

 .

– Remove the self-adhesive insulation -3-.
– Remove the bolts -2-.
