– Make sure the slider is positioned correctly in the guide rails.
– Tighten the screws -5-.

– Install the handle -4- and tighten the screws -3-.

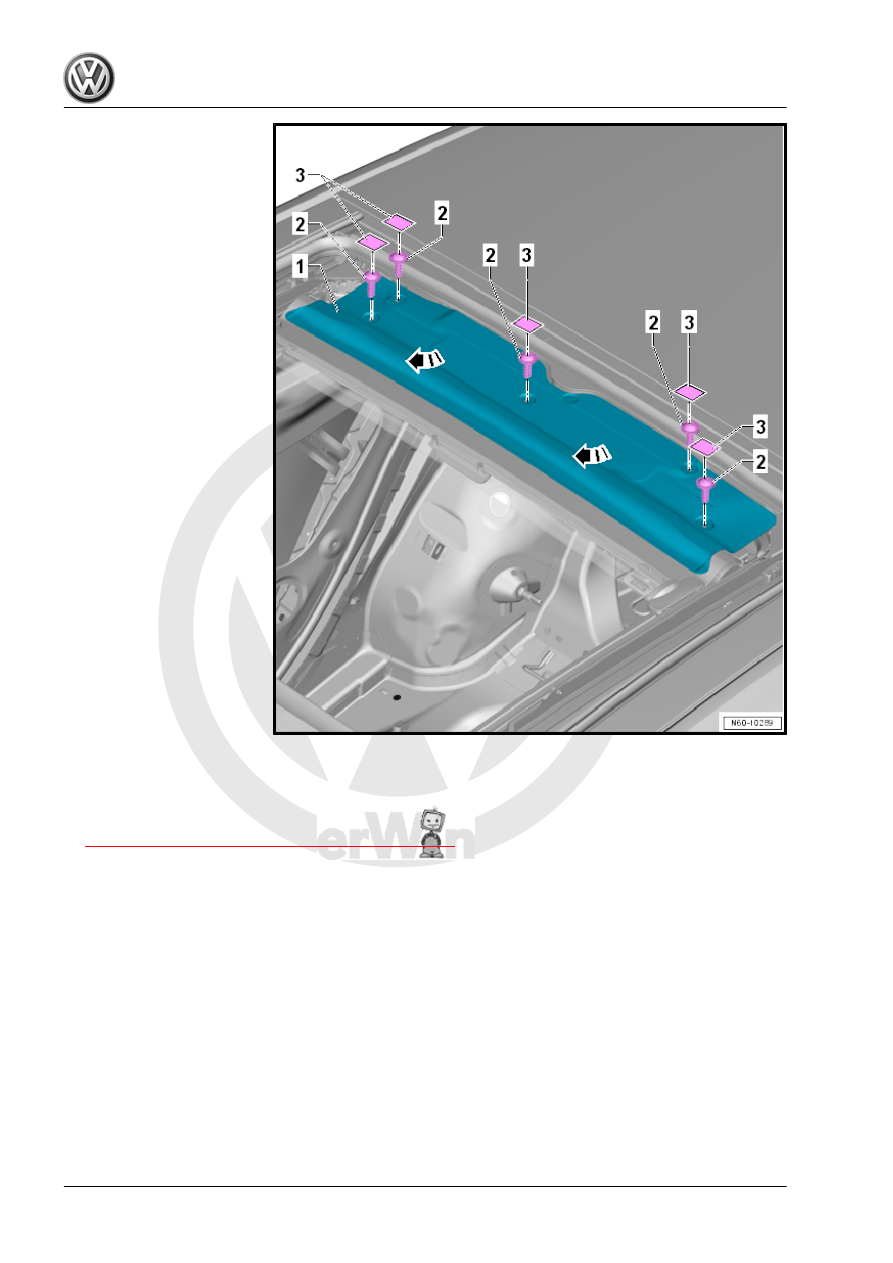

– Push the cover -1- on the sunroof frame.

– Tighten the screws -2-.
– Apply the self-adhesive insulation -3-.
– Install the glass panel. Refer to

⇒ “1.6 Glass Panel, Removing and Installing”, page 223

 .

Tightening Specifications
Tension Bow, Removing and Installing

Removing
– Remove the sunroof shade. Refer to

⇒ “1.16 Sunroof Shade, Removing and Installing”, page 279

 .

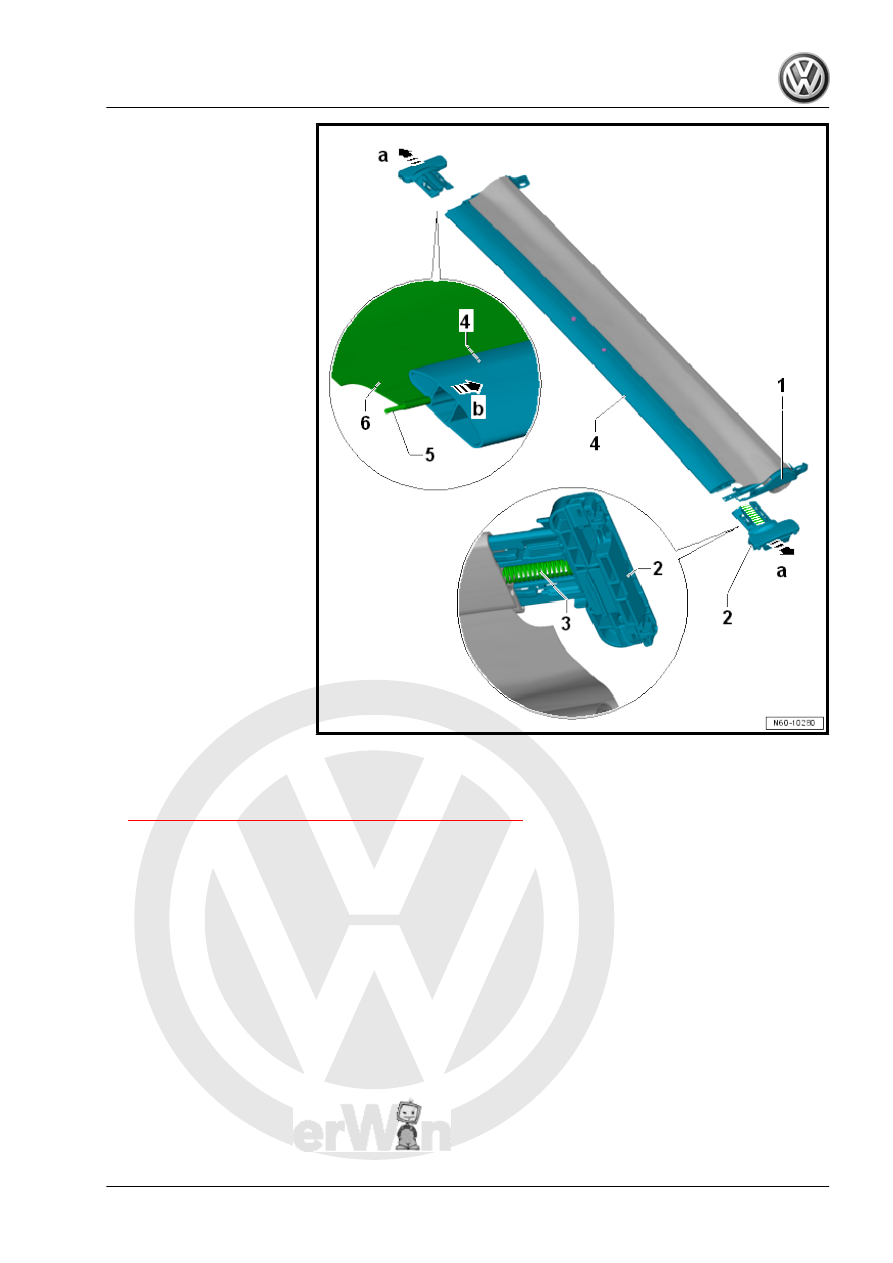

– Remove the left and right slider -2- from the tension bow -4- in

direction of -a arrows-.

– Remove the rail from the sunroof shade fabric -6- in direction

of -arrow b-.

Installing
