Volkswagen Golf / Golf GTI / Golf Variant. Manual - part 272

– Open the front glass panel all the way.

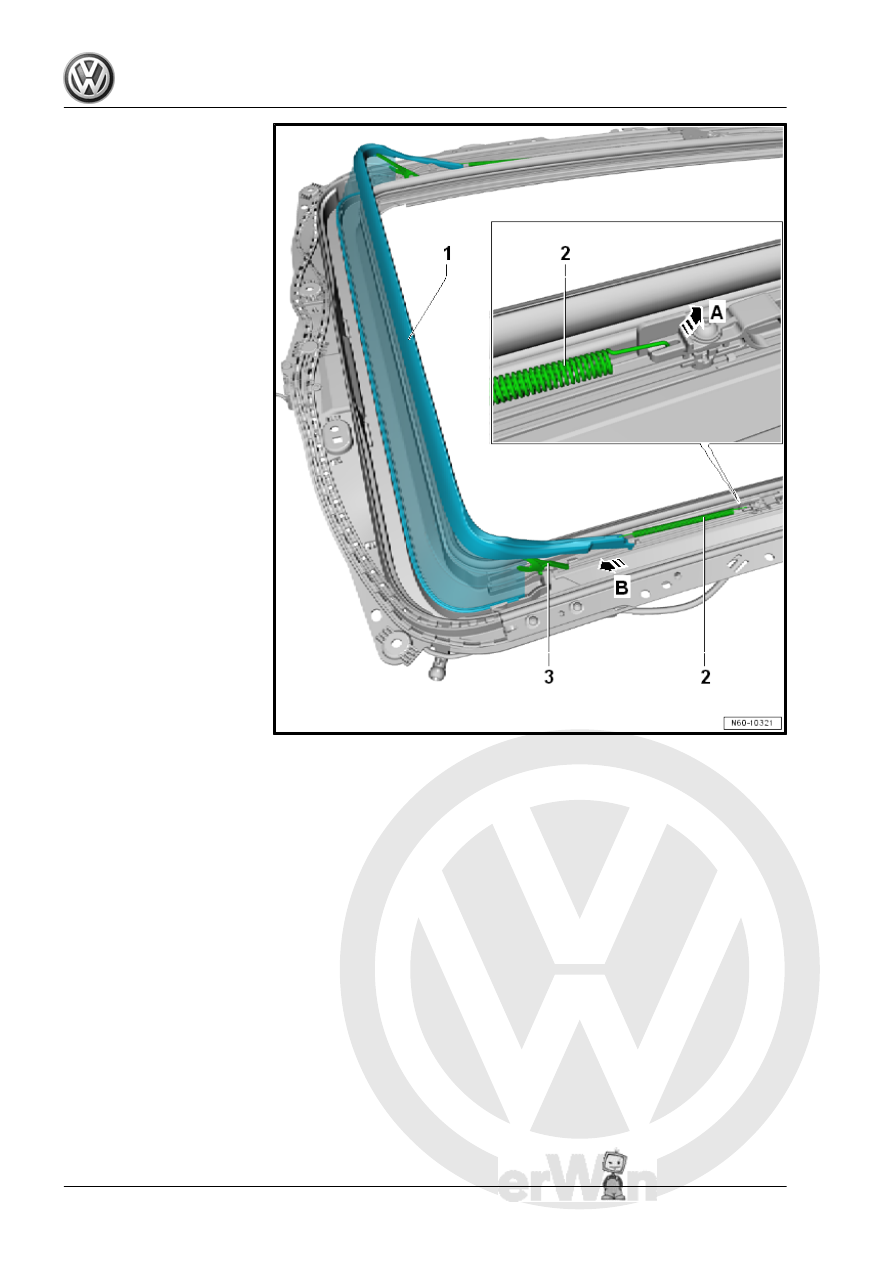

– Disengage the tension spring -2- in direction of -arrow A-.
– Slide the wind deflector frame -1- with the support bracket

-3- forward in direction of -arrow B- and take it out of the guide.

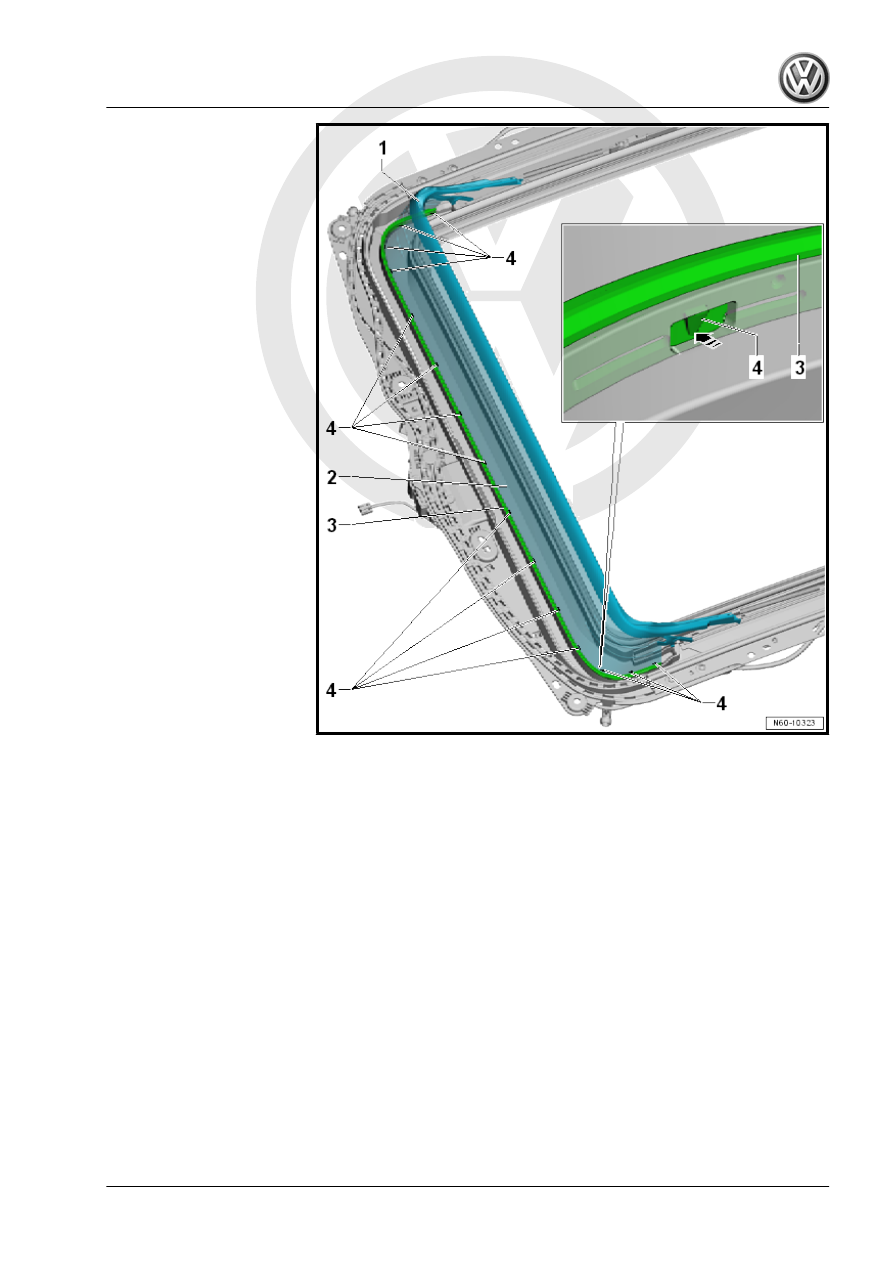

– Release all hooks -4- (quantity: 15) in direction of -arrow-.

– Lift the wind deflector -1- completely with the net -2- and frame

-3- out of the mount.

Installing

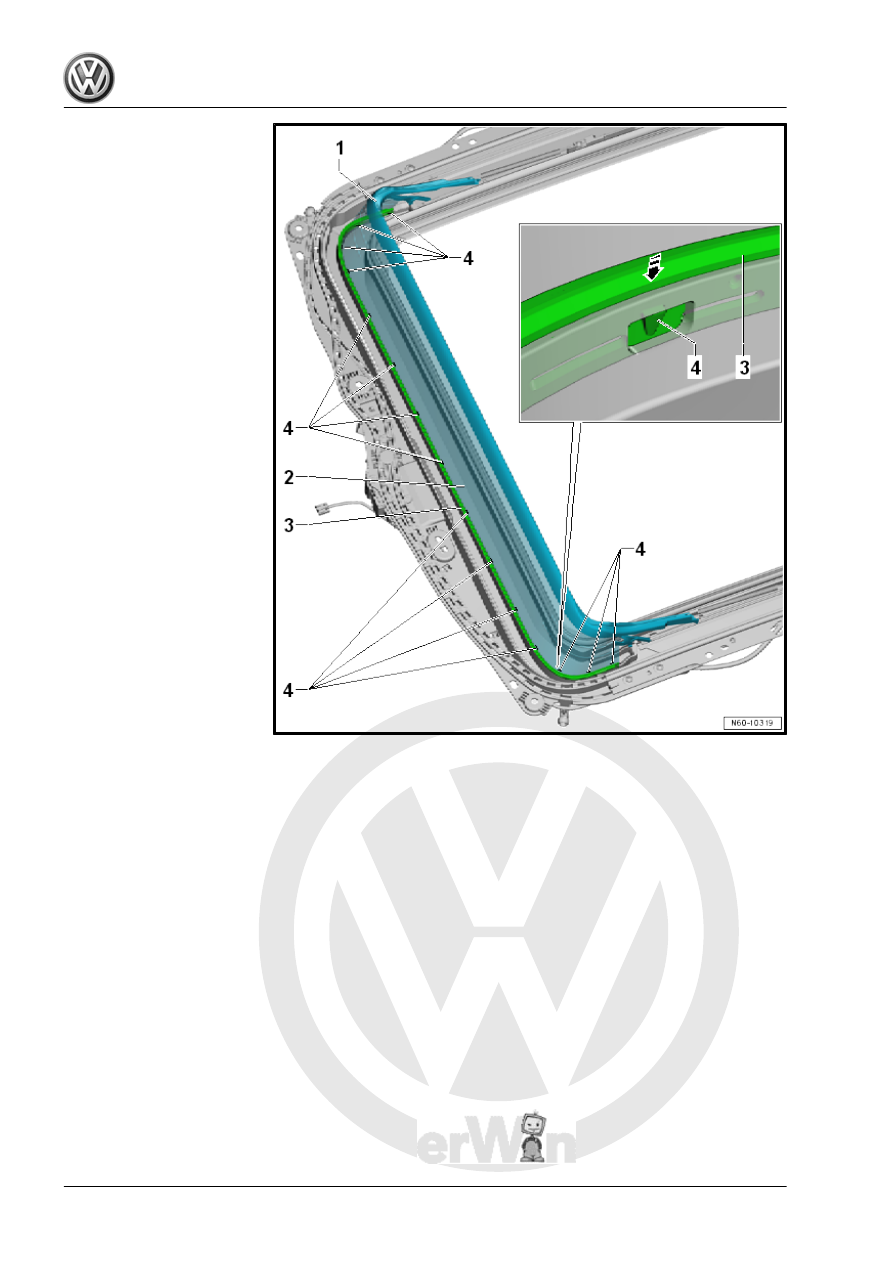

– Press the wind deflector -1- frame -3- into the mount -arrow-.
– All hooks -4- (quantity: 15) must lock.

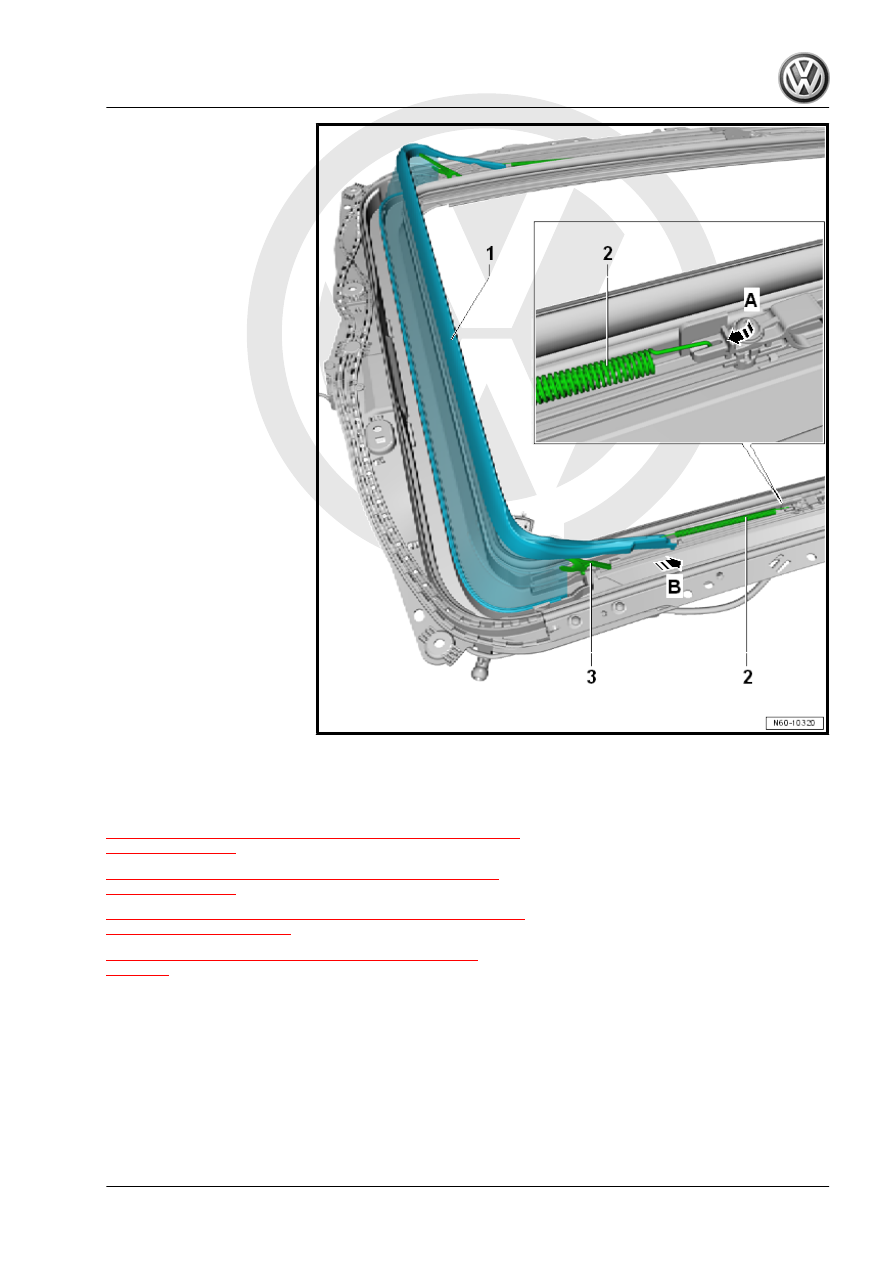

– Set the wind deflector frame -1- with the support bracket -3-

into the guide and slide toward the rear in direction of

-arrow B-.

– Engage the tension spring -2- in direction of -arrow A-.

1.6

Glass Panel, Removing and Installing

⇒ “1.6.1 Glass Panel, Removing and Installing, Sedan through

02/2015”, page 223
⇒ “1.6.2 Glass Panel, Removing and Installing, Sedan from

03/2015”, page 227
⇒ “1.6.3 Glass Panel, Removing, Defective Drive Motor, Sedan

through 02/2015”, page 232
⇒ “1.6.4 Glass Panel, Removing and Installing, Wagon”,

page 233

1.6.1

Glass Panel, Removing and Installing,

Sedan through 02/2015

Special tools and workshop equipment required
♦ Torque Wrench 1783 - 2-10Nm - VAG1783-
