ignition on, DTC memory and
Readiness code must be checked.






 Repair Manual, Fuel Injection Ignition,

Repair Group 01,

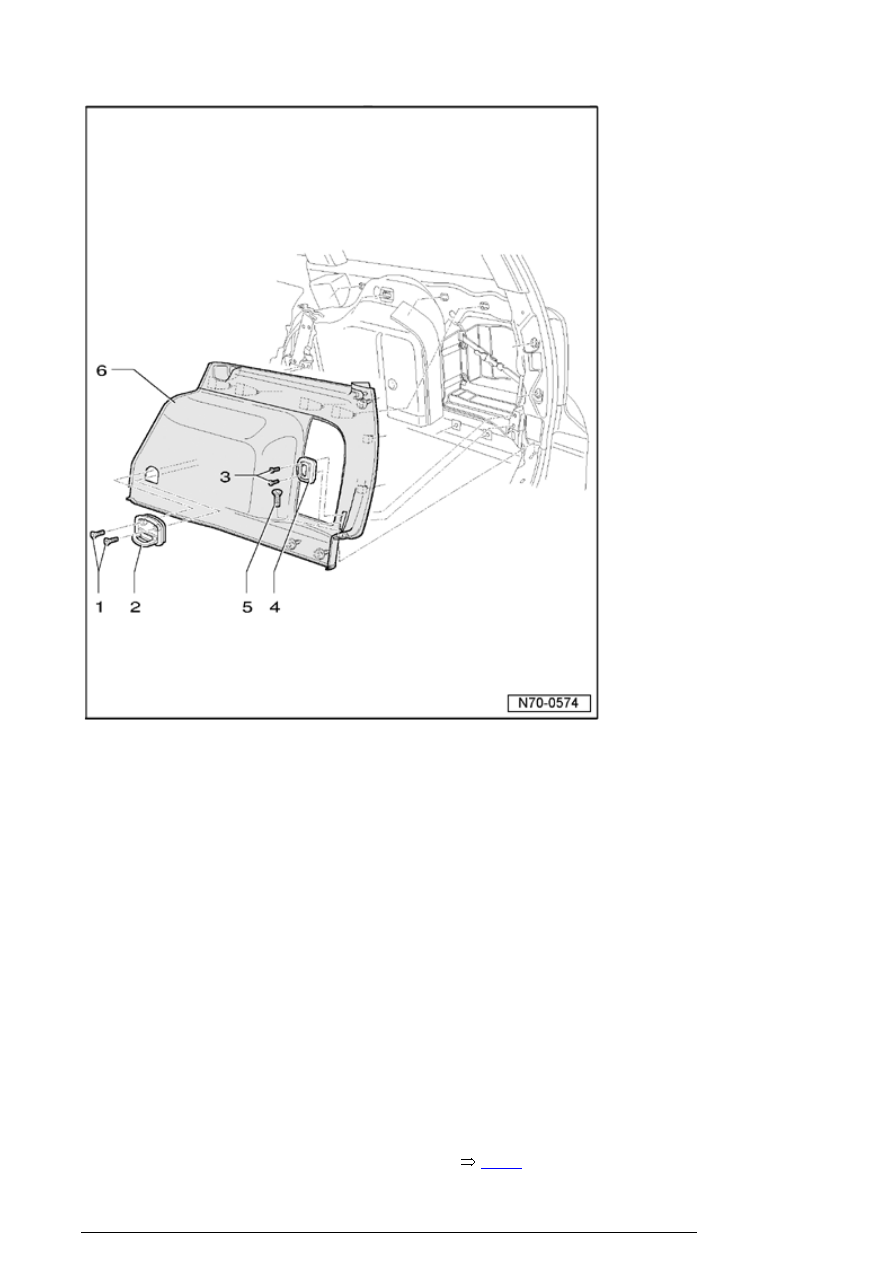

Right luggage compartment side trim,
assembly overview (Golf wagon/Jetta
wagon)



Luggage compartment trim

13/2/2005



1. Bolts

2. Tie-down

3. Bolts

4. Tie-down

5. Bolt

6. Luggage compartment trim panel,

right

¡

Removing



70-4, Right

luggage compartment side
trim, removing and installing
(Golf wagon/Jetta wagon)





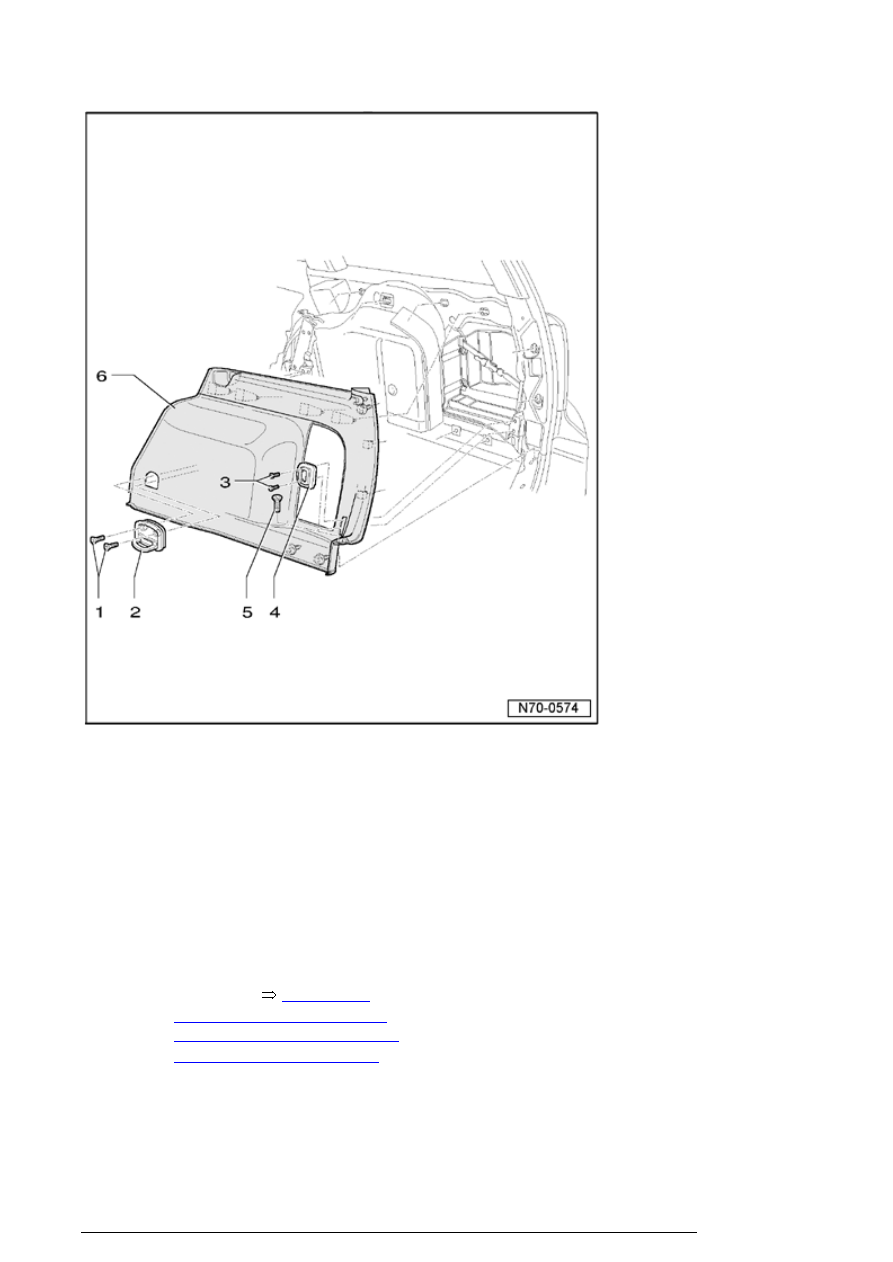

Right luggage compartment side trim,

Luggage compartment trim

13/2/2005

removing and installing (Golf wagon/Jetta
wagon)



Note:

n

Luggage compartment side trim at left contains a 12 V
socket and a luggage compartment light.
corresponding wiring harnesses must be
disconnected before removing trim.



Removing



- Fold right seat cushion forward.

- Remove right seat backrest



72-2, Backrest, removing

and installing

 .

- Remove wheel housing trim



70-3, Wheel housing trim,

removing and installing (Golf wagon/Jetta wagon)

 .

- Remove lock carrier cover at rear



70-4, Rear lock

carrier cover, removing and installing (Golf wagon/Jetta
wagon)

 .

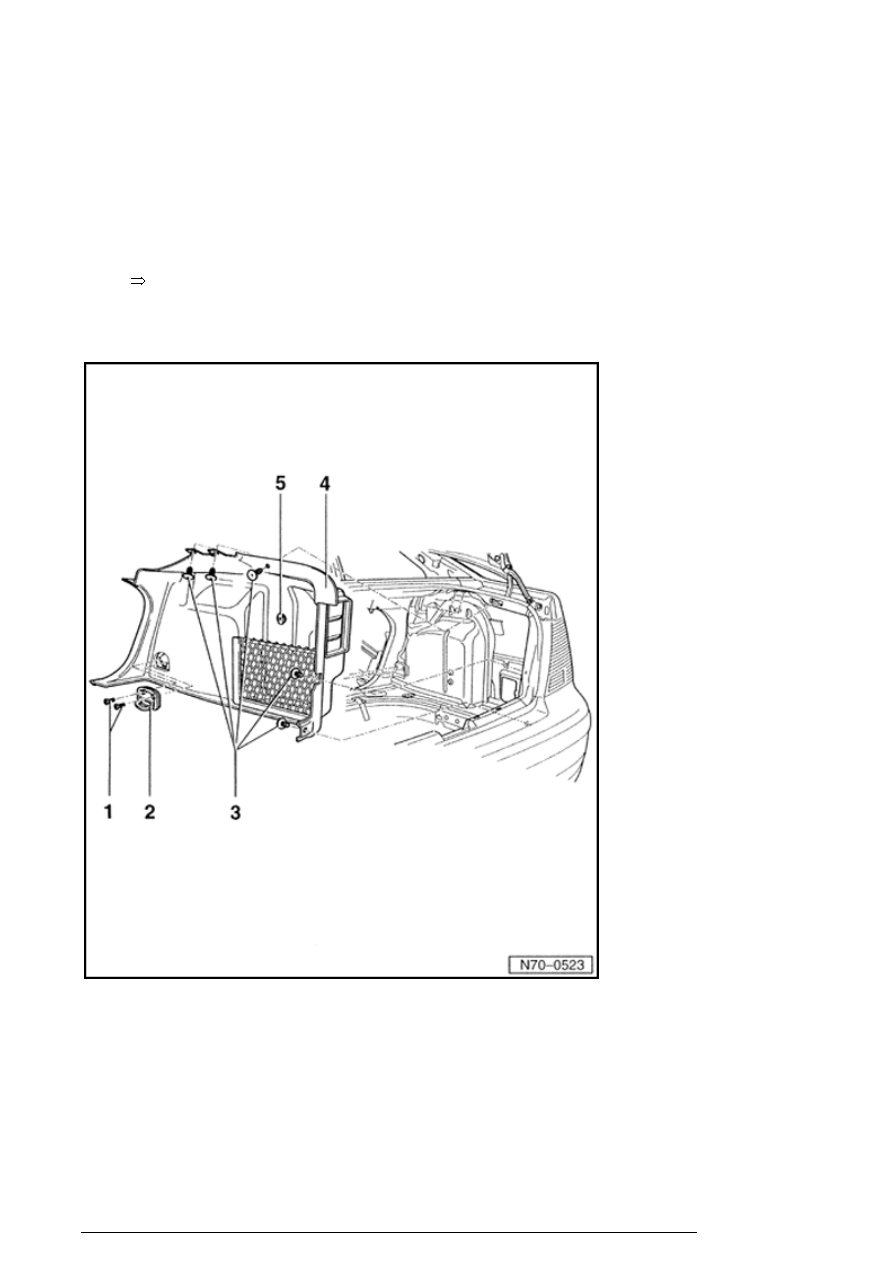

- Remove bolts - 1 - and remove tie-down
- 2 - .

- Remove bolts - 3 - and remove tie-down
- 4 - .

- Remove bolt - 5 - .

Luggage compartment trim

13/2/2005



- Loosen luggage compartment trim  - 6 -
and disconnect any harness connectors
for light and 12 V socket .

Installing



Installation is reverse of removal.

Note:

n

Before installing, check clips and clamps for damage
and replace if necessary.



Right storage compartment, removing and
installing (Golf wagon/Jetta wagon)



Removing



- Remove right luggage compartment side trim



70-4,

Luggage compartment trim

13/2/2005
