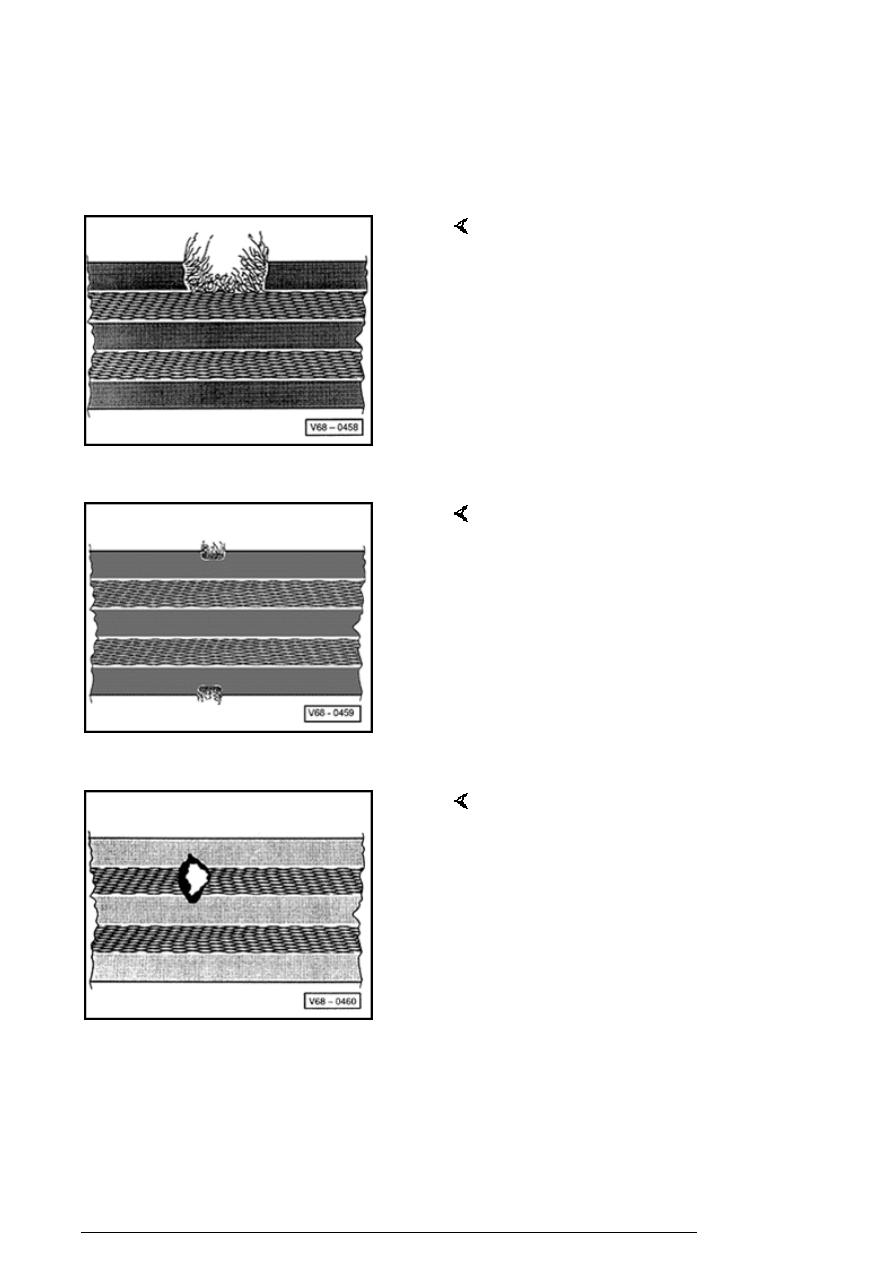

Belt webbing cut, torn or chafed

Webbing loops on belt edge torn.

Burned spots from cigarettes or similar.

Seatbelts, inspecting

13/2/2005

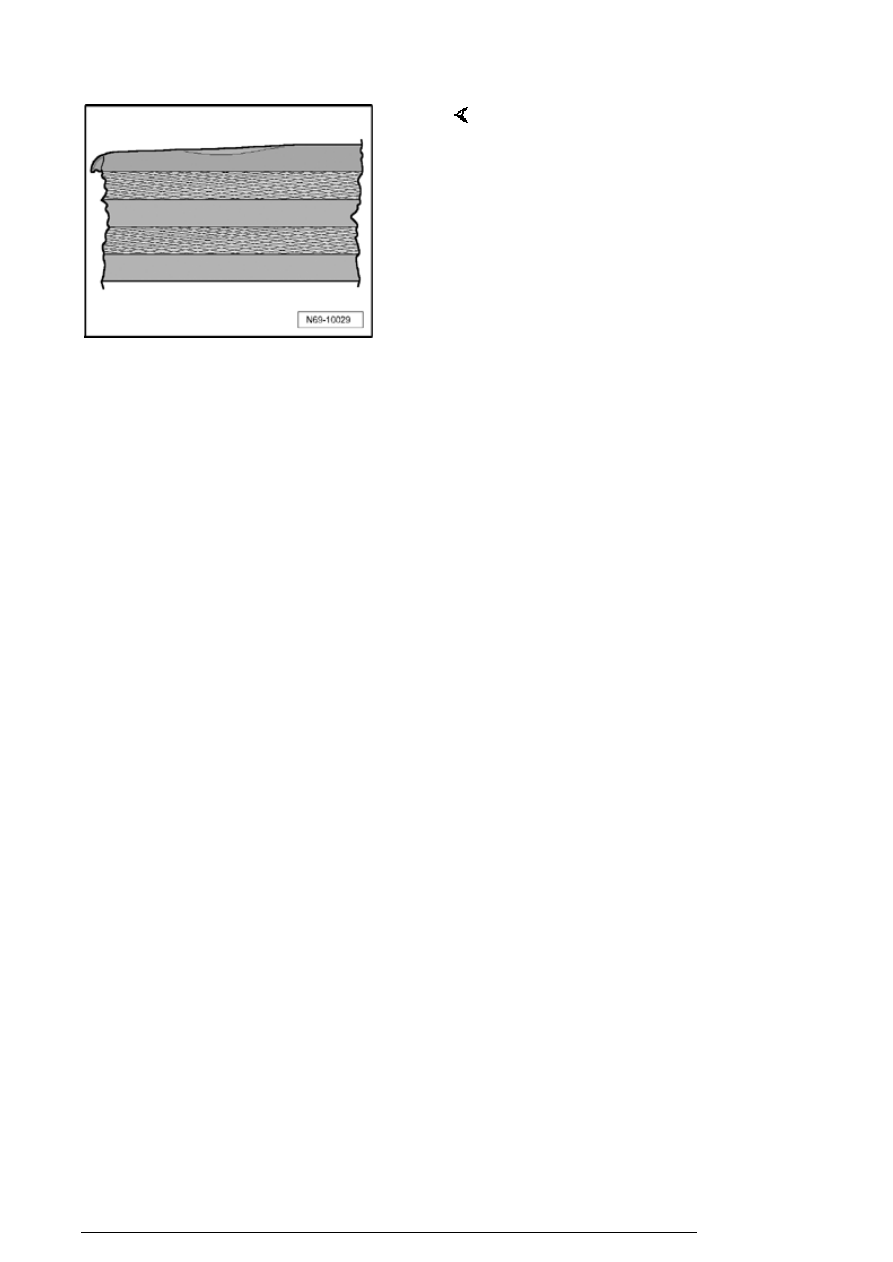

One side of belt edge deformed or area of belt edge is wavy

Check automatic retraction (locking effect)



Automatic belt retractor has two locking functions.

n

first locking function is triggered by quick unrolling of
belt from automatic belt retractor (belt extraction
acceleration).



Test

- Pull belt out of automatic belt retractor with firm jerk.

n

No locking effect - replace seatbelt complete with belt
latch.



n

If re are malfunctions when belt is extracted or
retracted, next check wher position of automatic
retractor has changed.



n

Second locking function is initiated by change in
vehicle movement sequence (vehicle-dependent
locking function).



Checking

- Fasten seatbelt.

- Accelerate vehicle to 12 mph (20 km/h) and n perform full
braking using foot brake.

n

Replace seat belt complete with belt latch if seat belt
is not locked by locking mechanism during braking
procedure.



Caution!



For safety reasons, road test should performed in

Seatbelts, inspecting

13/2/2005



traffic-free area to ensure that or motorists/pedestrians
etc. are not endangered.

Visual check of belt latch



- Inspect belt latch for cracks and fracturing.

n

If damaged, replace seatbelt complete with belt latch.



Function check of belt latch



Check belt latch:

- Insert belt tongue into belt latch until it engages audibly.
Check wher lock mechanism is engaged by pulling
forcefully on belt webbing.

n

Replace seat belt complete with belt latch if belt
tongue fails even only once to engage properly in belt
latch during at least 5 tests.



Check release:

- Release seatbelt by pressing button on belt lock with
finger.

n

With seatbelt relaxed, lock tongue must spring out of
belt lock without assistance.



n

Test at least 5 times. Replace seatbelt completely
with belt lock if lock tongue fails to spring out even
once.



Caution!



Under no circumstances may lubricant be used to
eliminate noise or stiffness at belt latch buttons.

Checking guide stops and seatbelt lock tongue



Plastic coated guide stops face load (seatbelt on during
accident) of belt system parallel to small grooves. (Chafing
created by significant usage, in contrast, is recognizable in
relation to smooth, stripe-free abrasion)

- Check plastic for deformation, rupture and tearing.

n

For groove build-up and/or damage, replace seatbelt
completely with lock.



Seatbelts, inspecting

13/2/2005

Check anchoring components and anchoring
points



n

Lock strap deformed (stretched)



n

Height adjuster not functioning



n

Anchoring points (seat, pillar, vehicle floor) warped or
threading damaged



n

If damage is found at components, replace seatbelt
completely with lock.



n

Replace anchoring points.



Note:

n

For damaging not resulting from accident, e.g. general
wear, replace only damaged component.



Seatbelts, inspecting
