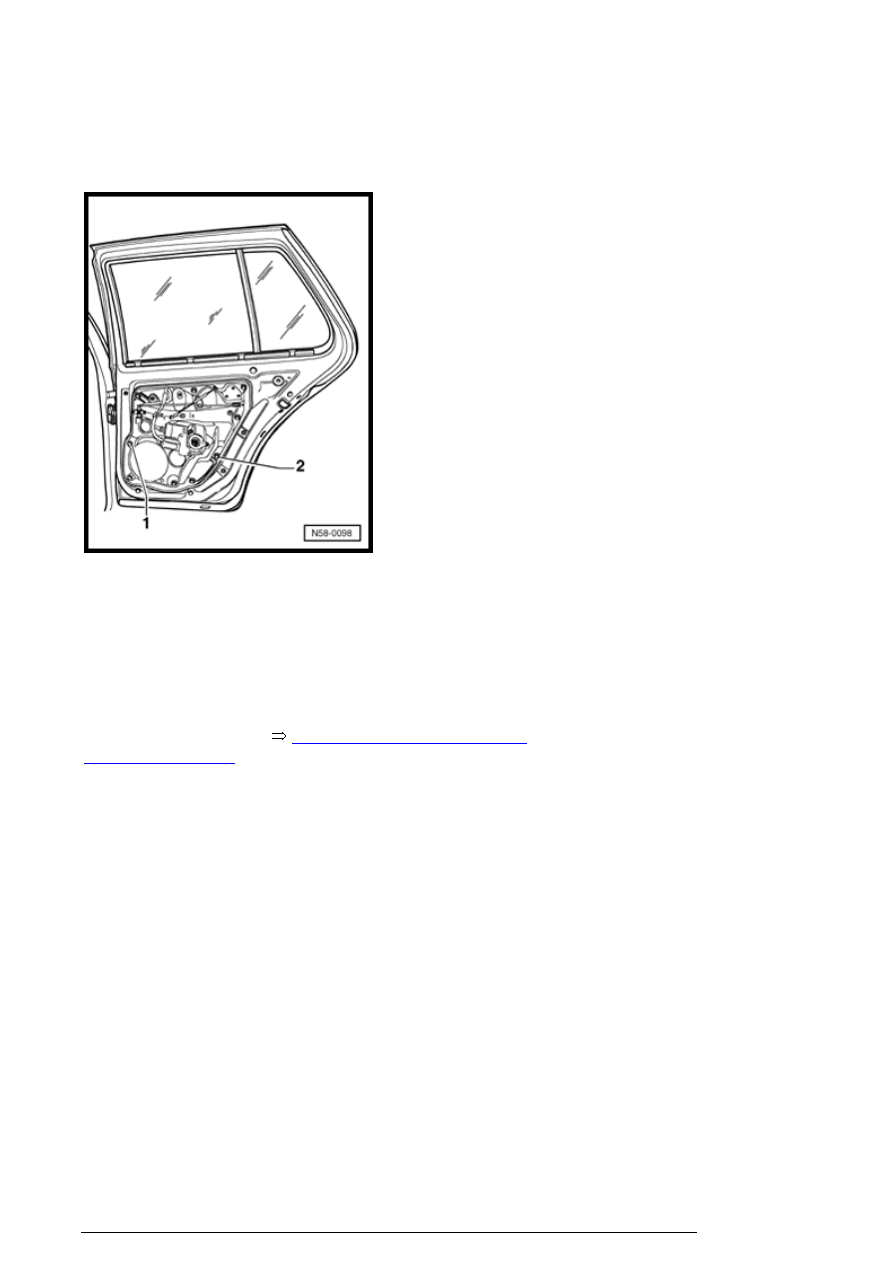

- Tighten all bolts. Tighten bolts marked - 1 - and - 2 - in
specified sequence.



Tightening torque: 8 Nm

- Remaining bolts can be tightened in any sequence.

- Installing door window, see installing door window at
window regulator page



64-2, Door window at window

regulator, installing

 .

- Then, perform in reverse order of removal.

Then, perform a function load test.


Door window at window regulator, installing



- Window must be checked for damage before inserting
spreader plug and spreader pin.

Note:

Spreader plug and spreader pin must always be replaced
when performing installation work at door window.


Door windows

13/2/2005

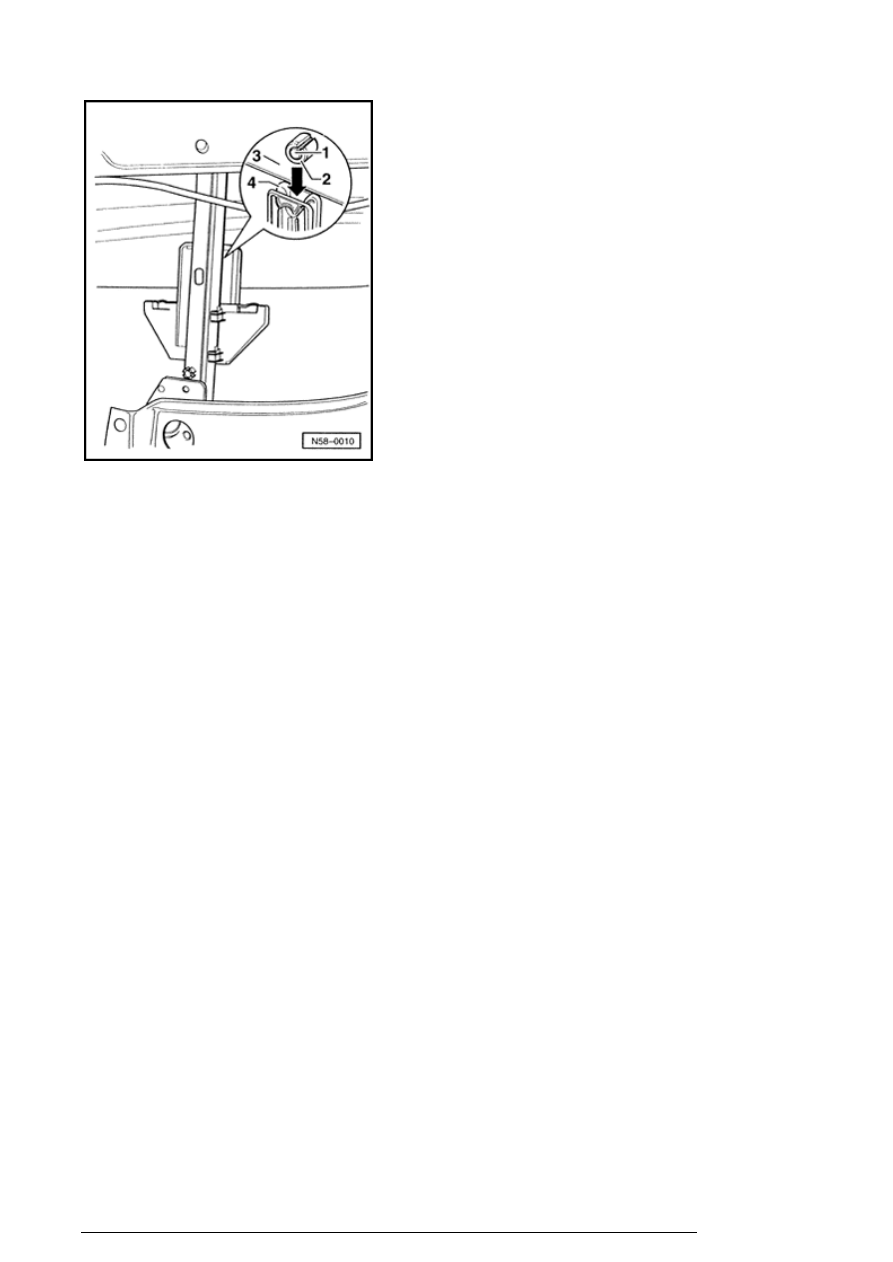

- With window removed, insert spreader plug  - 2 - centered.

- Press in spreader pin - 1 - flush into spreader plug - 2 - .

- Guide door window into door.

- Insert door window - 3 - into slit of window regulator guide
- 4 - .

- Using light pressure from above, lock window into window
regulator - arrow - .

Power window regulator for comfort system
(automatic opening and closing) with
excess force limitation (pinch protection)



With introduction of comfort window regulator, front window
regulators are equipped in addition with automatic opening
and closing functions.



Switch for automatic opening and closing for front windows
are located in drivers door operating unit. Switches for
driver and passenger door are equipped with a two-step
function.



When respective switch is pressed or pulled to first step,
front window manually opens or closes.



When switch is pressed or pulled completely to second
step, front window automatically opens or closes.



Also, additional switches for individual windows are
installed in passenger door and rear doors.



All electrical window regulators are equipped with excess

Door windows

13/2/2005



force limitation (pinch protection). Window closing is
automatically interrupted if obstructions block closing route.



However, this does not apply when closing windows from
outside using ignition key - in this case there is no force
limit.

Function of window regulator with ignition
switched on



Open



Switch in drivers door

Front window:


- Press switch forward to first step. Window is opened
manually.

- Press switch forward briefly to second step. Window is
opened automatically (automatic run -down).

- When switch is operated anew, window immediately
stands.

Rear window:


- Press switch forward. Window is opened manually.



Switch in passenger door and rear doors

- Press on lower surface of switch. Window is opened
manually.



Close



Switch in drivers door

Front window:


- Pull switch forward to first step. Window is closed
manually.

- Pull switch forward briefly to second step. Window is
closed automatically (automatic run-up).

- When switch is operated anew, window immediately
stands.

Rear window:


- Press switch forward. Window is closed manually.

Door windows

13/2/2005



Switch in passenger door and rear doors

- Press on upper surface of switch. Window is closed
manually.

Function of window regulator with ignition
switched off





Window regulators can still be operated approx. 10 minutes
after switching ignition off, as long as drivers or passengers
door is not opened.



When closing front windows, there is no automatic closing
function.



If window in drivers or passengers door is hindered by
difficulty of movement or by an obstruction during closing
sequence (force limitation), window opens again
immediately.



In this case window can only be closed again when ignition
is switched on.



For vehicles with central locking system, windows can be
closed and opened also from outside. To do so, key must
only be held in closing/opening position.

Setting automatic opening and closing



Note:

After disconnecting and connecting vehicle battery,
automatic opening and closing of drivers and passengers
door is without function.




In order to restore this function after connecting battery,
proceed as follows:

- Lock vehicle from outside using drivers or front
passengers door.



When doing this, make sure that all doors and windows are
completely closed.

- Unlock vehicle and lock again via drivers or passengers
door. While doing this, hold key in lock position for at least
one second.



Automatic opening and closing of drivers and passengers
window is re-activated.



If there is a malfunction of electrical window regulator, this
is indicated by blinking of switch lights in drivers and
passengers door as well as rear doors.

Door windows
