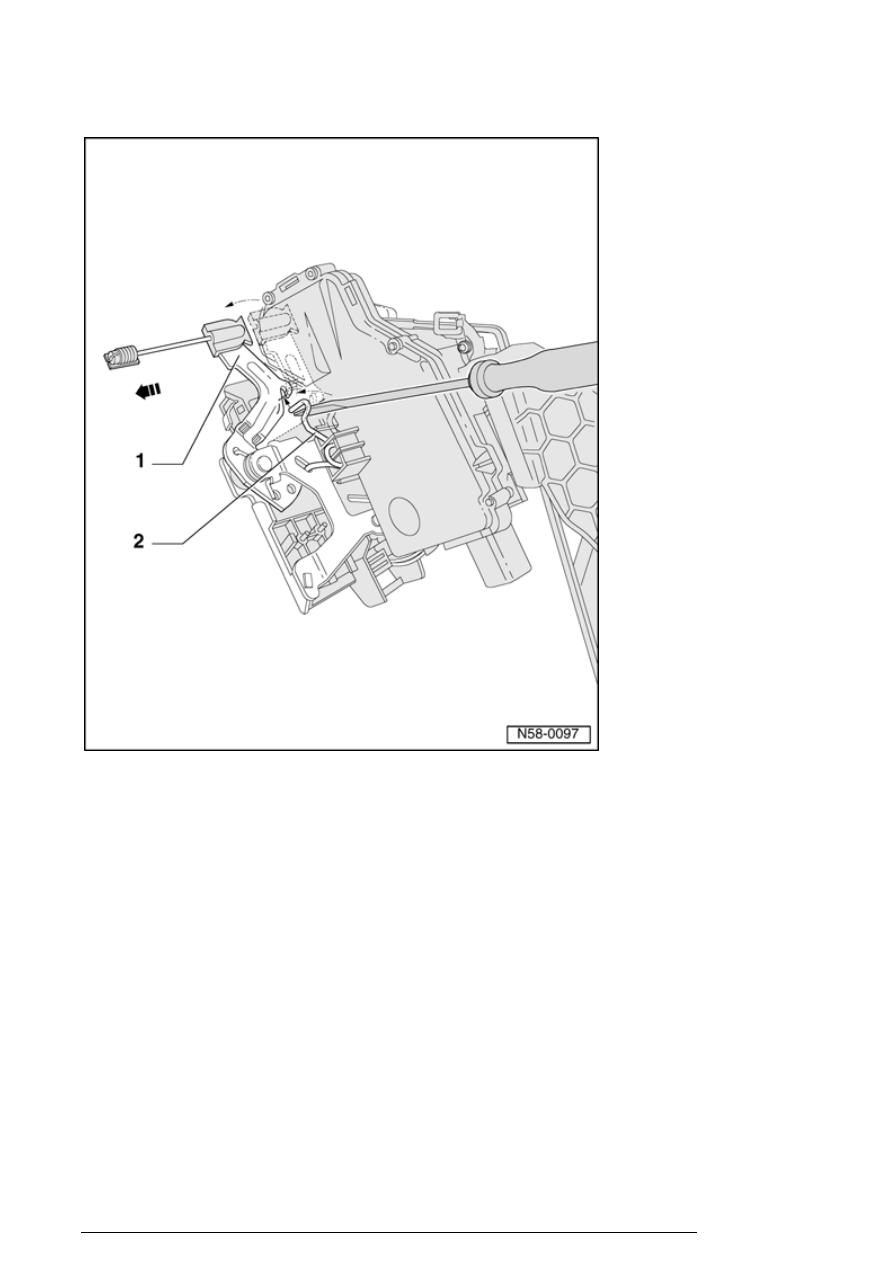

- Pull operating lever - 1 - in direction of -
arrow - .

- Using a screwdriver, tension spring - 2 -
secured to door lock in direction of -
arrow - and engage lock lever into
spring.

Note :
Lock is secured by engaging operating
lever. Thereby later "incorrect" clipping-in
of Bowden cable is prevented.


- Thread in electrical wire through boot into door and
secure clips in door plate.

- Insert carrier assembly into door.

Rear doors

13/2/2005

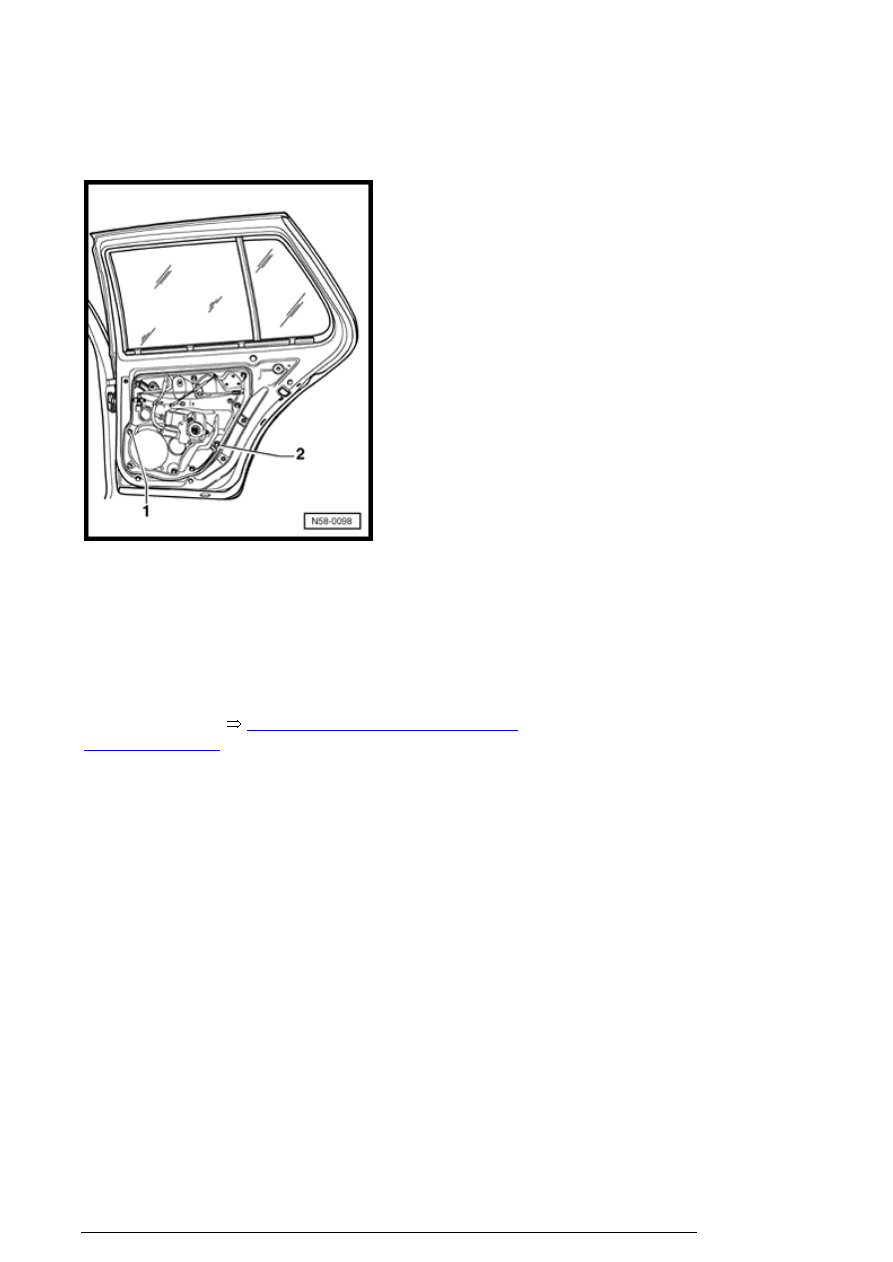

- Tighten all bolts. Tighten bolts marked - 1 - and - 2 - in
specified sequence.



Tightening torque: 8 Nm

- Remaining bolts can be tightened in any sequence.

- Installing door window, see installing door window to
window regulator



58-1, Door window, assembling to

window regulator

 .

- Then proceed in reverse order of removal.

Then, perform a function load test.


Door window, assembling to window
regulator

Note:

Spreader plug and spreader pin must always be replaced
when performing installation work at door window.


- Window must be checked for damage before inserting
spreader plug and spreader pin.

Rear doors

13/2/2005

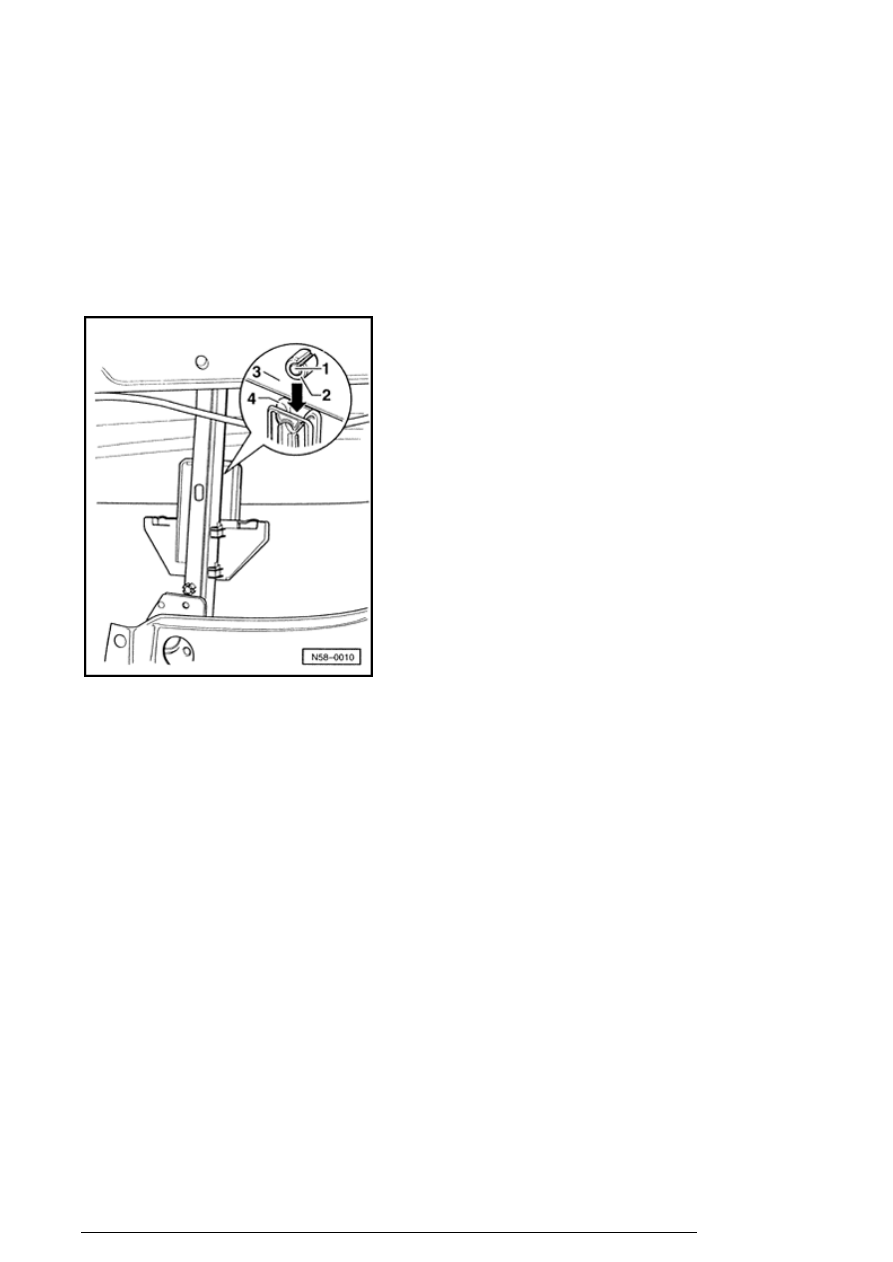

- With window removed, insert spreader plug  - 2 - centered.

- Press in spreader pin - 1 - flush into spreader plug - 2 - .

- Guide door window into door.

- Insert door window - 3 - into slit of window regulator guide
- 4 - .

- Using light pressure from above, lock window into window
regulator - arrow - .

Door seals



Rear doors

13/2/2005





Door seals are equipped at factory with
sealant, applied to door flange and then
rolled on.

Note :
During removal of seal, sealant is
distributed on interior side of seal and
flanks are bent up easily. If seal is re-
installed, sealing performance and proper
seating are no longer guaranteed.

For this reason, every completely
removed seal must be replaced with a so-
called "hammer-stroke seal" .

For partially removed seals, seal flanks
must be pressed together before
installation.

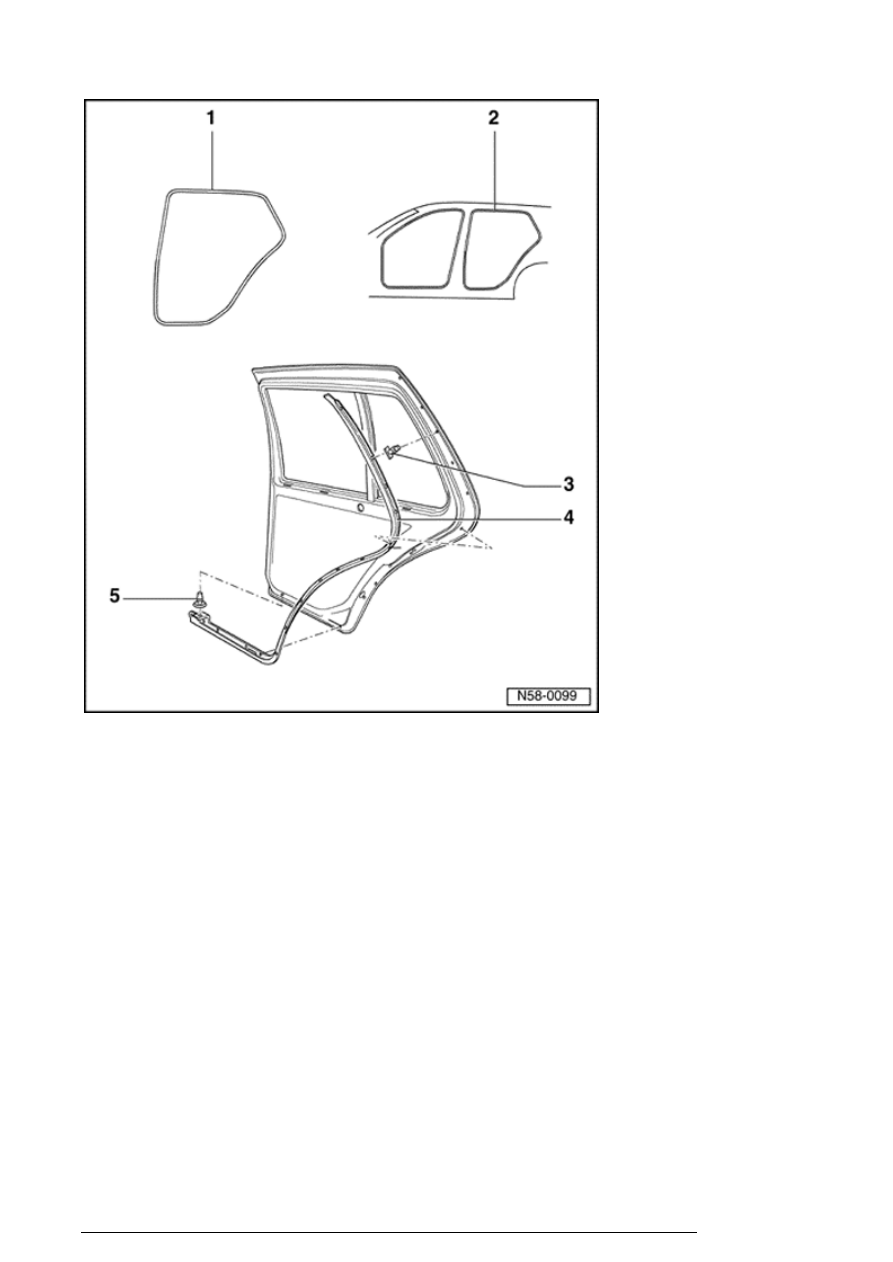

Door seals, assembly overview

Rear doors

13/2/2005
