51 38 55 50 A-pillar, inner, replacing

13/2/2005

51-33



   Cutting

location

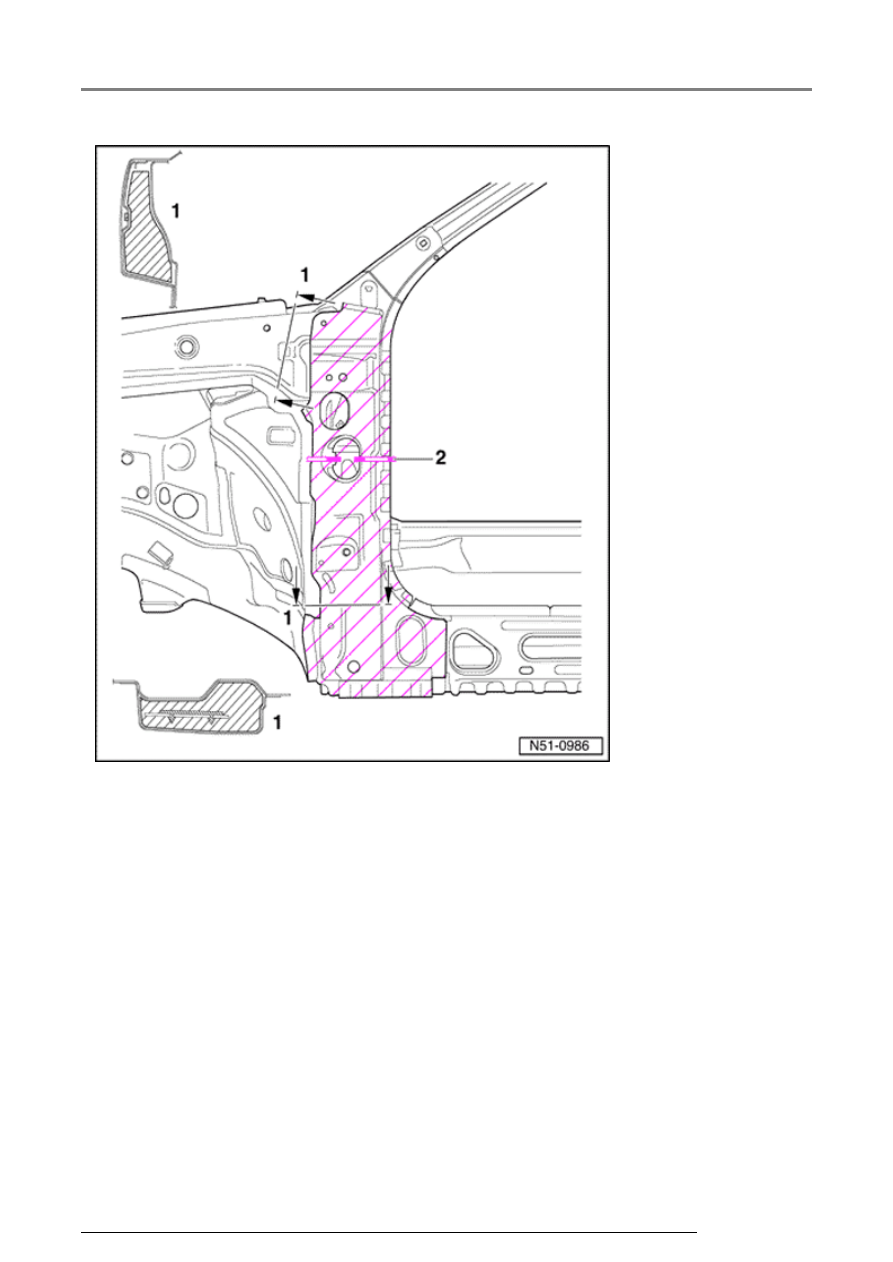

Partial repair

A partial repair
is possible
using parting
cuts -2-
shown.

-  Separate

original
joint.

51 38 55 50 A-pillar, inner, replacing

13/2/2005

51-34





Replacement parts

Preparing new part

-  Remove excess material.

 Inner A-pillar

 Insulation



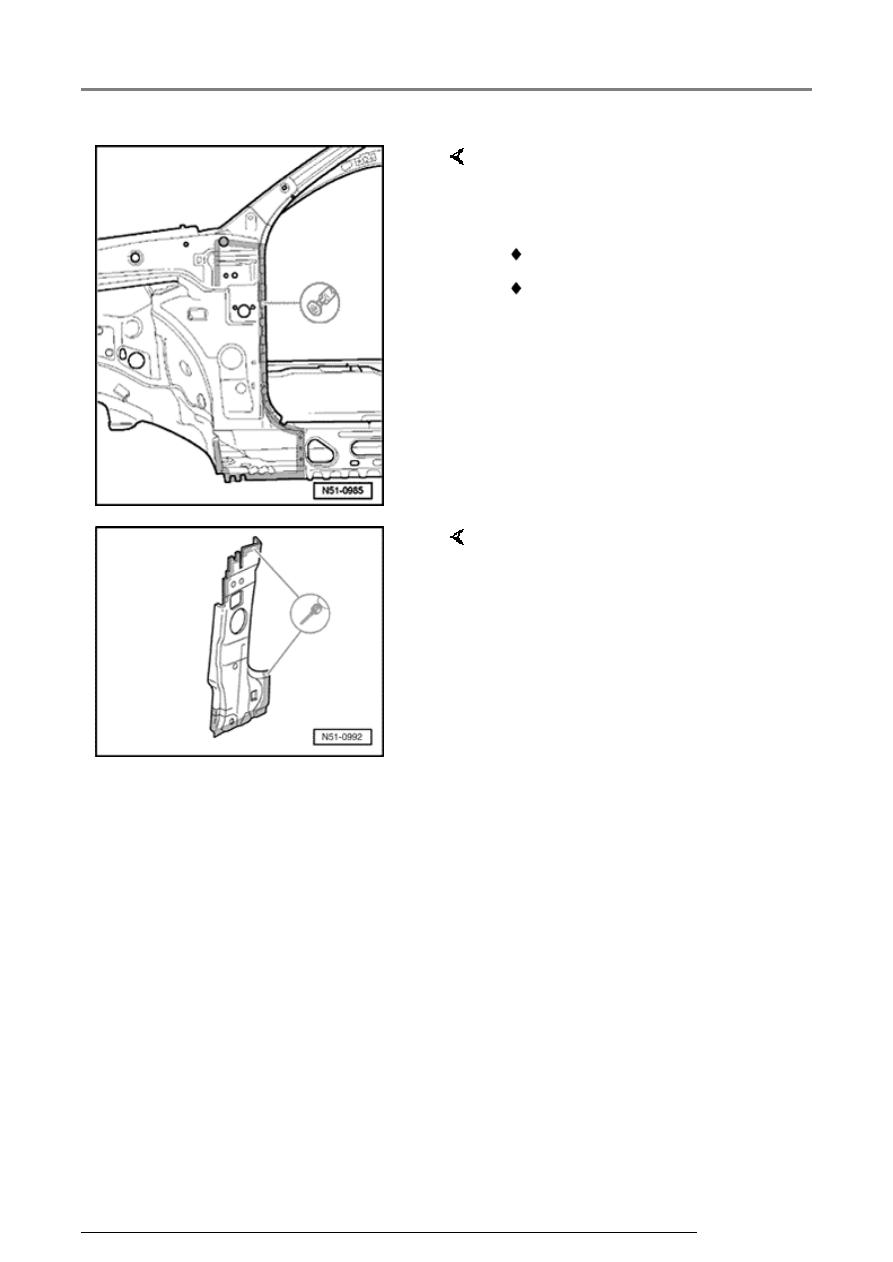

-  Drill 7 mm dia. (0.27 in.) holes for

SG-plug weld seam.

51 38 55 50 A-pillar, inner, replacing

13/2/2005

51-35







Foam insulation





Note repair instructions



Page 00-6

 .





Welding in place





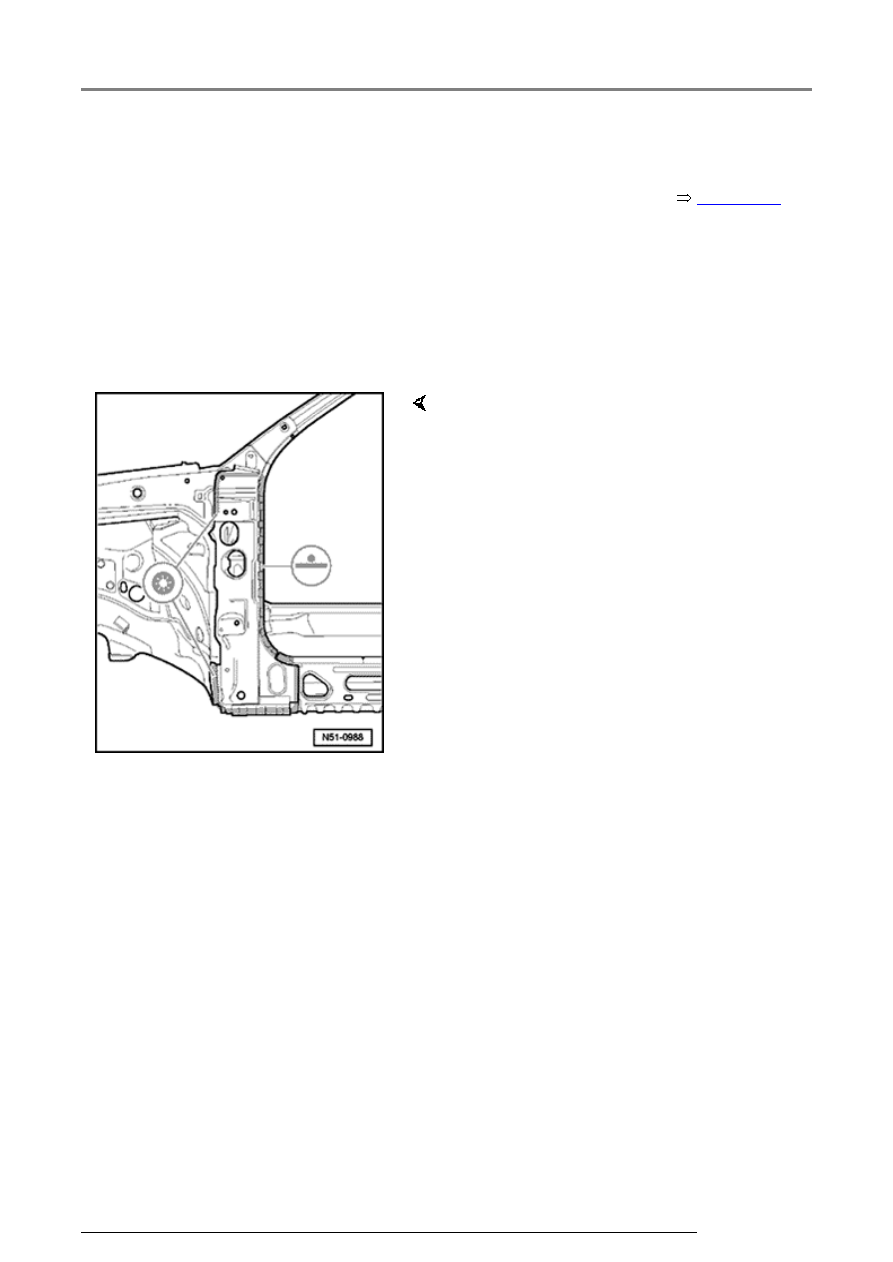

-  Install new part with vehicle standing on its

wheels or on alignment fixture and tack weld.





-  Check gaps/mating lines to adjacent parts.



-  Weld in inner A-pillar, RP-spot weld seam.

-  Weld remaining joint, SG-plug weld seam.

51 38 55 50 A-pillar, inner, replacing
