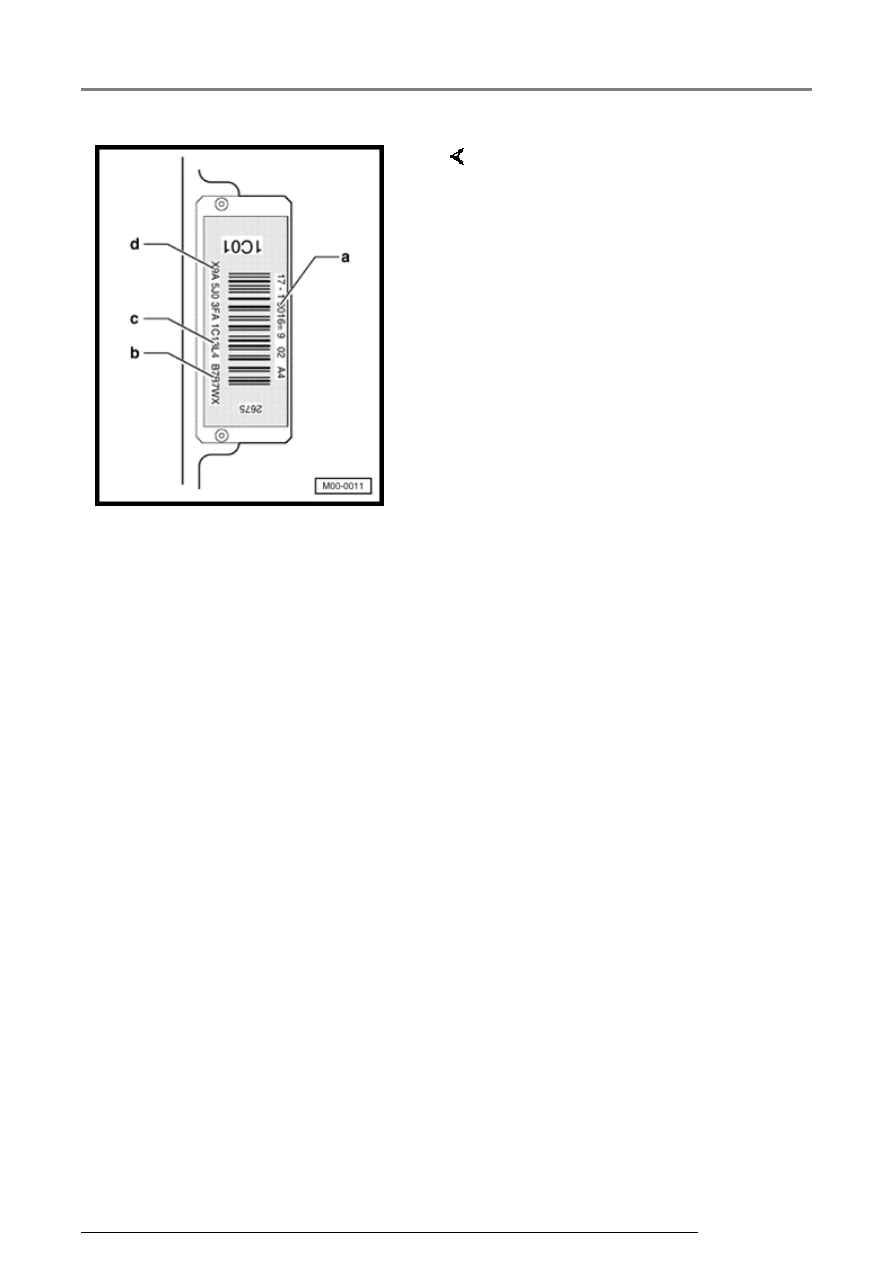

     Vehicle information label contains:

a .- PKN (7 Digits), example:
1719016

b .- Color, example: B7B7

c .- Commercial code: 1C13L4

d .- Destination: X9A

13/2/2005

00-4







Vehicle data sticker

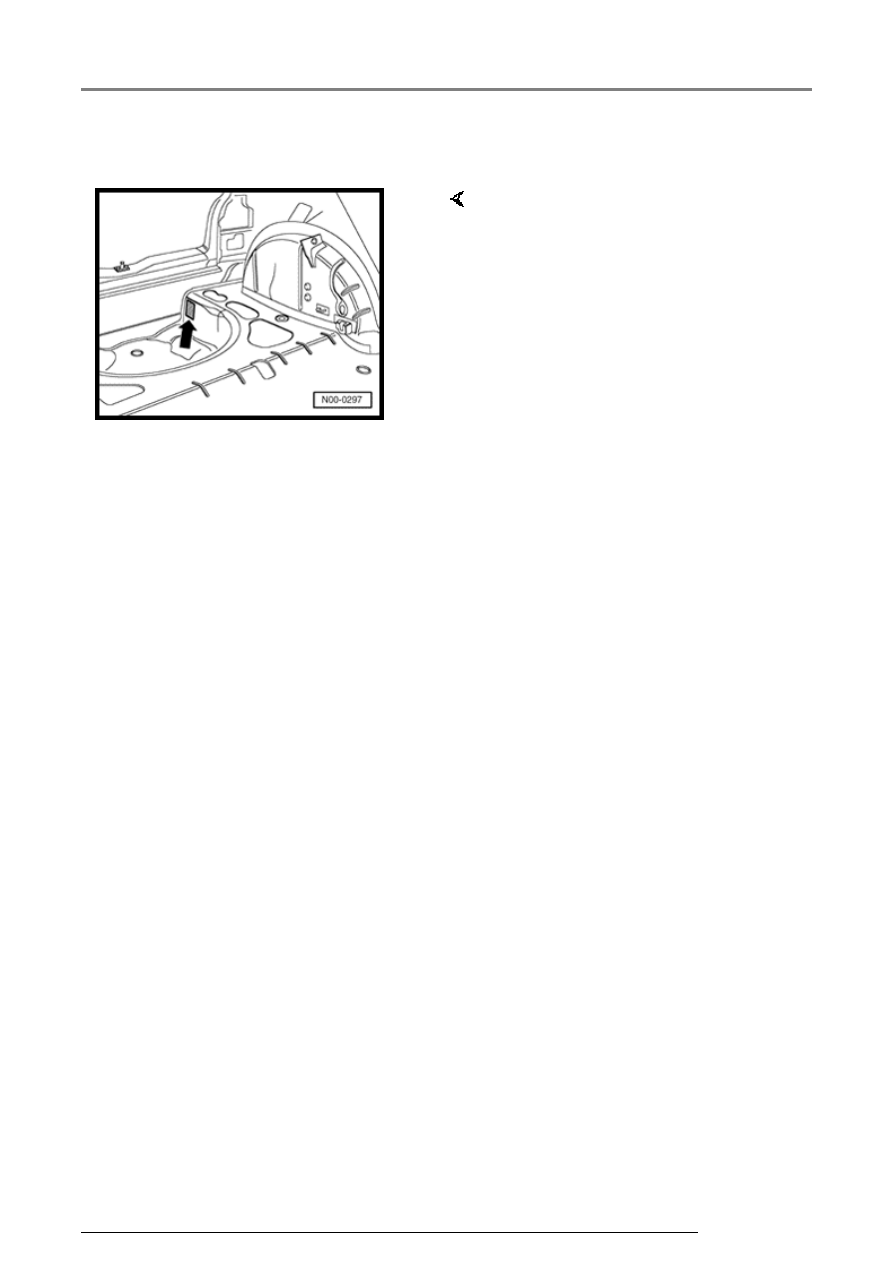

     Vehicle data sticker is located in

spare tire wheel well.

13/2/2005

00-5





Vehicle data sticker from
04.00(only Jetta vehicles)

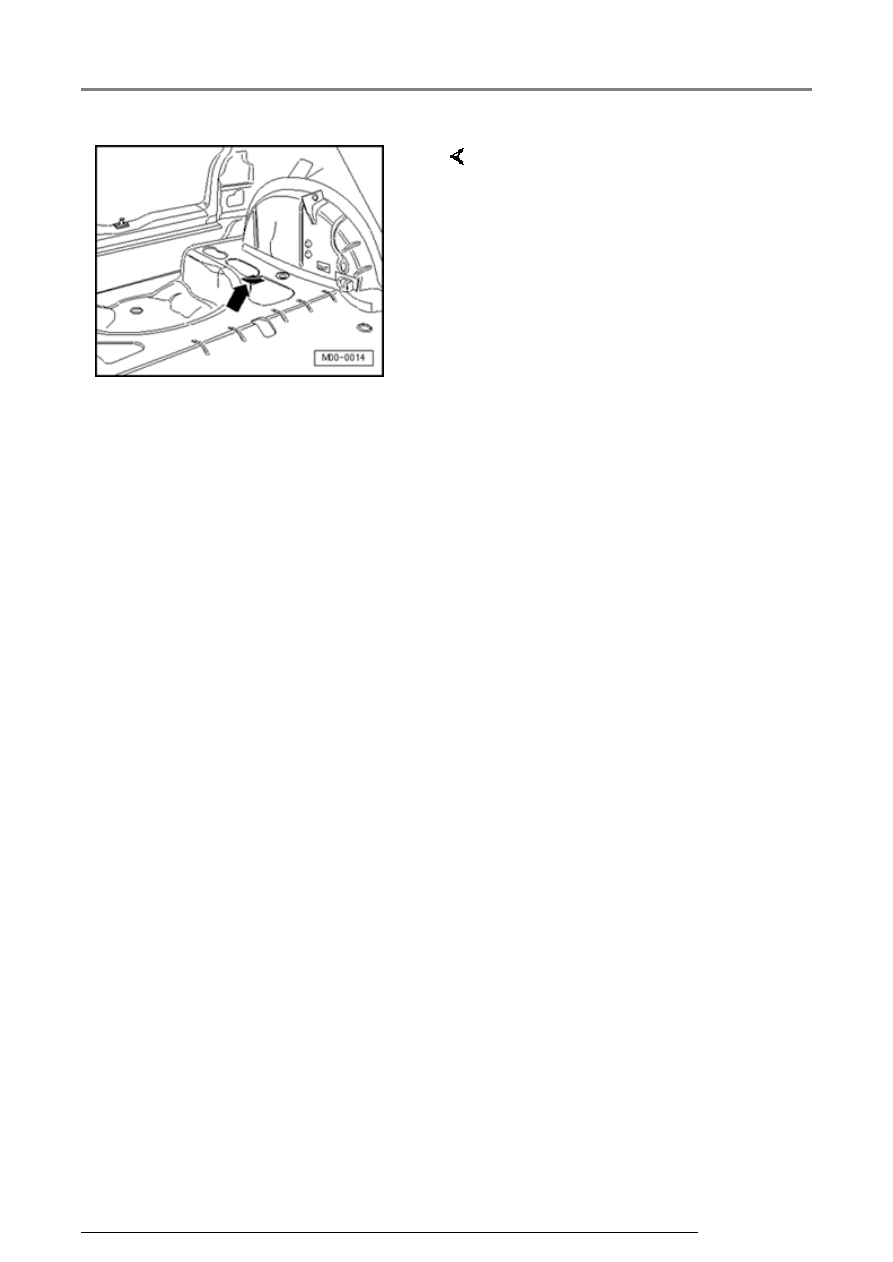

Vehicle data sticker is located next
to spare tire wheel well, near rear left
wheelhouse.

13/2/2005

00-6







Body foam insulation



   The 1999 Jetta has various body cavities that are

foam treated.



   Foam treated locations are described in

individual repair instructions.



   Foam treating reduces noise transfer to the

interior.



   Foam insulation is a pre-formed synthetic

material.



   The parts catalog shows insulation on illustration

863-20.



   The pre-formed foam parts are installed during

body assembly, they expand during drying time
in the paint shop oven at approx.180  C (388

F) after priming.



   As these temperatures cannot be achieved under

normal workshop conditions, proceed as follows:



   Requirements



   Before continuing with this procedure, ensure

that the part for replacement is correctly
prepared.





-  Remove excess foam material.





-  Repaint, apply two coats (wet on wet)

glass/paint primer D009 200 02 if necessary,
flash-off time - approx.10 min.

Body foam insulation
