It must be possible to move selector lever out of P position.

If this is not possible, the ignition key removal lock cable
must be adjusted.




 Repair Manual, Automatic Transmission, Repair Group

37, Locking cable, removing and installing

It must only be possible to remove the ignition key when
selector lever is in P position!

When ignition key is in position "Ignition off" it must not be
possible to move selector lever out of P position!

Steering column

48 - 5



Power steering, servicing

Power steering gear, removing and
installing

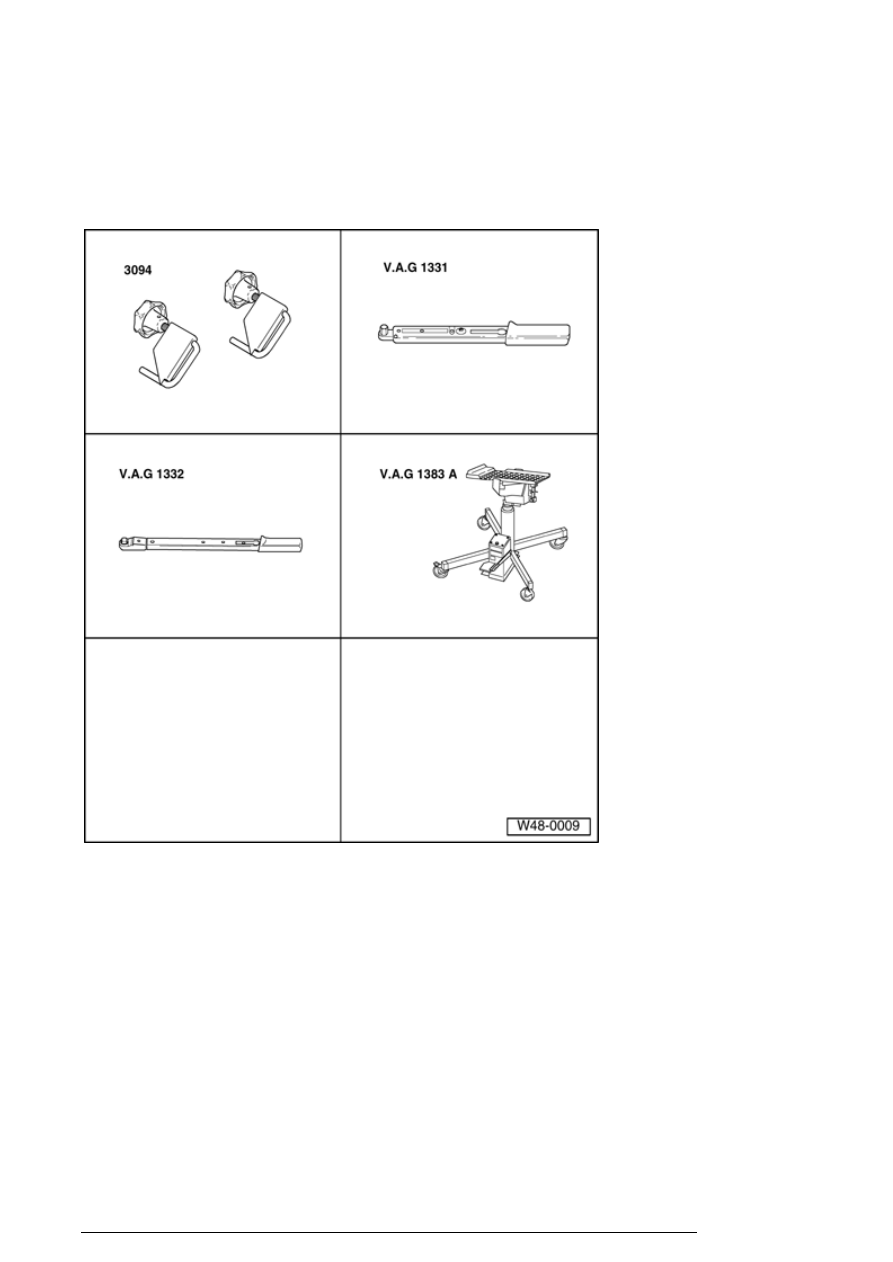

Special tools, testers and auxiliary items
required

n

Hose clamps 3094



n

Torque wrench V.A.G1331



n

Torque wrench V.A.G1332



n

Engine/transmission jack V.A.G
1383 A with universal transmission
mount V.A.G1359/2



The following special tools are necessary for R32

Power steering, servicing

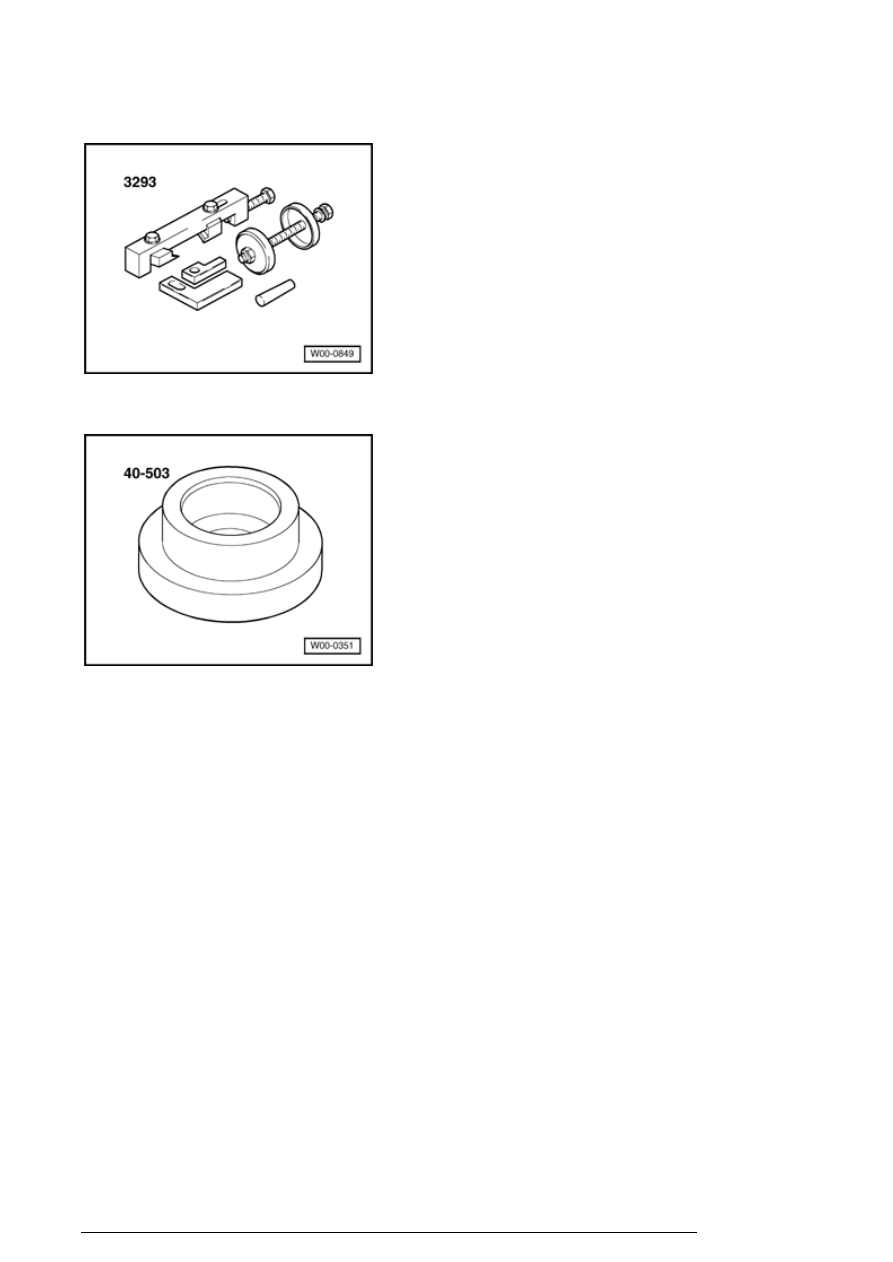

Special tools, testers and auxiliary items required

n

Assembly tool 3293



n

Installing tool 40 - 503



n

Ball joint puller T10239



Instructions when working on the power steering gear

n

Absolute cleanliness is required when working on the
power steering system.



n

Thoroughly clean connections and immediate vicinity
before loosening.



n

Place parts on a clean surface and cover if not re-
installing immediately.



n

Do not use fluffy cloths.



n

Remove replacement parts from packaging
immediately prior to installation.



n

Only use genuine packed parts.



Removing



Power steering, servicing

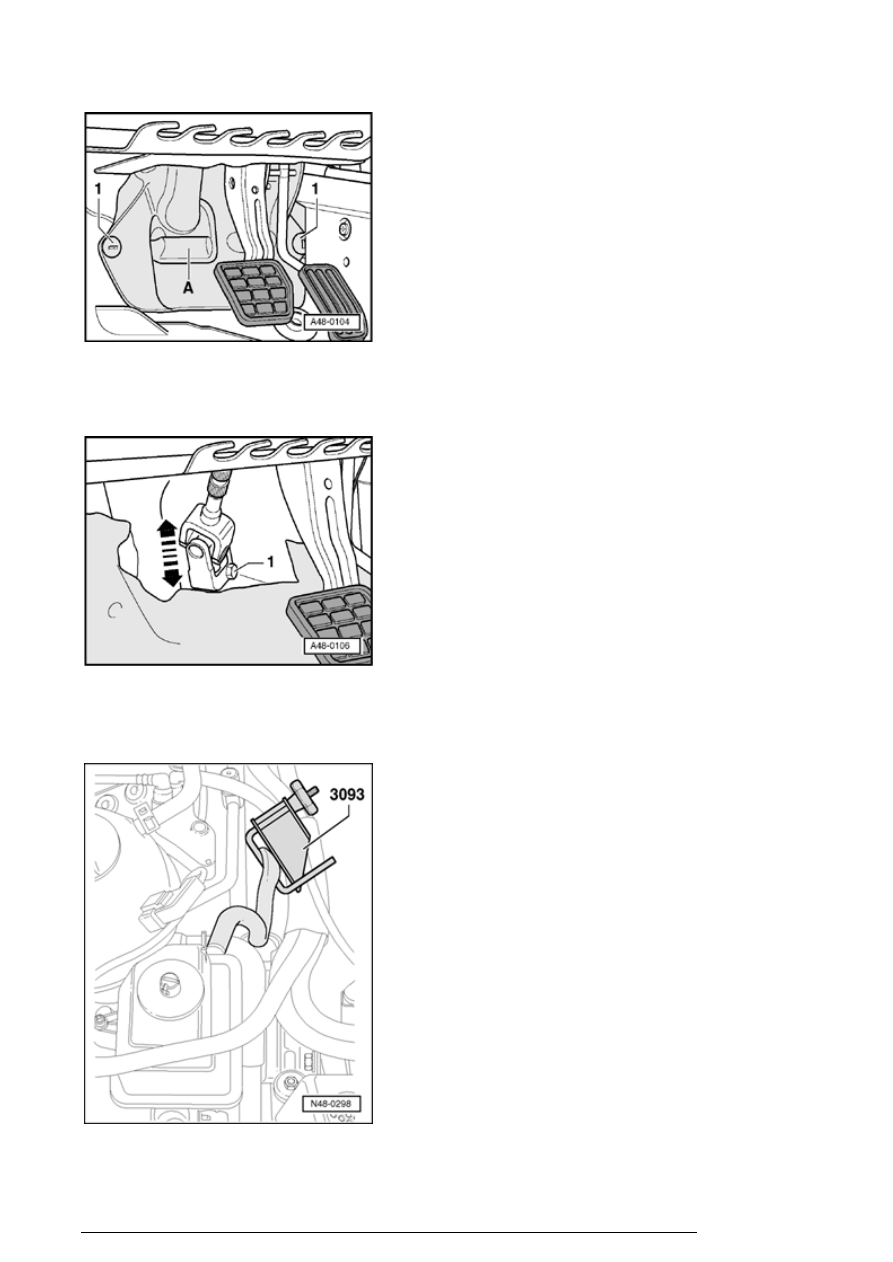

- Remove plastic screws - 1 - .

- Remove cover - A - .

- Remove joint bolt - 1 - from steering shaft joint and
remove universal joint steering gear in direction of  - arrow -
.

- Clamp hose from reservoir using hose clamp 3094 .
