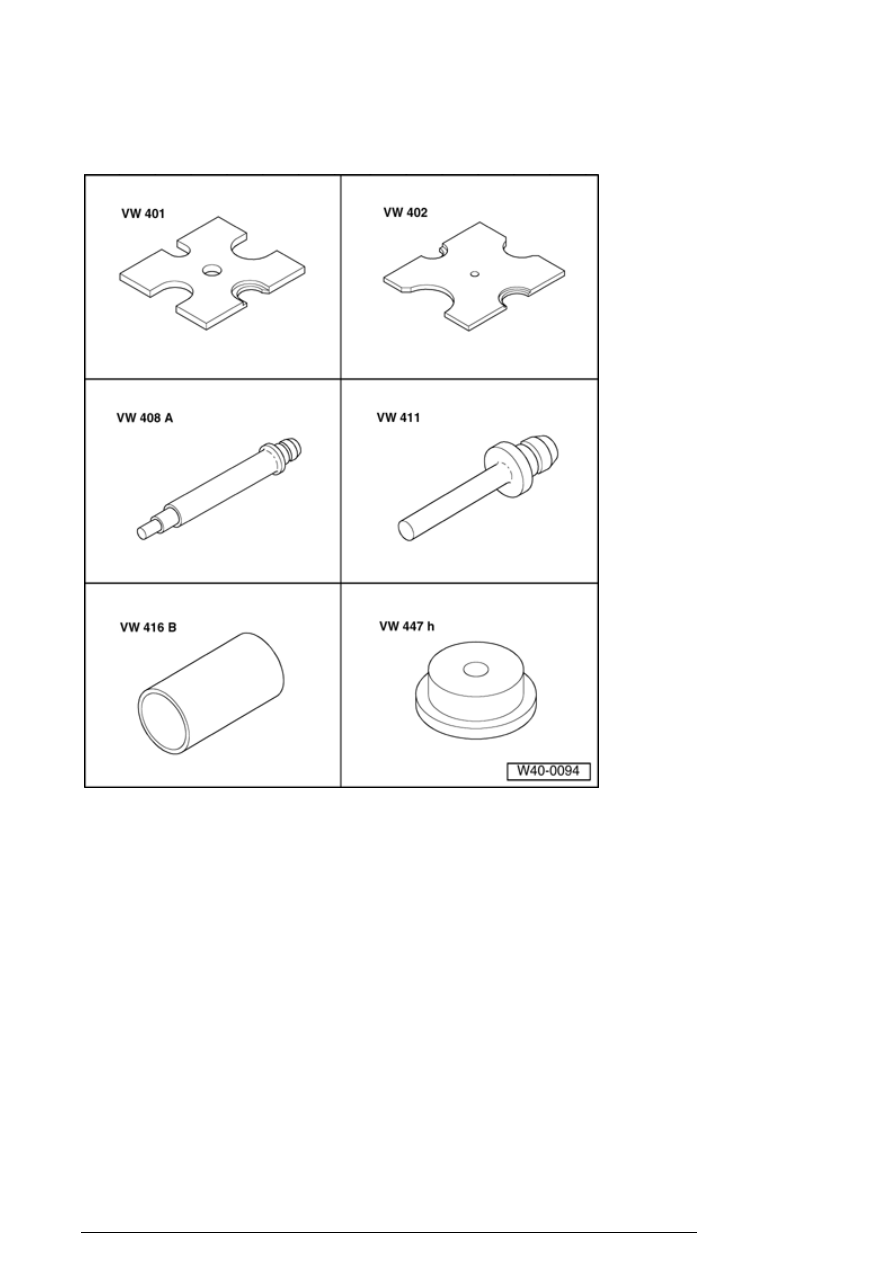

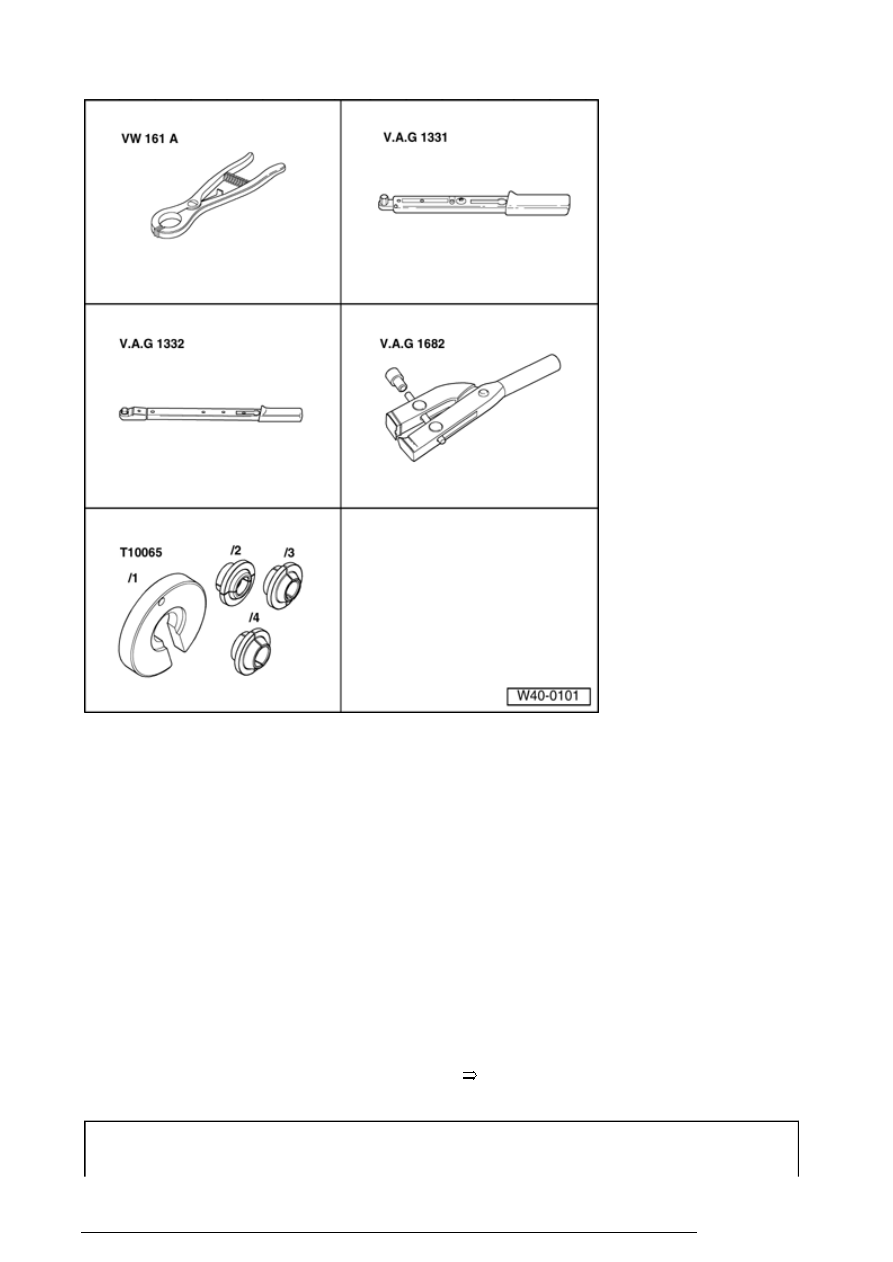

Note:
n
When pressing drive axle out make sure there is
sufficient clearance.
- Remove drive axle.
Installing
Remove any paint residue and/or corrosion on
thread/splines of outer joint.
- Coat with oil before installing axle shaft;
n
The splines of outer joint,
n
The thread of outer joint
n
Wheel hub splines,
n
The contact surface and thread of 12-point nut
with oil.
- Install drive axle.
- Insert outer joint as far as possible into spline in wheel
hub.
- Pull outer joint into wheel hub until outer joint is in position.
- Install drive axle inner joint and initially tighten bolts
diagonally to 10 Nm.
- Tighten multi-point socket head bolts diagonally to 40 Nm
- Lower vehicle until wheels touch ground.

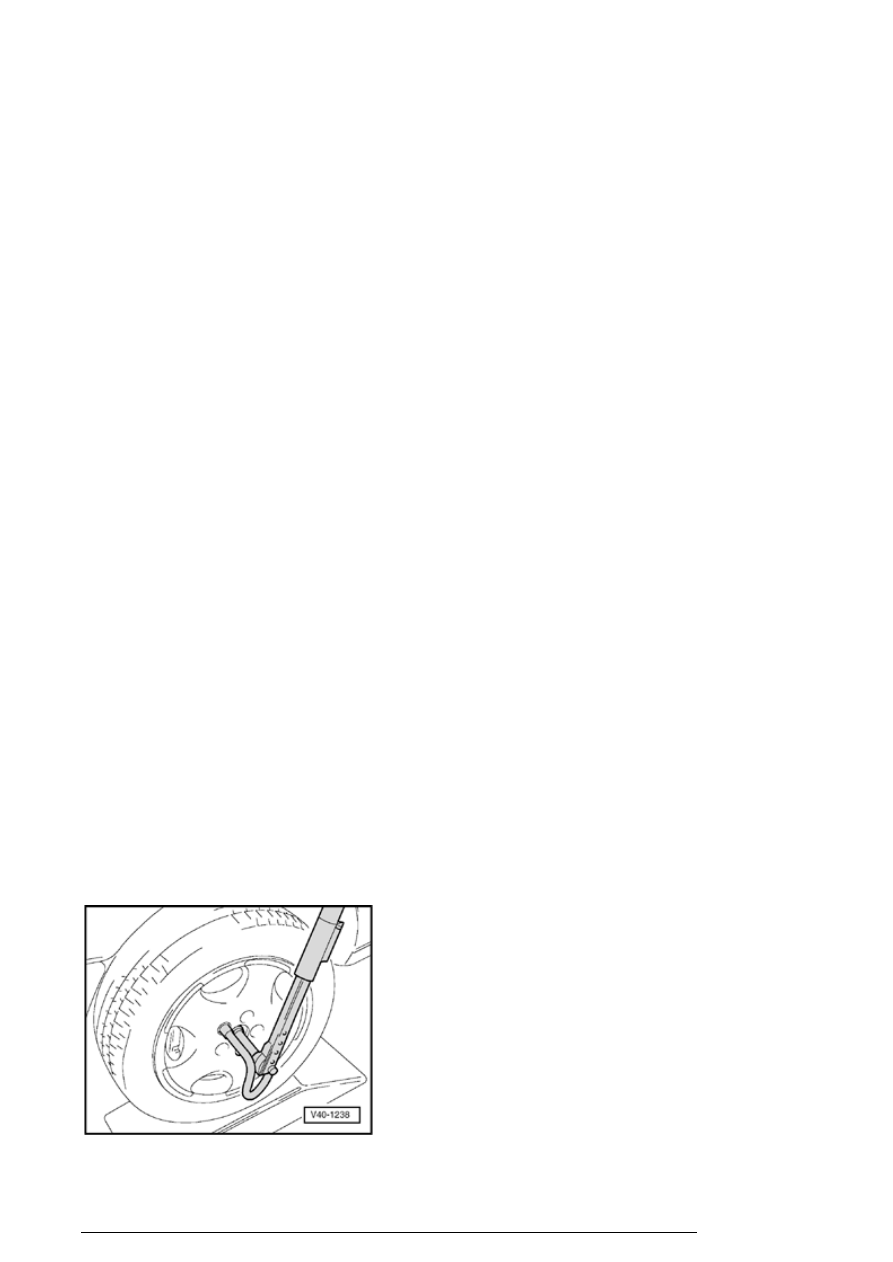

- Tighten 12-point nut to 200 Nm and loosen 1/2 turn.

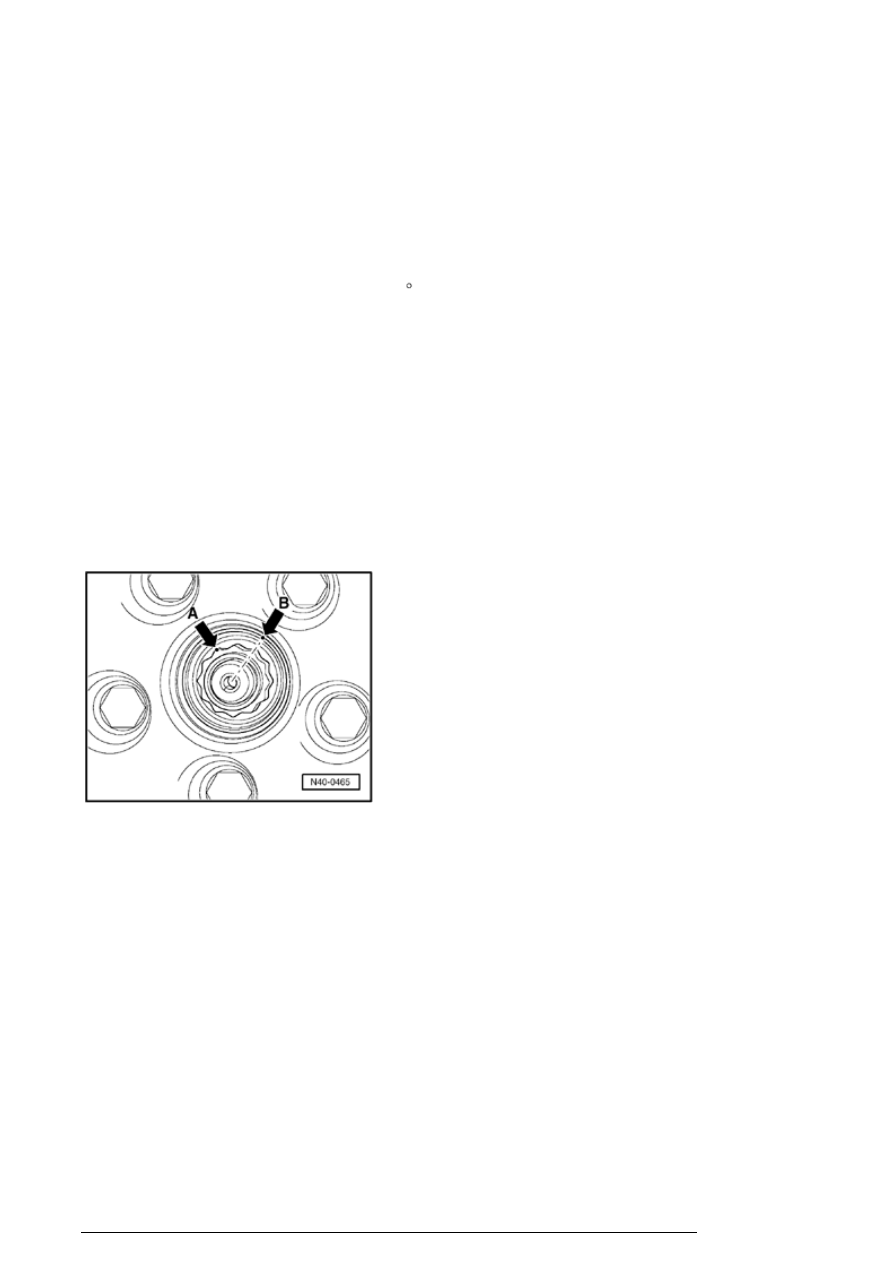

- Tightening 12-point nut.
Rear drive axle, servicing
