are possible

When compressing the spring, high tension exists. Note the
following safety rules.

Caution!

n

Make sure that the spring holders rest as near as
possible against the spring coils.



n

Check the spring holders at the spring coils
during the clamping action for correct seating.



n

Do not use an impact wrench.



Caution!

n

Tighten vehicle to the lifting platform



n

If the vehicle is not secured, there is a risk that it
may slip off the hoist.

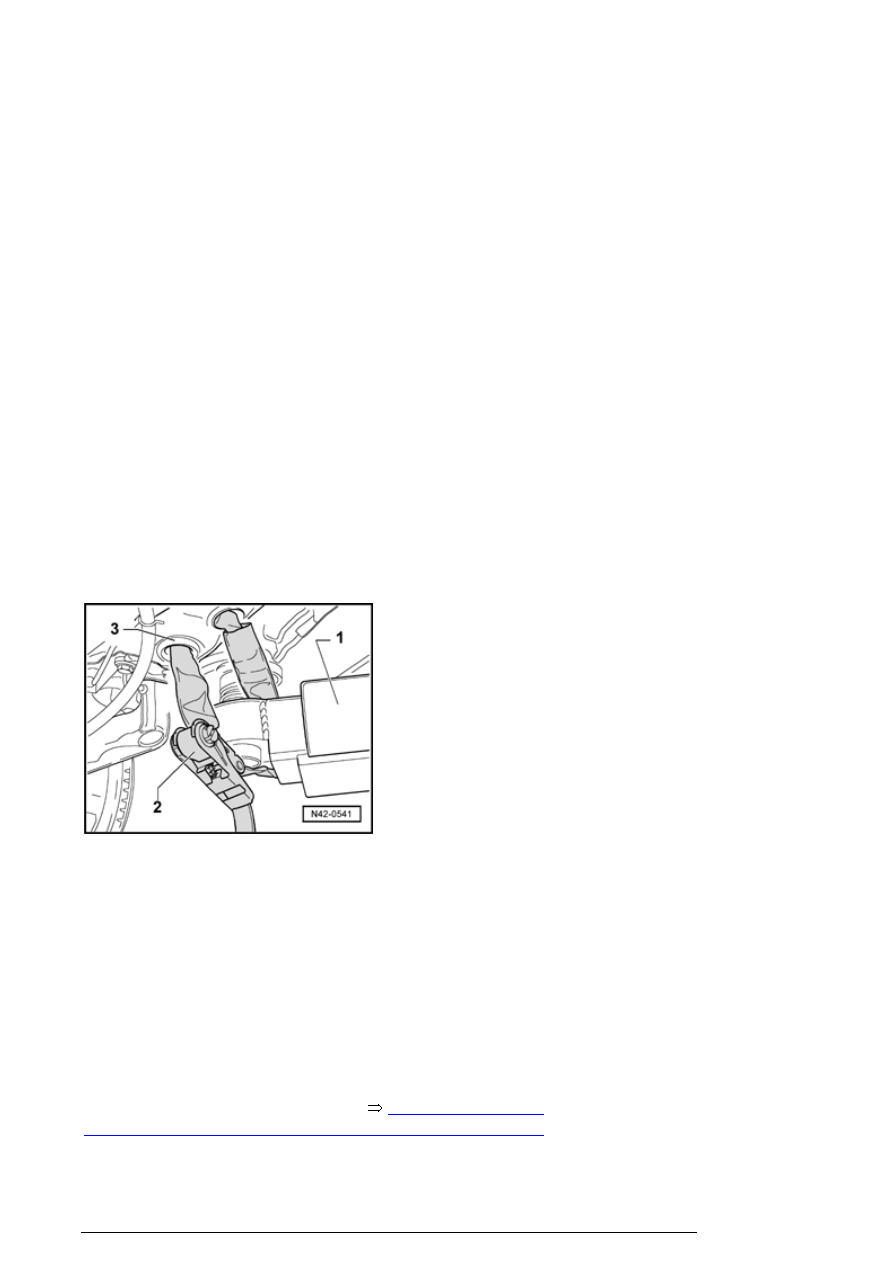

- Remove plugs from trailing arm - 3 - and tighten
tensioning strap - 2 - .

1 - Support lifting platform arm

2 - Tensioning strap T10038

- The vehicle must be tightened with tensioning strap on left
and right side.

Removing left spring



- Removing coupling rod from Left Rear Level Control
System Sensor G76 from rear axle



40-2, Left rear level

control system sensor G76 on rear axle for all wheel drive

 .

Rear axle, servicing (all wheel drive vehicles)

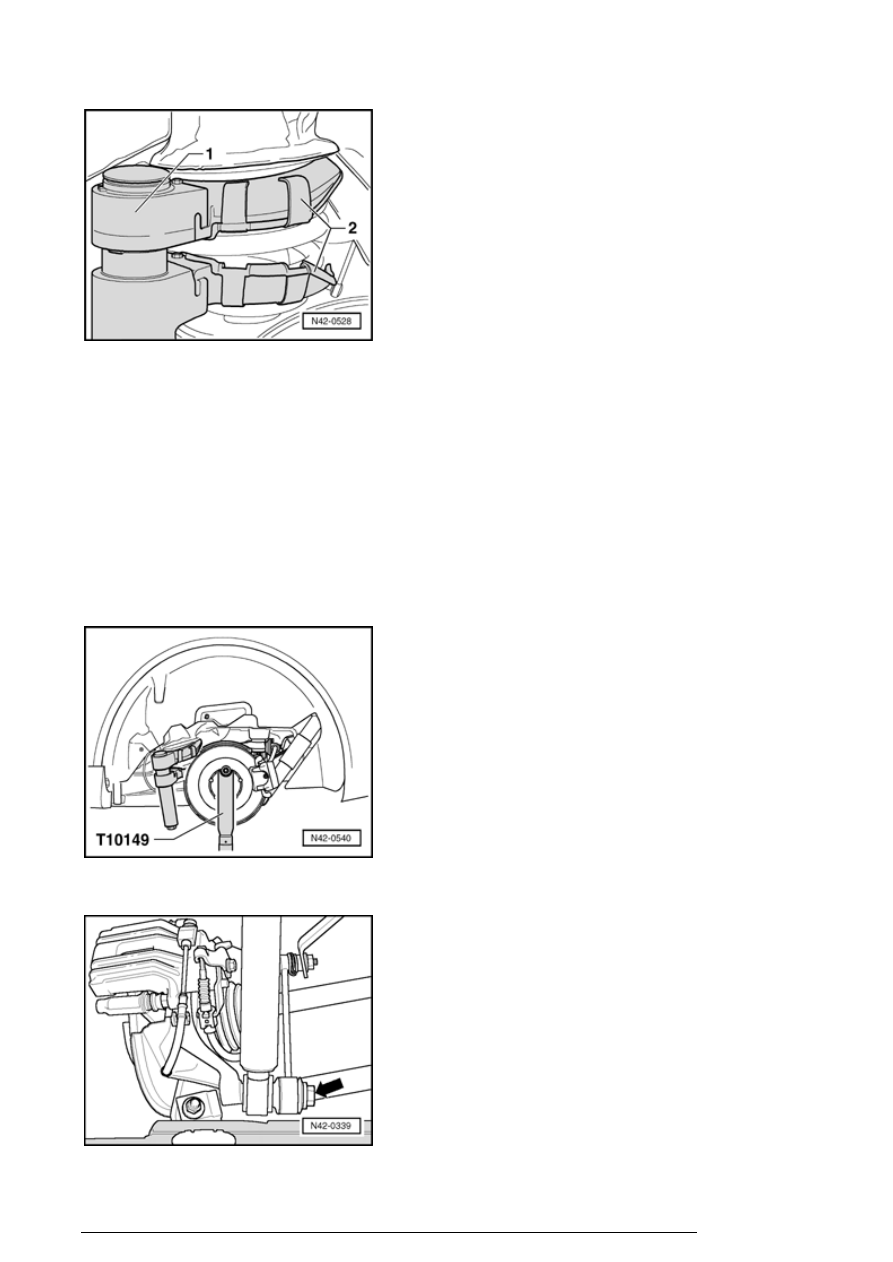

- Insert spring compressor V.A.G1752/1 - 1 - with spring
retainer V.A.G1752/7 - 2 - .

- Turn spring compressor spindle until spring is slightly
tightened.

- Check whether spring holders rest correctly against spring
coils.

- Compress coil spring until spring coils touch each other.

- Turn wheel hub until one of the holes for wheel bolts is at
the 12 o'clock position.

- Install wheel hub support T10149 with a wheel bolt.

Rear axle, servicing (all wheel drive vehicles)





- Remove lower bolt - arrow - from shock absorbers.

- Lower wheel bearing housing approx. 5 cm.

- Take spring with spring compressor from the vehicle.

- Placing spring with spring compressor.

Installing left spring



- When changing spring an exact position must be
observed.

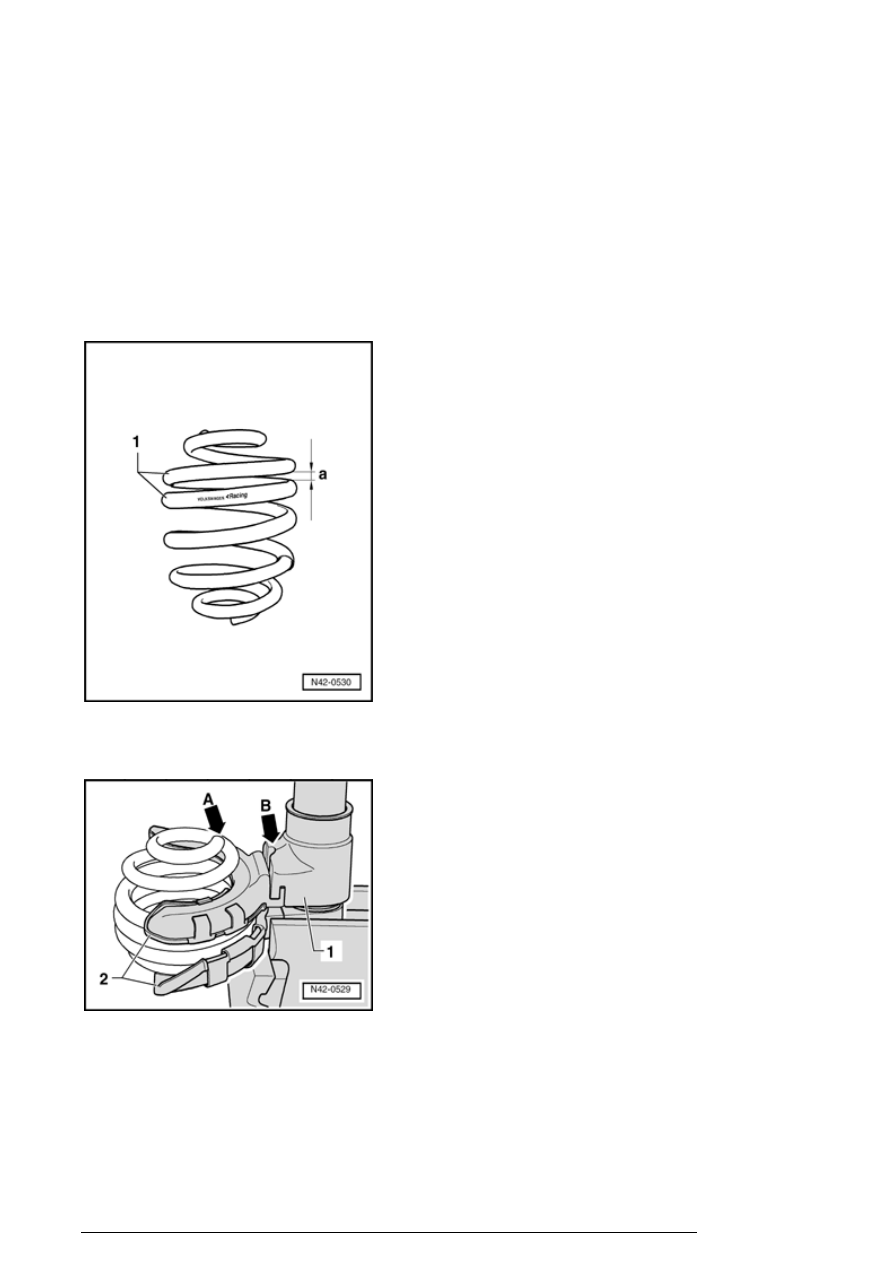

- The spring coils - 1 - with the lowest distance - a - in
vehicle must point upward.

- Compress spring compressor V.A.G1752/1 - 1 - with
spring retainer V.A.G1752/7 - 2 - into a vice.

- Compress spring with spring compressor so that lower
end of spring - arrowA - points to notch in spring
compressor - arrow B - .

Rear axle, servicing (all wheel drive vehicles)





Both narrow coil springs that point to one another, point
downward.

- Turn spring compressor spindle until the spring is slightly
tightened.

- Check whether spring holders rest correctly against spring
coils.

- Compress coil spring until spring coils touch each other.

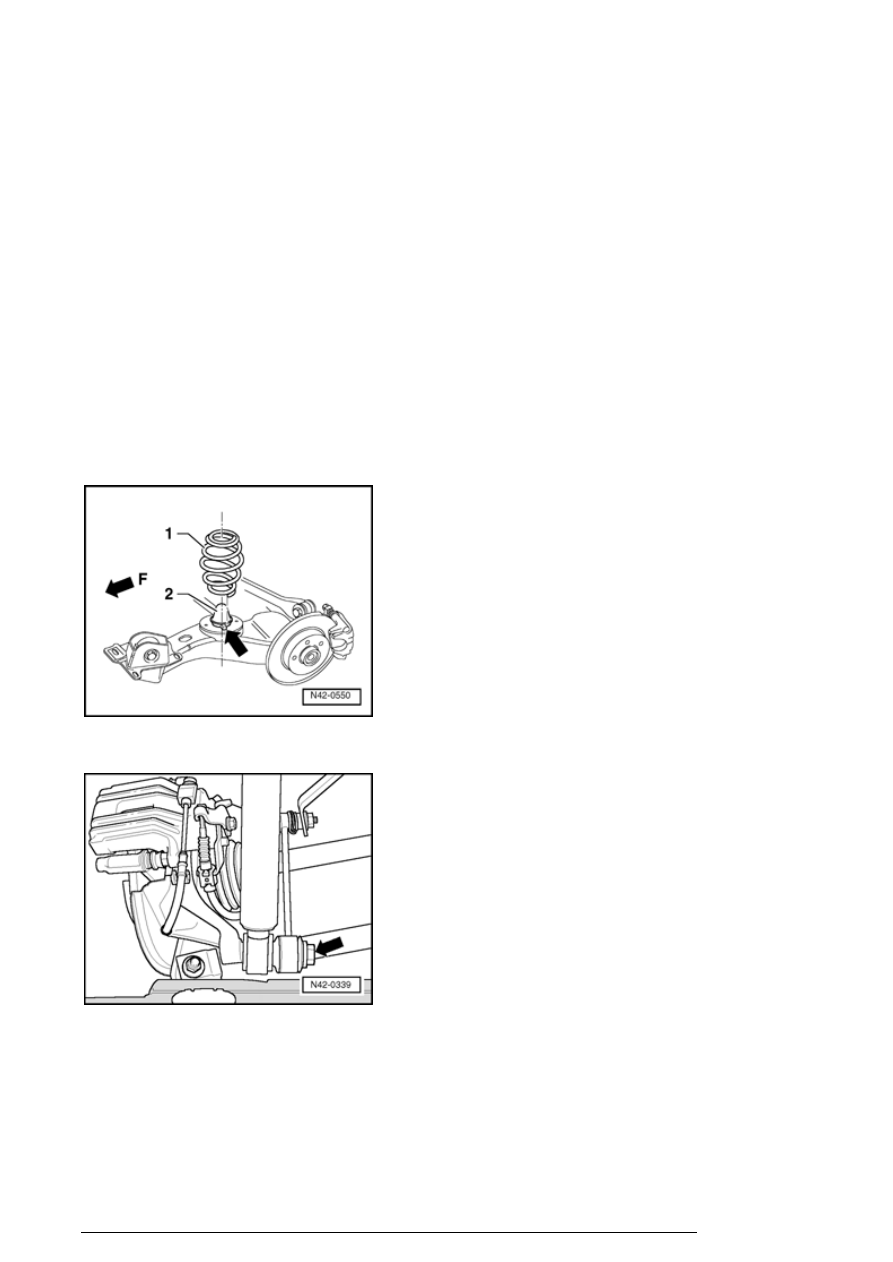

Installation position of spring

1 - Spring

2 - Bump stop

F - Driving direction

The end of coil spring must lie against stop - arrow - .

- Set spring with spring compressor V.A.G1752/1 .

- Screw lower bolt - arrow - to shock absorbers.

- Release spring tension by turning spindle clockwise.

- After releasing spring tension, check installation position

- Do not use an impact wrench or similar!
