6. Thrust washer
¡
Installation location
40-5,
Installing spring washer and
thrust washer on outer joint
7. Spring washer
¡
Installation location
40-5,
Installing spring washer and
thrust washer on outer joint
8. Clamp
¡
Always replace
¡
Tightening with pliers
V.A.G1682
40-5, Tightening
clamp on outer CV joint boot
9. Protective boot
¡
Check for tears and chafing
¡
Material: Hytrel
(Polyelastomer)
10. Clamp
¡
Always replace
¡
Tightening
40-5, Tightening
clamp for CV joint boot (inner,
small dia.)
11. Axle shaft
12. Protective boot for inner constant
velocity joint
¡
Material: Rubber
¡
With vent hole
¡
Check for tears and chafing,
replace if necessary
13. Clamp
¡
Always replace

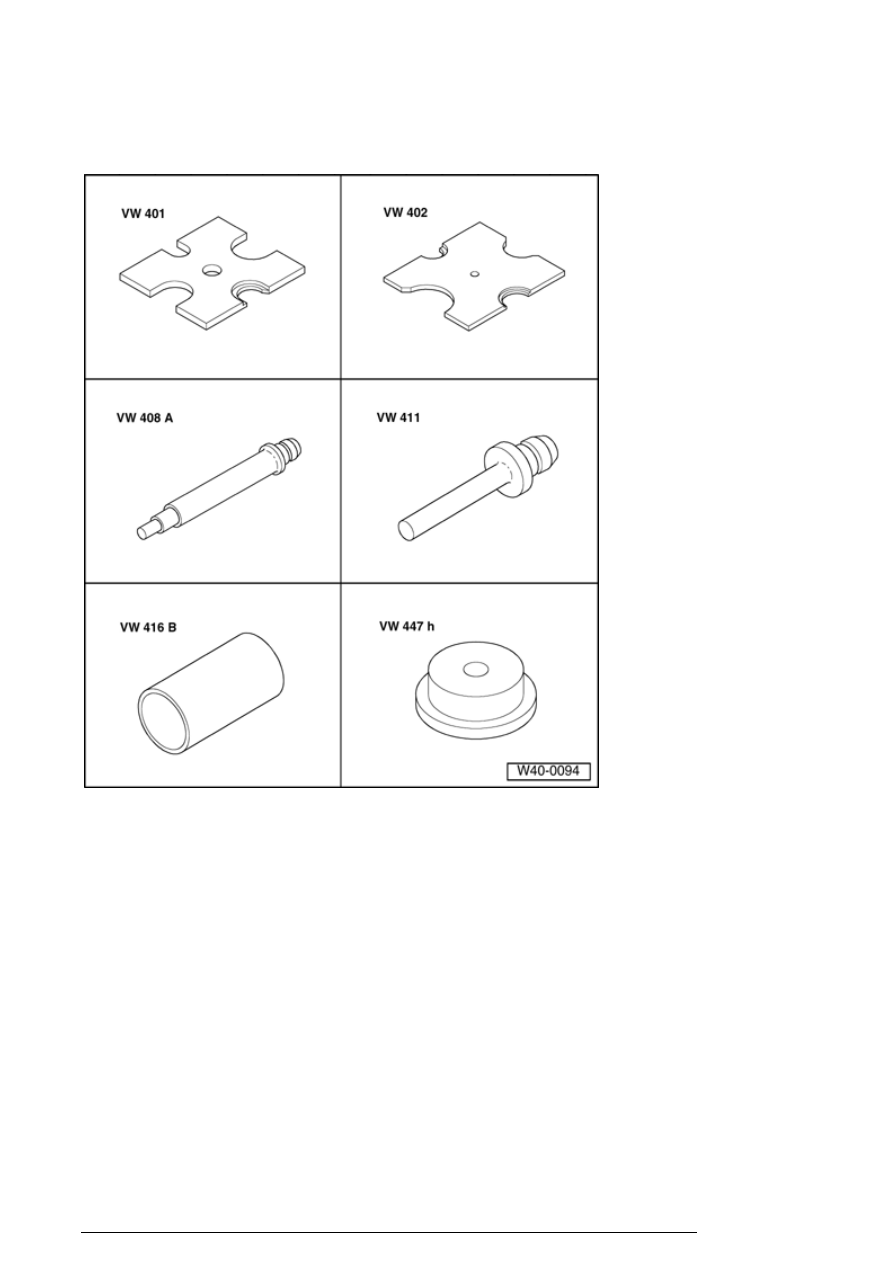

Front drive axle, servicing
