30-15







Removing





-  Request code on vehicles with coded radio if

necessary.





-  Disconnect battery with ignition switched off.



 Repair Manual, Fuel Injection & Ignition, Repair

Group 24; Removing and installing air cleaner

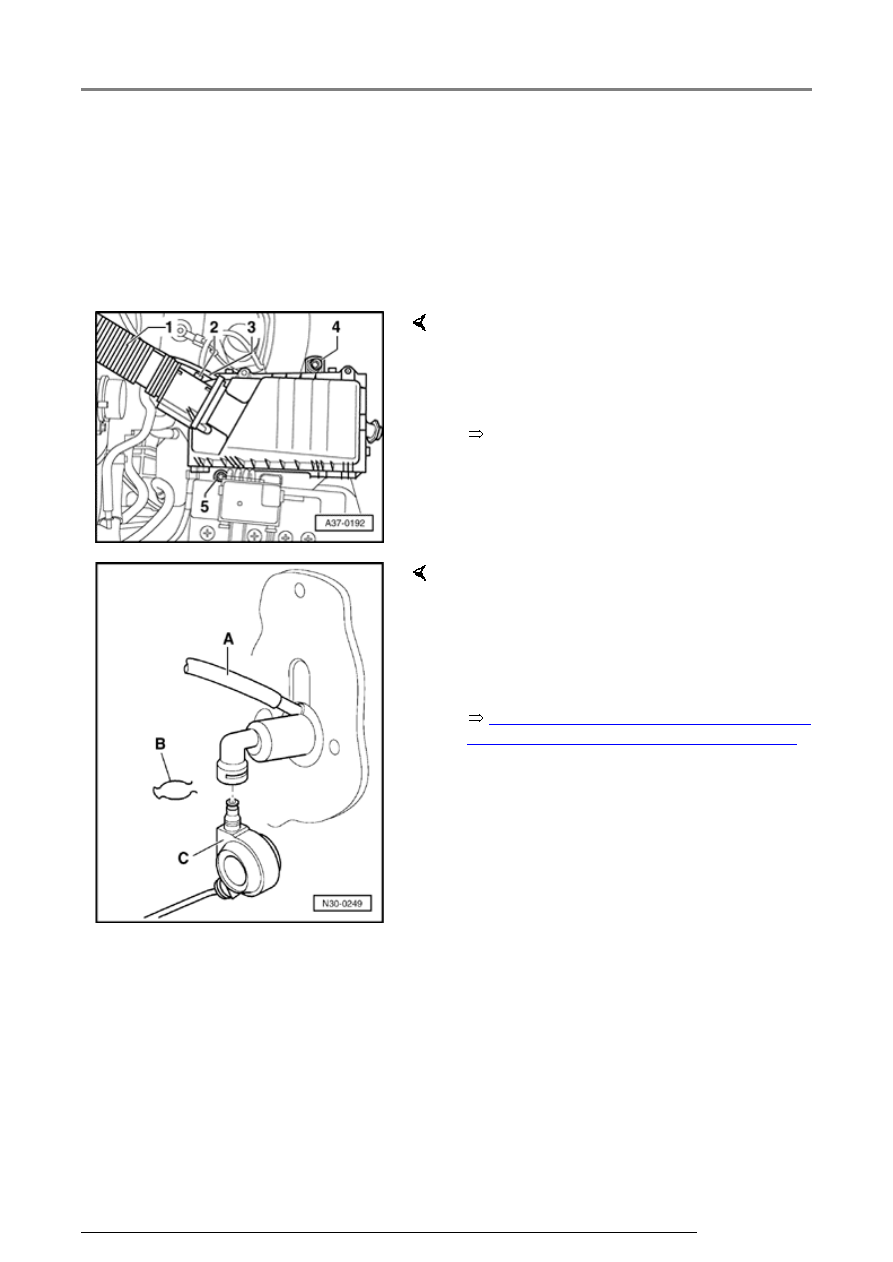

-  Remove intake hose -1-, connector -2- and hose

-3- from Mass Air Flow Sensor.

-  Remove complete air cleaner housing, to do

this, unscrew bolts -4- and -5-

-  Disconnect supply hose -A- to brake fluid

reservoir and seal it.





Repair Manual, Body Interior, Repair Group 70;

Removing and installing instrument panel



-  Remove clip -B-, which secures line/hose to

clutch master cylinder.

-  Separate line/hose assembly -C- from master

cylinder and seal it.

-  Remove covers/lower driver's side.

Clutch mechanism, repairing

30-16







  -  Turn clutch pedal switch 45  to left and pull

out from support.



  -  Separate master cylinder operating rod from

clutch pedal as follows:

  -  Pull clutch pedal lightly toward passenger

compartment.

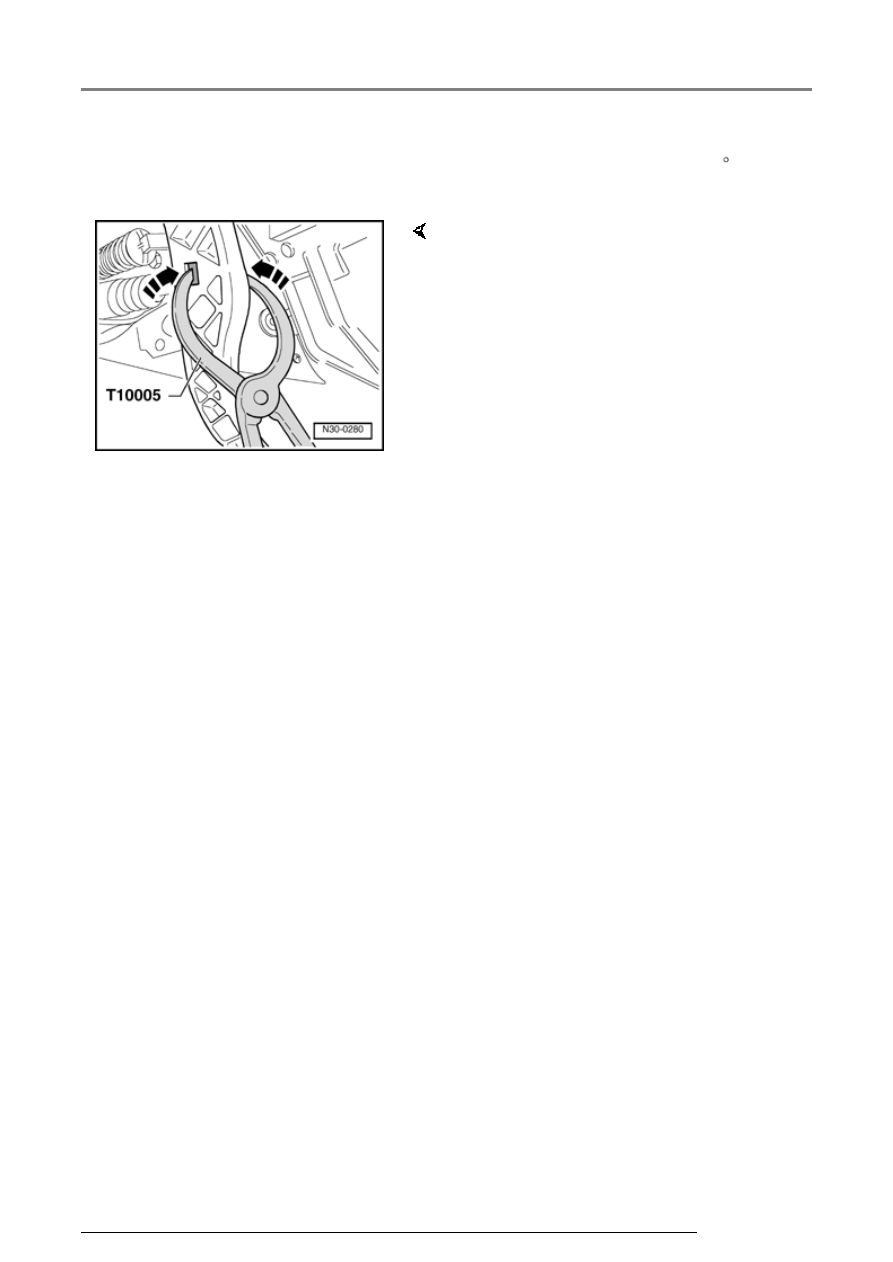

  -  Press both sides of mounting inward using

pliers T10005 (arrows).

Clutch mechanism, repairing

30-17





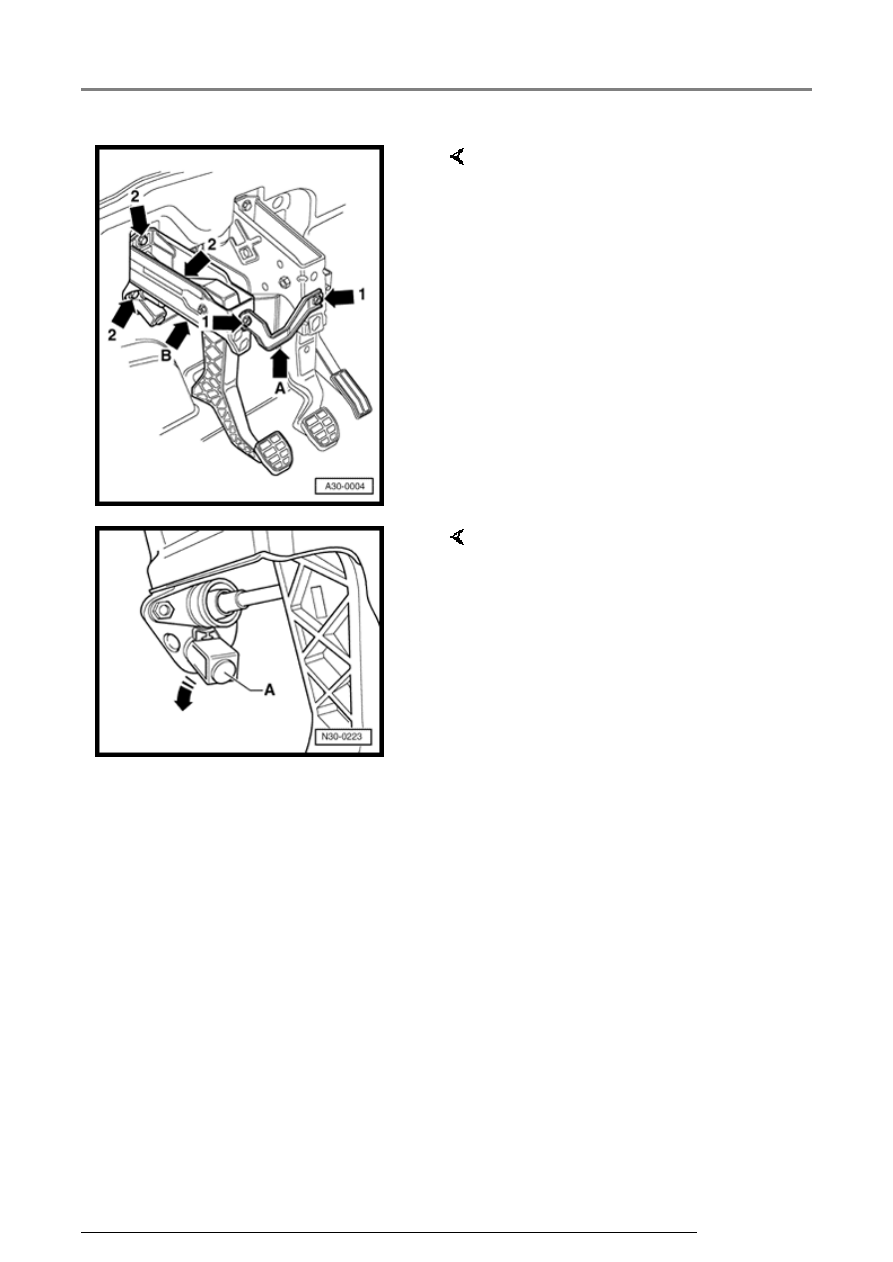

-  Remove entire clutch pedal

support as follows:

  -  Remove connecting plate -A-

first (arrows -1-).

  -  Remove securing nuts (arrows -

2-) for support -B-.

  -  Take off mounting bracket.



-  Turn stop -A- of clutch pedal in

direction of arrow and remove.

Clutch mechanism, repairing

30-18





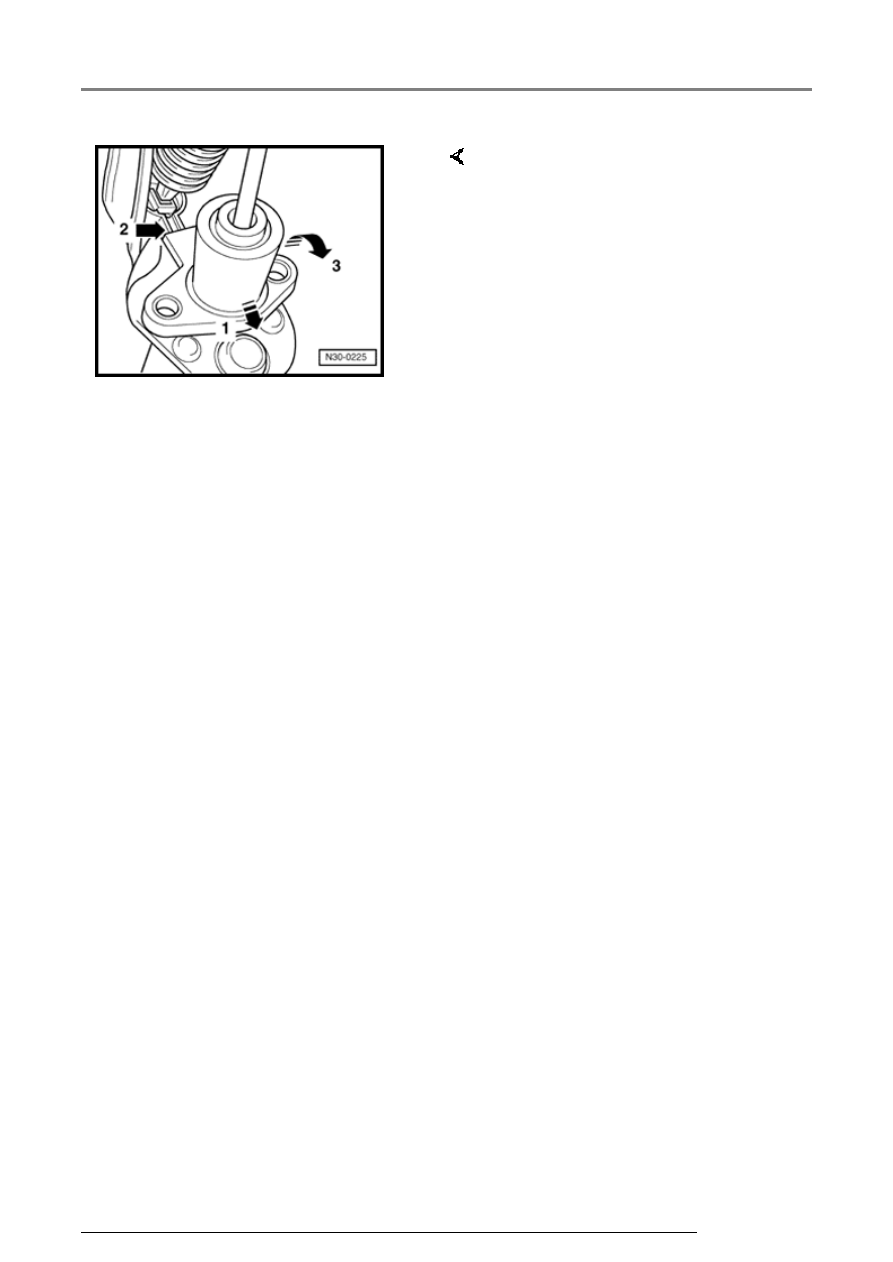

It must not be covered in upper area
by over center spring mounting
(arrow -2-).

-  Push master cylinder first in

direction of arrow -1- onto stop.

-  Swing it in direction of arrow -3-

out of mounting bracket.
