Volkswagen Golf / Golf GTI / Jetta. Manual - part 181





01-266



Display group 95 - Performance improvement - Variable intake manifold change
over


 While driving

Read measured value
block 95



 Indicated on

display





xxxx
rpm

xxx.x

%

xxx.x

C

Text













 Display zones

Specification

Evaluation









Variable intake
manifold change-over
status

(IMC-V OFF / IMC-V
ON)

IMC-V OFF /

IMC-V ON

---







Coolant temperature

80.0...110.0

C



Page 01-

195







Engine load

12.0...100.0 %

---



Engine speed

640...6500

rpm

---

Note on display zone 4:

The variable intake manifold change-over can be activated by a strong burst of the
throttle below 4400 rpm. If the final control element on the intake manifold does not
perform the change-over, check intake manifold change-over



Page 24-117

 .

Measured value (data) blocks

01-267



Measured value blocks, display groups 120...129 - Communication,
evaluating



Display group 125 - Communication - Can-bus messages

 Engine running at idle

Read measured value block
125



 Indicated on

display





Text

Text

Text

---













 Display zones

Specification   Evaluation









No display

---

---







Combi status

Combi 1

---





ABS status

ABS 1

---



Transmission status

Gear. 1

---

Note on display group 125:

Specification = 1; control modules with active Can-bus are displayed.

Measured value (data) blocks

24-1





Fuel
injection
system,
servicing

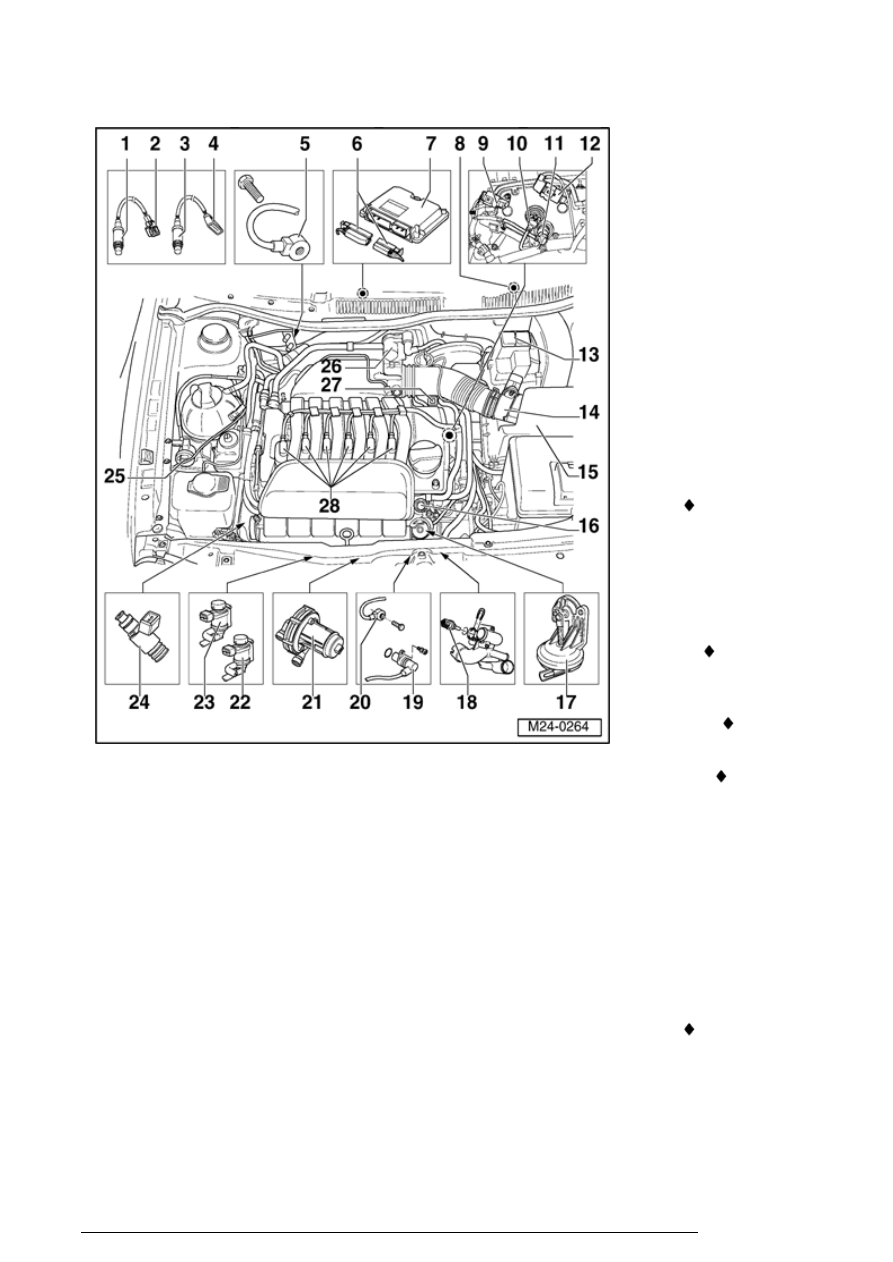

Component
locations
overview



1 - Heated

Oxygen
Sensor
(HO2S)
-G39-,
50 Nm


 Component

location: In
front
exhaust
pipe

2 - Connector

 Gold

plated
terminals

 Black,

6-pin

 For

Heated
Oxygen
Sensor
(HO2S)
-G39-
and
Oxygen
Sensor
(O2S)
Heater
-Z19-

 Component

location:
Right on
underside
of vehicle

3 -

Oxygen

Fuel injection system, servicing

Sensor
(O2S)
Behind
Three
Way
Catalytic
Converter
(TWC) -
G130-, 50
Nm


 Component

location:
Behind
Three Way
Catalytic
Converter
(TWC) -
G130-

Fuel injection system, servicing
