converter is at operating temperature. Otherwise unburnt
fuel may pass into catalytic converter and cause damage.




When towing a vehicle with automatic transmission
following additional points must be observed:

Selector lever must be in "N" position.

Do not tow vehicle faster than 30 mph (50 km/h).

Do not tow further than 30 miles (50 km).




If towing over greater distances, vehicle must be
suspended at front.



Reason: When engine is not running transmission oil pump
is not working and transmission is not adequately
lubricated for high speeds or long distances.



Using a breakdown vehicle, vehicle may only be towed
suspended at front.



Reason: If given a rear suspended tow, drive shafts turn
backward. This would cause planetary gears in automatic
transmission to achieve such a high rpm that transmission
would be heavily damaged within a very short time.

For vehicles with all wheel drive:





Using a breakdown vehicle vehicle may be towed
suspended at front or rear.

Note:

Do not tow at speeds greater than 30 mph (50 km/h).

Maximum towing distance is 30 miles (50 km).


Note:

If normal towing of vehicle is not possible, vehicle must be
transported on a special transporter or trailer. This is also
valid for distances greater than 30 miles (50 km).


General

13/2/2005

7





Description of work (part 1 of 2)



Instrument panel cluster, adapting language



Note:

The language variations for driver information can only be
adapted for midline and highline instrument panel clusters.

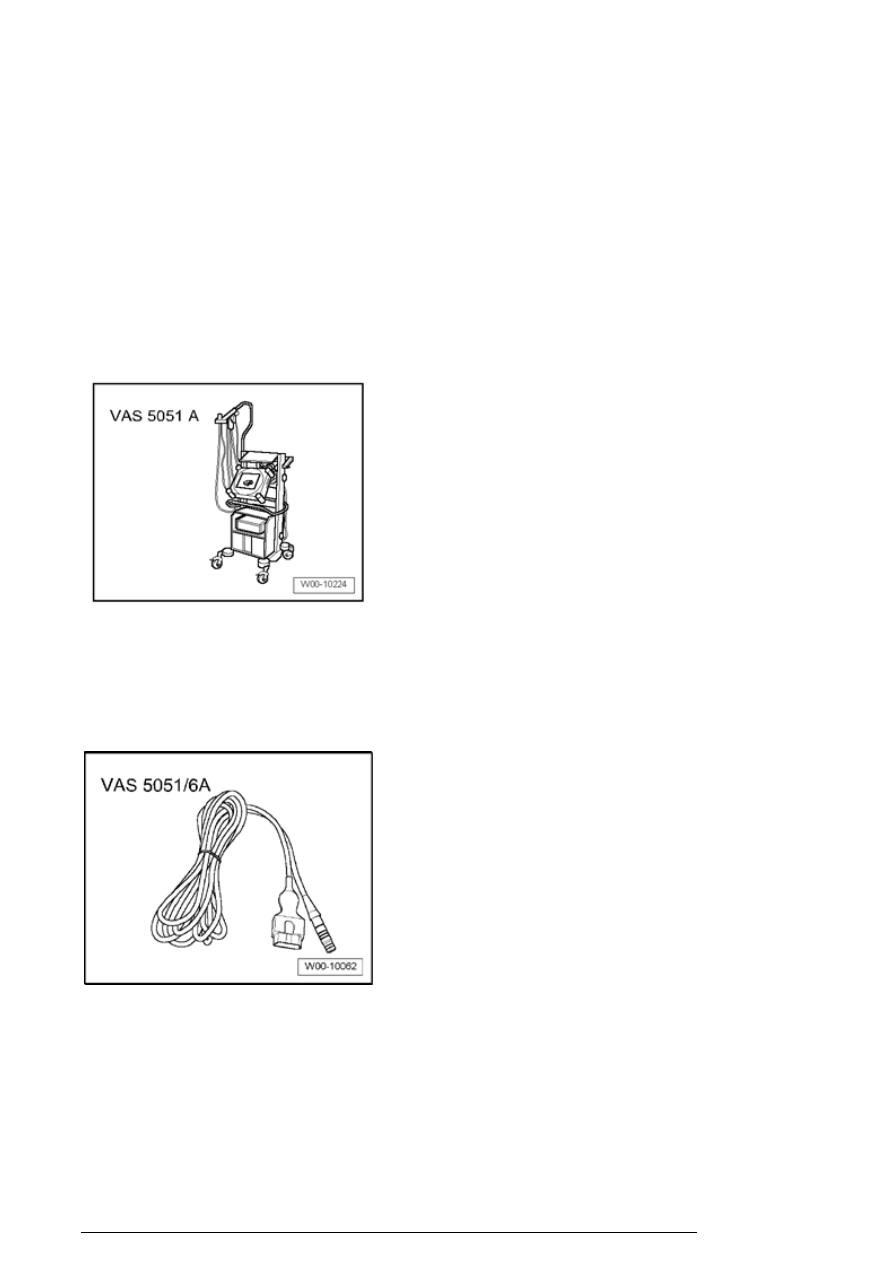

Special tools, testers and auxiliary items required

Vehicle Diagnosis, Testing and Information System VAS
5051 A or

Vehicle Diagnosis and Service System VAS 5052 or
subsequent devices


Diagnostic cable VAS 5051/6A


- Connect the diagnostic tester.

- Switch ignition on.

- On the display of the diagnostic tester, select the mode of
operation "Guided Fault-finding" .

Description of work (part 1 of 2)

13/2/2005

- Then, perform the vehicle identification procedure on the
diagnostic tester.

- Select "Instrument cluster" on the display.

- Select "Adapting language for Navigation" on the display.

- Confirm the selection by pressing the right arrow.

- Select the appropriate language and confirm with  "Yes" .

- Complete the language adaptation by pressing the "Go
to" and "End" buttons.

- Switch ignition off.

Power windows, 8-way memory seat,
perform initialization (activation)

Power windows, perform initialization



Note:

Automatic opening and closing features for power windows
do not function after disconnecting battery. Therefore,
power windows must be reinitialized before a new vehicle
is delivered. Do not disconnect battery again after
initialization of power windows.


Warning!



After disconnecting and connecting the battery the
excess force limitation function of the power windows
does not function. This can cause serious injuries if
e.g. fingers are caught in the window!



Make sure the customer is aware of this!



Perform the following work sequence to initialize the
electric windows:

- Lock all doors completely.

- Lock the vehicle doors from the outside, either at the
driver or passenger front door..

- Unlock vehicle.

- Lock the vehicle doors again from the outside, either at
the driver or passenger front door.. Hold the key in the
locking position for at least 1 second.

8-way memory seat, perform initialization



Description of work (part 1 of 2)

13/2/2005



Note:

After disconnecting and connecting the vehicle battery, the
power seat memory system does not function. Before
delivering a new vehicle the memory seat must be
initialized. Thereafter, the vehicle battery should not be
disconnected again.




To initialize the electric seat memory system, perform the
following work sequence:

- Open the driver door.

- Switch ignition on.

- Adjust the seating surface all the way up and forward until
it stops.

- Adjust the back rest all the way forward until it stops.

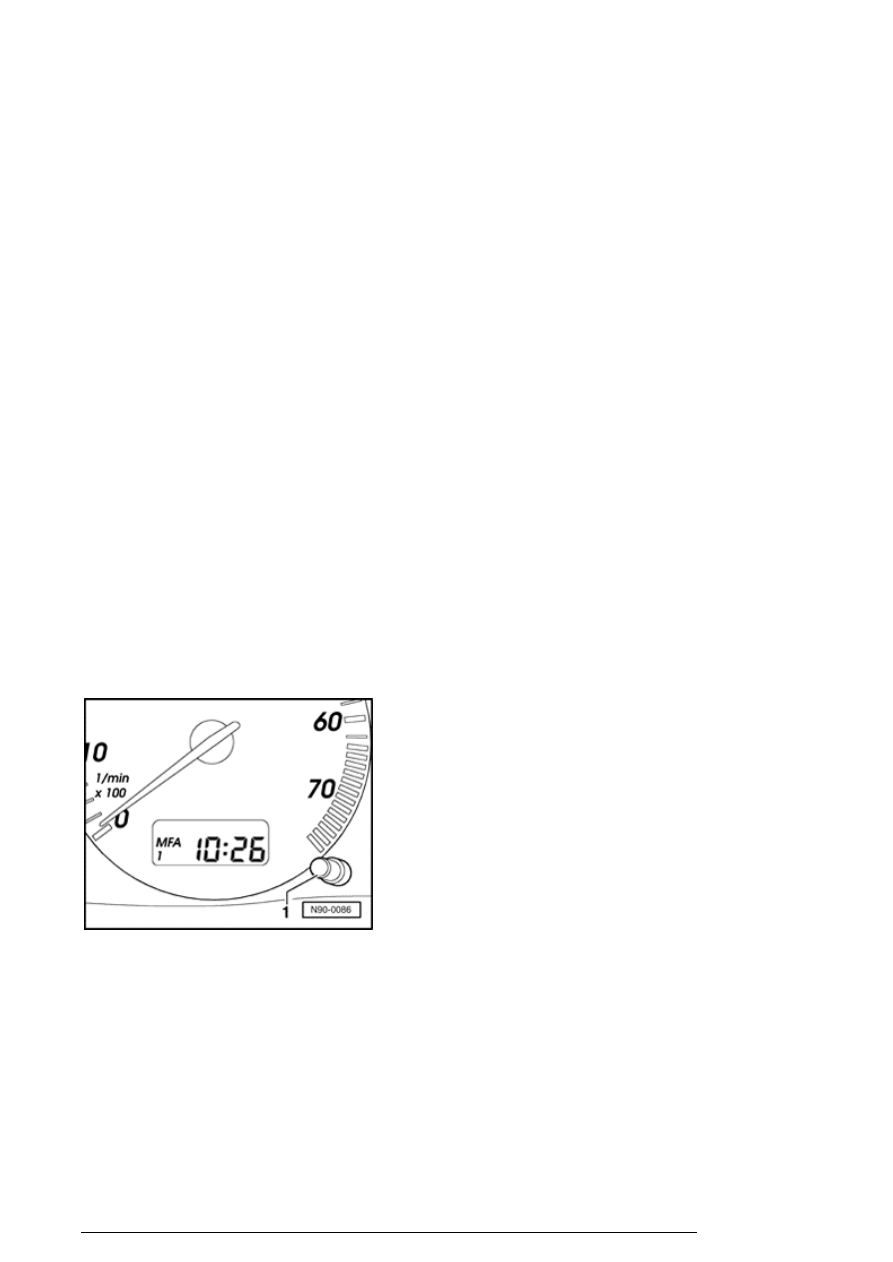

Clock, setting





Please perform adjustment as follows:



Hour setting:

- Turn the adjusting button - 1 - (to the lower right of the
tachometer) counterclockwise.



With every brief turn of the adjusting button, the setting
changes by one hour. When turning and holding the
adjusting button, the setting continually adjusts.



Minute setting:

Description of work (part 1 of 2)
