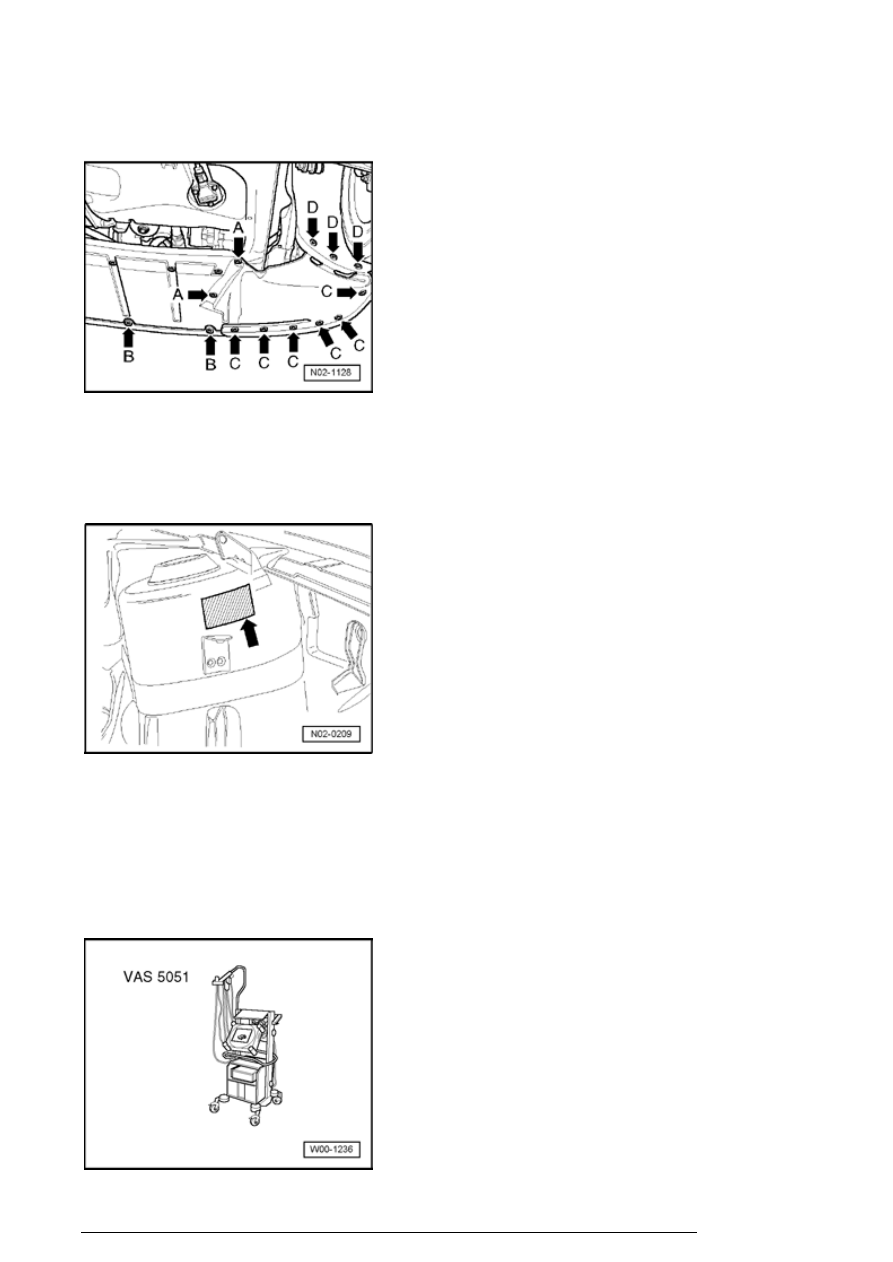

- Install screws - arrow D - at wheel house liners and
tighten to 1.5 Nm.

- Install front wheels and tighten to specified tightening
torque.

Type plate



- The type plate - arrow - is found on the right strut tower.

- Vehicles for certain countries have no type plate.

Diagnostic scan tool, connecting



Special tools, testers and auxiliary items required

General

13/2/2005





Vehicle Diagnosis, Testing and Information System VAS
5051A

or Vehicle Diagnosis, Testing and Information System VAS
5052


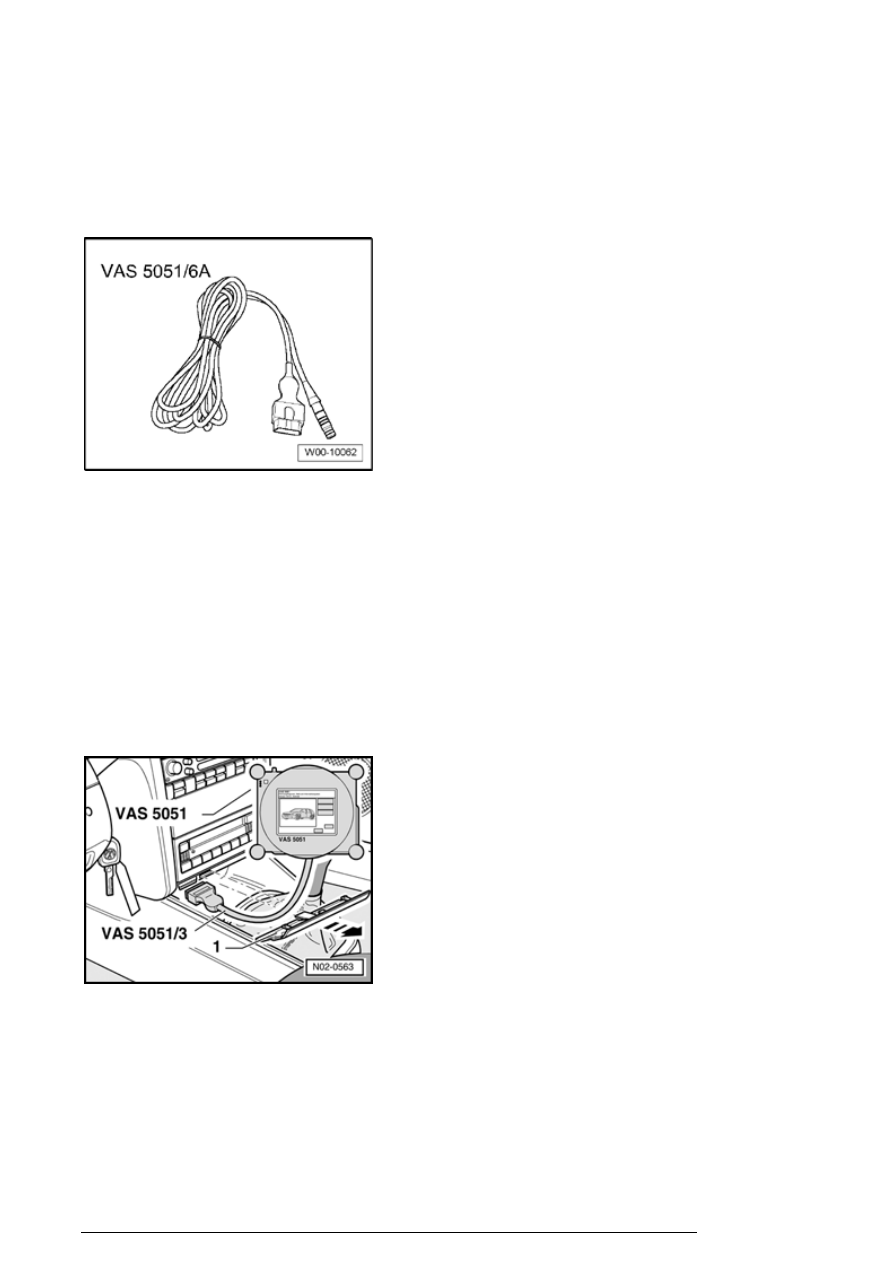

Diagnostic cable VAS 5051/6A


- Perform the following work sequence.

- Apply parking brake.

- Automatic transmission: Set selector lever in position "P"
or "N" .

- Manual transmission: Gear stick in neutral.

Connect the Vehicle Diagnosis, Testing, and Information
System VAS 5051A with the ignition off as follows:

- Open the cover - 1 - for the diagnostic connector above
the ashtray.

- Connect Vehicle Diagnosis, Testing and Information
System VAS 5051A using the Diagnostic cable VAS
5051/6A with ignition switched off.

- Switch ignition on

General

13/2/2005





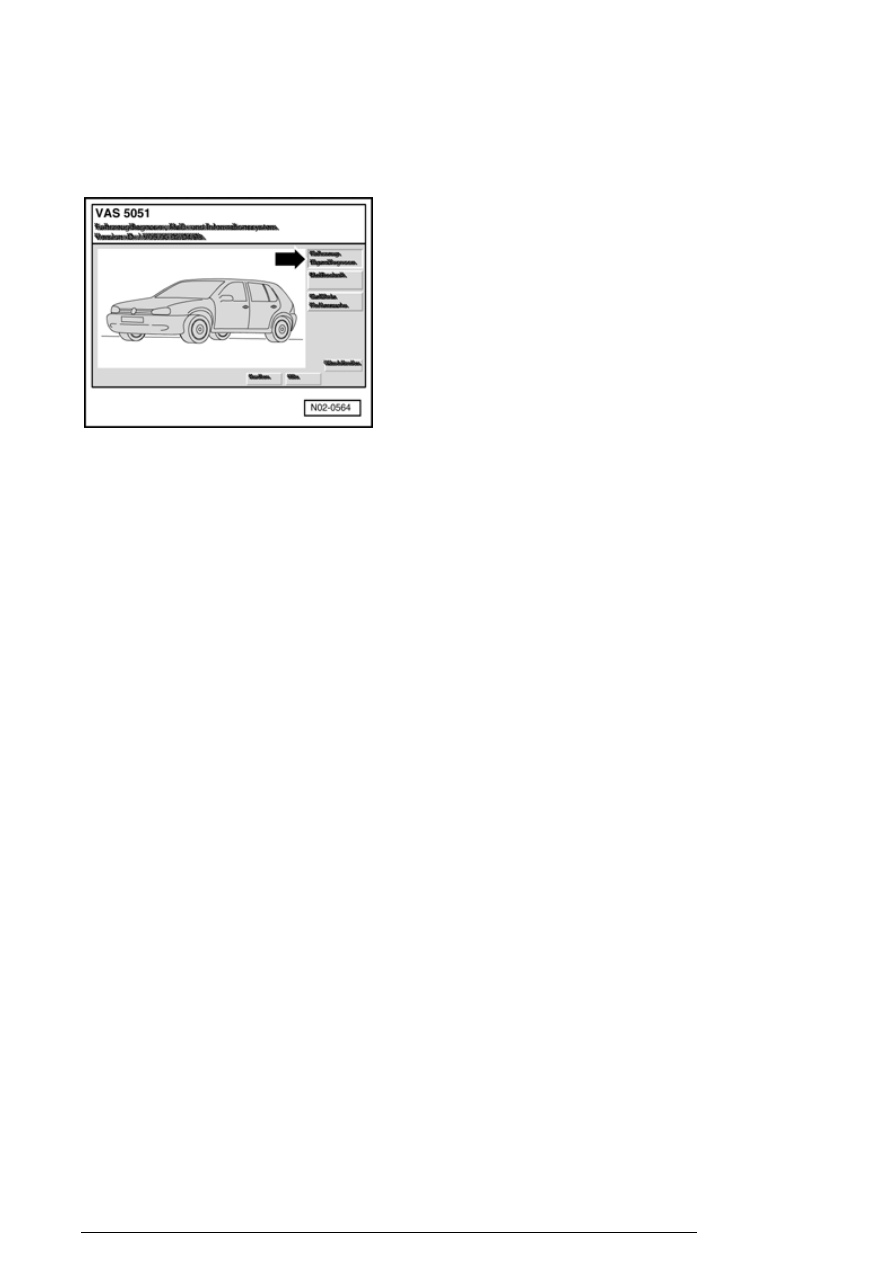

Indicated on display:

- Press button/field for " "Guided Fault Finding" or "Guided
Functions" on screen.

- Select one after another:

Brand

Model

Model year

Version

Engine Code


- Confirm data entered.

Note:

Wait until tester has checked all control modules in vehicle.


- Press "Goto" button and select "Function/component
selection" function



Now follow information given on screen to start the desired
functions.

Vehicle Identification Number (VIN)



General

13/2/2005

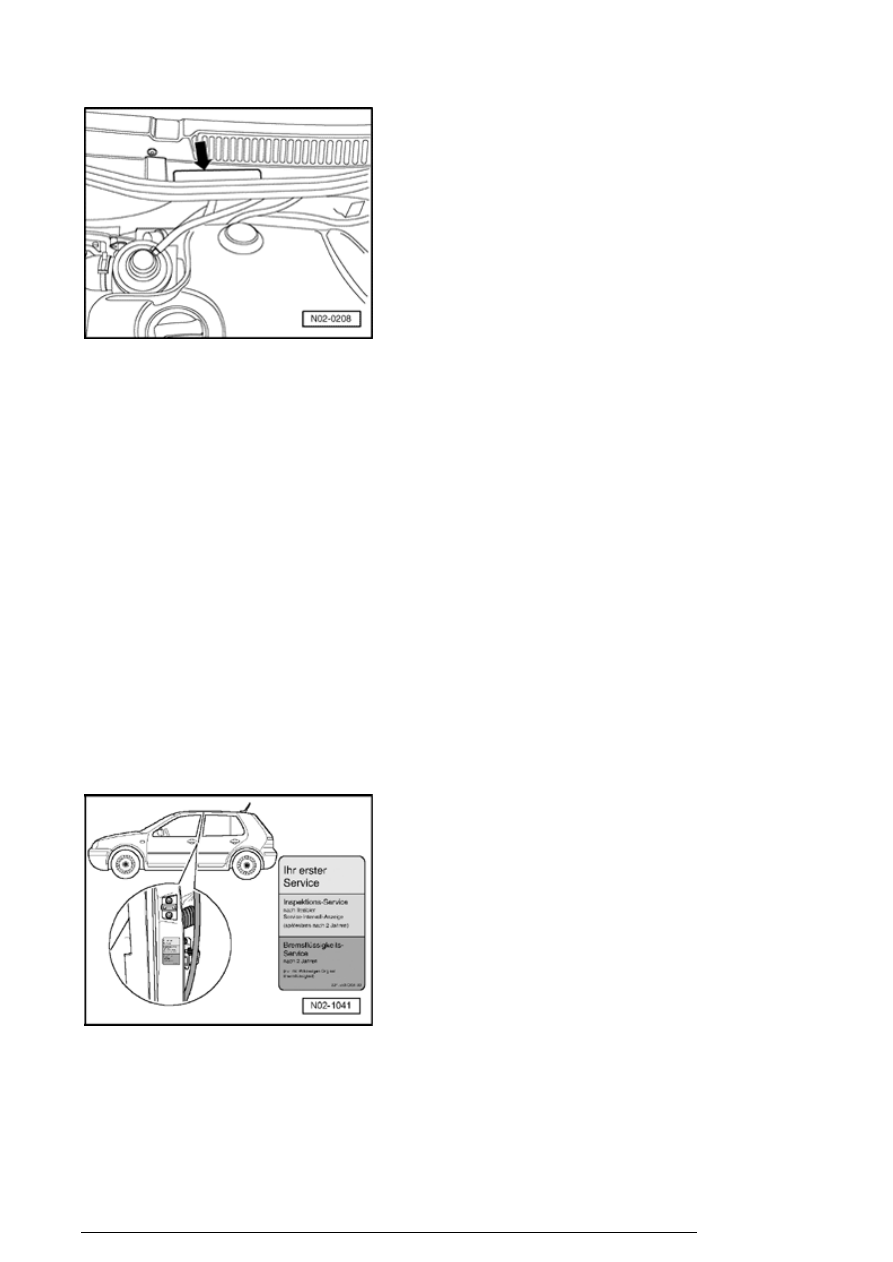

The vehicle identification number is found in the plenum
chamber. It is visible through a window - arrow - in the
plenum chamber cover.



Meaning of Vehicle Identification Number (VIN):

WVW

ZZZ

1J

Z

Y (3)

1)



W

000 279

Manufacturer

code

Filler

characters

Model

Filler

characters

Model year

2000

Production

location

Serial

number

1)

Model year 2003

Service sticker, applying



Apply sticker "First service" (delivery
inspection):

Apply sticker "Next service"

"First service" sticker

- Apply sticker on drivers side door jamb (B-pillar); sticker is
located on an instruction which is attached at front in
vehicle wallet. Destroy instruction after attaching sticker!

Apply sticker "Next service" :

General
