4

Delivery inspection



⇒ Additional Information. Maintenance Schedule for
appropriate model year

Delivery inspection

13/2/2005

5



Maintenance service



⇒ Additional Information. Maintenance Schedule for
appropriate model year

Additional Information about GTI 337 Edition

Work to be completed

Page

Vehicle exterior

- Installing equipment which has been packed inside
vehicle (if part of original equipment): Mats, wiper arms,
spoilers, roof antenna, wheel trims/cover caps, tire valve
extensions.



01-6, Equipment which

has been packed inside

vehicle, installing



- Wheel securing bolts (lug nuts): Tighten to correct torque
setting



01-7, Wheel bolts, tighten

to correct torque setting



- Assembly tool for wheel trim: Place with vehicle tools
(only GTI 337 Edition)



01-7, Wheel bolts, tighten

to correct torque setting



Vehicle interior

- Telematics transport mode deactivation with VAS 5051
"Guided Fault Finding" and initialization of telematics
service



Maintenance service

13/2/2005

6



General



Engine compartment trim (sound insulation), removing and
installing



01-6, Engine compartment trim (sound

insulation), removing and installing



Type plate



01-6, Type plate



Diagnostic unit, connecting



01-6, Diagnostic scan tool,

connecting



Vehicle Identification Number (VIN)



01-6, Vehicle

Identification Number (VIN)



Vehicle data sticker



01-6, Vehicle data sticker



Engine code and engine number



01-6, Engine code and

engine number



Vehicle, lifting



01-6, Vehicle, lifting



Tow starting/towing



01-6, Tow starting/towing



Equipment which has been packed inside
vehicle, installing





Front valance spoiler (Jetta GLI)

- Before installing front valance, cut retaining plastic strap
on both sides of vehicle

General

13/2/2005

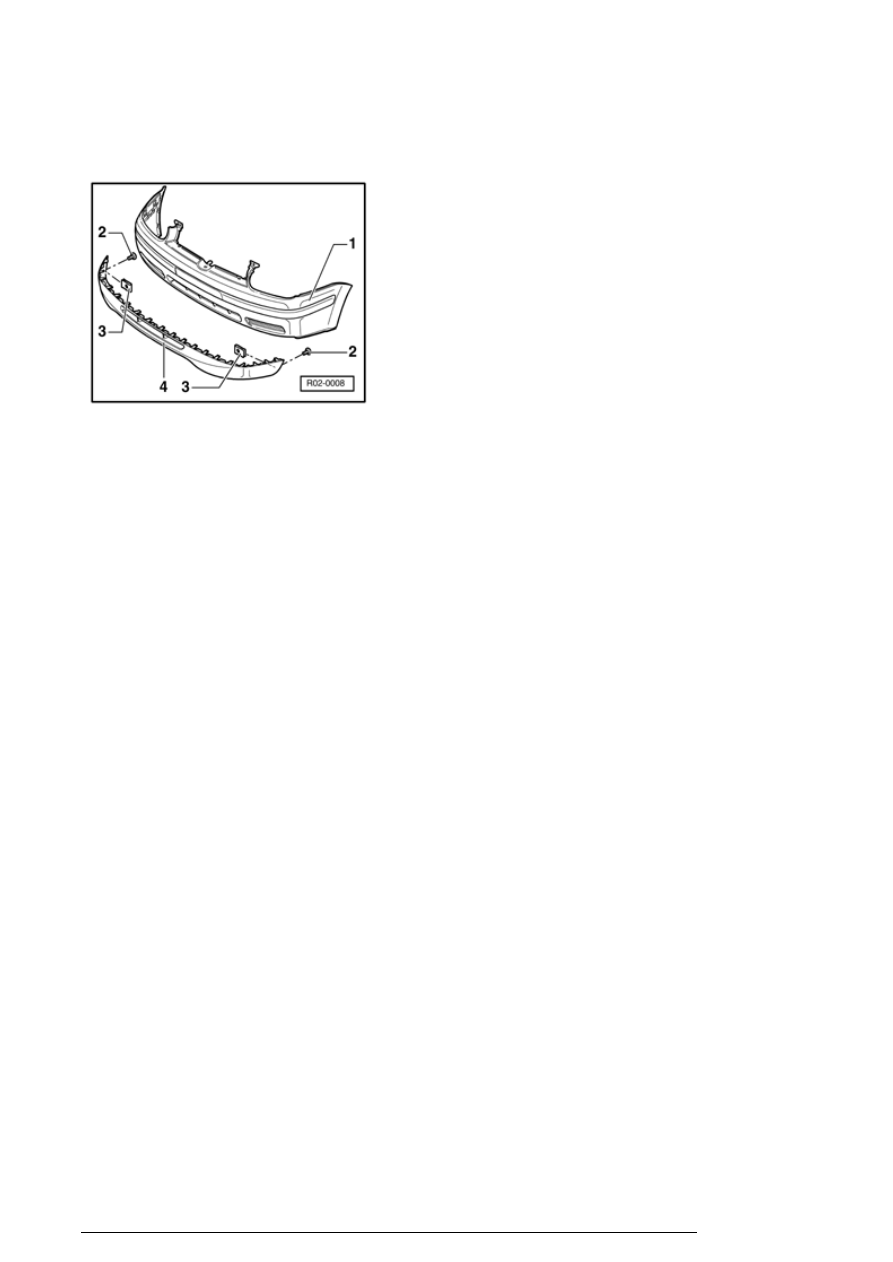

Installing front valance spoiler

1. Cover
2. Screw (Qty. 2). Torque specification: 2 Nm
3. Speed nut (Qty. 2)
4. Front valance spoiler. (Clipped to cover)

Warning!



When first installing front valance spoiler additional
bolts must be installed on both sides.



Install additional bolts at front valance spoiler (Jetta
GLI)

Note:

Additional screws must be installed on both sides of vehicle
when first installing front valance spoiler. This prevents
damage to front valance spoiler.

Following illustrations show right hand wheel housing liner.
Mounting on left hand wheel housing ls similar

Mounting - 1 - shown in illustration has already been done
in factory.




Material required

Speed nut (Qty. 2)



Self tapping screws (Qty. 2)



Additional bolts (rear view)

General

13/2/2005
