shelf.

 Jetta

Wagon,
Golf &
GTI,
removing
and
installing



Page

91-85

 .

 Jetta

sedan,
removing
and
installing



Page

91-88

 .

 Control

module
multi-pin
connector
terminal
assignments



Page 91-

90

 .

Telematics

13/2/2005

91-82







Telematic Control Head - OnStar
control buttons, description





   The telematics control head is in the front

headliner ahead of the front interior light
module. The control head contains three
separate buttons as well as a system
telematics indicator lamp (LED).





The OnStar

("On

") button is used to

contact the OnStar

 call center to request

various convenience services. It is also used
to initialize/activate the owner's subscription
to OnStar

 services and/or update the

customer's account in the event that the
Telephone/Telematics Control Module
requires replacement.



   The Emergency button is used to contact the

OnStar

 call center to request emergency

services such as fire department, police etc.



   The Communication ("DOT") button is used

to end a call to the OnStar

 call center,

place or answer personal calls or cancel a
call if one of the other buttons is accidentally
pressed.



   Note:



   Use of certain OnStar

services requires a

subscriber's Personal Identification Number
(s) (PIN).



   For complete system operation details



Volkswagen Telematics by OnStar



Owner's Manual.

Telematics

13/2/2005

91-83







Telematic Control Head - OnStar

telematics indicator lamp, description





   The telematics indicator lamp is located between

the OnStar

 and Communication buttons. The

green light comes on after a self-check routine is
performed (approx. 10- 15 seconds after ignition
is switched on)



   Indications:





 Green: Indicates system has passed self-test

and is ready to place or receive calls. Light
remains on even in areas without cellular
coverage.





 Blinking green: Indicates a call has been

initiated or is in progress.





 Red: Indicates system has not passed self-test

or indicates system malfunction.



   Note:



   Additional information and system

troubleshooting using telematics indicator lamp



Page 91-101

 .

Telematics

13/2/2005

91-84







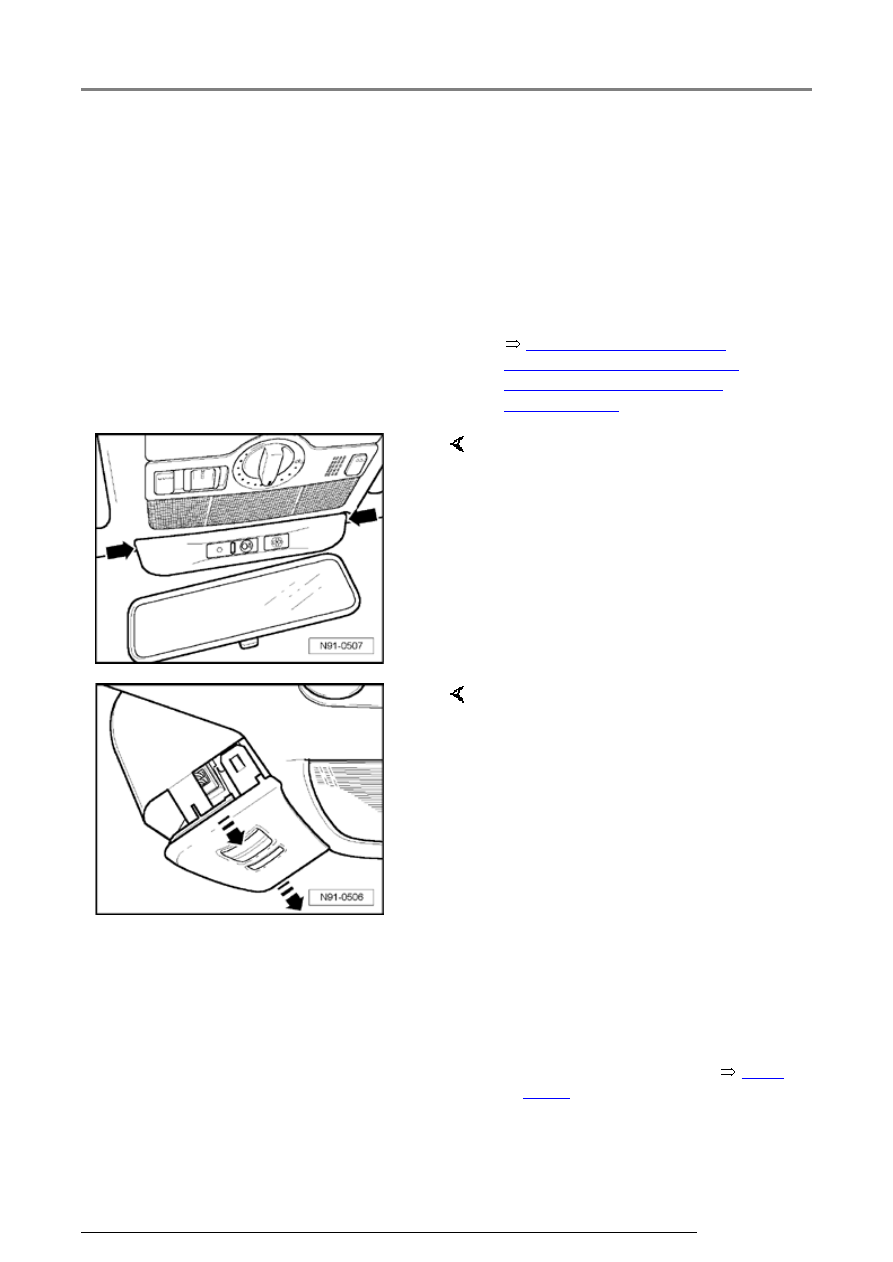

Telematic Control Head -E264-
, removing and installing







Removing





Before beginning repairs on the
electrical system, disconnect
battery!







Repair Manual, Electrical

Equipment; Repair Group 27;
"Battery, disconnecting and
reconnecting".





-  Using appropriate screwdriver,

carefully unclip control head from
areas indicated with -arrows-.



CAUTION!



Telematic control head buttons
cannot be removed, dismantled or
serviced separately. Should
malfunctions occur, replace
complete control head.



Installing

Install in reverse order of removal.

-  Remove control head in direction

of -arrows-.

-  Disconnect electrical connection.

-  Check telematic system coding

and recode if necessary



Page

91-93

 .

Telematics

13/2/2005
