CD Player, removing and installing



CD Player multi-pin connector assignments



Multi-function steering wheel



General information



On Board Diagnostic (OBD), function



Multi-function steering wheel, overview



Control unit in steering wheel -E221-, removing and installing



Control module for multi-function steering wheel -J453-, removing
and installing



Control module for multi-function steering wheel multi-pin connector
assignments



Multi-function steering wheel from 12.01, performing OBD program
functions using VAS 5051



Telematics



General Information



On Board Diagnostic (OBD), function



Telematic system, component overview



Telematic Control Head - OnStar control buttons, description



Telematic Control Head - OnStartelematics indicator lamp,
description



Telematic Control Head -E264-, removing and installing



Telematic Control Module -J499- - Jetta Wagon, Golf & GTI,
removing and installing



Telematic Control Module -J499- - Jetta Sedan, removing and
installing



Telematic Control Module -J499- multi-pin connector assignments



Telematic Control Module -J499-, coding



Telematic Control Module -J499-, reconfiguring



Telephone Microphone -R38-, removing and installing



Telematics system, troubleshooting using telematics indicator lamp



Transport Mode, deactivating



Mobile telephone and two-way radio operation, notes



General information



Performing repairs, notes



Battery, transmitter/receiver unit - fuse and wiring harness, overview



Transmitted output and antenna installation locations



Communication

13/2/2005

01-1







Radio system - "Premium
IV" and "Premium
V" (including "Monsoon")
through 11.01, On Board
Diagnostic (OBD)





General information





   Radio system "Premium IV" is installed from

start of production through m.y. 2000.



   Radio System "Premium V" and the optional

"Premium V - Monsoon" are installed from
m.y. 2001 through m.y. 2002.



   Radio system "Premium VI" and the optional

"Premium VI - Monsoon" are installed as a
running change during m.y. 2002



Page

01-27

 .



   Before troubleshooting or servicing,

technicians must be familiar with the
functions and operation specifics of the
applicable standard or optional radio system.
Always read the radio owner's manual and
review all radio, tape player and CD changer
functions.



   The radio is controlled by an internal

microprocessor with On Board Diagnostic
(OBD) capability. If malfunctions occur in
monitored components, Diagnostic Trouble
Codes (DTC) will be stored in memory
together with an indication of malfunction
type. A maximum of 4 DTCs can be stored
simultaneously.



   Sporadic malfunctions (indicated in the

readout by "SP") are automatically cancelled
if not repeated in the next 50 engine starts.

Radio system - Premium IV and Premium V (including Monsoon) through 11.01, O...

13/2/2005

01-2





   Before performing any troubleshooting or

inspection, always begin by checking for DTCs
using the On Board Diagnostic (OBD) program.
DTCs stored in memory are retrieved/checked
with VAG 1551/1552 Scan Tools (ST) or VAS
5051 Vehicle Diagnostic Testing and Information
System.



   Notes on exchanging radio





 Do not disassemble radio.





 When the replacement of a malfunctioning radio

is necessary, follow exchange part procedures.





 Complete the report form and return together

with radio.





 Use the original packaging from the new radio

when returning.



   Additional information:





 Complaint/symptom based Technical Bulletins

("Service Fixes"):



   Technical Bulletins





 Radio system descriptions



Page 91-4



Radio system - Premium IV and Premium V (including Monsoon) through 11.01, O...

13/2/2005

01-3







VAG 1551 Scan Tool (ST), connecting,
selecting functions and checking
control module (radio) versions







Prerequisites:





 All fuses OK according to wiring diagram.





 Battery (B+) voltage at least 9 Volts.





Notes:





 VAG 1552 Scan Tool (ST) may be used instead

of the VAG 1551 Scan Tool (ST), however a
print-out is not possible.





 The following procedure and display references

pertain only to VAG 1551 Scan Tool (ST).





Connecting

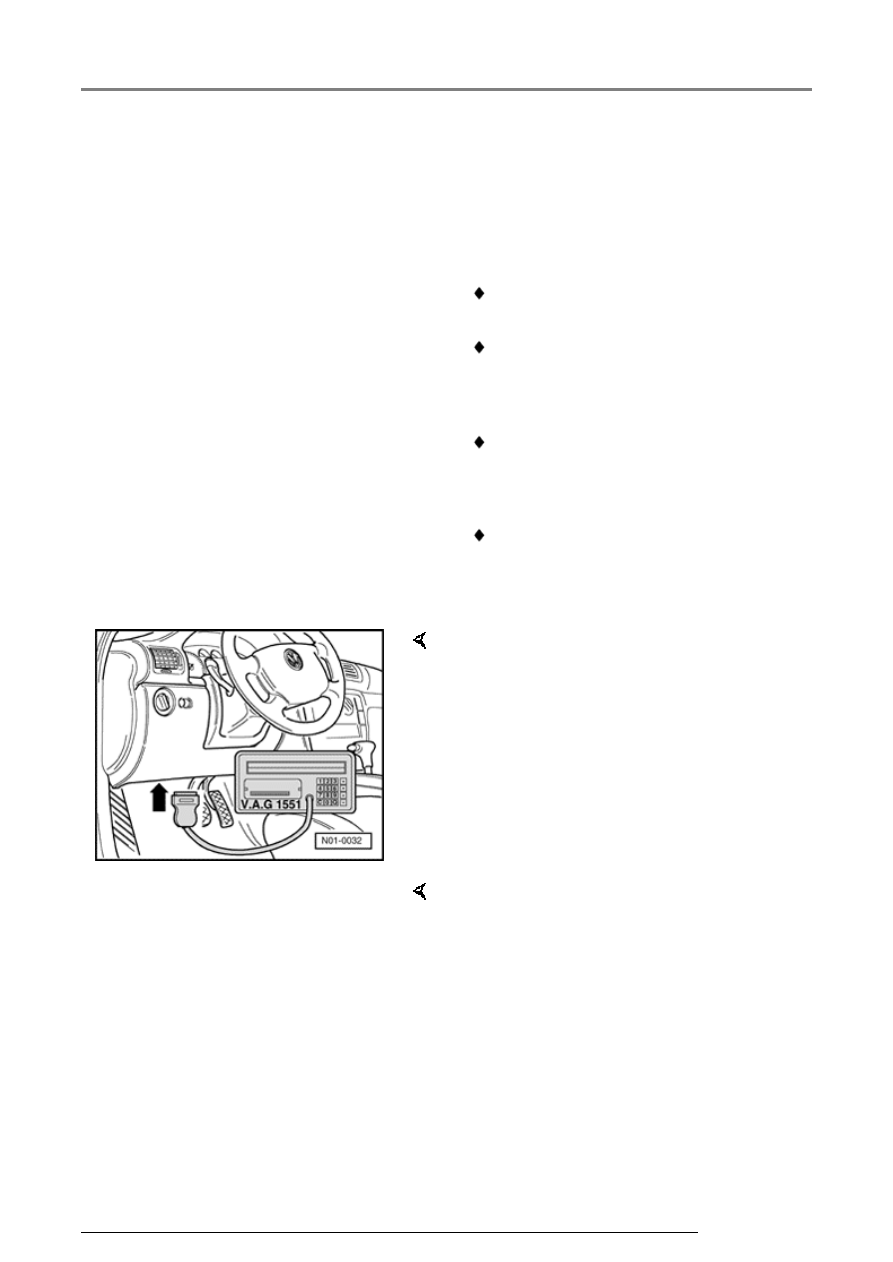

     With ignition switched off, connect VAG 1551 Scan

Tool (ST) with adapter cable VAG 1551/3 to the
Data Link Connector (DLC) as follows:

-  Remove cover for Data Link Connector (DLC)

under left instrument panel.

-  Connect Scan Tool using adapter cable VAG

1551/3.

On Board Diagnostic (OBD)

HELP

1 - Rapid data transfer*

2 - Flash code output*

     Indicated on display:

* Is displayed alternately

Radio system - Premium IV and Premium V (including Monsoon) through 11.01, O...
