20-31







Checking delivery rate





Test conditions





 Voltage supply OK.





 Remote control VAG 1348/3A

connected.





Test sequence





-  Remove filler cap from fuel tank

filler neck.



Note:

Press buttons on hose couplings to
do so.

WARNING!



Fuel supply lines are under
pressure! Before removing from
hose connections wrap a cloth
around the connection. Then
release pressure by carefully
pulling hose off connection.



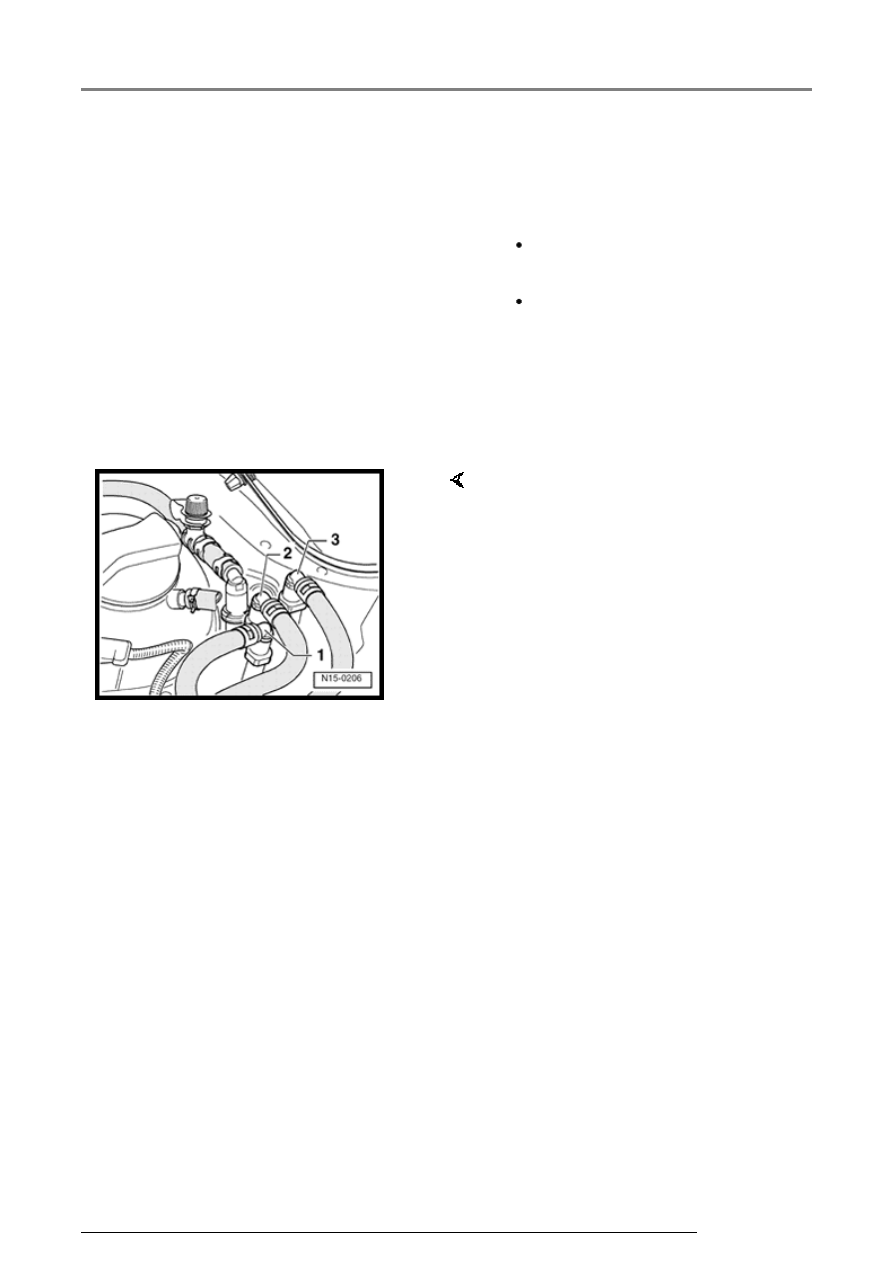

-  Disconnect supply hose -3- (with

white marking) and collect fuel
that may leak out with a cloth.

Components of fuel supply system, servicing

20-32





The quantity of fuel delivered by the
fuel pump depends on the battery
voltage.

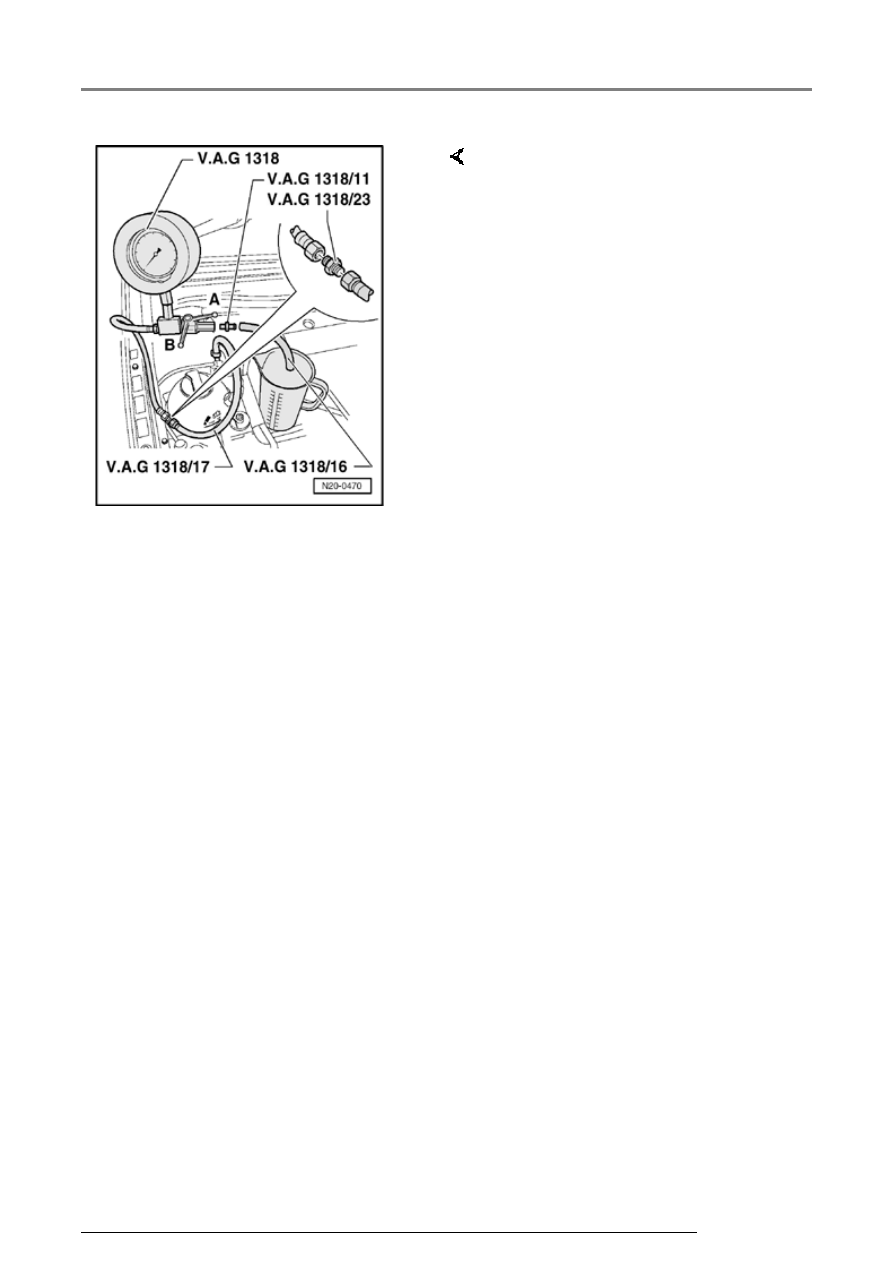

-  Connect pressure gauge VAG

1318 to fuel supply pipe using
adapter VAG 1318/23 and VAG
1318/17.

-  Push hose adapter VAG 1318/16

onto adapter VAG 1318/11 on
pressure gauge and hold hose in
a measuring container.

-  Open shut-off tap on pressure

gauge. Lever then points in flow
direction -A-.

-  Operate remote control VAG

1348/3A. Close shut-off tap
slowly, until pressure gauge
shows 3 bar. From now on do not
alter setting of shut-off tap.

-  Empty measuring container.

-  Connect multimeter to vehicle

battery using adapter cables from
VAG 1594 A.

-  Operate remote control for 30

seconds and measure battery
voltage.

Components of fuel supply system, servicing

20-33





*)

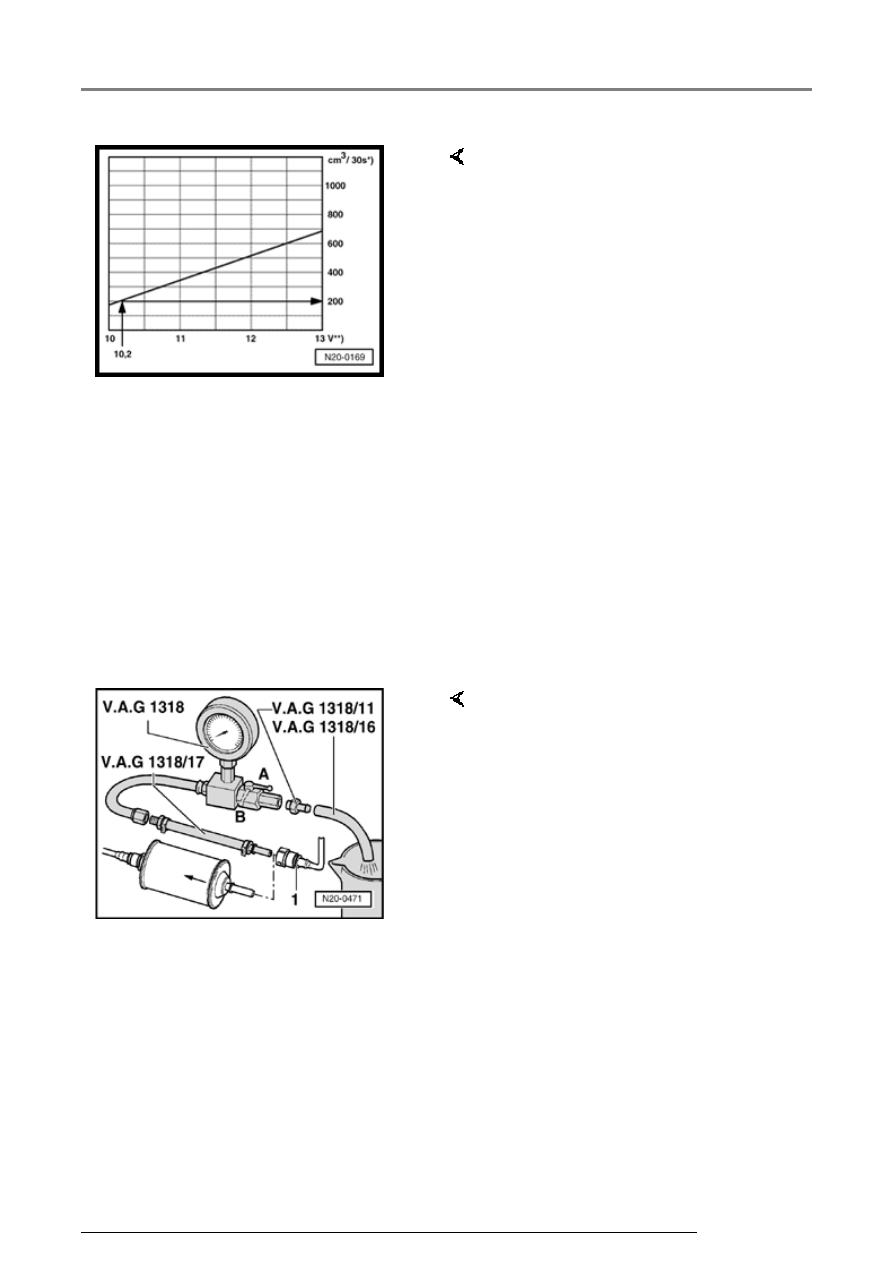

 Minimum delivery cm

3

/30 seconds



**)

 Voltage at fuel pump with engine

not running and pump running
(approx. 2 volts less than battery
voltage).

Example:

During the test, a voltage of 12.2
volts is measured at the battery. As
the voltage at the pump is approx. 2
volts less than the battery voltage,
the result is a minimum delivery of
200 cm

3

/30 seconds.

If the minimum delivery rate is not
attained:

-  Compare quantity of fuel

delivered with nominal value.

-  Check fuel pipes for possible

restrictions (kinks) or blockages.



Note:

Press buttons on hose couplings to
disconnect.

-  Disconnect fuel line -1- from input

side of fuel filter.

-  Connect pressure gauge VAG

1318 to hose using adapter
1318/17.

-  Repeat delivery rate test.

Components of fuel supply system, servicing

20-34





   If the minimum delivery rate is now attained:





-  Replace fuel filter.



   If the minimum delivery rate is again not

attained:





-  Remove fuel delivery unit and check strainer

filter for soiling.



   Only if no faults have been detected up to now:





-  Fuel pump faulty, replace fuel delivery unit



Page 20-15

 , Removing and installing fuel

delivery unit.



   If the delivery rate has been attained but a fuel

supply system fault is still suspected (e.g.
intermittent failure of fuel supply system):





-  Check current draw of fuel pump as follows:





-  Reconnect all disconnected fuel lines.
