door trim.

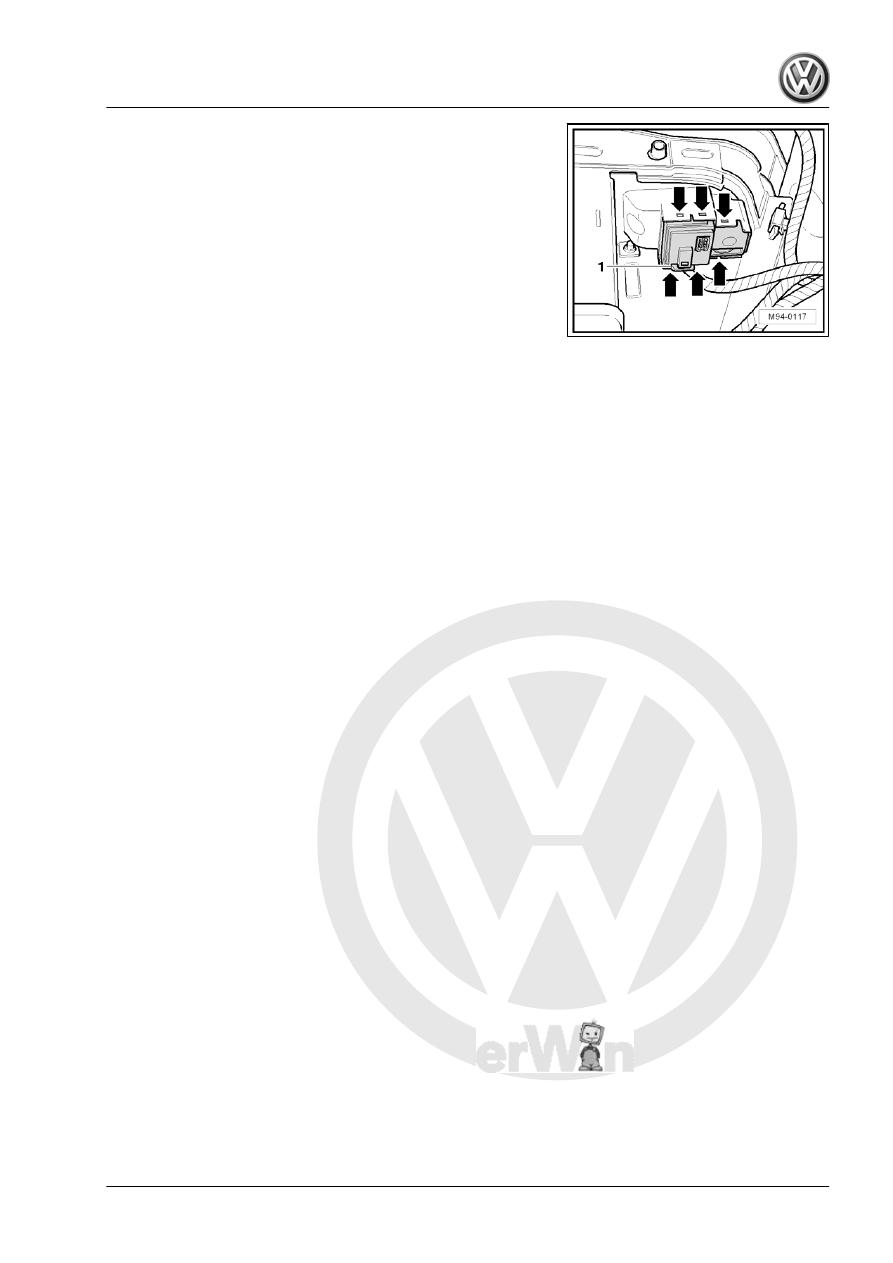

Installing:
Install in reverse order of removal.

Jetta 2005 ➤ , Bora 2006 ➤

3. Lights and switches in front doors

253

Lights and switches in rear doors

4.1

Components - front door locks

The following components (depending on equipment) are inte‐

grated into the rear left door lock:
♦ Rear left door contact switch -F10-
♦ Rear left central locking lock unit -F222-
♦ Rear left door central locking motor, lock -V214-
♦ Rear left door central locking deadlock function motor -V163-
The following components (depending on equipment) are inte‐

grated into the rear right door lock:
♦ Rear right door contact switch -F11-
♦ Rear right central locking lock unit -F223-
♦ Rear right door central locking motor, lock -V215-
♦ Rear right door central deadlock function locking motor -V164-

Note

In the event of repair, the complete component must be renewed.

In the event of component defects - rear door locks:
– Replace relevant door lock ⇒  General Body Repairs, Exterior;

Rep. Gr.  58 ; Rear door; Removing and installing door lock .

4.2

Removing and installing rear left window

regulator switch, in door -E52- and rear

right window regulator switch, in door -

E54-

Removing:
– Switch off the ignition and all electrical consumers.

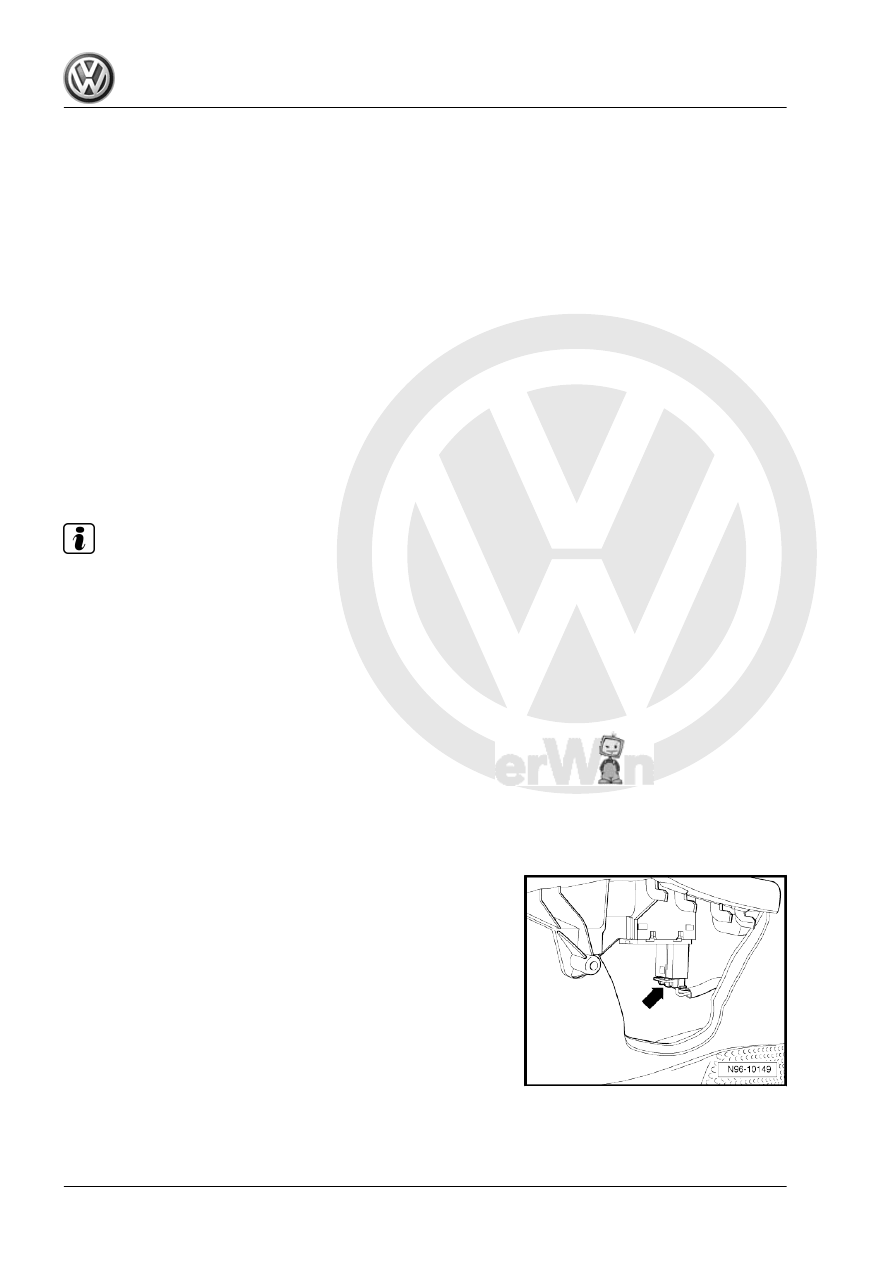

– Remove lever shell, upper part out of the closing lever ⇒  Gen‐

ling door trim; Rear door trim .

– Disconnect connector -arrow-.

Jetta 2005 ➤ , Bora 2006 ➤

254

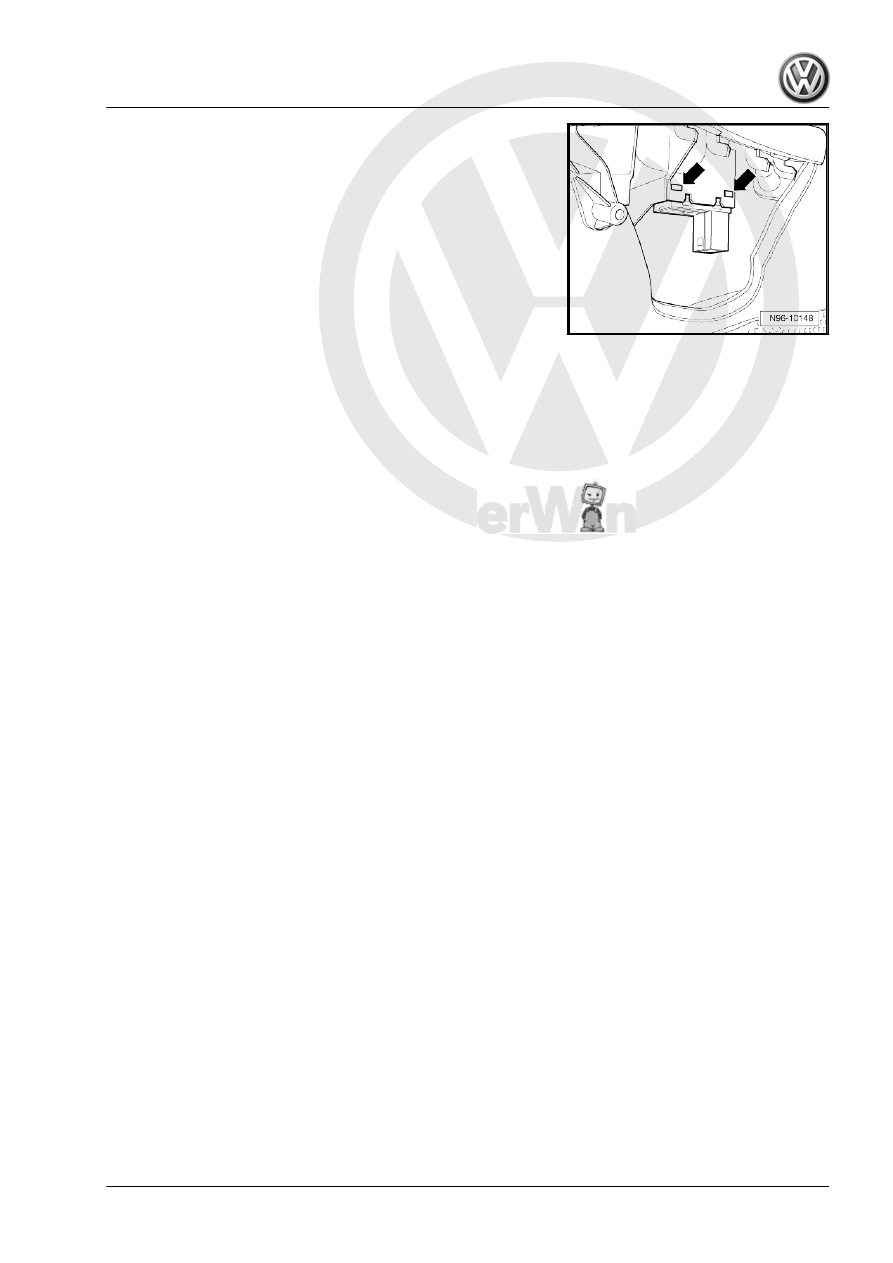

stallation frame.

Installing:
Install in reverse order of removal.

Jetta 2005 ➤ , Bora 2006 ➤

4. Lights and switches in rear doors

255

Lights and switches in luggage com‐

partment

5.1

Removing and installing luggage com‐

partment light -W3-

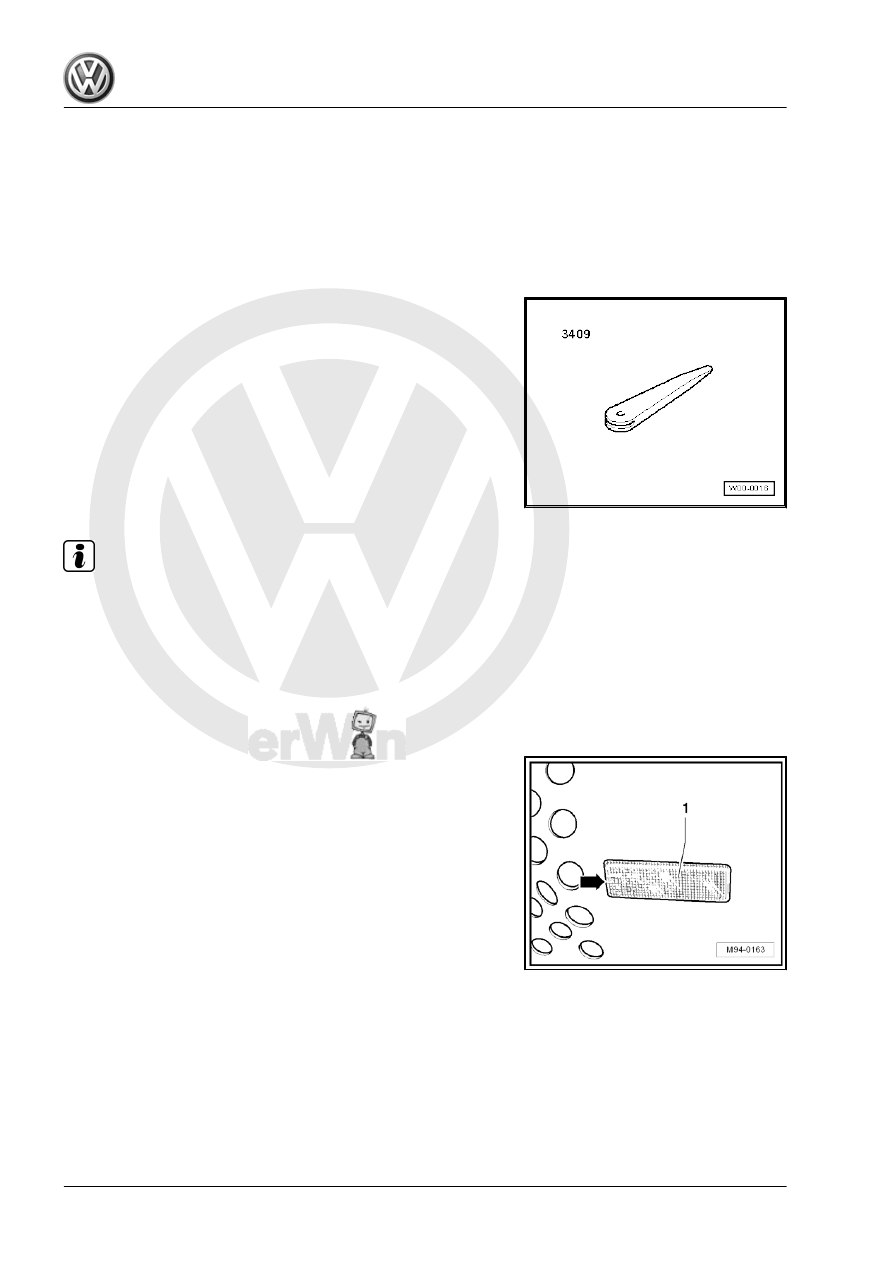

Special tools and workshop equipment required
♦ Removal wedge -VAS 3409-

Note

♦

The luggage compartment light can be found on the right side

in the luggage compartment trim.

♦

When removing and installing components in visual area (con‐

nectors, covers, trims etc.) apply a commercial adhesive tape

where a lever tool is applied ( removal wedge -VAS 3409- ,

srewdriver).

Removing:
– Switch off the ignition and all electrical consumers.
– Lever light out of the luggage compartment trim using removal

wedge -VAS 3409- or a screwdriver.
