Adjusting headlights

Adjusting headlights ⇒ Maintenance ; Booklet  20.1 .

Jetta 2005 ➤ , Bora 2006 ➤

1. Headlight

189

Main headlights with gas discharge

bulbs

Note

♦

Before working on gas discharge headlights, always switch off

the headlights and remove the ignition key.

♦

The automatic headlight range control on headlights with gas

discharge bulbs is equipped with self-diagnosis.

♦

When dealing with complaints, it is absolutely essential that

the function and operation of the lighting system is first under‐

stood.

♦

Additional information:

⇒  Operating instructions
⇒ Current flow diagrams, Electrical fault finding and Fitting loca‐

tions
Fault detection and fault display:
The automatic headlight range adjustment (HRA) and onboard

supply control unit have a self-diagnosis function, which makes

fault finding on the headlights using gas discharge lamps easier.
For fault finding, use the vehicle diagnosis, testing and informa‐

tion system -VAS 5051A- in “guided fault finding” mode.

Jetta 2005 ➤ , Bora 2006 ➤

190

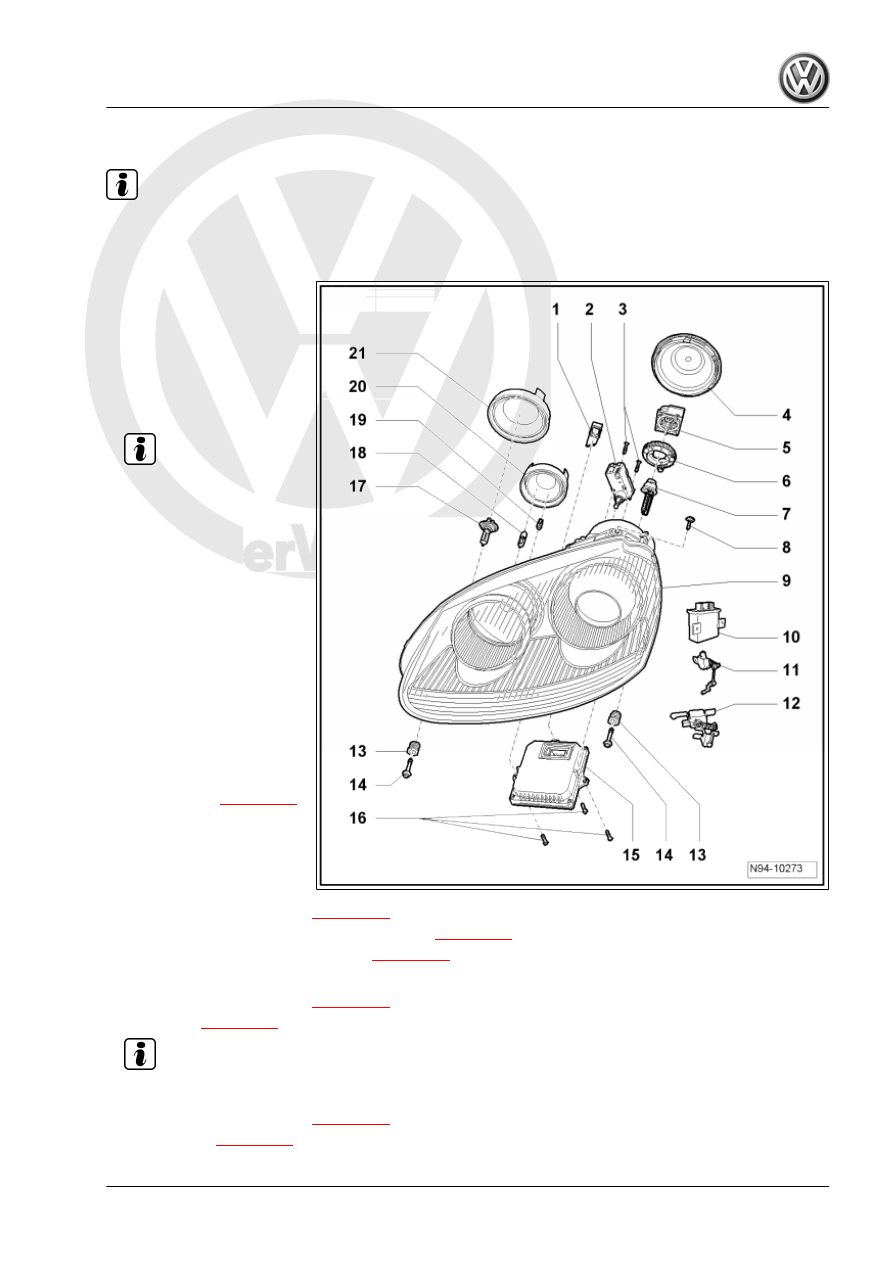

Assembly overview - gas discharge headlights

Note

After any measures which could affect the headlight setting, the headlight must be checked and if necessary

adjusted ⇒ Maintenance ; Booklet  20.1 .

1 - Vent hose

❑ On headlight

2 - Left headlight range control

motor -V48- or right headlight

range control motor -V49-

❑ Headlight manufactur‐

er: AL (Automotive

Lighting)

Note

3 - Securing bolts

❑ For left headlight range

control motor -V48- or

right headlight range

control motor -V49-

4 - Cover cap
5 - Gas discharge light starter

unit -N195-
6 - Bulb locking

❑ For left gas discharge

bulb -L13- or right gas

discharge bulb -L14-

7 - Left gas discharge bulb -

L13- or right gas discharge

bulb -L14-

❑ Type D2S, 35W
❑ Renewing

⇒ page 192

8 - Securing bolt

❑ 4 Nm
❑ On upper headlight

9 - Headlights

❑ Removing and installing

⇒ page 181

❑ Correcting installation position of headlight

⇒ page 182

❑ Servicing headlight securing lugs

⇒ page 204

10 - Headlight range control unit -J431-

❑ Removing and installing

⇒ page 198

❑ Coding

⇒ page 200

Note

11 - Front left vehicle level sender -G78-

❑ Removing and installing

⇒ page 201

❑ Checking

⇒ page 203

 .

Jetta 2005 ➤ , Bora 2006 ➤

2. Main headlights with gas discharge bulbs

191

❑ Removing and installing

⇒ page 201

❑ Checking

⇒ page 203

 .

13 - Adjustment bush

❑ Correcting installation position of headlight

⇒ page 182

14 - Securing bolt

❑ 4 Nm
❑ On lower headlight

15 - Left gas discharge light control unit -J343- or right gas discharge light control unit -J344-

❑ Not capable of self-diagnosis
❑ Removing and installing

⇒ page 198

16 - Securing bolts

❑ For left gas discharge light control unit -J343- or right gas discharge light control unit -J344-

17 - Left headlight main beam bulb -M30- or right headlight main beam bulb -M32-

❑ Bulb H7U 12 V, 55 W
❑ Renewing

⇒ page 194

18 - Front left turn signal bulb -M5- or front right turn signal bulb -M7-

❑ Bulb 12 V, H2 WLL 21 W
❑ Renewing

⇒ page 197

19 - Left side light bulb -M1- or right side light bulb -M3-

❑ Bulb 12 V, W 5 W
❑ Renewing

⇒ page 196

20 - Cover cap

❑ For front left turn signal bulb -M5- or front left turn signal bulb -M7- and for left side light bulb -M1- or right

side light bulb -M3-

21 - Cover cap

❑ For left headlight main beam bulb -M30- or right headlight main beam bulb -M32-

2.2

Removing and installing headlights

Removing and installing headlights

⇒ page 181

 .

2.3

Adjusting headlight installation position

Adjusting headlight installation position

⇒ page 182

 .

2.4

Renewing headlight bulbs

2.4.1

Renewing gas discharge bulb

Note

The diagrams show renewal of a gas discharge bulb for the left

headlight.

Removing:
– Remove headlight

⇒ page 181

 .
