Volkswagen Passat / Passat Variant (2011 year). Manual - part 84

Tools

Note

♦

The use of different types and different thicknesses of steel

requires that only the welding units (inverters) authorised by

Volkswagen AG may be used to carry out repairs properly.

♦

The welding units (inverters) and body tools authorised by

Volkswagen AG are listed in ⇒  ServiceNet, Workshop Equip‐

ment, EH catalogue, Workshop equipment, Body and paint‐

work .

11.2

Removing

Note

Do not damage underlying panels when cutting out.

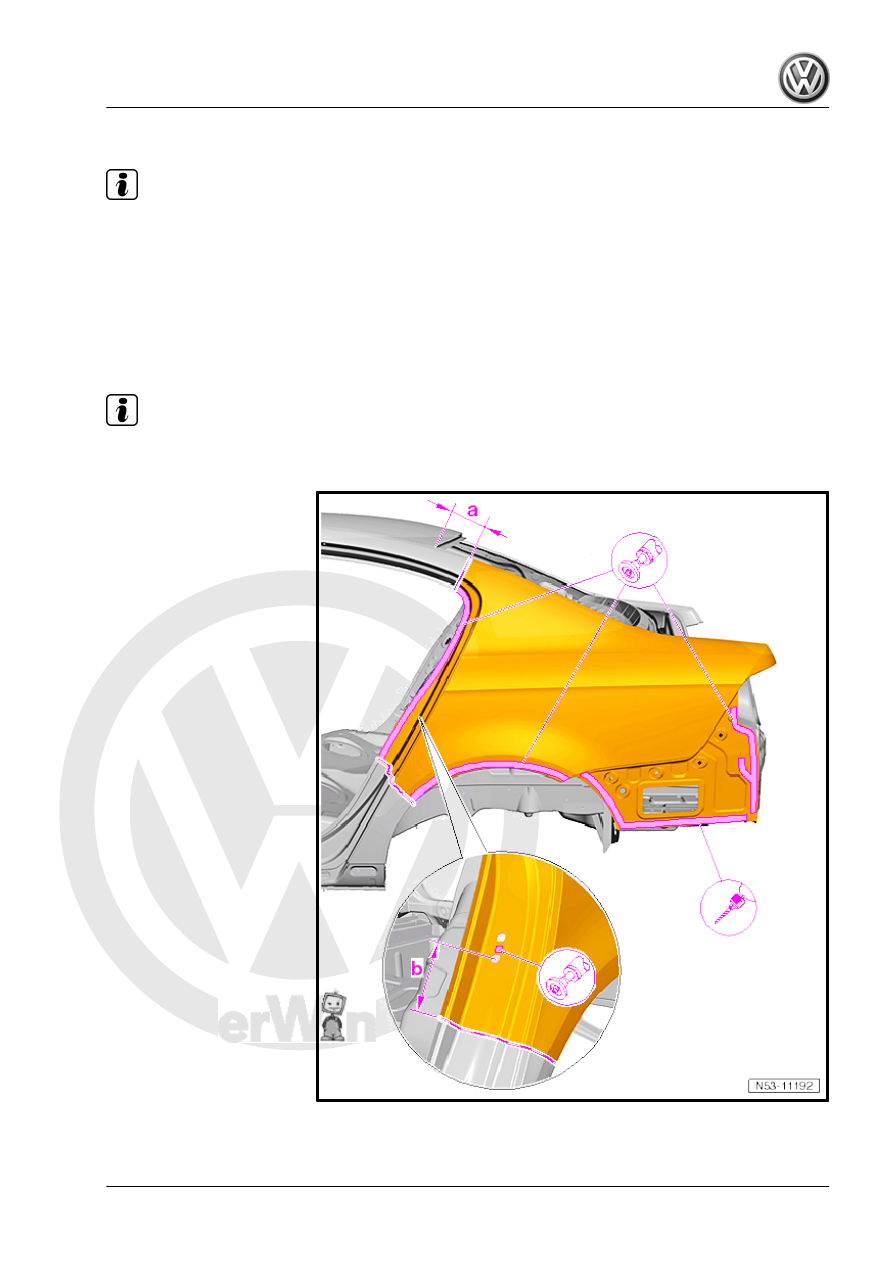

– Position parting cuts according to degree of damage and cut

out.

Passat 2011 ➤ , Passat Variant 2011 ➤

11. Renewing side panel - part section

333

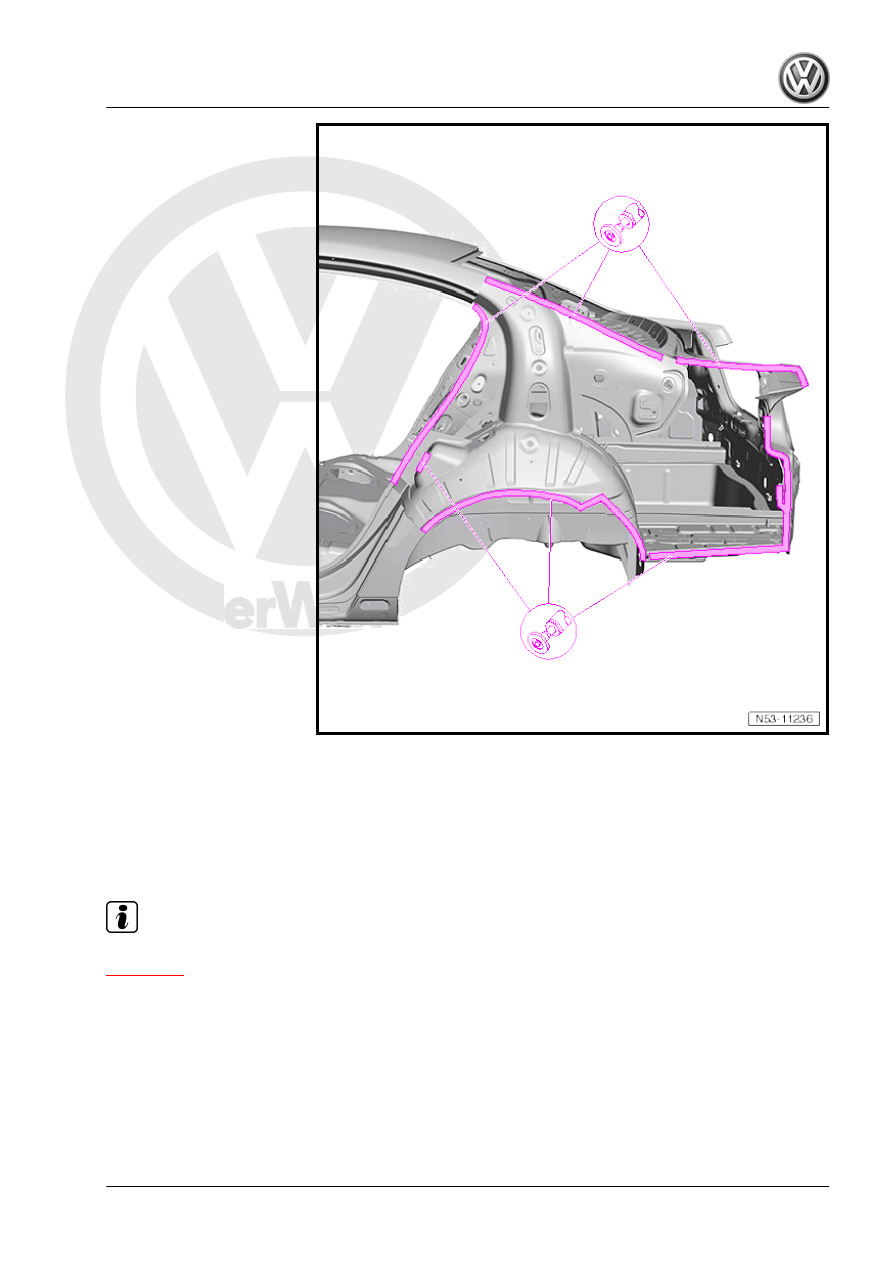

– Separate original joint to sealing channel and to tail light

mounting.

Passat 2011 ➤ , Passat Variant 2011 ➤

334

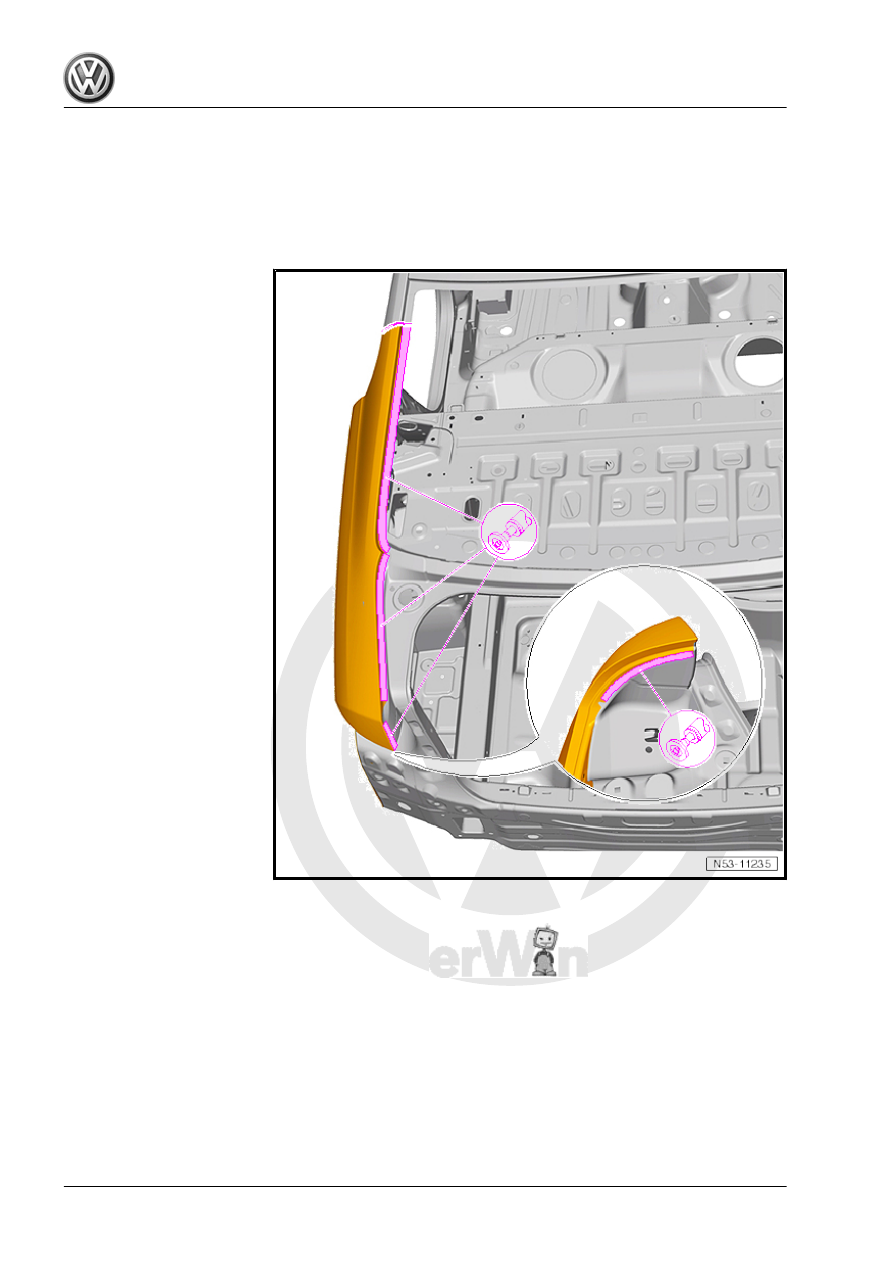

surface back to bare metal.

– Clean any dust and grease off flange area on wheel arch.

11.3

Installing

Note

Only welding units authorised by Volkswagen AG may be used

⇒ page 333

 .

Passat 2011 ➤ , Passat Variant 2011 ➤

11. Renewing side panel - part section

335

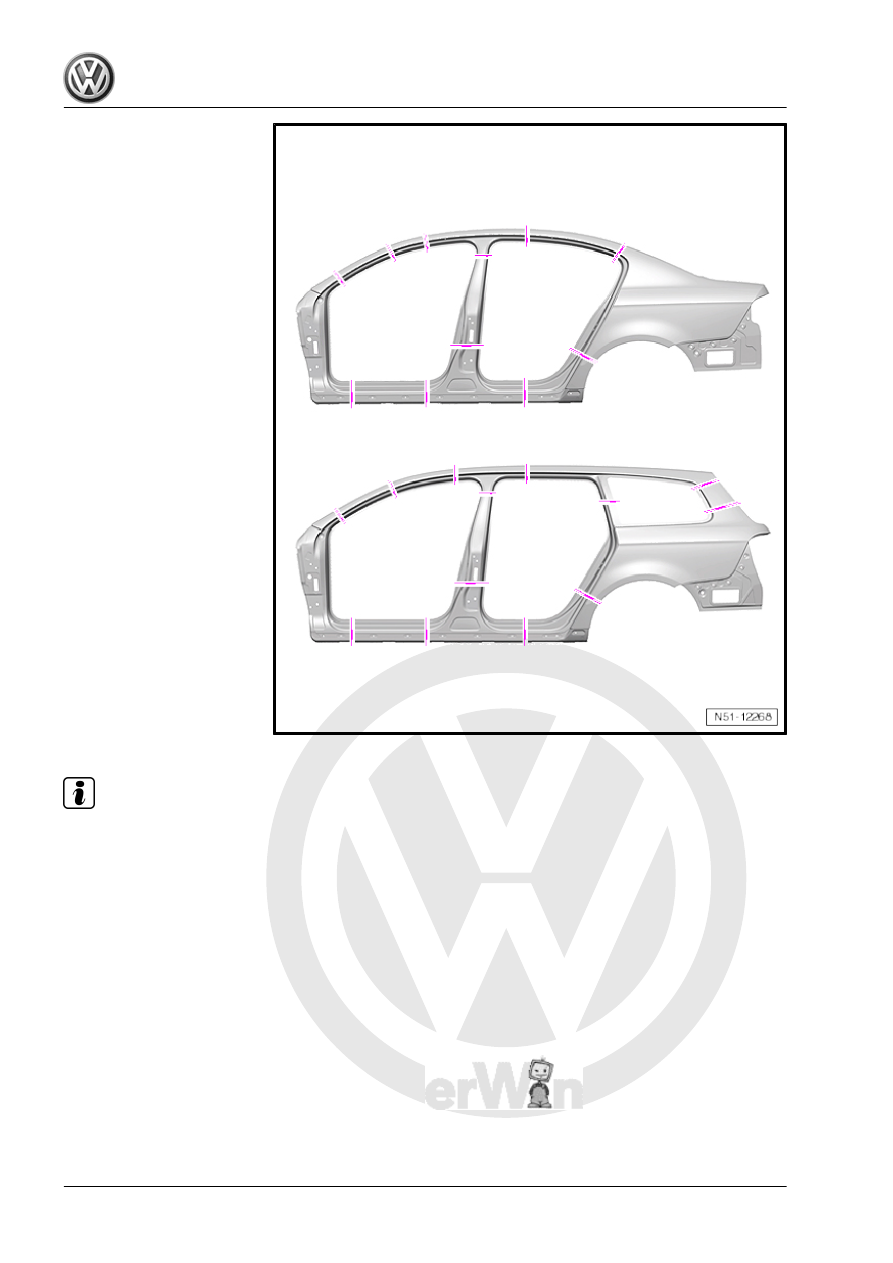

MIG solder seams or SG continuous weld seams are permitted at the parting cuts shown in the illustration.

11.3.1

Preparing new part

New part
♦ Side panel subpart
♦ Moulded foam element
♦ 2K body adhesive -D 180 KD3 A2-
♦ 2K polyurethane adhesive -D 180 KD2 A1- (for right side pan‐

el)

Passat 2011 ➤ , Passat Variant 2011 ➤

336
