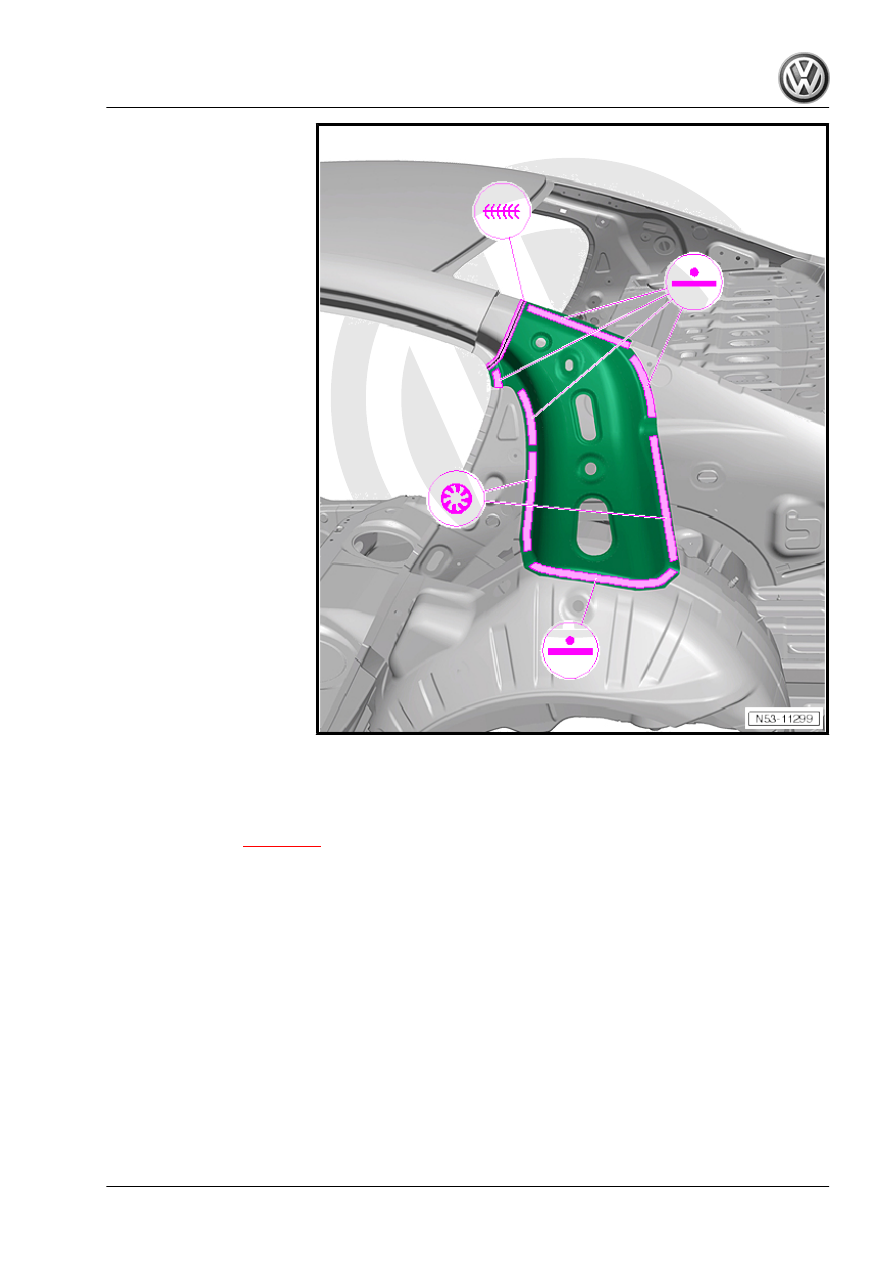

plug weld seam.

– Weld in parting cut, SG continuous weld seam.
– Install side panel

⇒ page 335

 .

Passat 2011 ➤ , Passat Variant 2011 ➤

6. Renewing C-pillar reinforcement

301

7

Renewing C-pillar reinforcement

(Variant)

Includes: lock reinforcement

WARNING

Observe safety notes!
Welding, parting using spark generating machines/tools or tin‐

ning in foam treated areas creates gases which are hazardous

to health and environment. Therefore, refrain from using these

processes.

Safety notes ⇒ General Information; Body Repairs, General Body

Repairs ; Safety notes
• Side panel already removed

⇒ page 342

 .

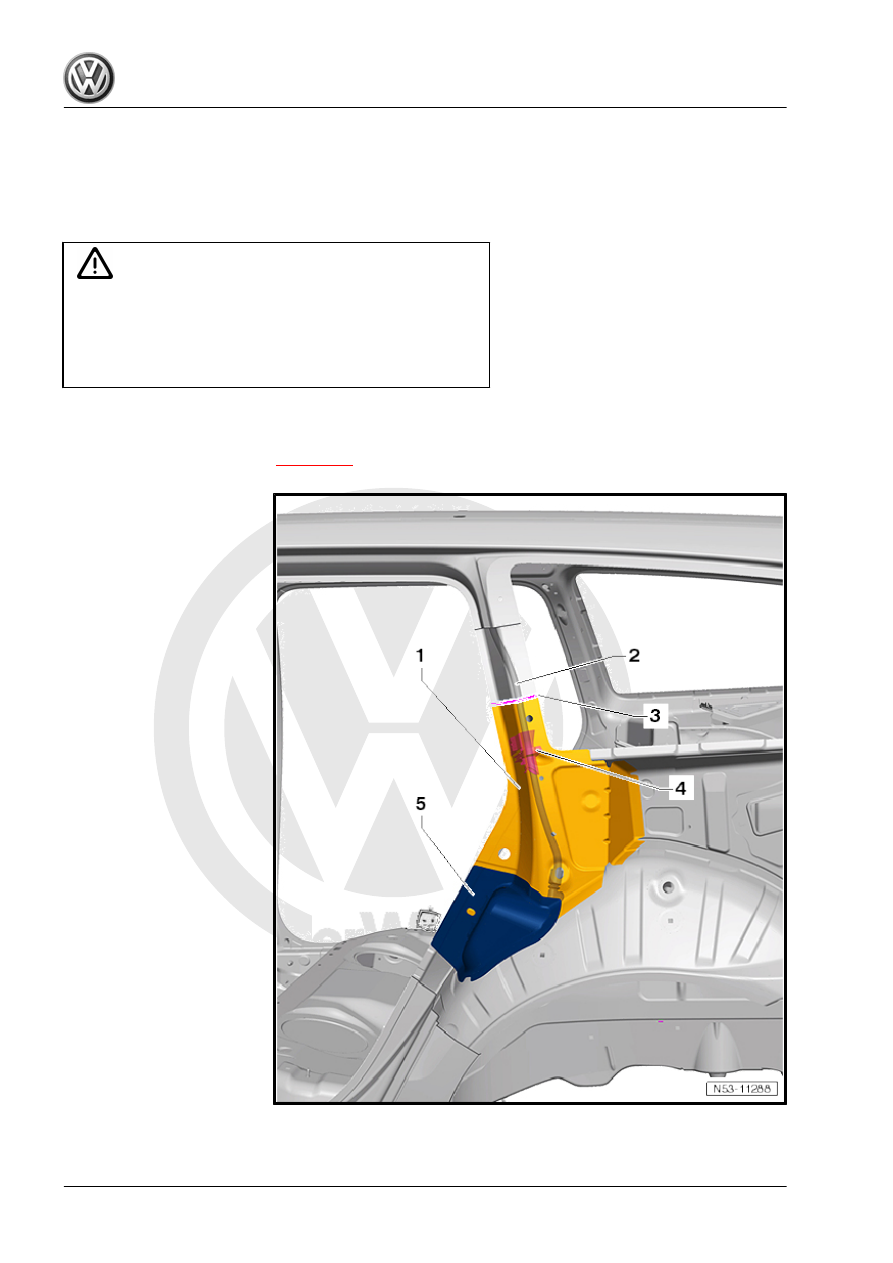

1 - C-pillar reinforcement
2 - Water drain hose
For models with panorama

sliding sunroof.

3 - Cutting point
4 - Moulded foam element
With opening for water drain

hose.

5 - Lock reinforcement

Passat 2011 ➤ , Passat Variant 2011 ➤

302

Tools

Note

♦

The use of different types and different thicknesses of steel

requires that only the welding units (inverters) authorised by

Volkswagen AG may be used to carry out repairs properly.

♦

The welding units (inverters) and body tools authorised by

Volkswagen AG are listed in ⇒  ServiceNet, Workshop Equip‐

ment, EH catalogue, Workshop equipment, Body and paint‐

work .

7.2

Removing

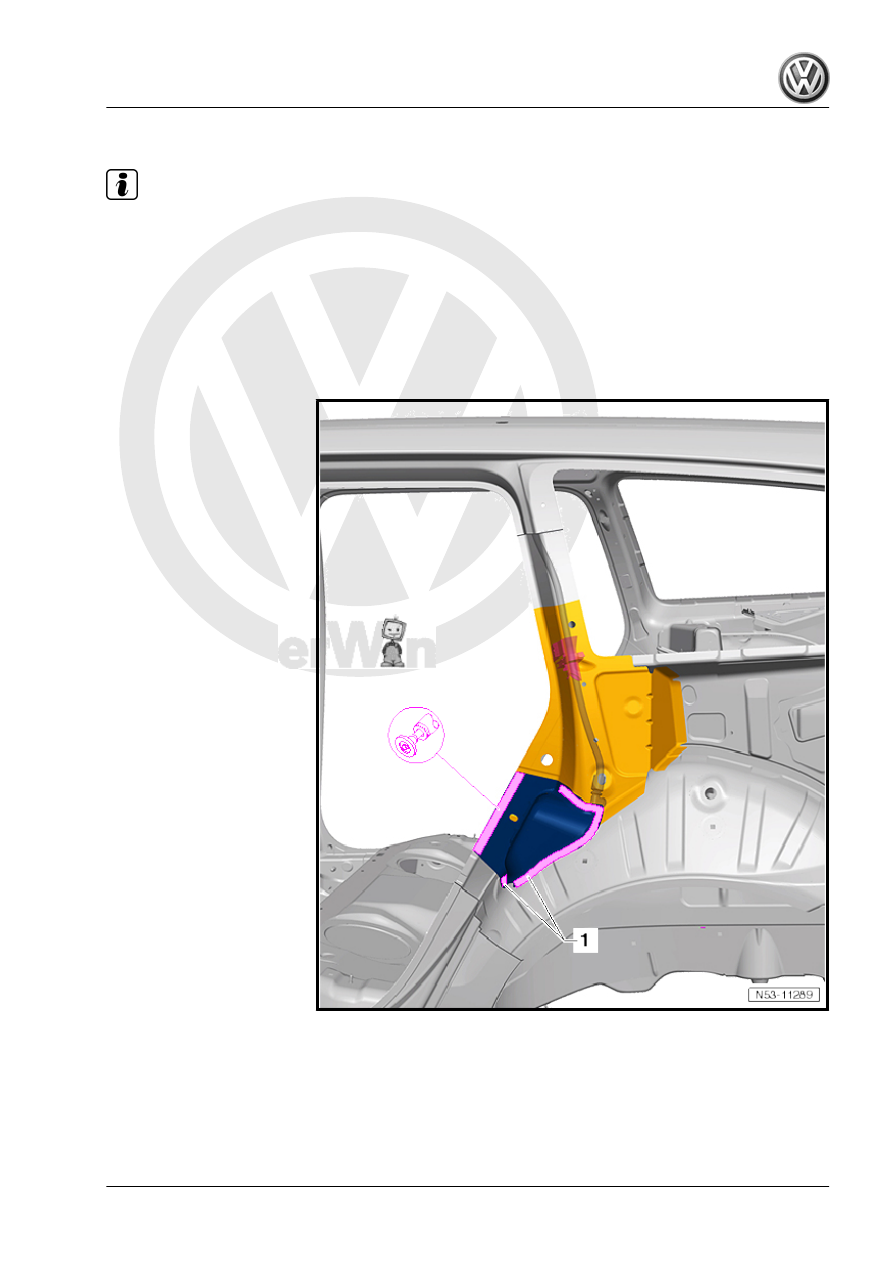

– Release adhesive joint -1- between lock reinforcing, C-pillar

reinforcing and wheel housing liner.

– Separate original joint between lock reinforcing and rear door

aperture.

Passat 2011 ➤ , Passat Variant 2011 ➤

7. Renewing C-pillar reinforcement (Variant)

303

♦

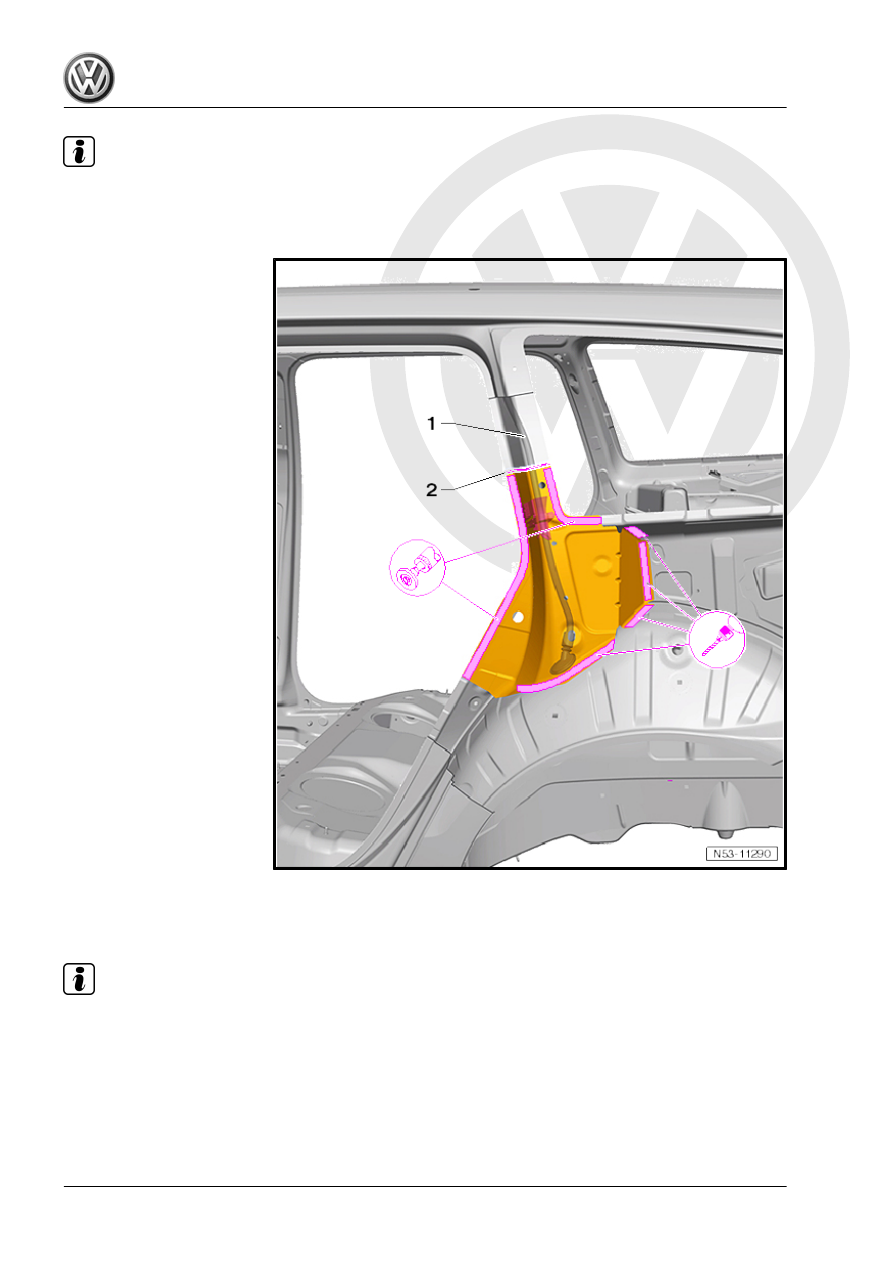

Do not damage underlying panels when cutting out.

♦

Do not damage water drain hose -1- on models with a panorama sliding sunroof.

– Make parting cut -2- according to degree of damage.
– Separate original joint.

Note

Remove as much of the foam residue as possible at the water drain hose opening -1- before starting grinding

work.
