Renewing front roof cross member

WARNING

Observe safety notes!

Safety notes ⇒ General Information; Body Repairs, General Body

Repairs ; Safety notes
Roof already removed.
• Saloon

⇒ page 91

• Saloon with sliding/tilting sunroof

⇒ page 107

• Variant

⇒ page 124

• Variant with panorama sliding sunroof

⇒ page 140

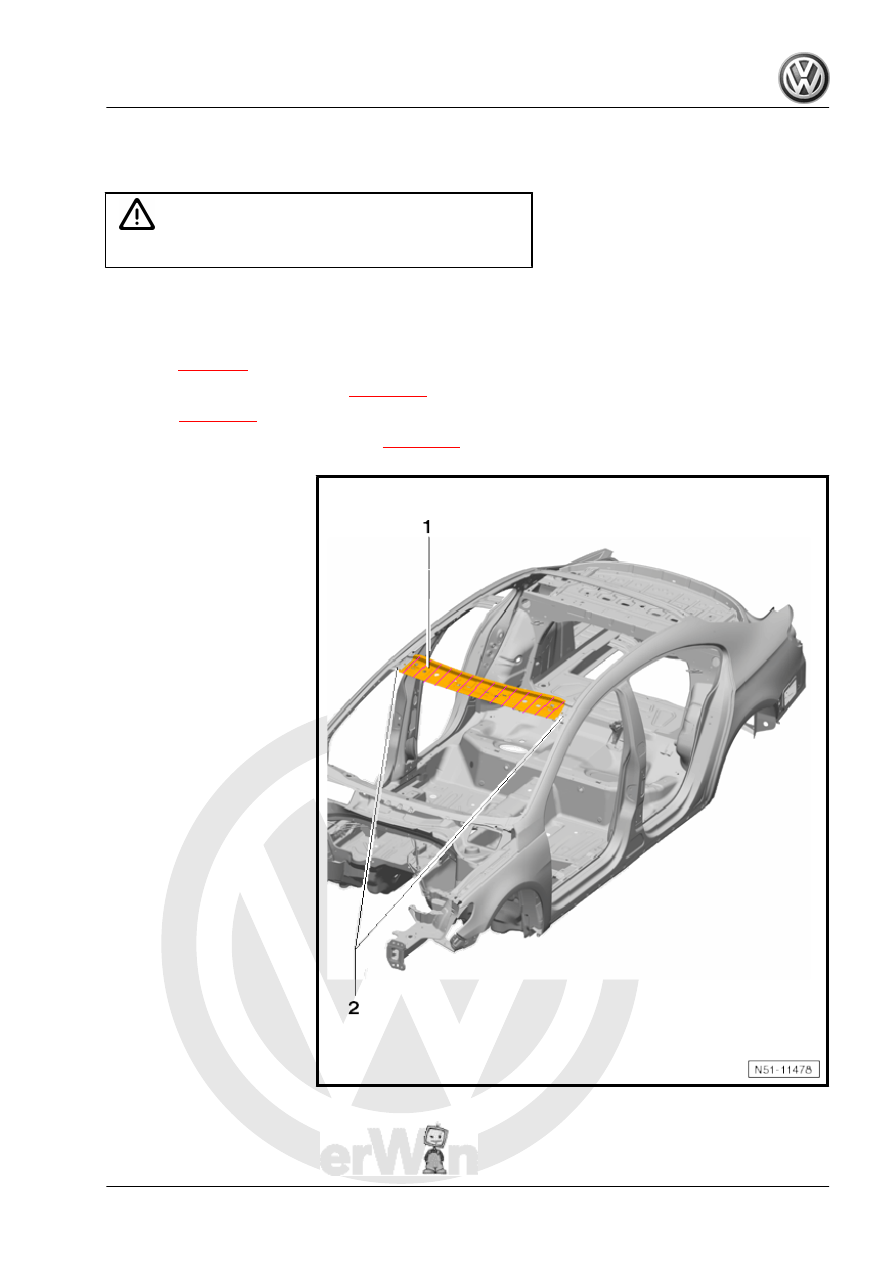

1 - Front roof cross member
2 - Left and right roof frames

Passat 2011 ➤ , Passat Variant 2011 ➤

6. Renewing front roof cross member

169

Tools

Note

♦

The use of different types and different thicknesses of steel

requires that only the welding units (inverters) authorised by

Volkswagen AG may be used to carry out repairs properly.

♦

The welding units (inverters) and body tools authorised by

Volkswagen AG are listed in ⇒  ServiceNet, Workshop Equip‐

ment, EH catalogue, Workshop equipment, Body and paint‐

work .

6.2

Removing

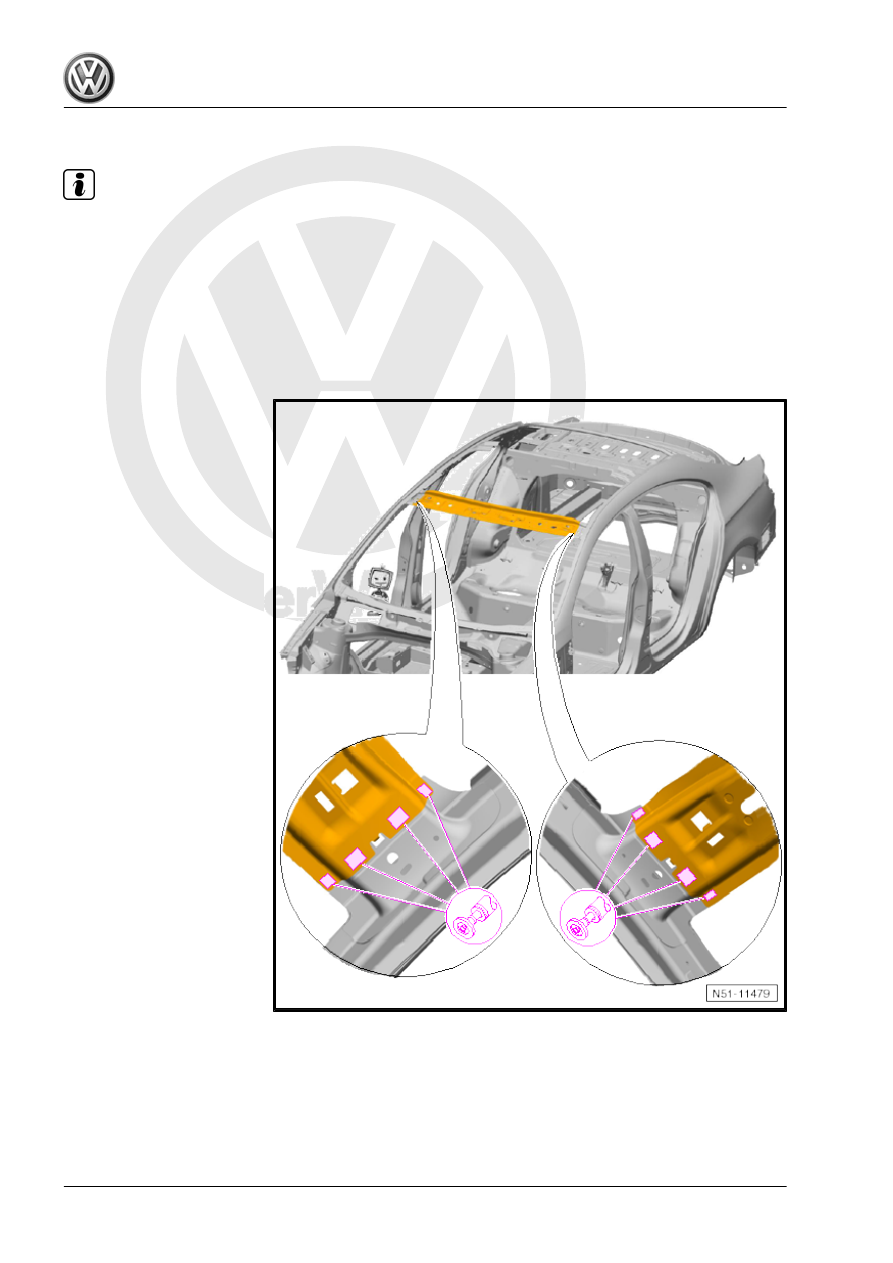

– Separate original joint from inside.

Passat 2011 ➤ , Passat Variant 2011 ➤

170

6.3

Installing

Note

Only welding units authorised by Volkswagen AG may be used

⇒ page 170

 .

6.3.1

Welding in

New part
♦ Front roof cross member
– Adapt new part with vehicle standing on its wheels or align‐

ment bracket set and fix in position.

– Check fit of roof and windscreen.

Note

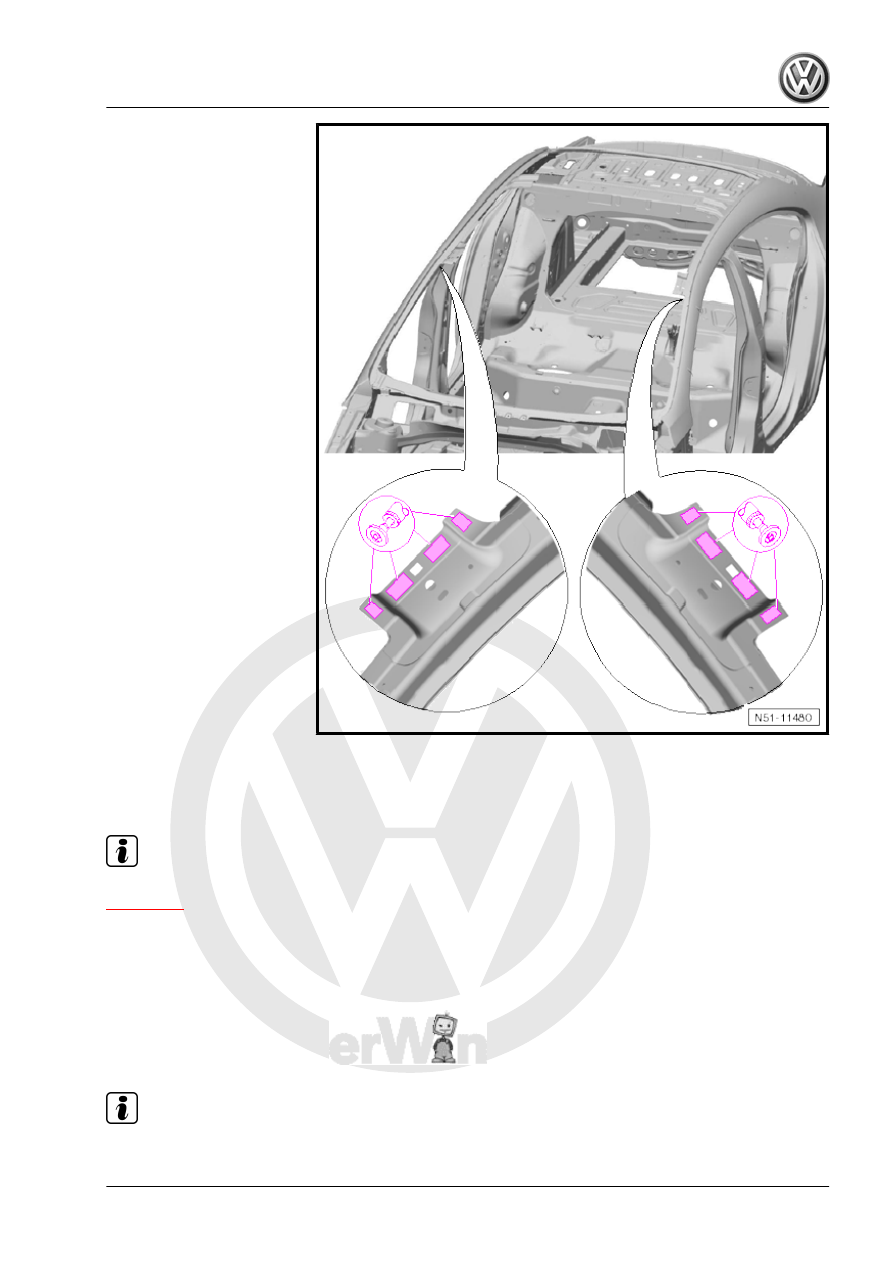

Use the existing elongated holes to weld the new part to the left and right roof frames.

Passat 2011 ➤ , Passat Variant 2011 ➤

6. Renewing front roof cross member

171

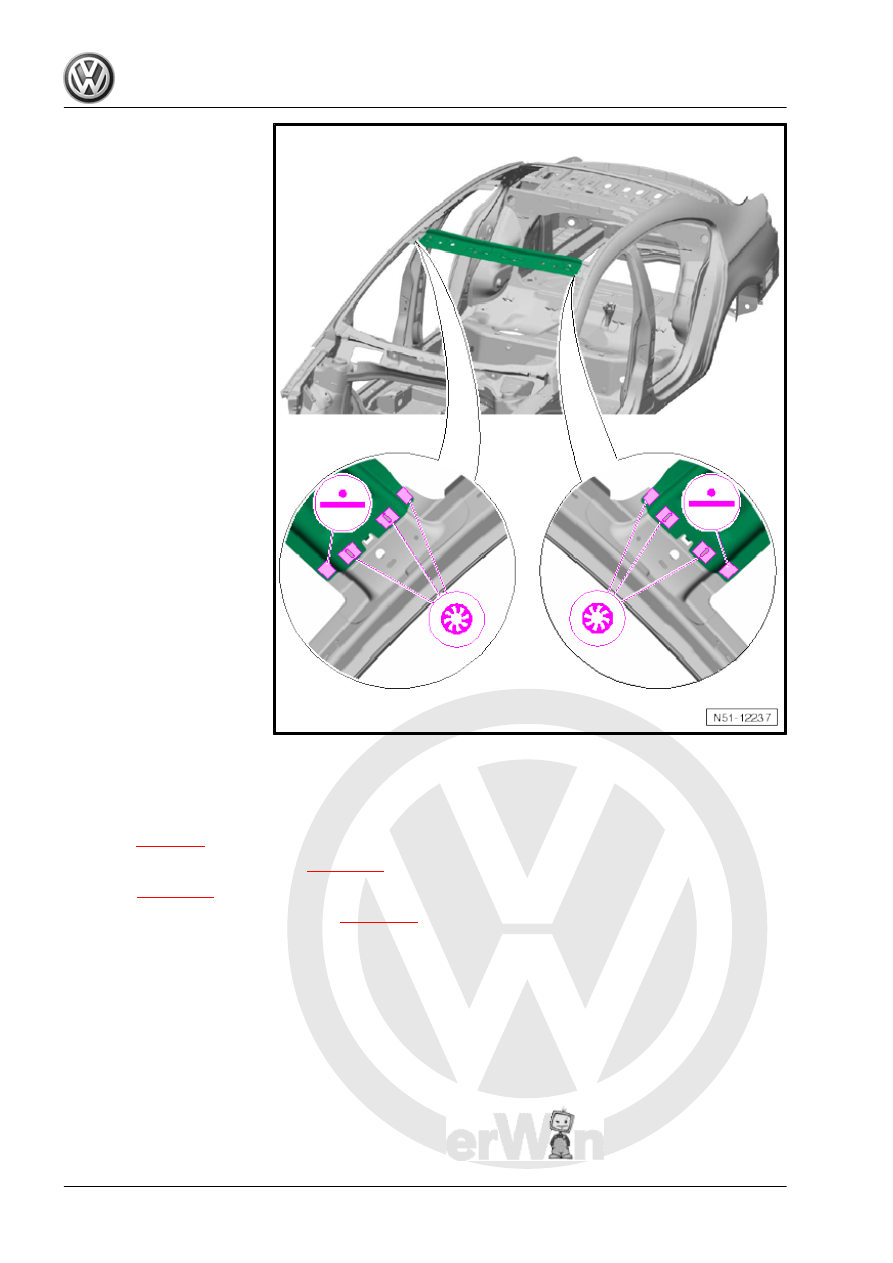

plug weld seam.

Install roof.
• Saloon

⇒ page 96

• Saloon with sliding/tilting sunroof

⇒ page 112

• Variant

⇒ page 129

• Variant with panorama sliding sunroof

⇒ page 129

Passat 2011 ➤ , Passat Variant 2011 ➤
