member

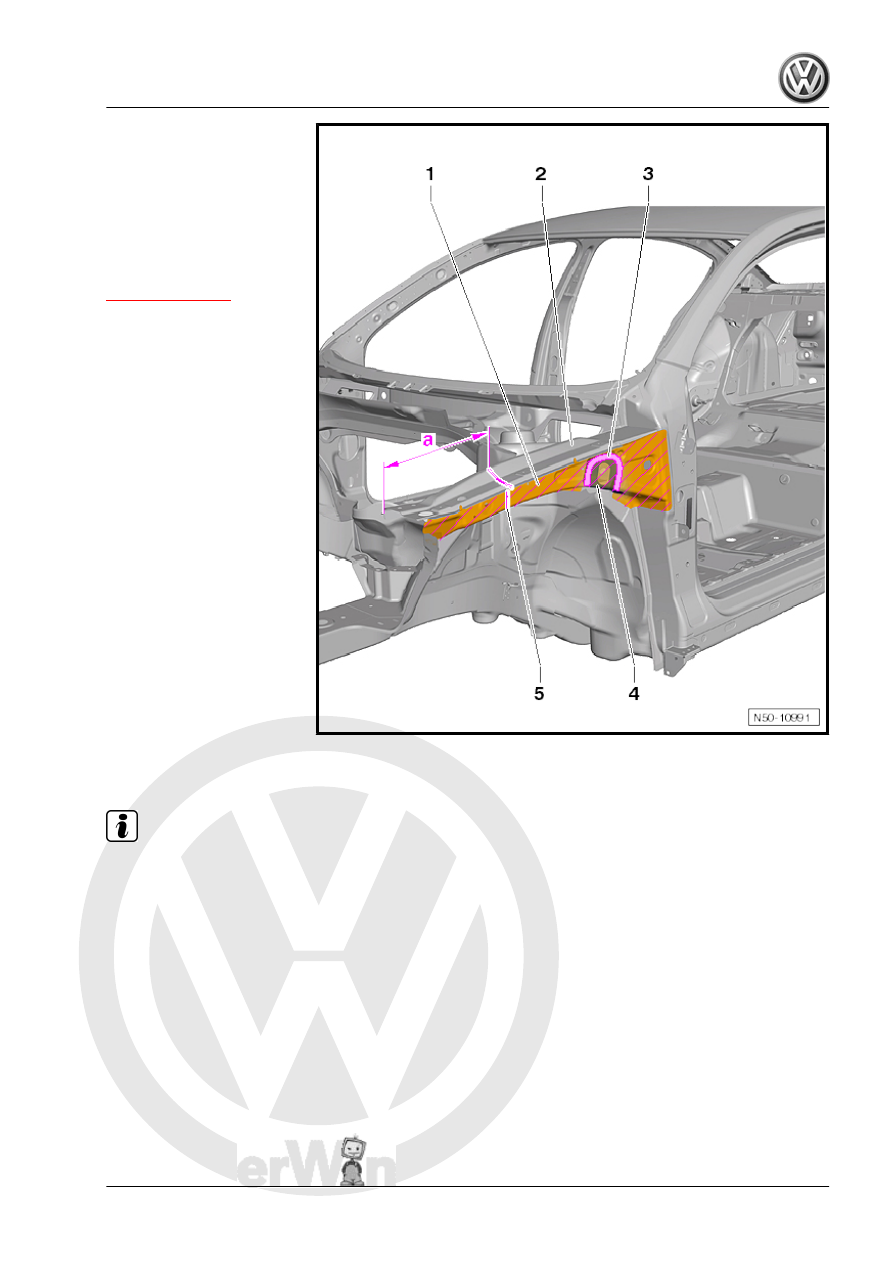

2 - Front inner longitudinal

member
3 - Bonded area
4 - Aperture to plenum cham‐

ber
Cut out together with

⇒ Item 1 (page 49)

 .

5 - Parting cut for partial re‐

placement
A partial replacement can also

be made with the specified

parting cut.

Dimension -a- = 270 mm

5.1

Tools

Note

♦

The use of different types and different thicknesses of steel

requires that only the welding units (inverters) authorised by

Volkswagen AG may be used to carry out repairs properly.

♦

The welding units (inverters) and body tools authorised by

Volkswagen AG are listed in ⇒  ServiceNet, Workshop Equip‐

ment, EH catalogue, Workshop equipment, Body and paint‐

work .

Passat 2011 ➤ , Passat Variant 2011 ➤

5. Renewing upper wheel housing longitudinal member

49

Removing

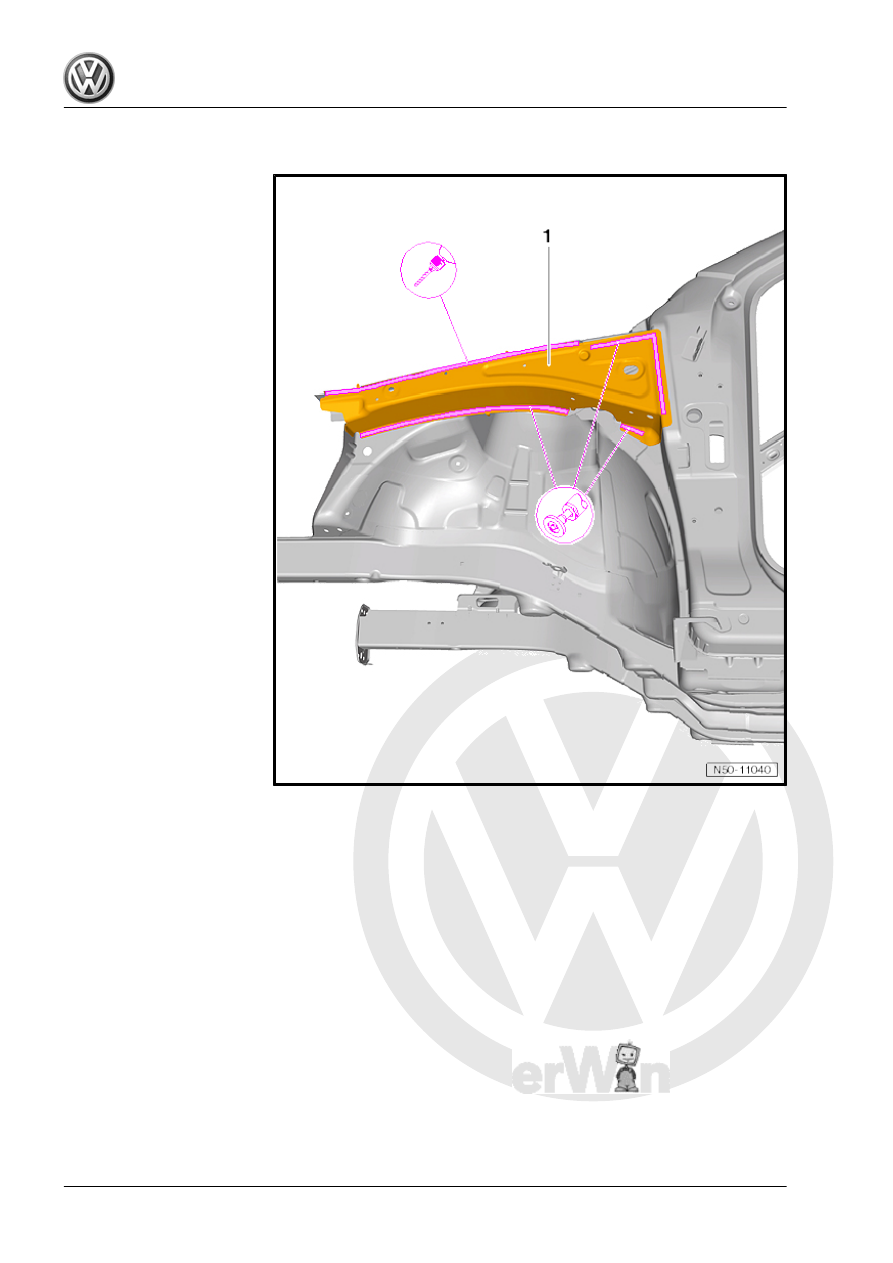

– Separate original joint at upper outer longitudinal member

-1-.

Passat 2011 ➤ , Passat Variant 2011 ➤

50

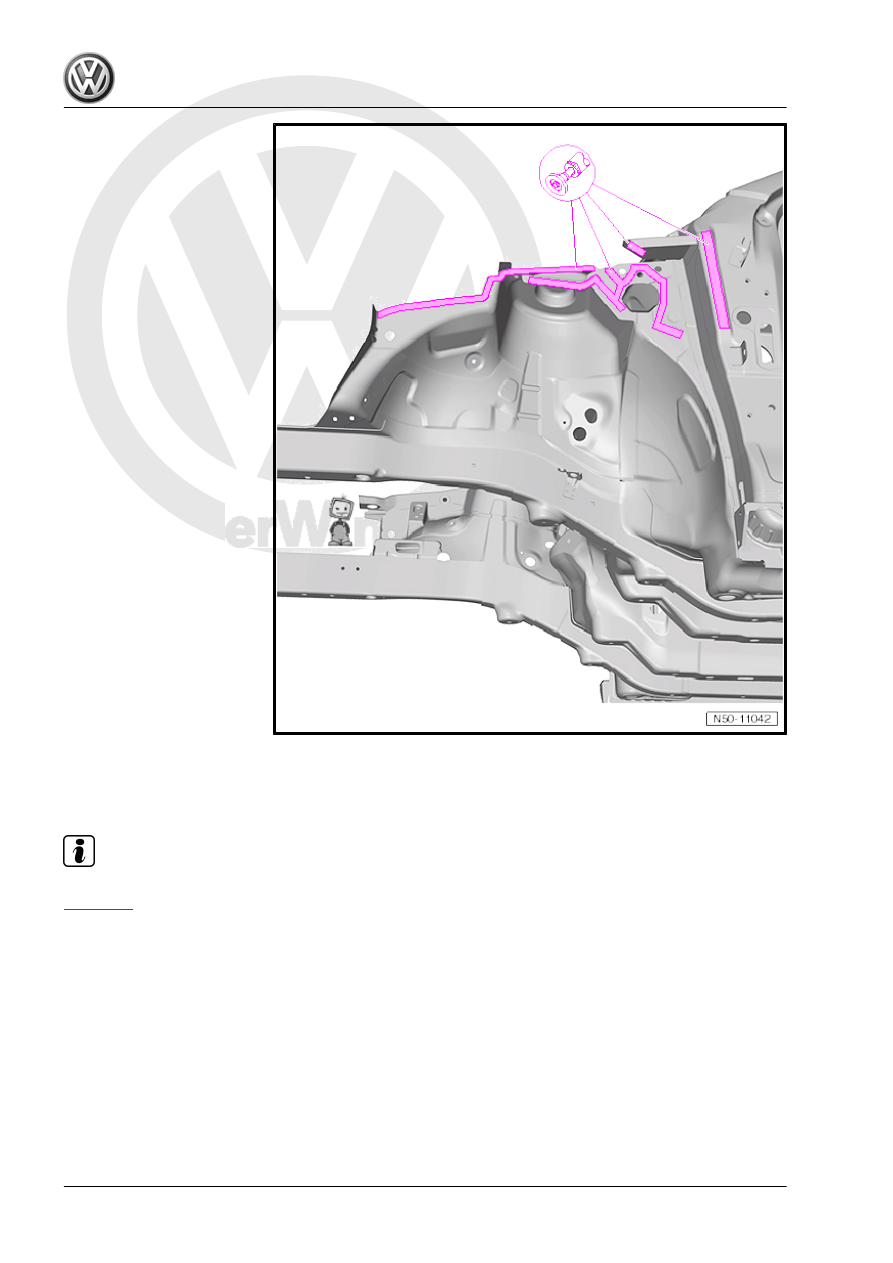

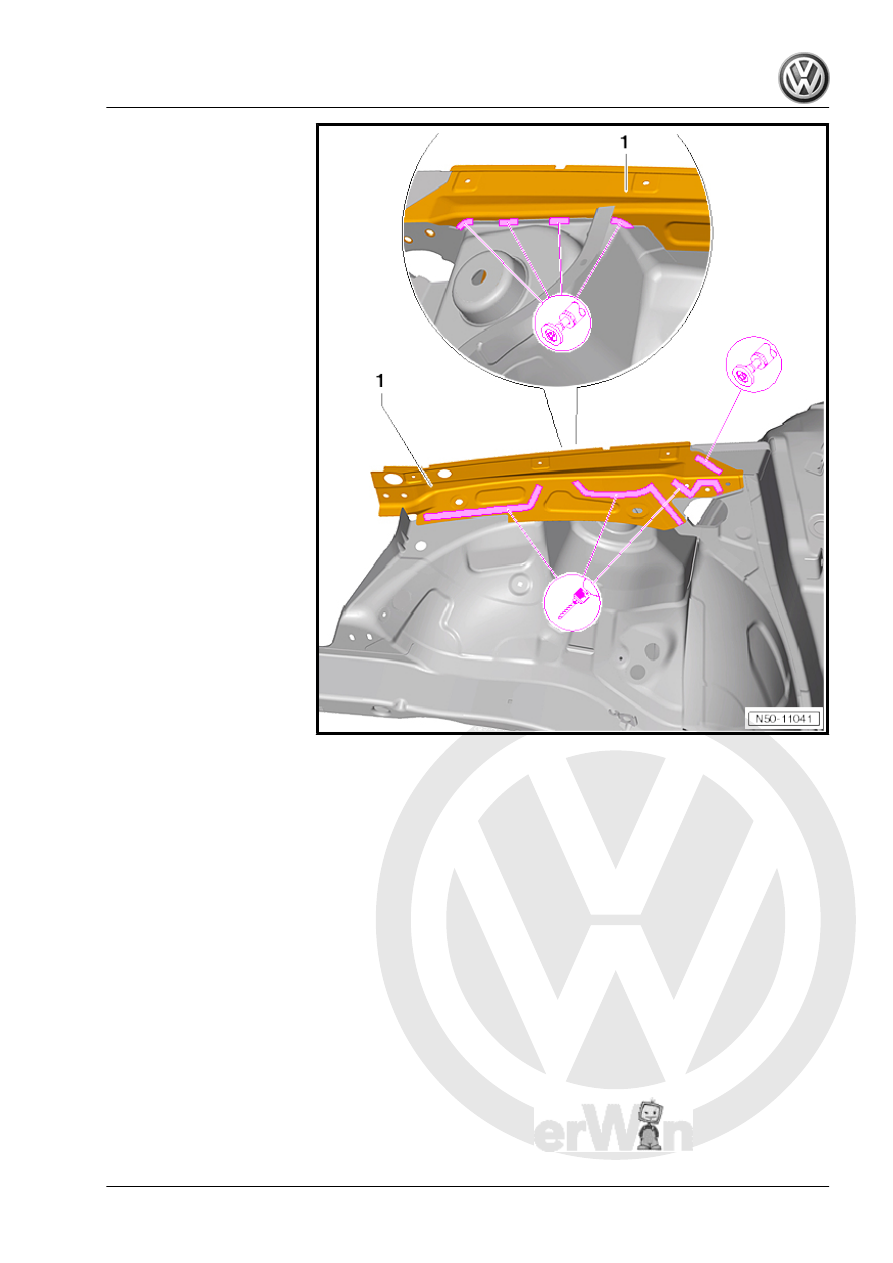

-1-.

Passat 2011 ➤ , Passat Variant 2011 ➤

5. Renewing upper wheel housing longitudinal member

51

5.3

Installing

Note

Only welding units authorised by Volkswagen AG may be used

⇒ page 49

 .

5.3.1

Preparing new part

New part
♦ Upper inner longitudinal member
♦ Upper outer longitudinal member
♦ 2K body adhesive -D 180 KD3 A2-
