Volkswagen Passat / Passat Variant (2011 year). Manual - part 8

Portal gauge

Note

Alignment tasks may only be performed using Volkswagen AG

approved alignment bracket sets or measurement and alignment

systems .

10.1

Overview

Special tools and workshop equipment required
♦ Portal gauge -VAS 5007-
♦ Portal gauge supplementary set for Passat 2006 -VAS

5007/22-

♦ Alignment bracket set Passat 2011 -VAS6325/3-
♦ Basic alignment bracket set -V.A.G 1610/-

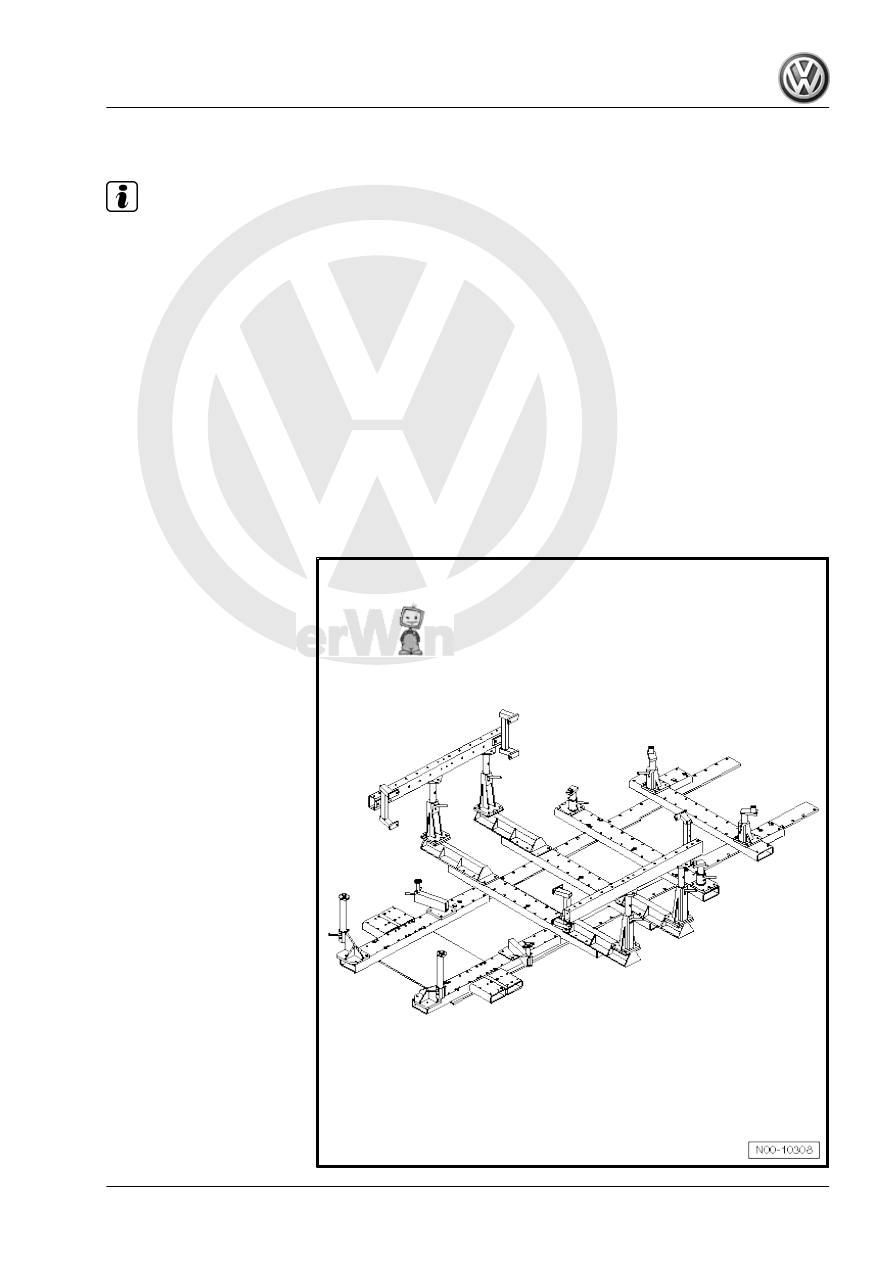

10.1.1

Front door aperture

Set up for portal gauge -VAS 5007- with portal gauge supplement

for Passat 2006 -VAS 5007/22- , front door aperture.

Passat 2011 ➤ , Passat Variant 2011 ➤

10. Portal gauge

29

for Passat 2006 -VAS 5007/22- set can be found with the equip‐

ment.

10.1.2

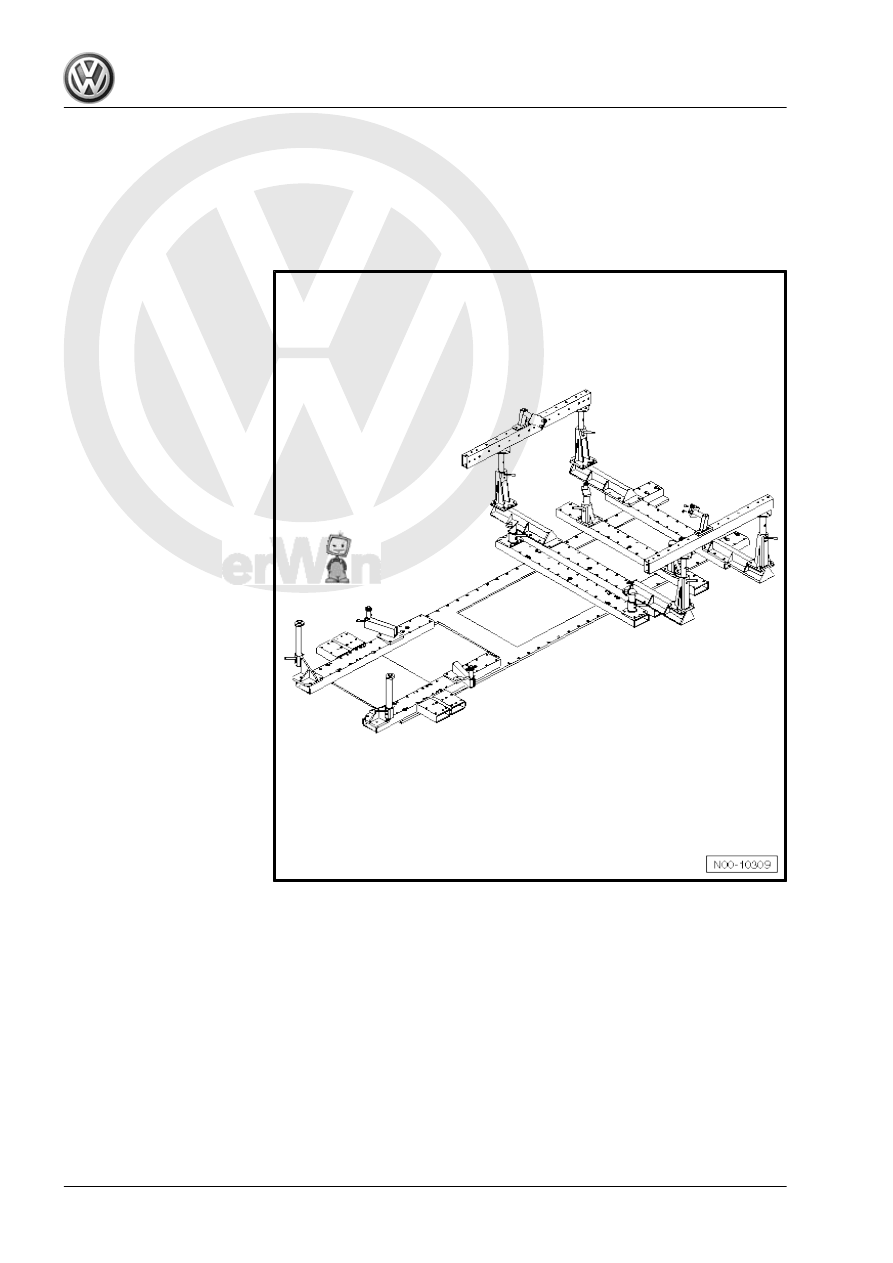

Rear door aperture

Set up for portal gauge -VAS 5007- with portal gauge supplement

for Passat 2006 -VAS 5007/22- , rear door aperture.

Detailed information on setting up the portal gauge supplement

for Passat 2006 -VAS 5007/22- set can be found with the equip‐

ment.

Passat 2011 ➤ , Passat Variant 2011 ➤

30

RO: 50 40 55 50

1

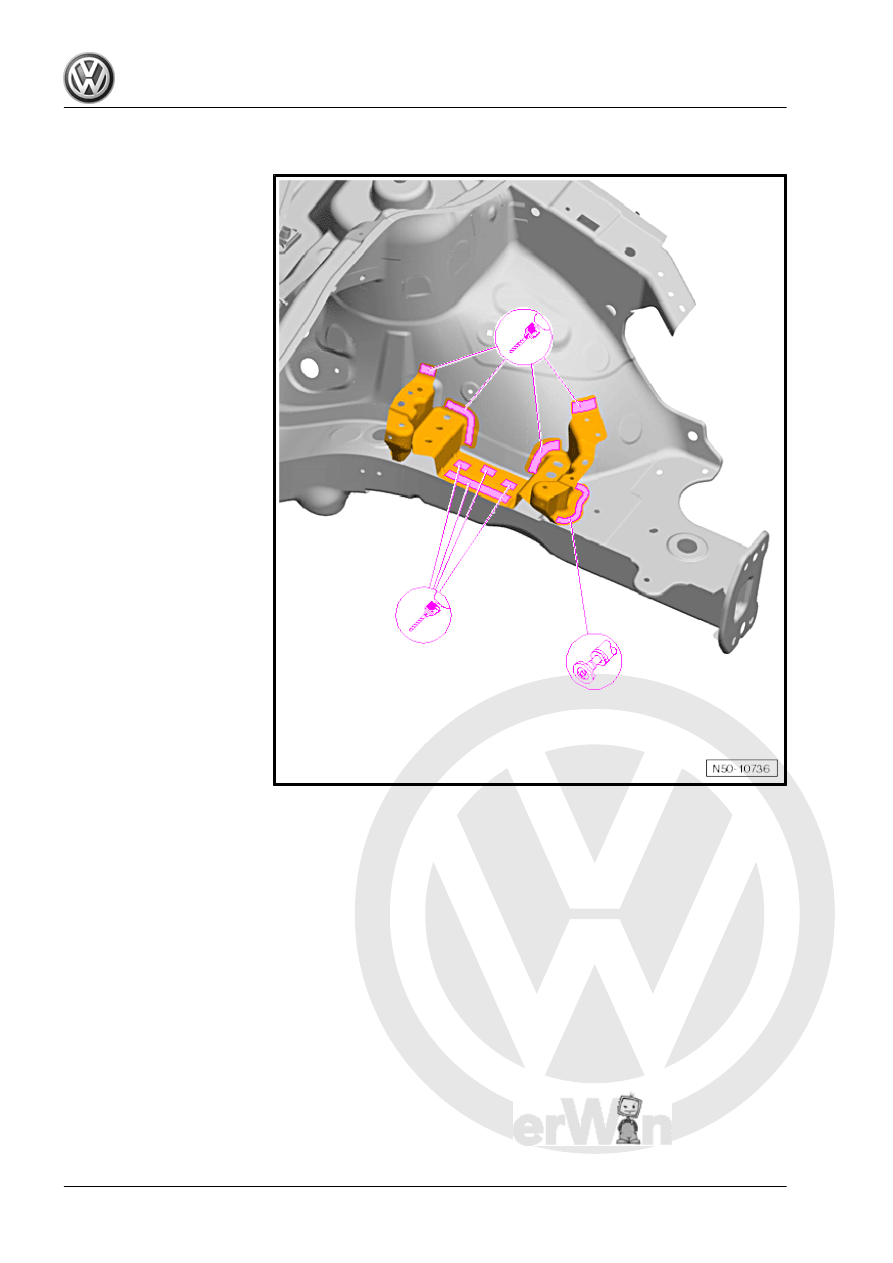

Renewing left console

WARNING

Observe safety notes!

Safety notes ⇒ General Information; Body Repairs, General Body

Repairs ; Safety notes

1.1

Tools

Note

♦

The use of different types and different thicknesses of steel

requires that only the welding units (inverters) authorised by

Volkswagen AG may be used to carry out repairs properly.

♦

The welding units (inverters) and body tools authorised by

Volkswagen AG are listed in ⇒  ServiceNet, Workshop Equip‐

ment, EH catalogue, Workshop equipment, Body and paint‐

work .

Passat 2011 ➤ , Passat Variant 2011 ➤

1. Renewing left console

31

Removing

– Separate original joint.

Passat 2011 ➤ , Passat Variant 2011 ➤

32
