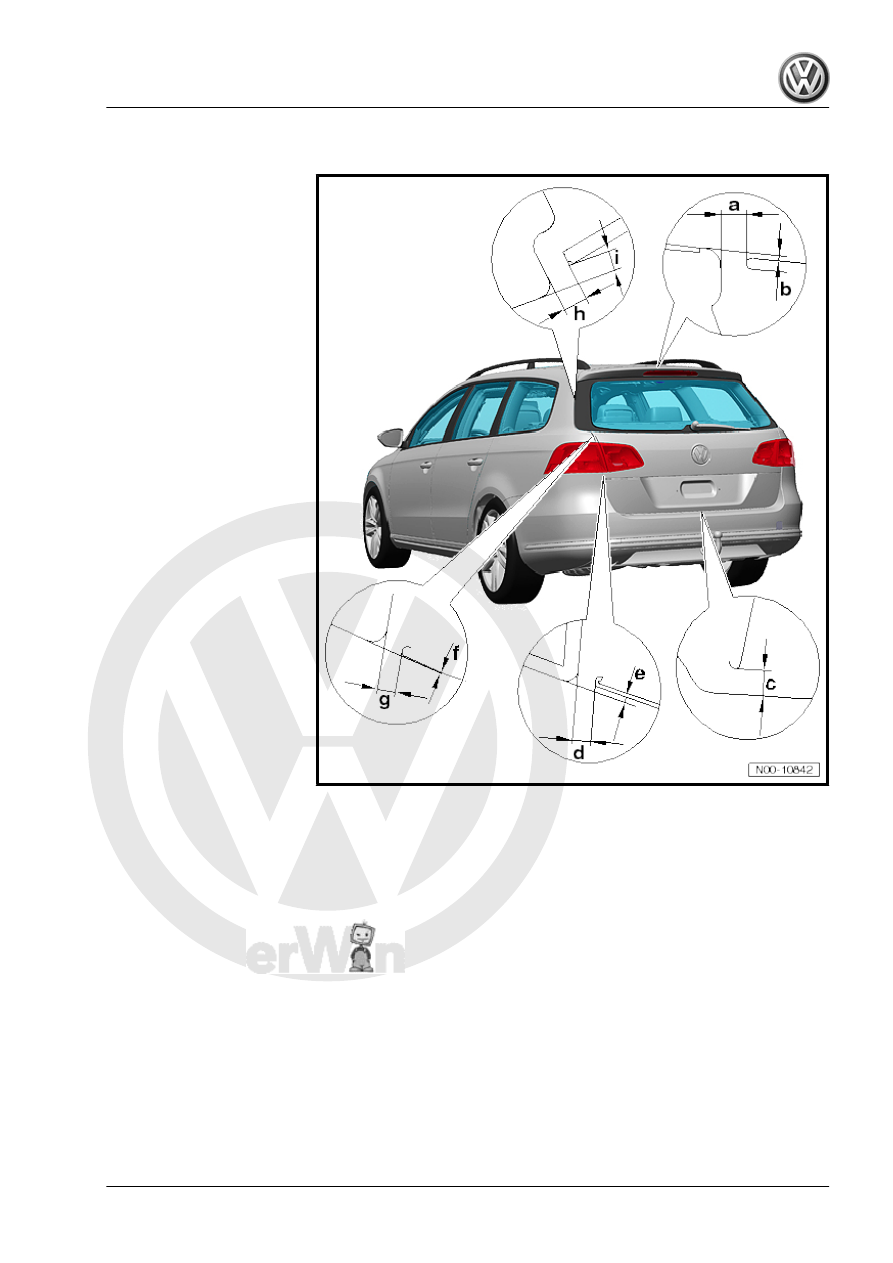

Body - rear (Variant)

a - 5.0 mm ± 0.5 mm
b - – 0.8 mm – 1.0 mm + 0.5

mm
c - 5.0 mm ± 0.5 mm
d - 3.5 mm ± 0.5 mm
e - – 1.1 mm ± 0.5 mm
f - – 0.6 mm ± 0.5 mm
g - 3.5 mm ± 0.5 mm
h - 5.0 mm ± 0.5 mm
i - – 4.3 mm ± 0.5 mm

Passat 2011 ➤ , Passat Variant 2011 ➤

6. Body panel gaps/shut lines

13

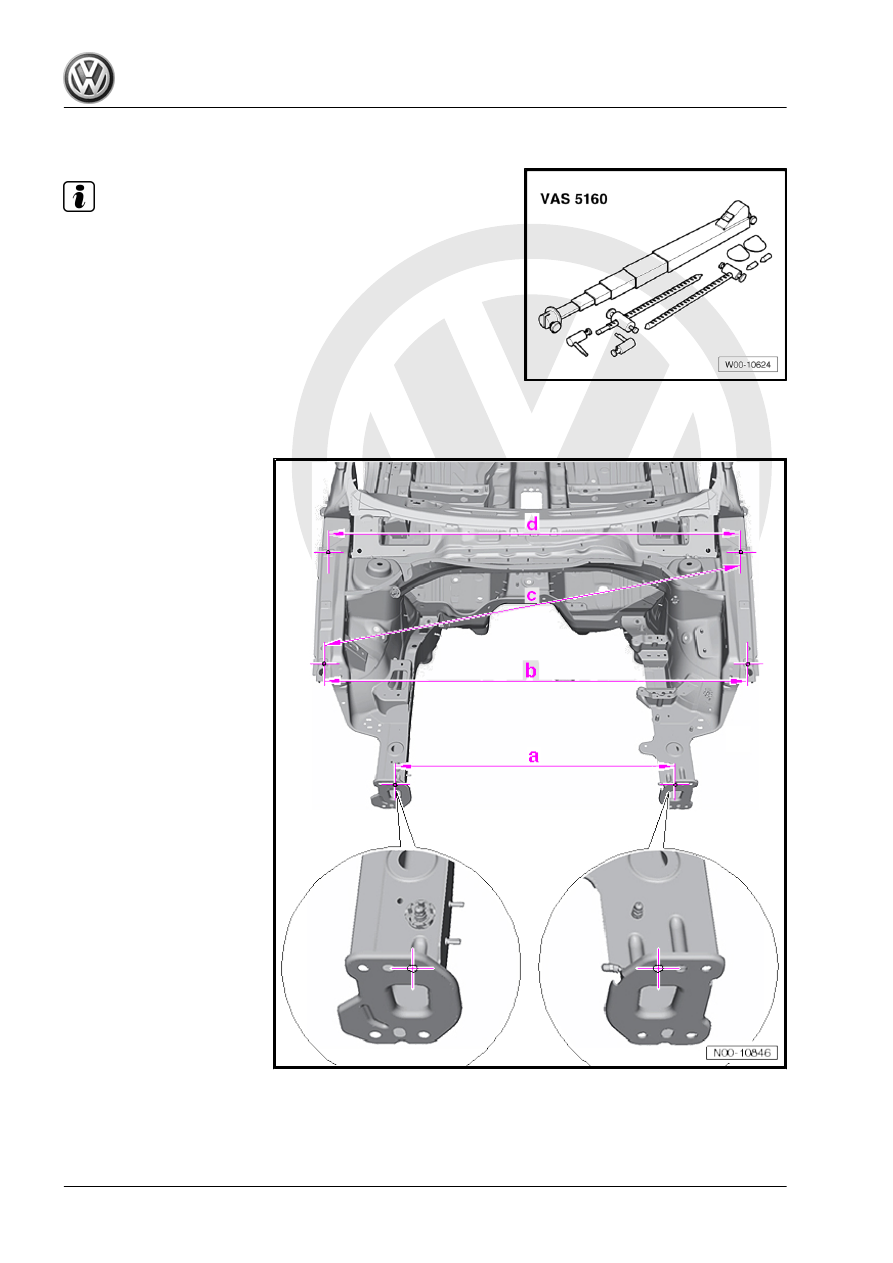

Body dimensions

Note

♦

Dimensions only given for checking purposes. The alignment

bracket set is the final authority.

♦

Bolts, screws, plugs, trim and attached components must be

removed before starting the measuring process.

♦

Use Telescopic gauge -VAS 5159- or Telescopic gauge -VAS

5160- to determine body dimensions.

♦

Ensure measuring probes are always of even length to prevent

inaccuracies when measuring.

7.1

Body - front

a - 938 mm ± 2.0 mm
b - 1,438 mm ± 2.0 mm
c - 1,550 mm ± 2.0 mm
d - 1,513 mm ± 2.0 mm

Passat 2011 ➤ , Passat Variant 2011 ➤

14

Passat 2011 ➤ , Passat Variant 2011 ➤

7. Body dimensions

15

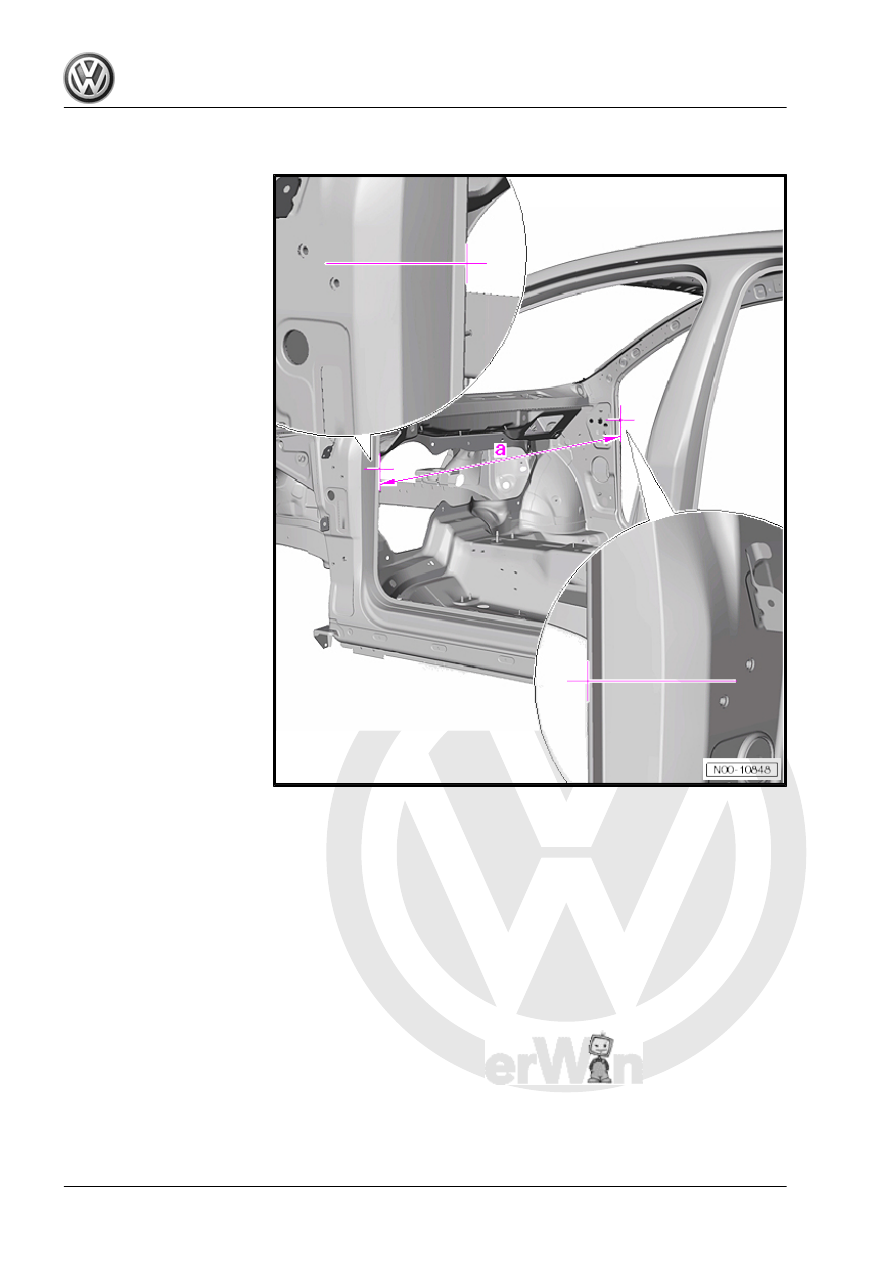

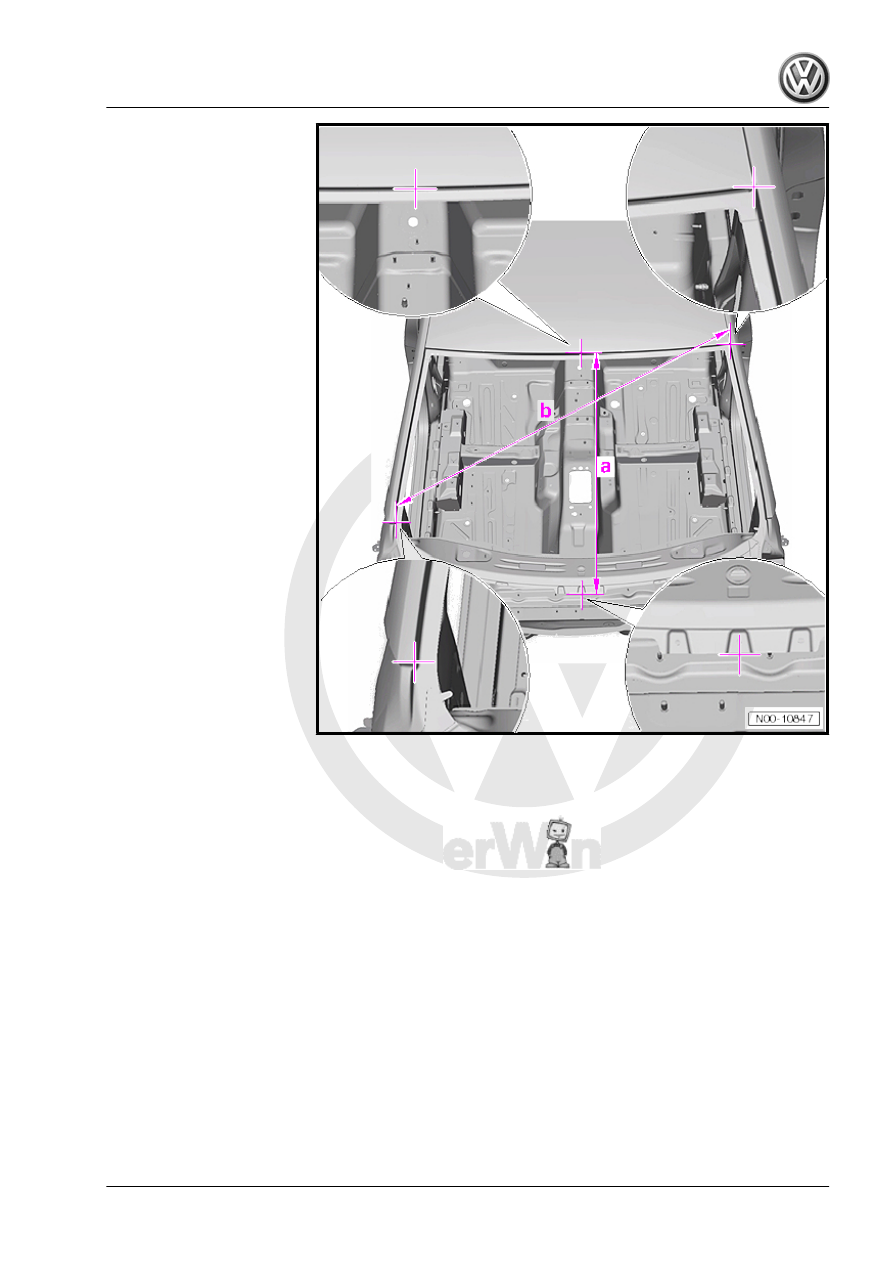

Body - centre

a - 1,445 mm ± 2.0 mm

Passat 2011 ➤ , Passat Variant 2011 ➤
