Carry out following work:
– Removing front door trim ⇒  General body repairs, interior;

Rep. gr.  70 ; Door trim .

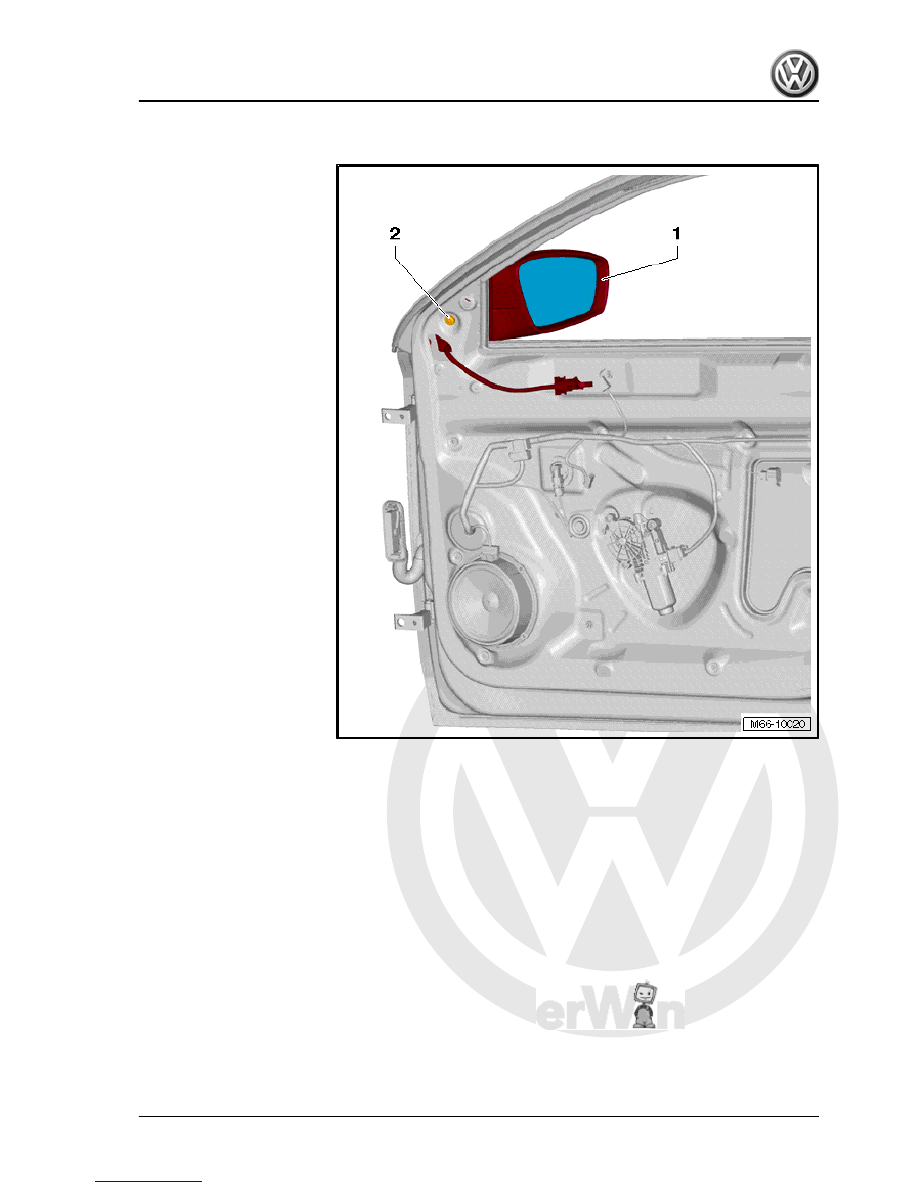

– Detach connector (if there is one) for electric mirror heater.
– Undo bolt -2- for exterior mirror -1-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

2. Exterior mirror

253

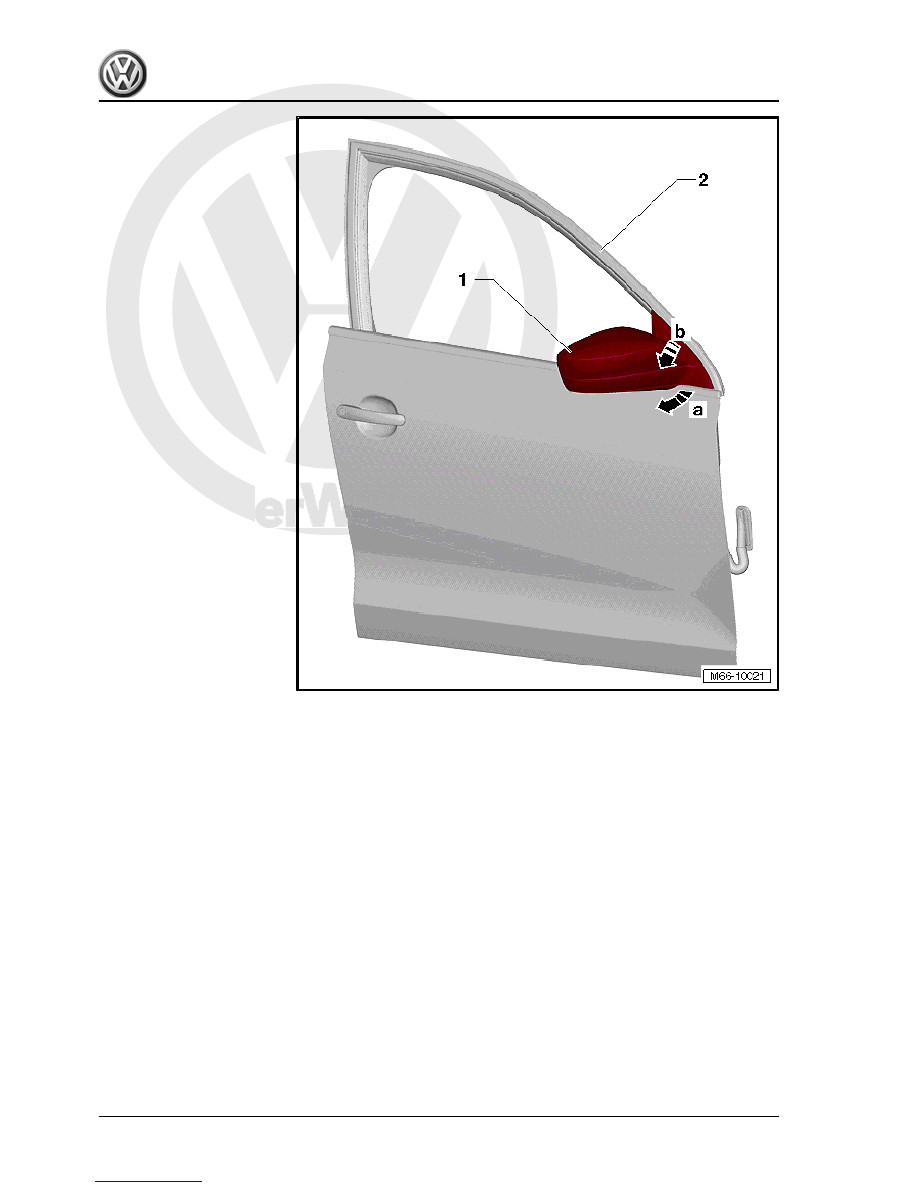

-2- -arrow b-.

– Thread cables for operating exterior mirror through the hole in

the door and remove exterior mirror -1-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

254

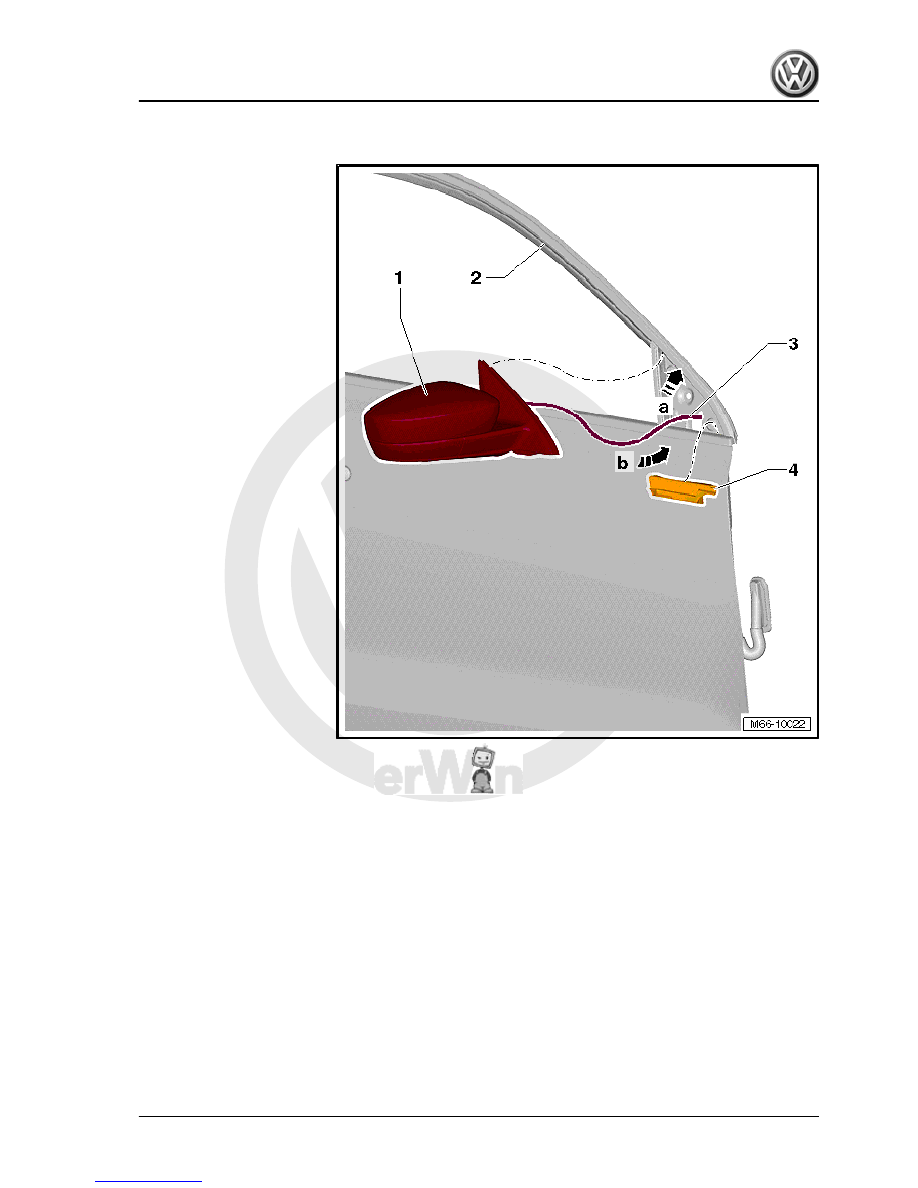

Carry out following work:
– Check that the foam part -4- is correctly installed in the door.
– Thread cables for operating the exterior mirror -3- through

opening in door.

– Push exterior mirror -1- into window channel -2- from below

-arrow a- and press the lower part onto the door -arrow b-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

2. Exterior mirror

255



2.9

Removing and installing exterior mirror

(electrical operation)

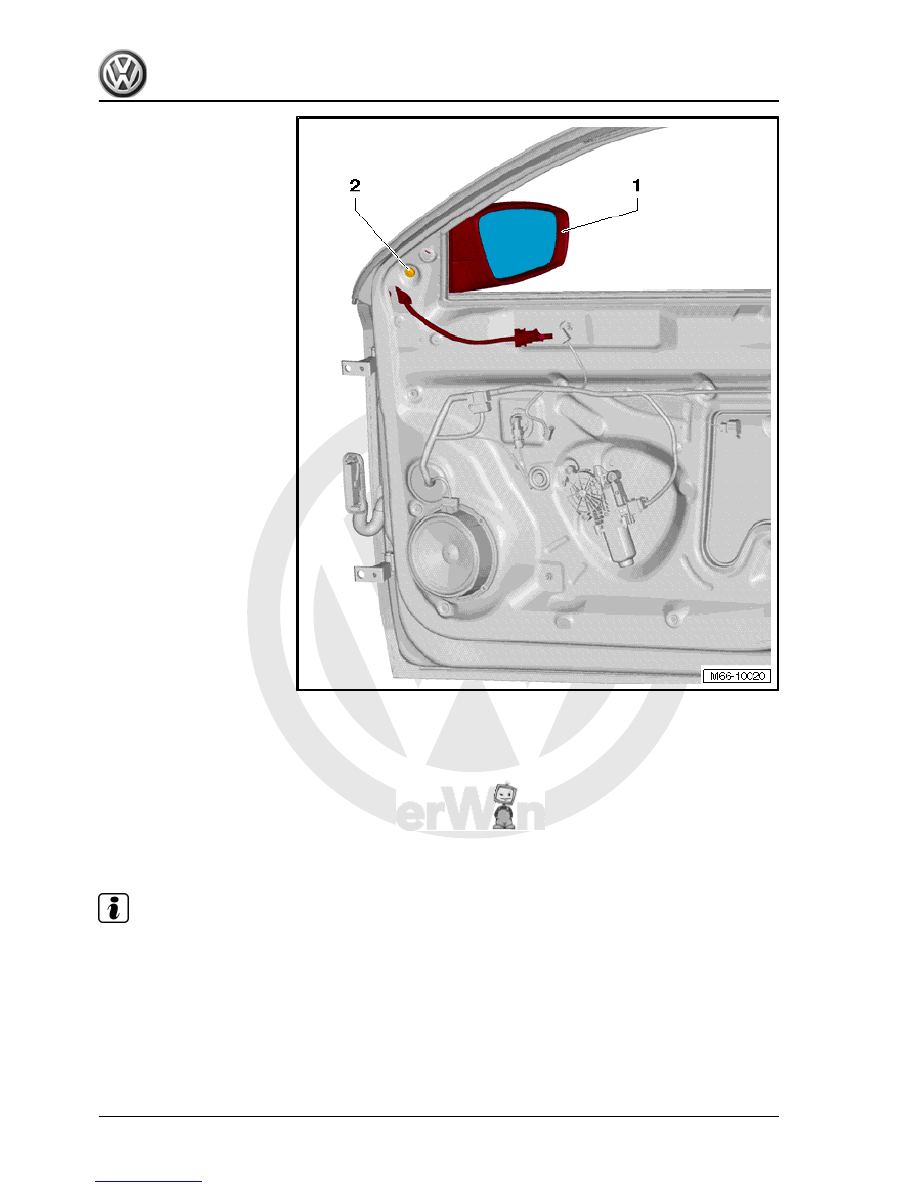

Note

The removal and installation sequence is only for the right exterior

mirror. Removal and installation of the left exterior mirror are sim‐

ilar.
