Tools

Special tools and workshop equipment required

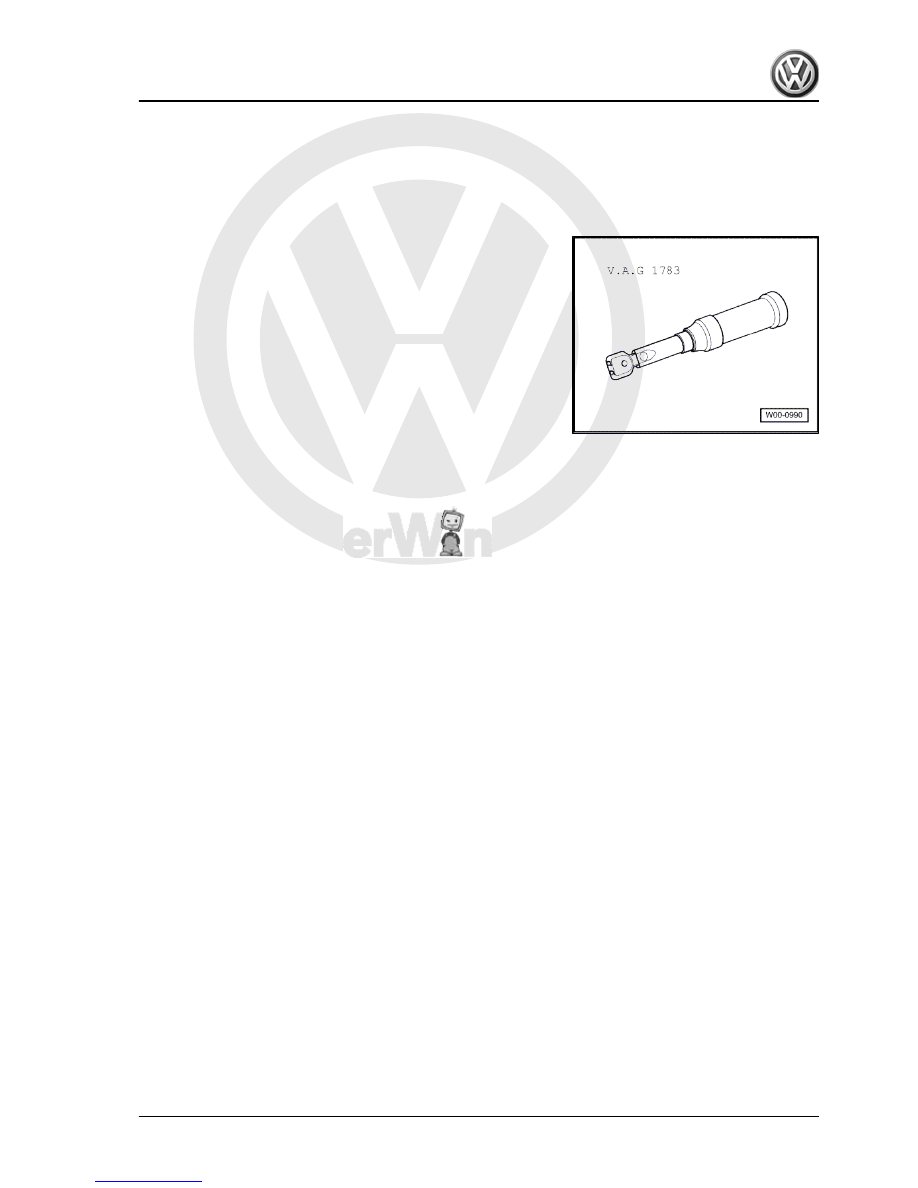

♦ Torque wrench -V.A.G 1783-

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

2. Front door window

205



Note

The right side is shown. The left side is similar.

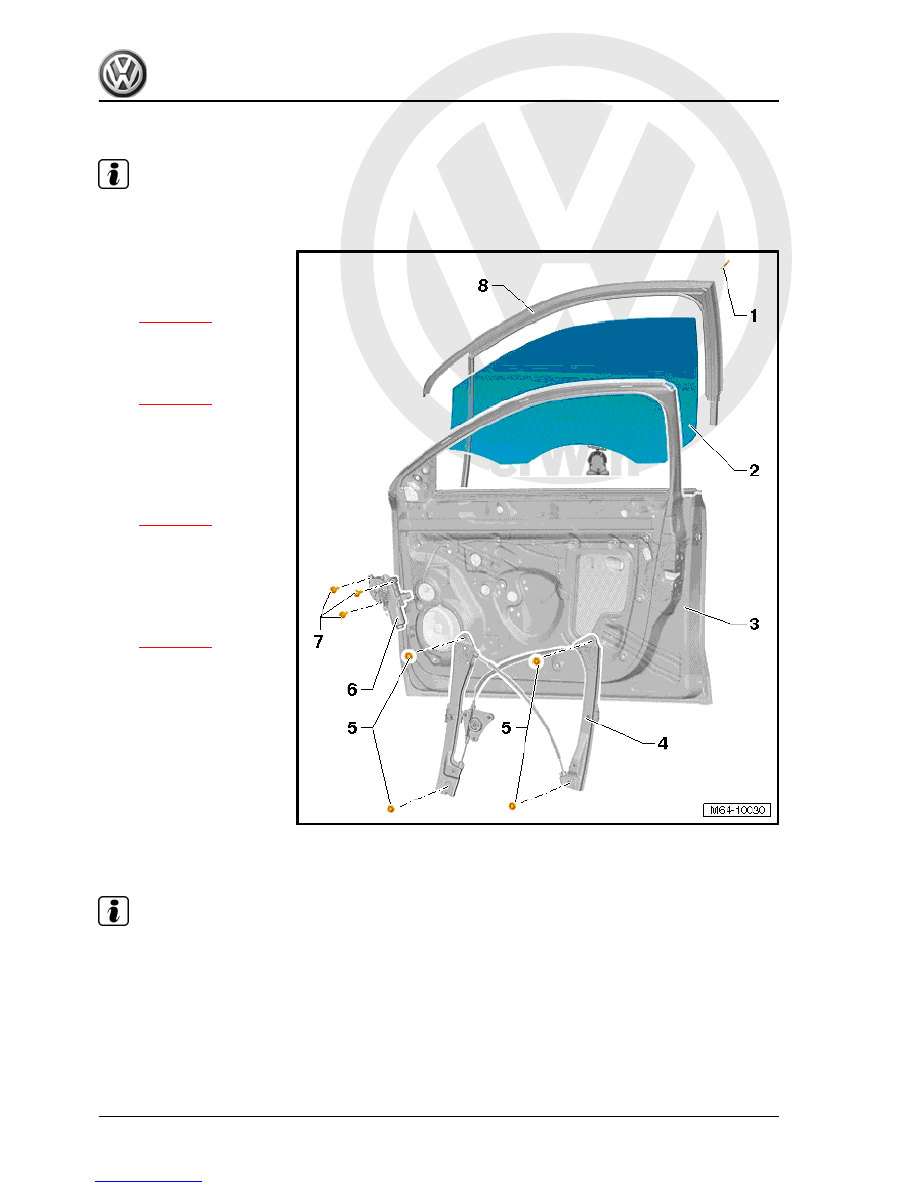

1 - Retaining clip
2 - Door window

❑ Removing and installing

⇒ page 206

3 - Front door
4 - Window regulator

❑ Removing and installing

⇒ page 214

5 - Nut

❑ Qty. 4.
❑ Specified torque: 8 Nm

6 - Window regulator motor

❑ Removing and installing

⇒ page 212

7 - Bolt

❑ Qty. 3.
❑ Specified torque: 4 Nm

8 - Window channel

❑ Removing and installing

⇒ page 217

2.3

Removing and installing door window

Note

Removal and installation are described only for the right door

window. The removal and installation of the left door window is

similar.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

206



Carry out following work:
– Removing front door trim ⇒  General body repairs, interior;

Rep. gr.  70 ; Door trim .

– Remove cover -2-

⇒ page 86

 .

– Lever off cap -5-.
– Lower door window -1- until clamping bolts -3- for door window

are accessible.

Note

♦

If this part of the work cannot be done due to a fault in window regulator motor -6-, the latter can be removed

⇒ page 212

 .

♦

The window can then be pushed to required working position.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

2. Front door window

207



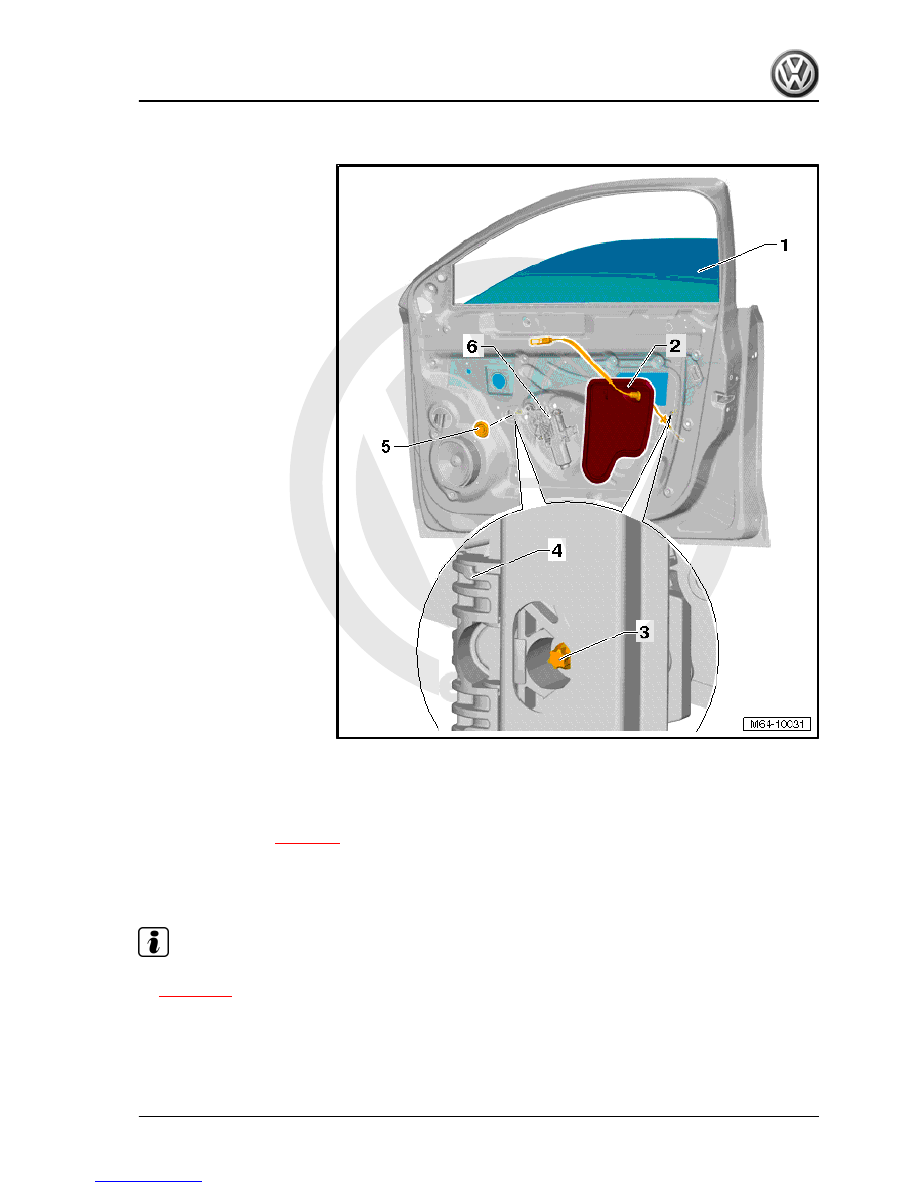

– Loosen clamping bolt -3- by turning it clockwise (do not re‐

move) and press clamping jaws -4- apart.

– Lift door window -1- upwards out of clamping jaws -3-

-arrows a-.

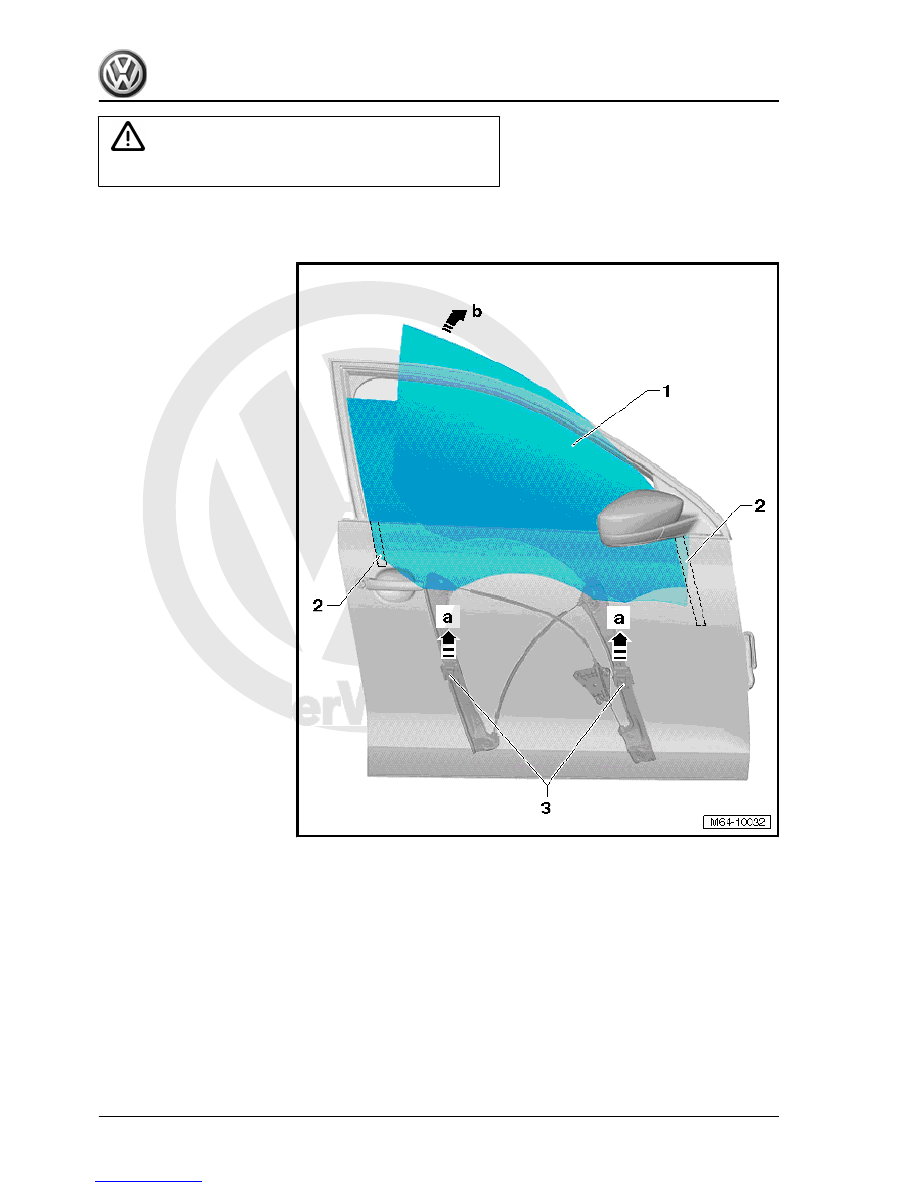

– Lift door window -1- from behind and swing forwards out of

window channels -2- -arrow b-.
